Page 1057 of 4462

INFINITI FX35 2006 Service Manual BODY REPAIR BL-243 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 Body AlignmentNIS001QB BODY CENTER MARKS A mark has been placed on each part of the body to indicate th

Page 1058 of 4462

INFINITI FX35 2006 Service Manual BL-244 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 PANEL PARTS MATCHING MARKS A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts damaged b

Page 1059 of 4462

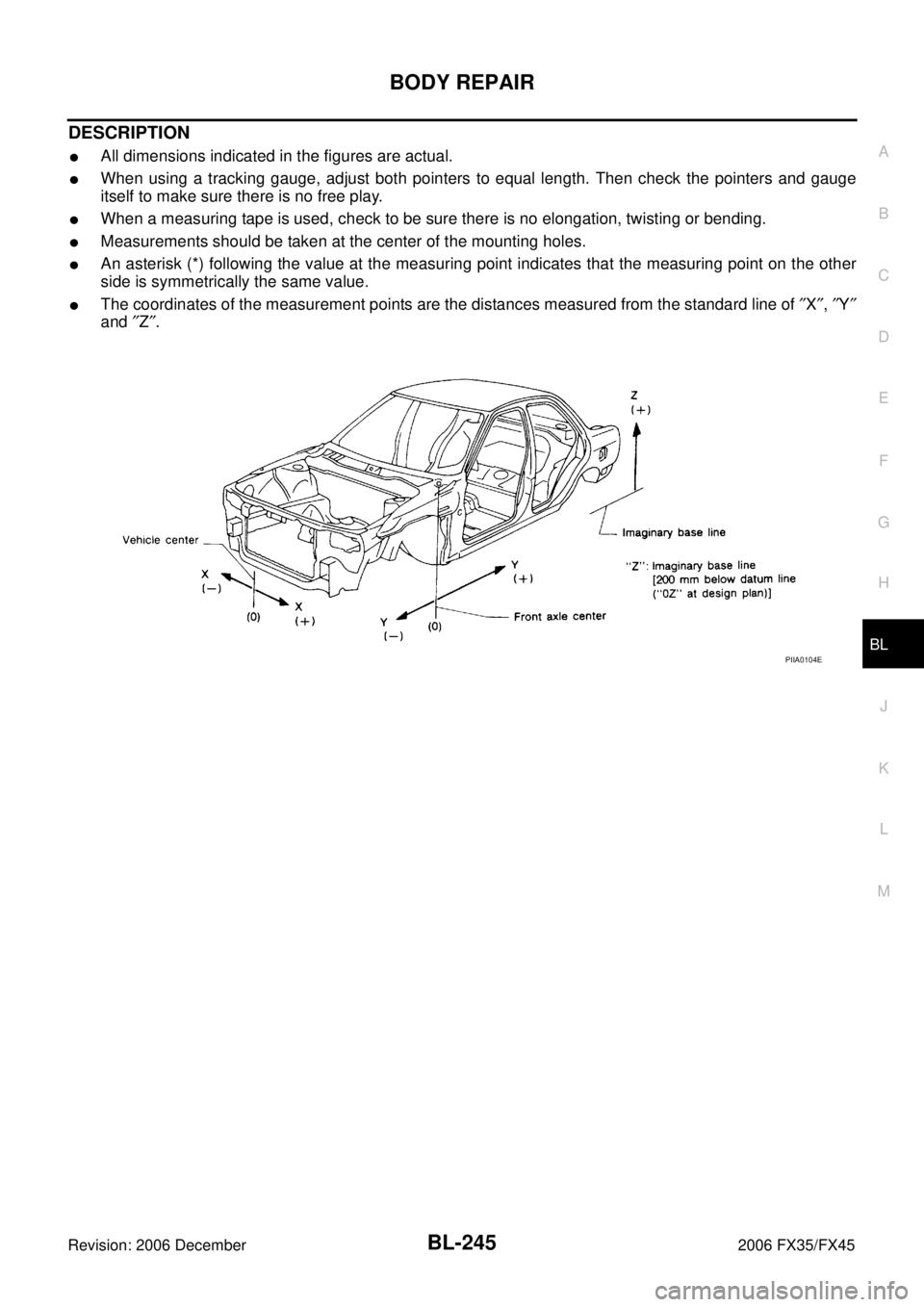

INFINITI FX35 2006 Service Manual BODY REPAIR BL-245 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 DESCRIPTION All dimensions indicated in the figures are actual. When using a tracking gauge, adjust b

Page 1060 of 4462

INFINITI FX35 2006 Service Manual BL-246 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 ENGINE COMPARTMENT Measurement SIIA2260E

Page 1061 of 4462

INFINITI FX35 2006 Service Manual BODY REPAIR BL-247 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 Measurement Points SIIA2261E

Page 1062 of 4462

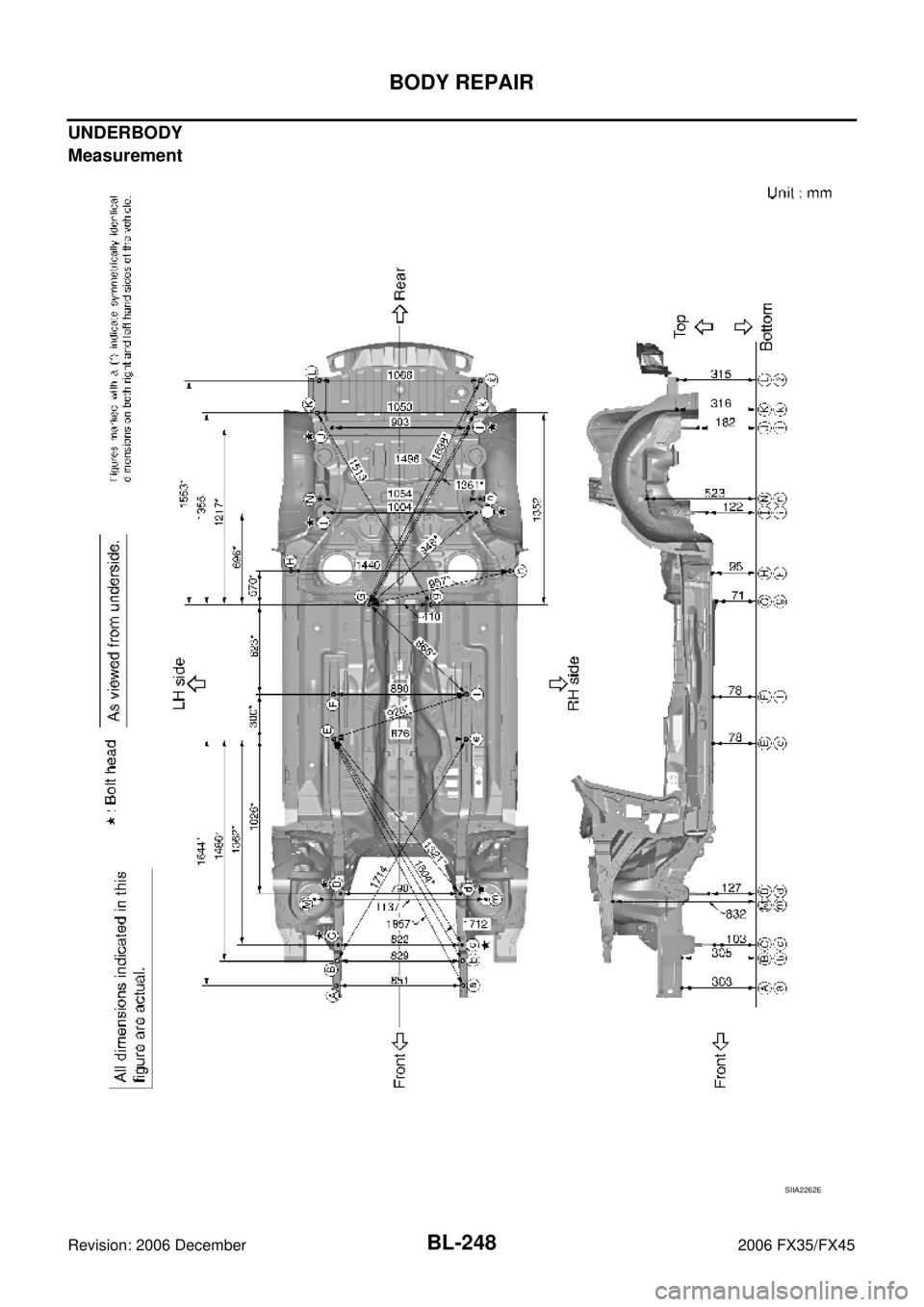

INFINITI FX35 2006 Service Manual BL-248 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 UNDERBODY Measurement SIIA2262E

Page 1063 of 4462

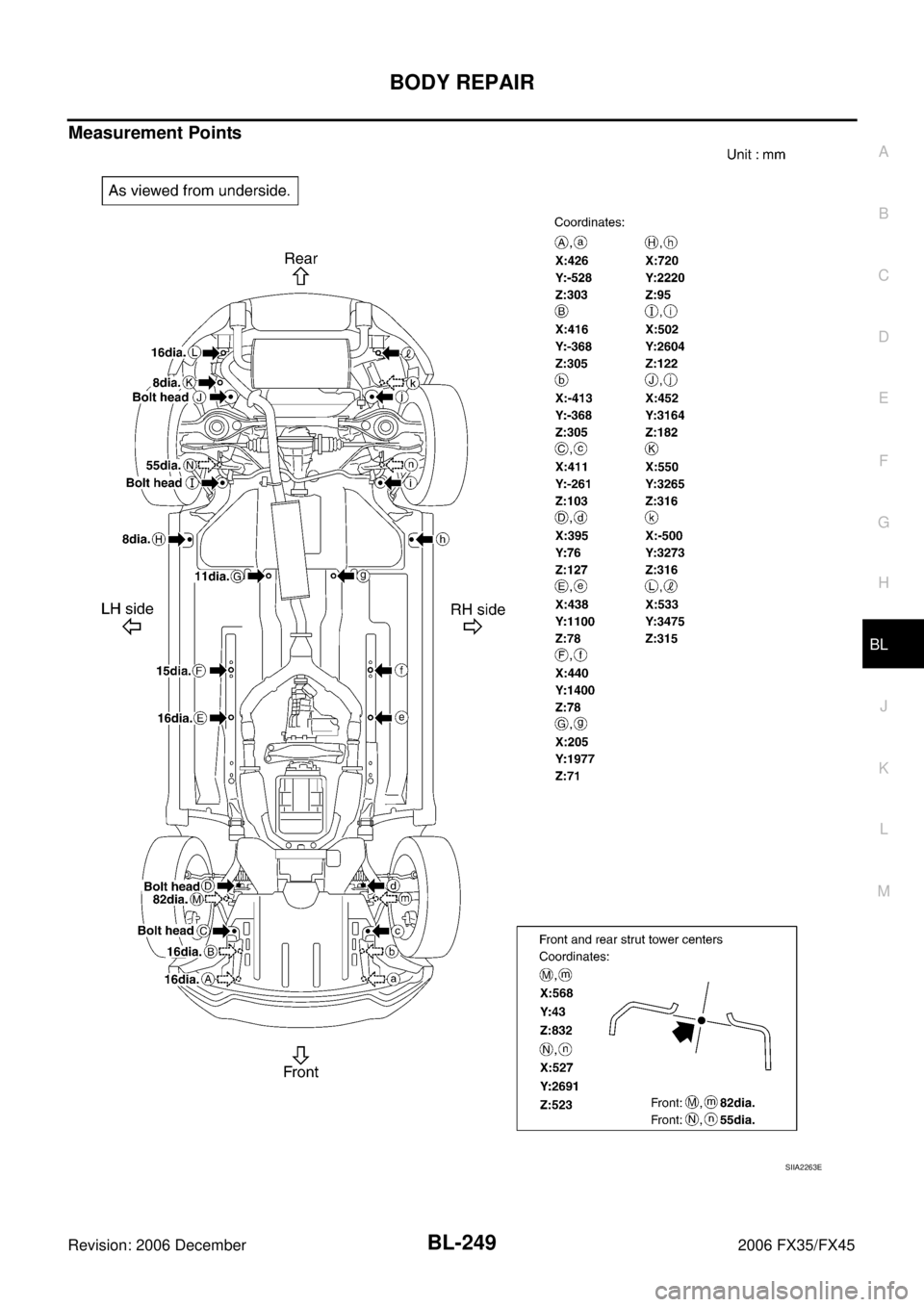

INFINITI FX35 2006 Service Manual BODY REPAIR BL-249 C D E F G H J K L M A B BL Revision: 2006 December 2006 FX35/FX45 Measurement Points SIIA2263E

Page 1064 of 4462

INFINITI FX35 2006 Service Manual BL-250 BODY REPAIR Revision: 2006 December 2006 FX35/FX45 PASSENGER COMPARTMENT Measurement SIIA2264E
