REPAIR FOR COMPONENT PARTS AT-333
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45

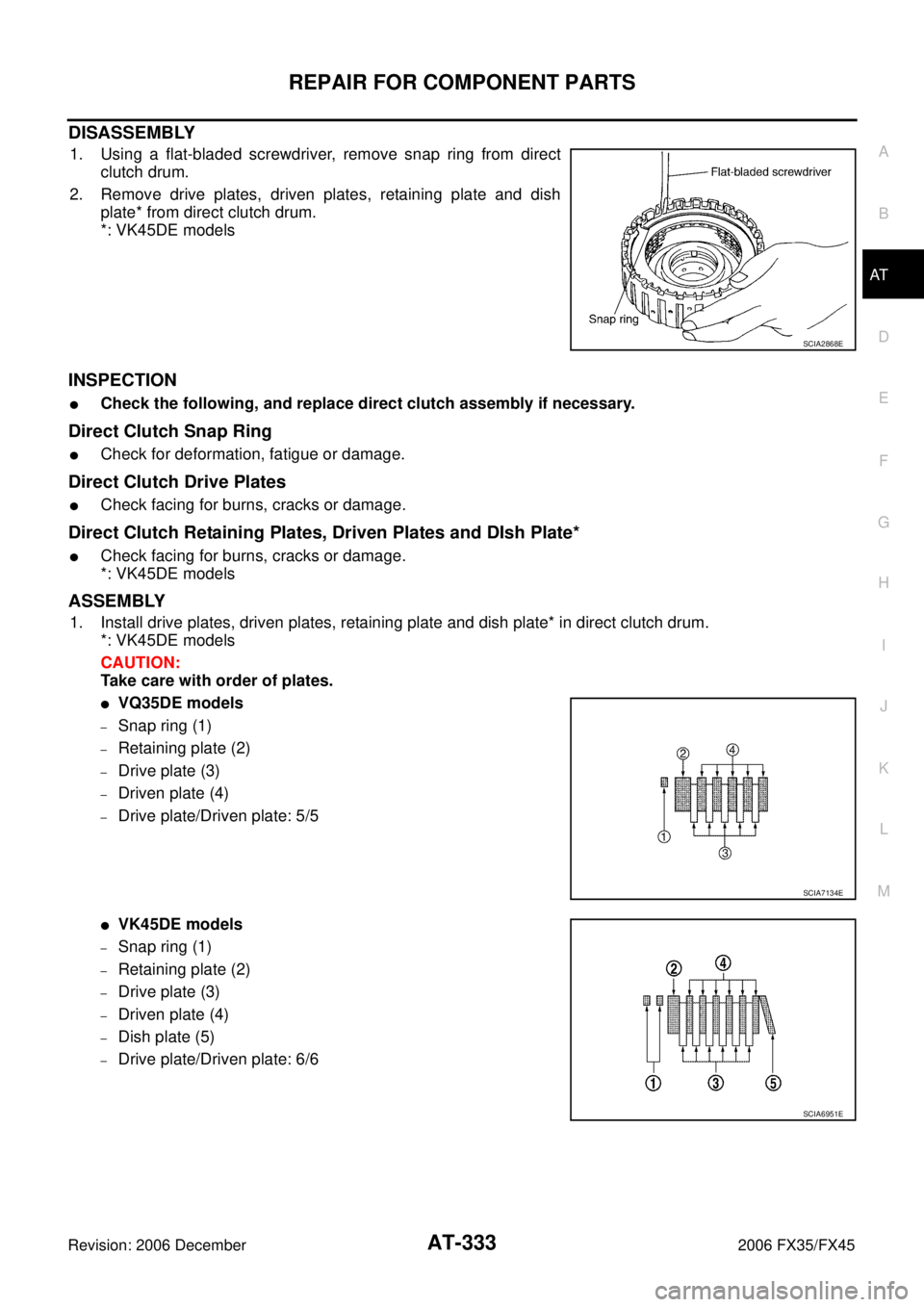

DISASSEMBLY
1. Using a flat-bladed screwdriver, remove snap ring from direct clutch drum.
2. Remove drive plates, driven plates, retaining plate and dish plate* from direct clutch drum.
*: VK45DE models
INSPECTION
Check the following, and replace direct clutch assembly if necessary.
Direct Clutch Snap Ring
Check for deformation, fatigue or damage.
Direct Clutch Drive Plates
Check facing for burns, cracks or damage.
Direct Clutch Retaining Plates, Driven Plates and DIsh Plate*
Check facing for burns, cracks or damage.
*: VK45DE models
ASSEMBLY
1. Install drive plates, driven plates, retaining plate and dish plate* in direct clutch drum. *: VK45DE models
CAUTION:
Take care with order of plates.
VQ35DE models
–Snap ring (1)
–Retaining plate (2)
–Drive plate (3)
–Driven plate (4)
–Drive plate/Driven plate: 5/5
VK45DE models
–Snap ring (1)
–Retaining plate (2)
–Drive plate (3)
–Driven plate (4)
–Dish plate (5)
–Drive plate/Driven plate: 6/6
SCIA2868E
SCIA7134E
SCIA6951E
Page 418 of 4462
AT-334
REPAIR FOR COMPONENT PARTS
Revision: 2006 December 2006 FX35/FX45
2. Using a flat-bladed screwdriver, install snap ring in direct clutch drum.
SCIA2868E
Page 419 of 4462
ASSEMBLY AT-335
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
ASSEMBLYPFP:00000
Assembly (1)NCS001IW
1. As shown in the figure, use a drift [commercial service tool: 22mm (0.87in) dia.] to drive manual shaft oil seals into the trans-
mission case until it is flush.
CAUTION:
Do not reuse manual shaft oil seals.
Apply ATF to manual shaft oil seals.
2. Install detent spring and spacer in transmission case, and then tighten detent spring and spacer mounting bolt to the specified
torque. Refer to AT- 2 7 4 , "
Components" .
3. Install manual shaft to transmission case.
4. Install parking rod to manual plate.
SCIA5259E
SCIA5248E
SCIA5716E
SCIA5220E
Page 420 of 4462
AT-336
ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
5. Install manual plate (with parking rod) to manual shaft.
6. Install retaining pin into the manual plate and manual shaft.
a. Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.
b. Use a hammer to tap the retaining pin into the manual plate. CAUTION:
Do not reuse retaining pin.
Drive retaining pin to 2 ±0.5 mm (0.08 ±0.020 in) over the
manual plate.
7. Install retaining pin into the transmission case and manual shaft.
a. Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.
b. Use a hammer to tap the retaining pin into the transmission case.
CAUTION:
Do not reuse retaining pin.
Drive retaining pin to 5 ±1 mm (0.20 ±0.04 in) over the
transmission case.
8. Install O-rings to servo assembly. CAUTION:
Do not reuse O-rings.
Apply petroleum jelly to O-rings.
SCIA5715E
SCIA5297E
SCIA2427E
SCIA5719E
Page 421 of 4462
ASSEMBLY AT-337
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
9. Install return spring to servo assembly.
10. Install servo assembly in transmission case.
11. Using pair of snap ring pliers, install snap ring to transmission case.
12. Install D-rings in reverse brake piston. CAUTION:
Do not reuse D-rings.
Apply ATF to D-rings.
13. Install reverse brake piston in transmission case.
SCIA5717E
SCIA5679E
SCIA2333E
SCIA5340E
SCIA2325E
Page 422 of 4462
AT-338
ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
14. Install needle bearing to drum support edge surface. CAUTION:
Apply petroleum jelly to needle bearing.
15. Install seal rings to drum support. CAUTION:
Do not reuse seal rings.
Apply petroleum jelly to seal rings.
16. Install spring retainer and return spring in transmission case.
17. Set the SST on spring retainer and install snap ring (fixing spring retainer) in transmission case while compressing return spring.
CAUTION:
Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.
SCIA2796E
SCIA3333E
SCIA2324E
SCIA5877E
Page 423 of 4462
ASSEMBLY AT-339
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
18. Install reverse brake drive plates, driven plates and dish plates in transmission case. CAUTION:
Take care with order of plates.
VQ35DE models
VK45DE models
–Snap ring (1)
–Retaining plate (2)
–Drive plate (3)
–Driven plate (4)
–Dish plate (5)
–Drive plate/Driven plate: 6/6
SCIA5250E
SCIA6949E
Page 424 of 4462
AT-340
ASSEMBLY
Revision: 2006 December 2006 FX35/FX45
19. Assemble N-spring.
20. Install reverse brake retaining plate in transmission case.
21. Install snap ring in transmission case.
22. Measure clearance between retaining plate and snap ring. If not within specified clearance, select proper retaining plate. Refer to
“Parts Information” for retaining plate.
23. Install needle bearing to transmission case. CAUTION:
Apply petroleum jelly to needle bearing.
SCIA3179E
SCIA2439E
Specified clearance “A”
Standard : 0.7 - 1.1mm (0.028 - 0.043 in)
SCIA3129E
SCIA5031E
