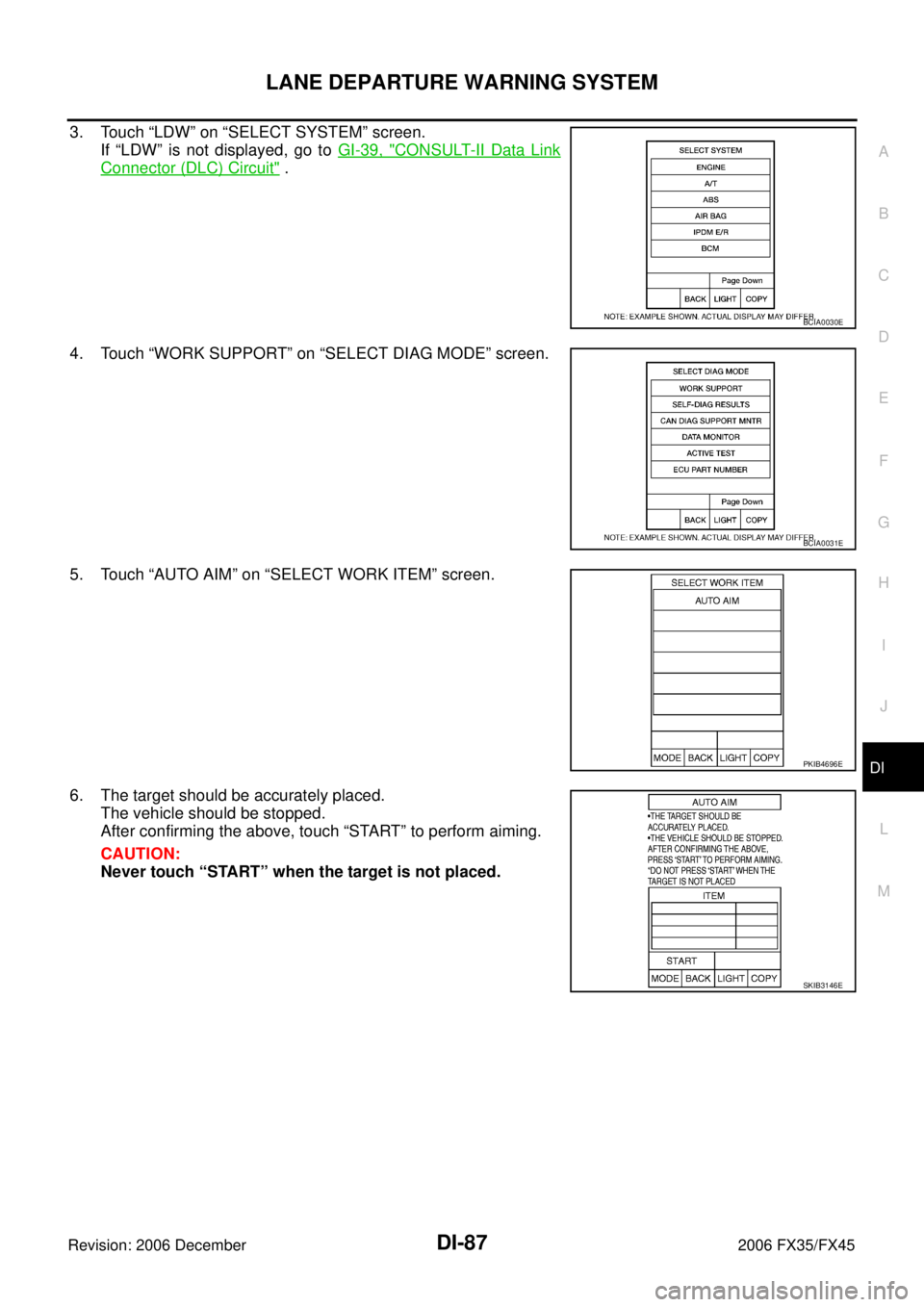

3. Touch “LDW” on “SELECT SYSTEM” screen. If “LDW” is not displayed, go to GI-39, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
4. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
5. Touch “AUTO AIM” on “SELECT WORK ITEM” screen.
6. The target should be accurately placed. The vehicle should be stopped.
After confirming the above, touch “START” to perform aiming.
CAUTION:
Never touch “START” when the target is not placed.
BCIA0030E
BCIA0031E
PKIB4696E
SKIB3146E
Page 1338 of 4462
DI-88
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45

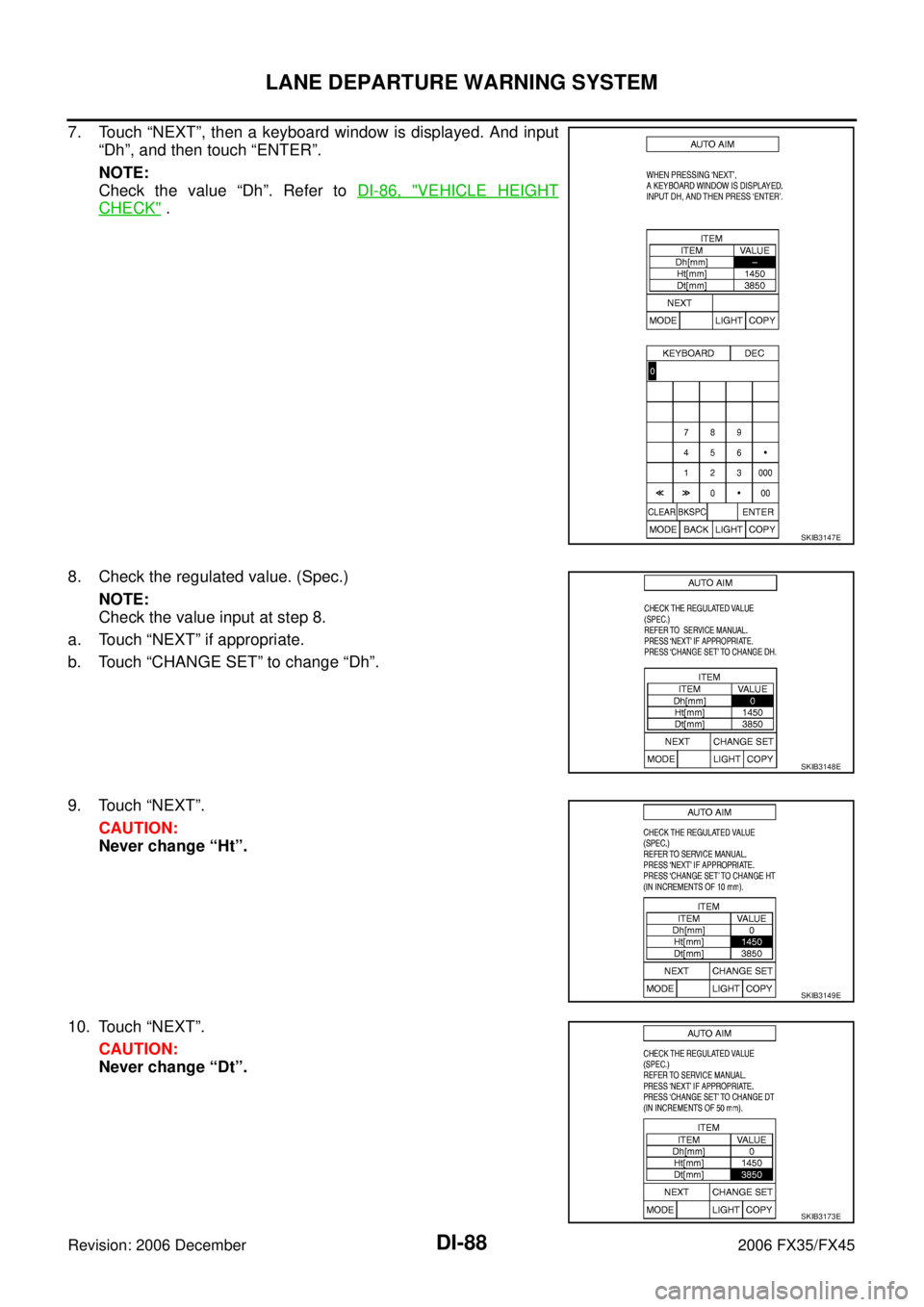

7. Touch “NEXT”, then a keyboard window is displayed. And input “Dh”, and then touch “ENTER”.
NOTE:
Check the value “Dh”. Refer to DI-86, "
VEHICLE HEIGHT
CHECK" .
8. Check the regulated value. (Spec.) NOTE:
Check the value input at step 8.
a. Touch “NEXT” if appropriate.
b. Touch “CHANGE SET” to change “Dh”.
9. Touch “NEXT”. CAUTION:
Never change “Ht”.
10. Touch “NEXT”. CAUTION:
Never change “Dt”.
SKIB3147E
SKIB3148E
SKIB3149E
SKIB3173E
Page 1339 of 4462
LANE DEPARTURE WARNING SYSTEM DI-89
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45
11. Touch “START”.
12. Check it display item.
a. “NORMALLY COMPLETED” is displayed, then touching “COM- PLETION”.
b. Perform the following services when displayed “SUSPENSION” or “ABNORMALLY COMPLETED”.
NOTE:
Replace camera unit if “suspension” is repeatedly indicated though the above two service is performed.
13. Check if “NORMALLY COMPLETED” is displayed and close the aiming adjustment procedure by touching “END”.
SKIB3150E
SKIB3151E
SKIB3152E
Displays item Service procedure
SUSPENSION 00H Routine not activated
Position the target appropriately again. Perform the aiming again.
Refer to DI-83, "
Camera Aiming Adjustment" .
10H Writing error
ABNORMALLY COMPLETED —
SKIB3153E
Page 1340 of 4462
DI-90
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45
Check After The Adjustment
1. Perform the LDW camera unit self-diagnosis. Refer to DI-95, "CONSULT-II Function (LDW)" .
2. Test the LDW system operation by running test. Refer to DI-83, "
LDW SYSTEM RUNNING TEST" .

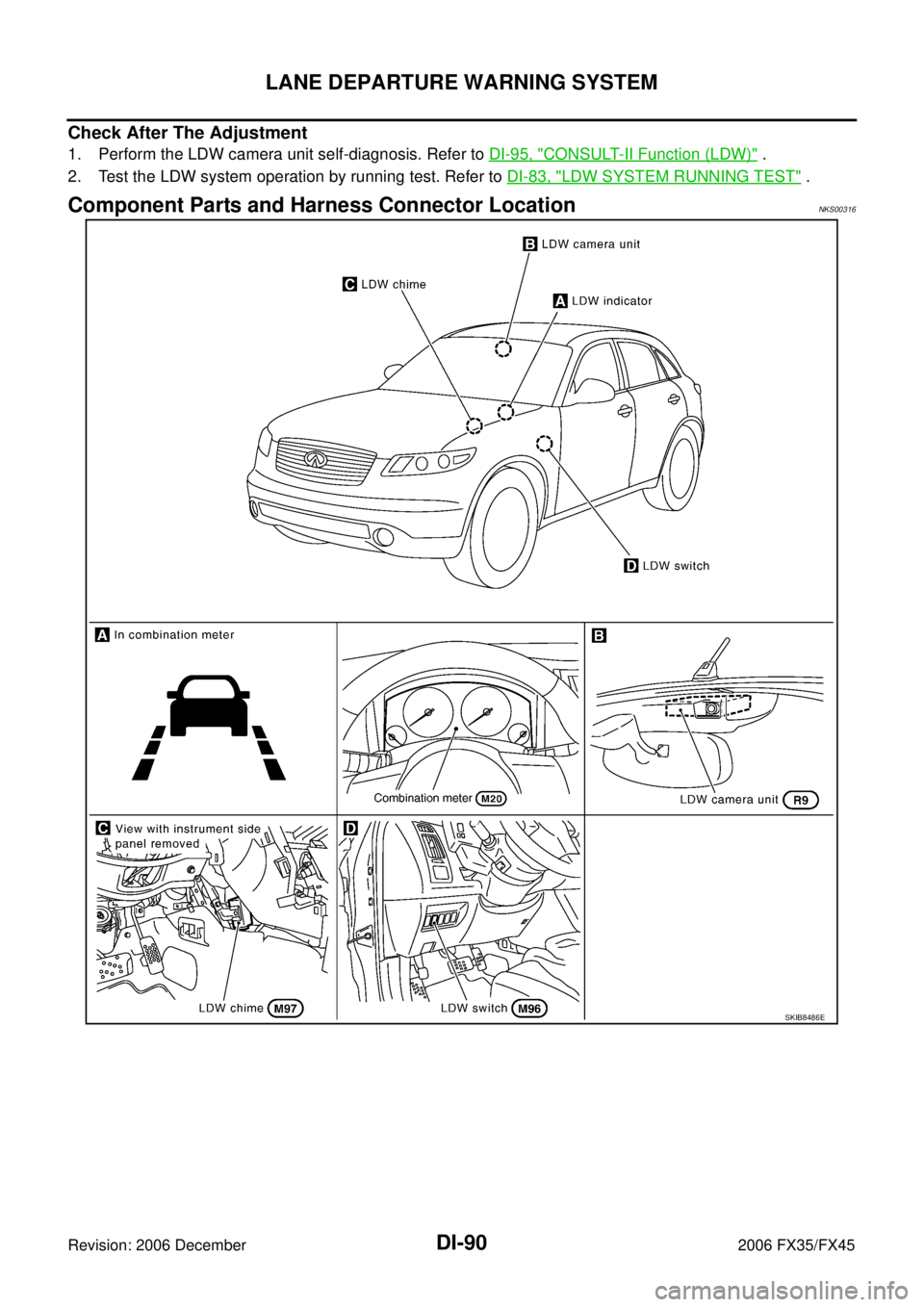

Component Parts and Harness Connector LocationNKS00316
SKIB8486E
Page 1341 of 4462
LANE DEPARTURE WARNING SYSTEM DI-91
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 December 2006 FX35/FX45

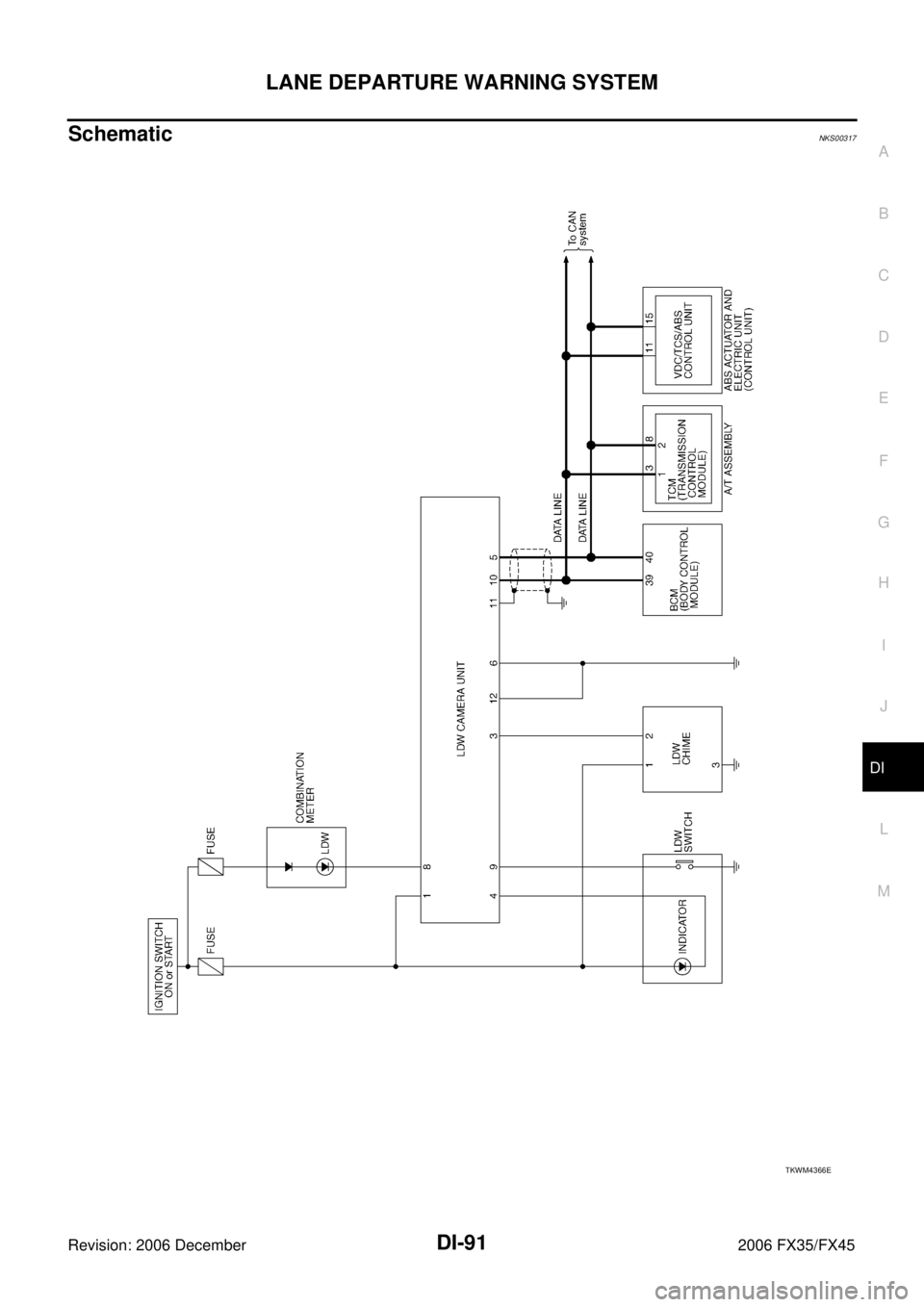

SchematicNKS00317
TKWM4366E
Page 1342 of 4462
DI-92
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 December 2006 FX35/FX45

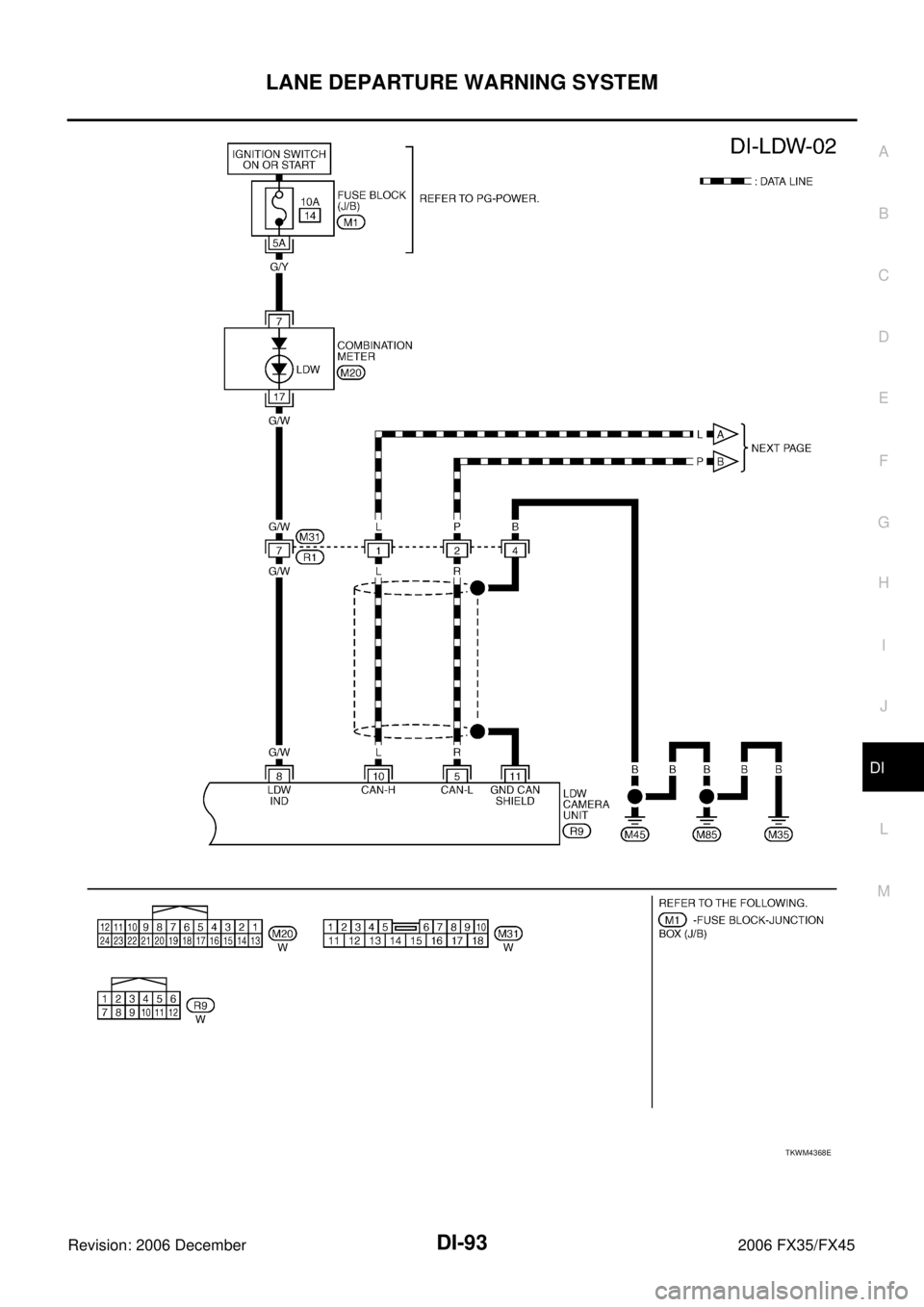

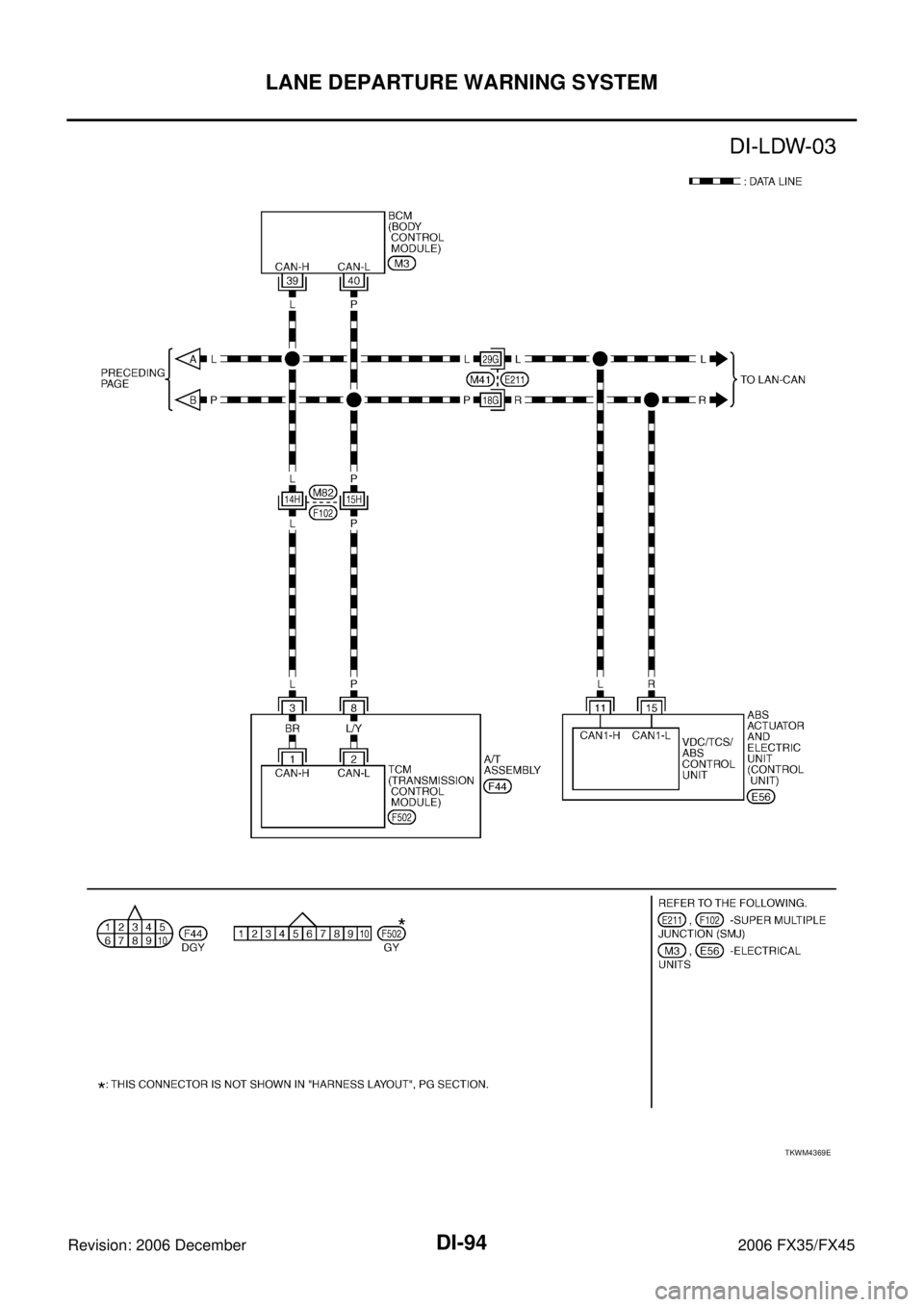

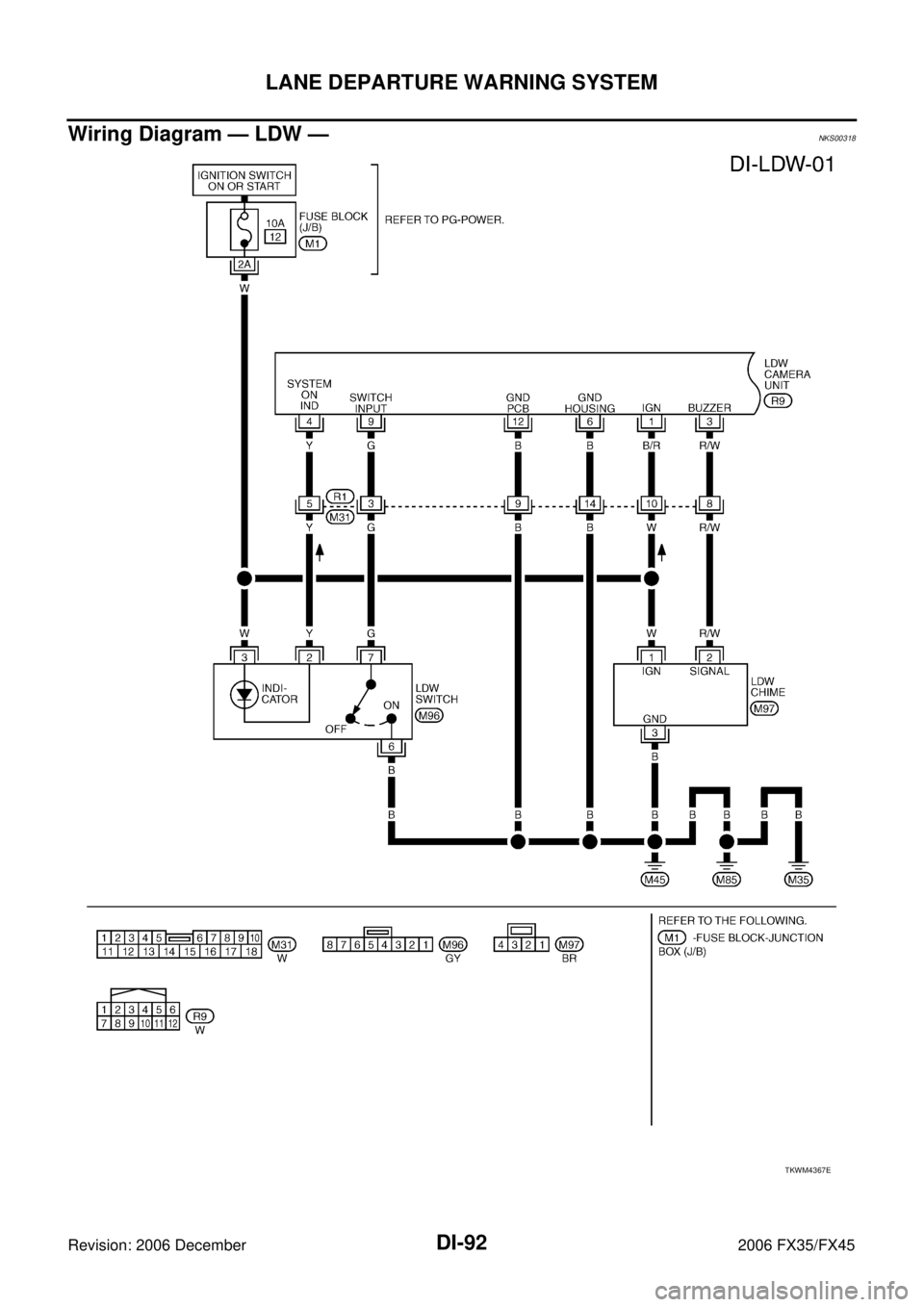

Wiring Diagram — LDW —NKS00318
