Page 4257 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS SRS-9 C D E F G I J K L M A B SRS Revision: 2006 December 2006 FX35/FX45 WORK FLOW *1: SRS-8, "Preliminary Check".*2: SRS-19, "SRS Operation Check".*3:SRS-21, "DIAGNOSTI

Page 4258 of 4462

INFINITI FX35 2006 Service Manual SRS-10 TROUBLE DIAGNOSIS Revision: 2006 December 2006 FX35/FX45 Component Parts LocationNHS0007B PHIA1335E 1. Driver air bag module 2. Front passenger air bag module 3. Spiral cable 4. Front side air

Page 4259 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS SRS-11 C D E F G I J K L M A B SRS Revision: 2006 December 2006 FX35/FX45 SchematicNHS0007C THWM0222E

Page 4260 of 4462

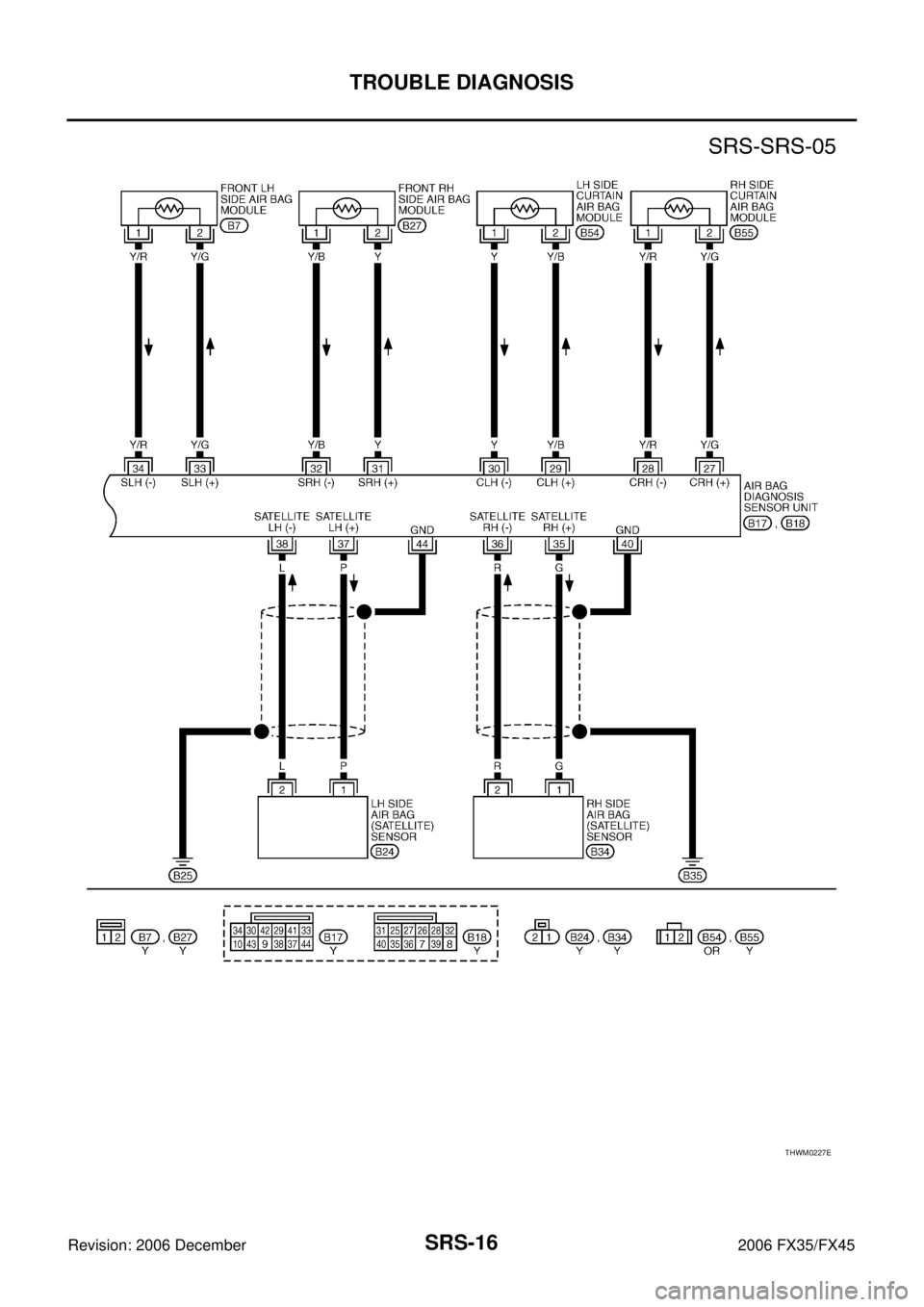

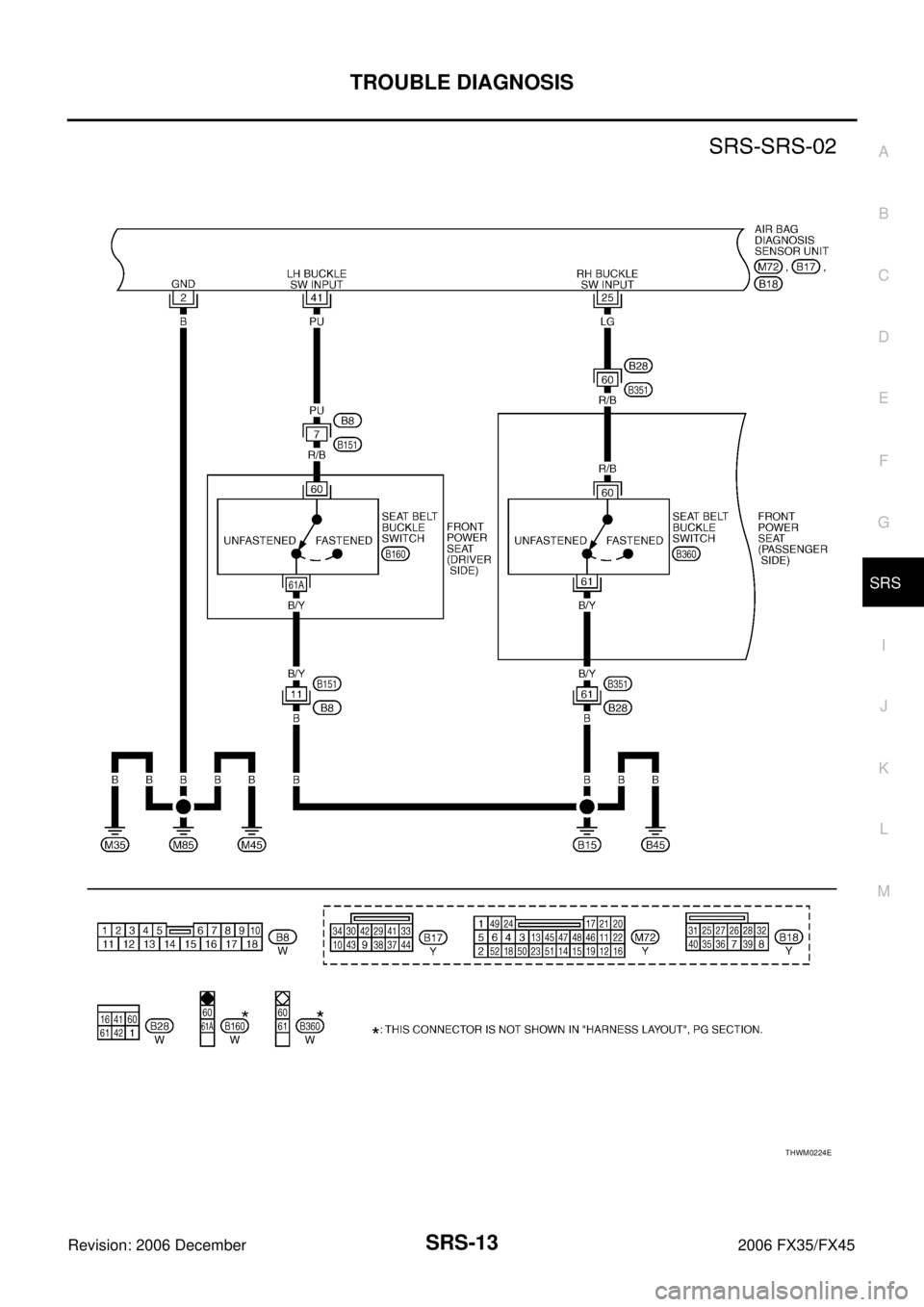

INFINITI FX35 2006 Service Manual SRS-12 TROUBLE DIAGNOSIS Revision: 2006 December 2006 FX35/FX45 Wiring Diagram — SRS —NHS0007D THWM0223E

Page 4261 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS SRS-13 C D E F G I J K L M A B SRS Revision: 2006 December 2006 FX35/FX45 THWM0224E

Page 4262 of 4462

INFINITI FX35 2006 Service Manual SRS-14 TROUBLE DIAGNOSIS Revision: 2006 December 2006 FX35/FX45 THWM0225E

Page 4263 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSIS SRS-15 C D E F G I J K L M A B SRS Revision: 2006 December 2006 FX35/FX45 THWM0226E

Page 4264 of 4462

INFINITI FX35 2006 Service Manual SRS-16 TROUBLE DIAGNOSIS Revision: 2006 December 2006 FX35/FX45 THWM0227E
