Page 3729 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-167
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45

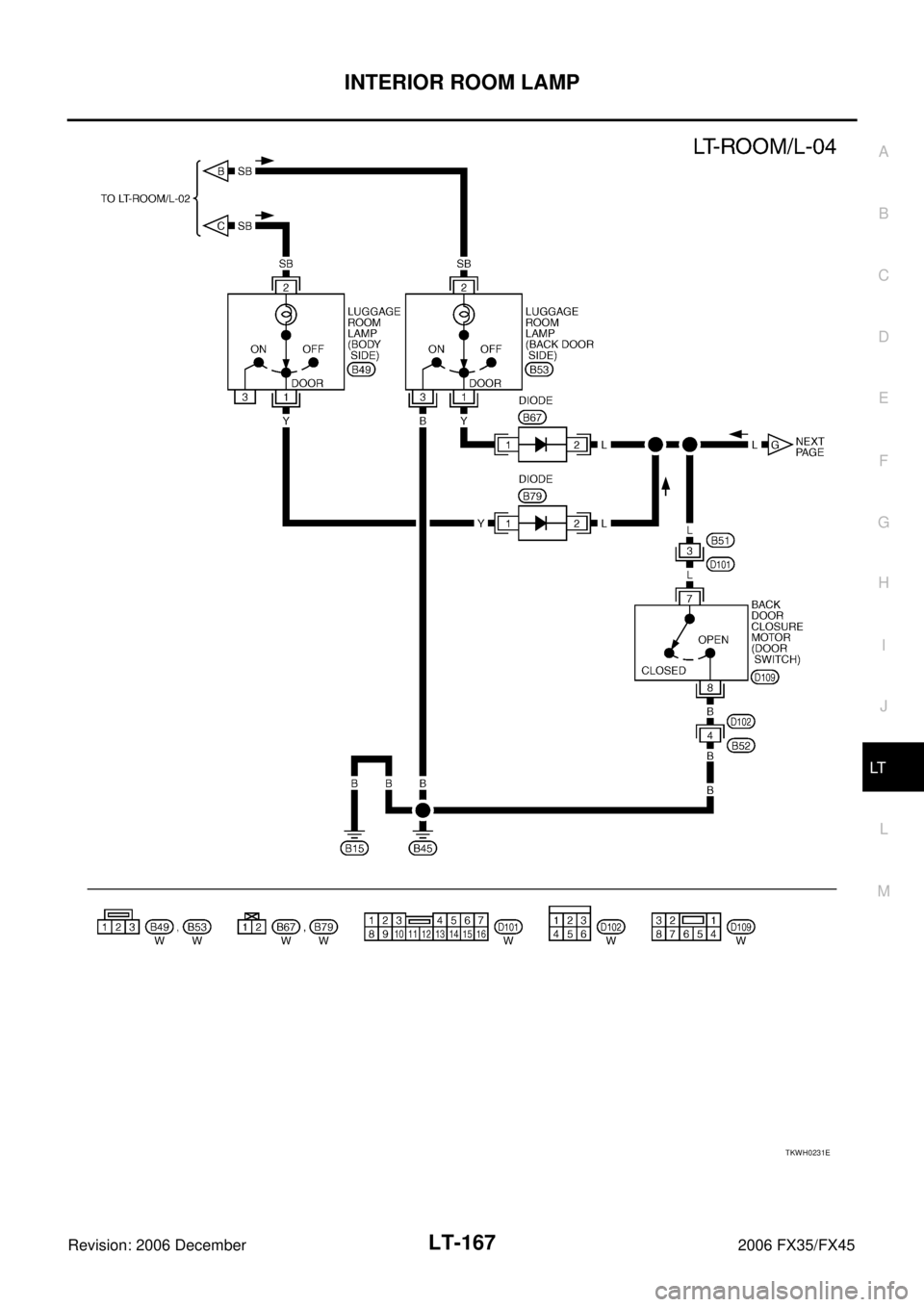

TKWH0231E

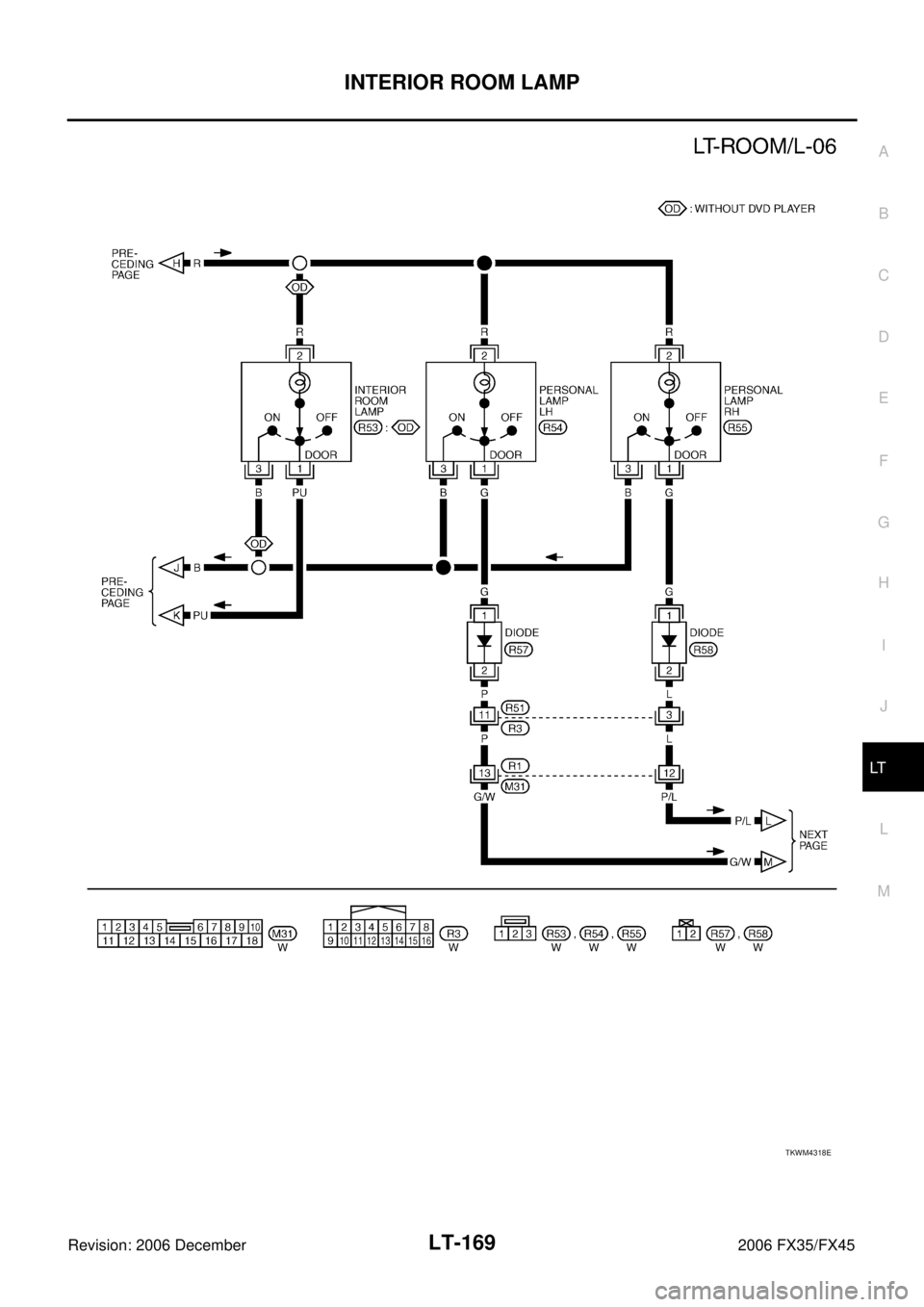

Page 3730 of 4462

INFINITI FX35 2006 Service Manual LT-168
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
TKWM4317E

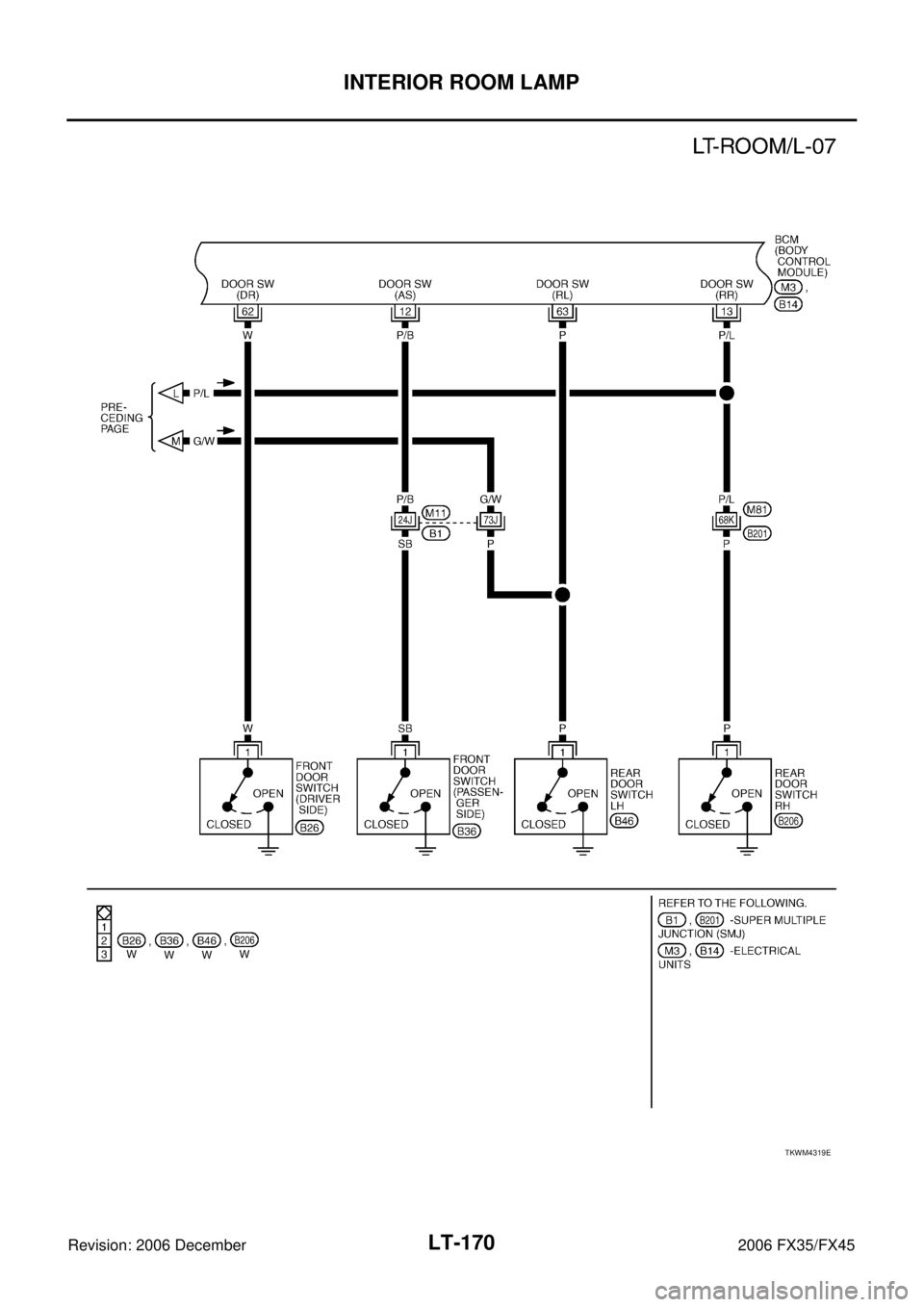

Page 3731 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-169
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
TKWM4318E

Page 3732 of 4462

INFINITI FX35 2006 Service Manual LT-170
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
TKWM4319E

Page 3733 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-171
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
TKWM4320E

Page 3734 of 4462

INFINITI FX35 2006 Service Manual LT-172
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
Terminals and Reference Values for BCMNKS002YQ
Te r m i n a l No. Wire
color Signal name Measuring condition
Reference value
Ign

Page 3735 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-173
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
How to Proceed With Trouble DiagnosisNKS002YR
1. Confirm the symptom or customer complaint.
2.

Page 3736 of 4462

INFINITI FX35 2006 Service Manual LT-174
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Functions (BCM)NKS002YT
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-

LT-174
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
CONSULT-II Functions (BCM)NKS002YT
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.
CONSULT-II BASIC OPERATION
Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT (INT LAMP)
Operation Procedure
1. Touch “INT LAMP” on “SELECT TEST ITEM” screen.
2. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen.
3. Touch “SET I/L D − UNLCK INTCON” on “SELECT WORK ITEM” screen.
4. Touch “START”.
5. Touch “CHANGE SETT”.
6. The setting will be changed and “CUSTOMIZING COMPLETED ” will be displayed.
7. Touch “END”.
Display Item List
Reference between “MODE” and “TIME” for “TURN ON/OFF”
DATA MONITOR (INT LAMP)
Operation Procedure
1. Touch “INT LAMP” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is selected, all the items will be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop recording, touch “STOP”.
BCM diagnosis part Diagnosis mode Description
INT LAMP WORK SUPPORT Changes setting for each function.
DATA MONITOR Displays BCM input data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending driving signal to them.
BATTERY SAVER WORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending driving signal to them.
Item Description CONSULT-II
SET I/L D −UNLCK INTCON The 30 seconds glowing function interior room lamps and ignition keyhole illu-
mination can be selected when driver door is released (unlocked). ON/OFF
ROOM LAMP ON TIME SET The time in order to escalate illumination can be adjusted when interior room
lamps and ignition keyhole illumination is turned on. MODE 1 – 7
ROOM LAMP OFF TIME SET The time in order to diminish illumination can be adjusted when interior room
lamps and ignition keyhole illumination is turned off. MODE 1 – 7
MODE 1 2 3 4 5 6 7
Time (sec.) 0.5 1 2 3 4 5 0
All signals Monitors all the signals.
Selection from menu Selects items and monitors them.
