SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Wheel BearingNDS000CA
Drive ShaftNDS000CB
Axial end play 0.05 mm (0.002 in) or less
Joint type (Wheel side) (Transaxle side)
Grease quantity 77 − 97 g (2.72 − 3.42 oz) 95
− 105 g (3.35 − 3.70 oz) (LH side)
113 − 123 g (3.99 − 4.34 oz) (RH side)
Boots installed length 136 mm (5.35 in) 150.9
− 152.9 mm (5.94 − 6.02 in) (LH side)
157.8 − 159.8 mm (6.21 − 6.29 in) (RH side)
Page 3114 of 4462
FAX-26
[AWD]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 December 2006 FX35/FX45
Page 3115 of 4462

FFD-1
FRONT FINAL DRIVE
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION FFD
A
B
FFD
Revision: 2006 December 2006 FX35/FX45
FRONT FINAL DRIVE
PRECAUTIONS ..................................................... ..... 2
Service Notice or Precautions ............................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 5
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 6
NVH Troubleshooting Chart ................................ ..... 6
DESCRIPTION ....................................................... ..... 7
Cross-Sectional View .......................................... ..... 7
DIFFERENTIAL GEAR OIL ................................... ..... 8
Changing Differential Gear Oil ............................ ..... 8
DRAINING ........................................................ ..... 8
FILLING ............................................................ ..... 8
Checking Differential Gear Oil ............................. ..... 8
OIL LEAKAGE AND OIL LEVEL ...................... ..... 8
FRONT OIL SEAL ................................................. ..... 9
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSTALLATION ................................................ ... 10
SIDE OIL SEAL ..................................................... ....11
Removal and Installation ..................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ .... 11
FRONT FINAL DRIVE ASSEMBLY ....................... ... 13
Removal and Installation (VQ35DE Models) ....... ... 13 COMPONENTS ................................................
... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 13
Removal and Installation (VK45DE Models) ....... ... 15
COMPONENTS ................................................ ... 15
REMOVAL ........................................................ ... 15
INSTALLATION ................................................ ... 15
Disassembly and Assembly ................................. ... 17
COMPONENTS (VQ35DE MODELS) .............. ... 17
COMPONENTS (VK45DE MODELS) .............. ... 19
ASSEMBLY INSPECTION AND ADJUSTMENT ... 20
DISASSEMBLY ................................................ ... 24
INSPECTION AFTER DISASSEMBLY ............. ... 28
ADJUSTMENT AND SELECTION OF ADJUST-
ING WASHERS (SHIMS) ................................. ... 29
ASSEMBLY ...................................................... ... 32
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 39
General Specifications ......................................... ... 39
Inspection and Adjustment .................................. ... 39
DRIVE GEAR RUNOUT ................................... ... 39
DIFFERENTIAL SIDE GEAR CLEARANCE .... ... 39
PRELOAD TORQUE ........................................ ... 39
BACKLASH ...................................................... ... 39
COMPANION FLANGE RUNOUT .................... ... 39
SELECTIVE PARTS ......................................... ... 39
Page 3116 of 4462

FFD-2
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Service Notice or PrecautionsNDS000B3
Check for the correct installation status prior to removal or disassembly. If matching marks are required,
be certain they do not interfere with the function of the parts when applied.
Overhaul should be done in a clean work area, it is preferable to work in dustproof area.
Before disassembly, using steam or white gasoline, completely remove sand and mud from the exterior of
the unit, preventing them from entering into the unit during disassembly or assembly.
Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them
with a new ones if necessary.
Gaskets, seals and O-rings should be replaced any time when the unit is disassembled.
In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If
tightening sequence is specified, observe it.
Clean and flush the parts sufficiently and blow-dry them.
Be careful not to damage sliding surfaces and mating surfaces.
When applying sealant, remove the old sealant from the mounting surface; then remove any moisture, oil,
and foreign materials from the application and mounting surfaces.
Always use shop paper for cleaning the inside of components.
Avoid using cotton gloves or shop rags to prevent entering of lint.
During assembly, observe the specified tightening torque, and apply new gear oil, petroleum jelly, or multi-
purpose grease as specified for each vehicle, if necessary.
Page 3117 of 4462

PREPARATION FFD-3
C E F
G H
I
J
K L
M A
B
FFD
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002

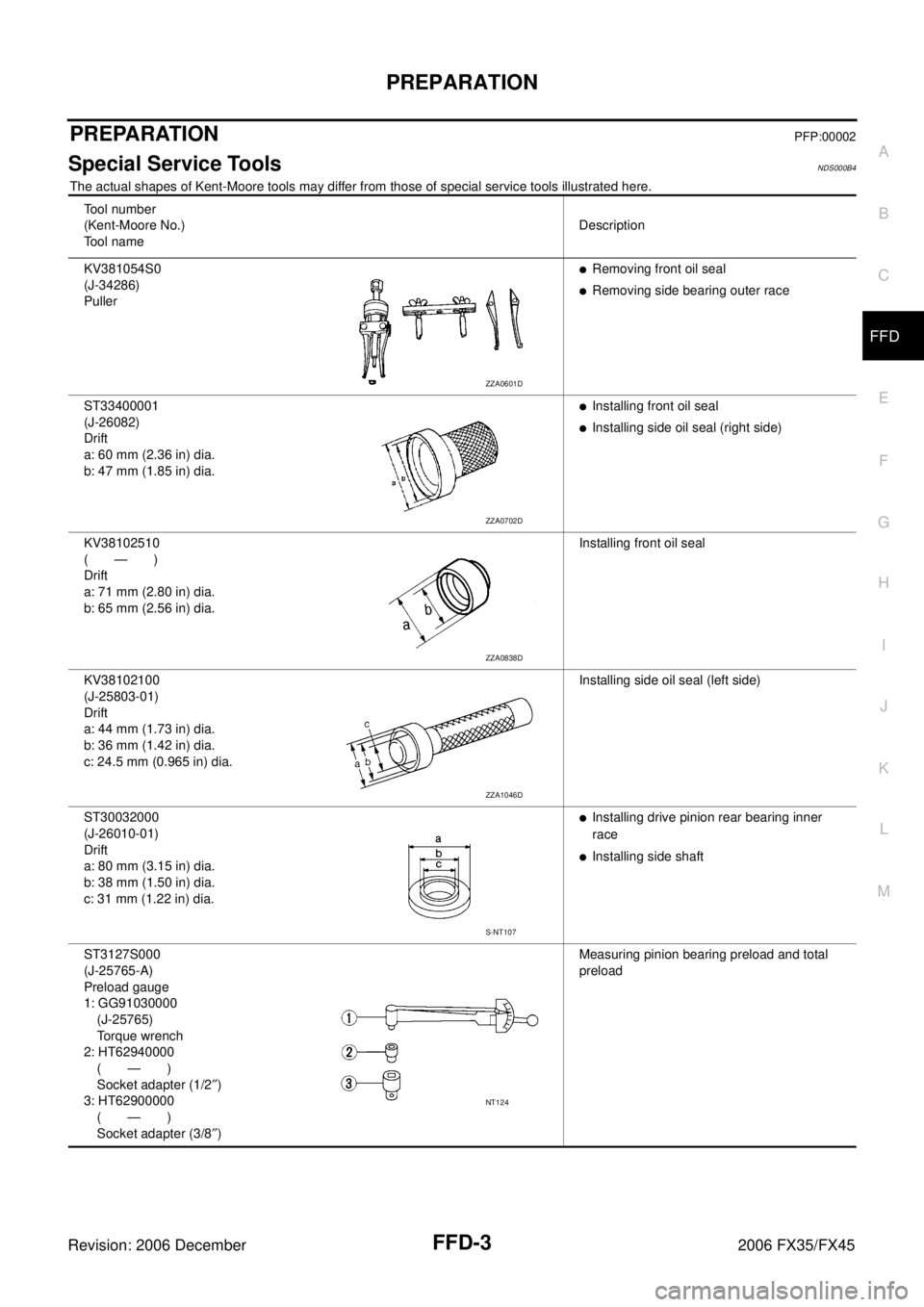

Special Service ToolsNDS000B4
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here. Tool number
(Kent-Moore No.)
Tool name Description
KV381054S0
(J-34286)
Puller
Removing front oil seal
Removing side bearing outer race
ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.
Installing front oil seal
Installing side oil seal (right side)
KV38102510
(—)
Drift
a: 71 mm (2.80 in) dia.
b: 65 mm (2.56 in) dia. Installing front oil seal
KV38102100
(J-25803-01)
Drift
a: 44 mm (1.73 in) dia.
b: 36 mm (1.42 in) dia.
c: 24.5 mm (0.965 in) dia. Installing side oil seal (left side)
ST30032000
(J-26010-01)
Drift
a: 80 mm (3.15 in) dia.
b: 38 mm (1.50 in) dia.
c: 31 mm (1.22 in) dia.
Installing drive pinion rear bearing inner
race
Installing side shaft
ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000
(J-25765)
Torque wrench
2: HT62940000
(—)
Socket adapter (1/2 ″)
3: HT62900000
(—)
Socket adapter (3/8 ″) Measuring pinion bearing preload and total
preload
ZZA0601D
ZZA0702D
ZZA0838D
ZZA1046D
S-NT107
NT124
Page 3118 of 4462

FFD-4
PREPARATION
Revision: 2006 December 2006 FX35/FX45
K V 1 0 1111 0 0
(J-37228)
Seal cutter Removing carrier cover
ST3306S001
(J-22888-D)
Differential side bearing puller set
1: ST33051001 (J-22888-20)
Puller
2: ST33061000 (J-8107-2)
Base
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia. Removing and installing side bearing inner
race
ST30031000
(J-22912-01)
Replacer Removing pinion rear bearing inner race
KV31103000
(J-38982)
Drift
a: 49 mm (1.93 in) dia.
b: 70 mm (2.76 in) dia. Installing side bearing outer race
ST30611000
(J-25742-1)
Drift bar Installing side bearing outer race (Use with
KV31103000)
ST37820000
(—)
Drift
a: 39 mm (1.54 in) dia.
b: 72 mm (2.83 in) dia. Installing drive pinion front and rear bearing
outer race
ST33230000
(J-25805-01)
Drift
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28.5 mm (1.122 in) dia. Installing side bearing inner race
Tool number
(Kent-Moore No.)
Tool name Description
S-NT046
NT072
ZZA0700D
ZZA1113D
S-NT090
ZZA0836D
ZZA1046D
Page 3119 of 4462
PREPARATION FFD-5
C E F
G H
I
J
K L
M A
B
FFD
Revision: 2006 December 2006 FX35/FX45
Commercial Service ToolsNDS000B5
KV38100200
(—)
Drift
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia. Installing side shaft oil seal
(J-8129)
Spring gauge Measuring turning torque
Tool number
(Kent-Moore No.)
Tool name Description
ZZA1143D
NT127
Tool name
Description
Flange wrench Removing and installing drive pinion lock nut
Spacer
a: 60 mm (2.36 in) dia.
b: 36 mm (1.42 in) dia.
c: 30 mm (1.18 in) Installing pinion front bearing inner race
Power tool Loosening bolts and nuts
NT771
ZZA1133D
PBIC0190E
Page 3120 of 4462

FFD-6
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2006 December 2006 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartNDS000B6
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
× : Applicable Reference page
Refer to
FFD-28, "
INSPECTION AFTER DISASSEMBLY
" .
Refer to FFD-21, "
Tooth Contact
" .
Refer to FFD-28, "
INSPECTION AFTER DISASSEMBLY
" .
Refer to FFD-23, "
Backlash
" .
Refer to FFD-23, "
Companion Flange Runout
" .
Refer to FFD-8, "
Checking Differential Gear Oil
" .
NVH in PR section.
NVH in FAX, RAX, FSU and RSU sections.
NVH in WT section.
NVH in WT section.
NVH in FAX and RAX section.
NVH in BR section.
NVH in PS section.
Possible cause and SUSPECTED PARTS
Gear tooth rough
Gear contact improper
Tooth surfaces worn
Backlash incorrect
Companion flange excessive runout
Gear oil improper
PROPELLER SHAFT
AXLE AND SUSPENSION
TIRES
ROAD WHEEL
DRIVE SHAFT
BRAKES
STEERING
Symptom Noise ×××××××××××××
