EC-322
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
24 L A/F sensor 1 heater
(bank 2) [Engine is running]
Warm-up condition
Idle speed Approximately 5V
40
41
42 LG
B
P Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2 [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
57 G A/F sensor 1 (bank 2) [Engine is running]
Warm-up condition
Idle speed Approximately 2.6V
58 Y Approximately 2.3V
76 P Approximately 3.1V
77 BR Approximately 2.3V
PBIB1584E
SEC984C
SEC985C
Page 1707 of 4462
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-323
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNBS003PB

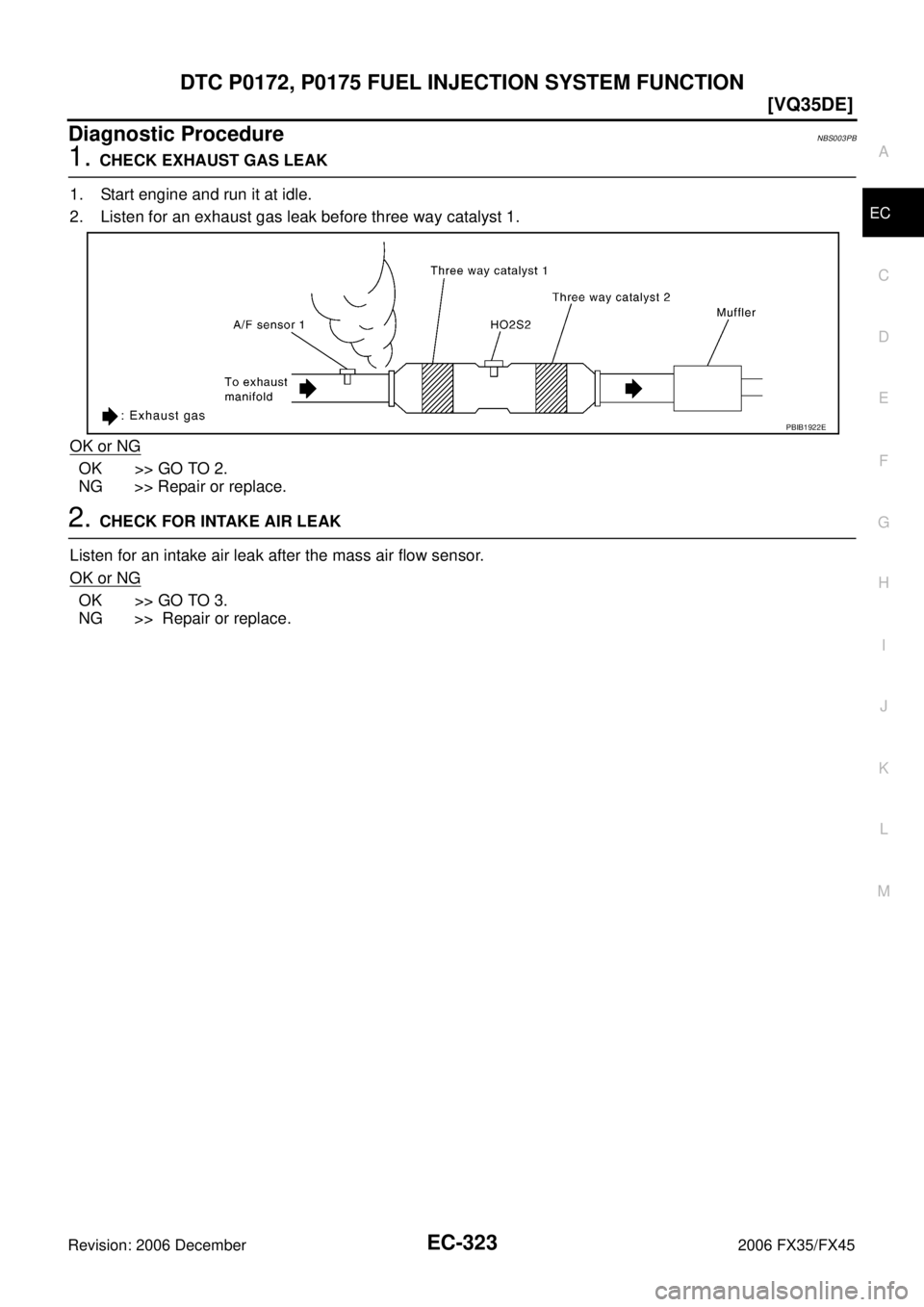

1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before three way catalyst 1.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK FOR INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
PBIB1922E
Page 1708 of 4462
EC-324
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 December 2006 FX35/FX45
3. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect corresponding A/F sensor 1 harness connector.
3. Disconnect ECM harness connector.

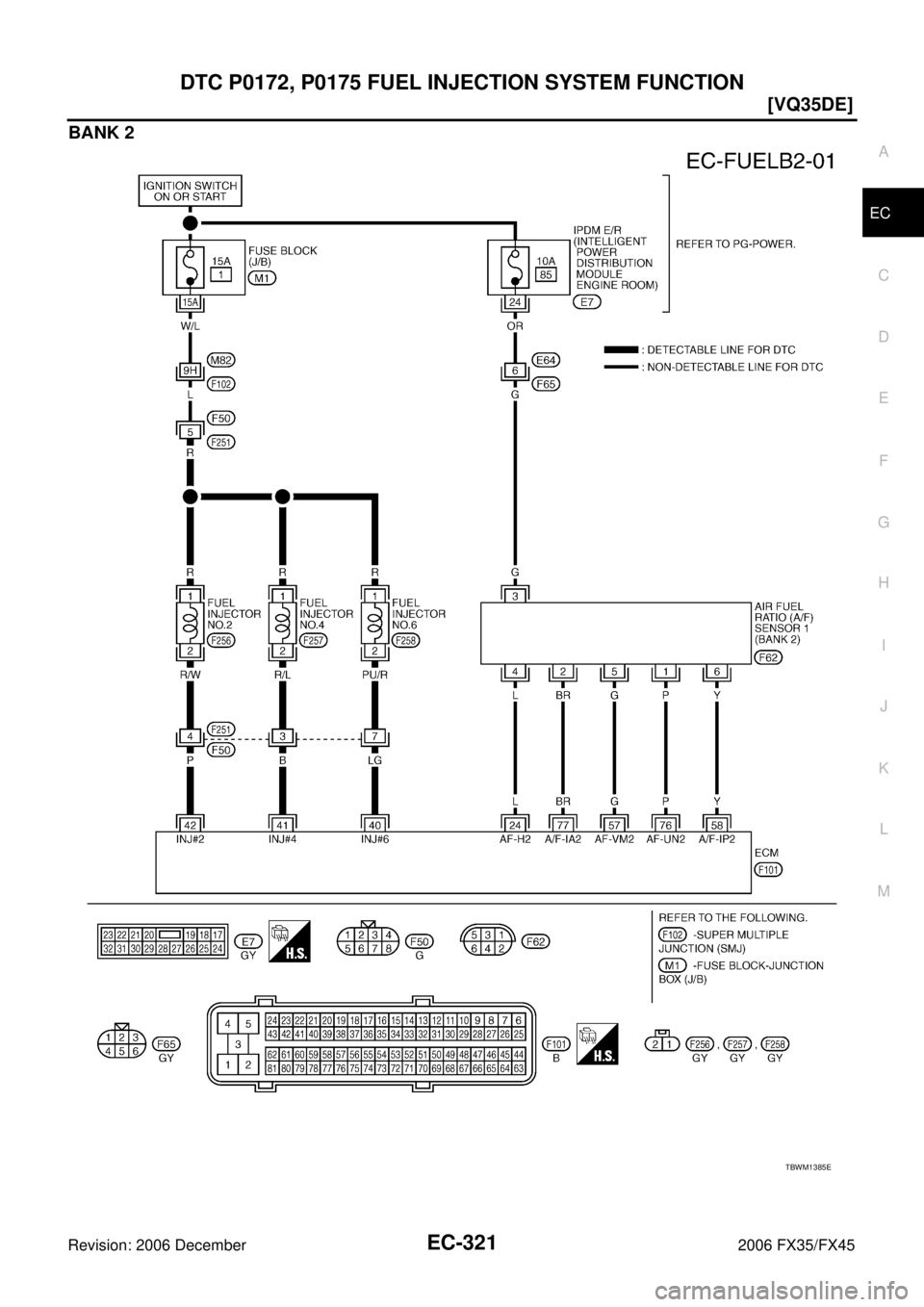

4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
Bank 1 A/F sensor 1 terminal ECM terminal
116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
275277
535557
656658
Continuity should not exist.
PBIB2190E
Page 1709 of 4462
![INFINITI FX35 2006 Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-325
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. INFINITI FX35 2006 Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-325
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero.](/manual-img/42/57019/w960_57019-1708.png)

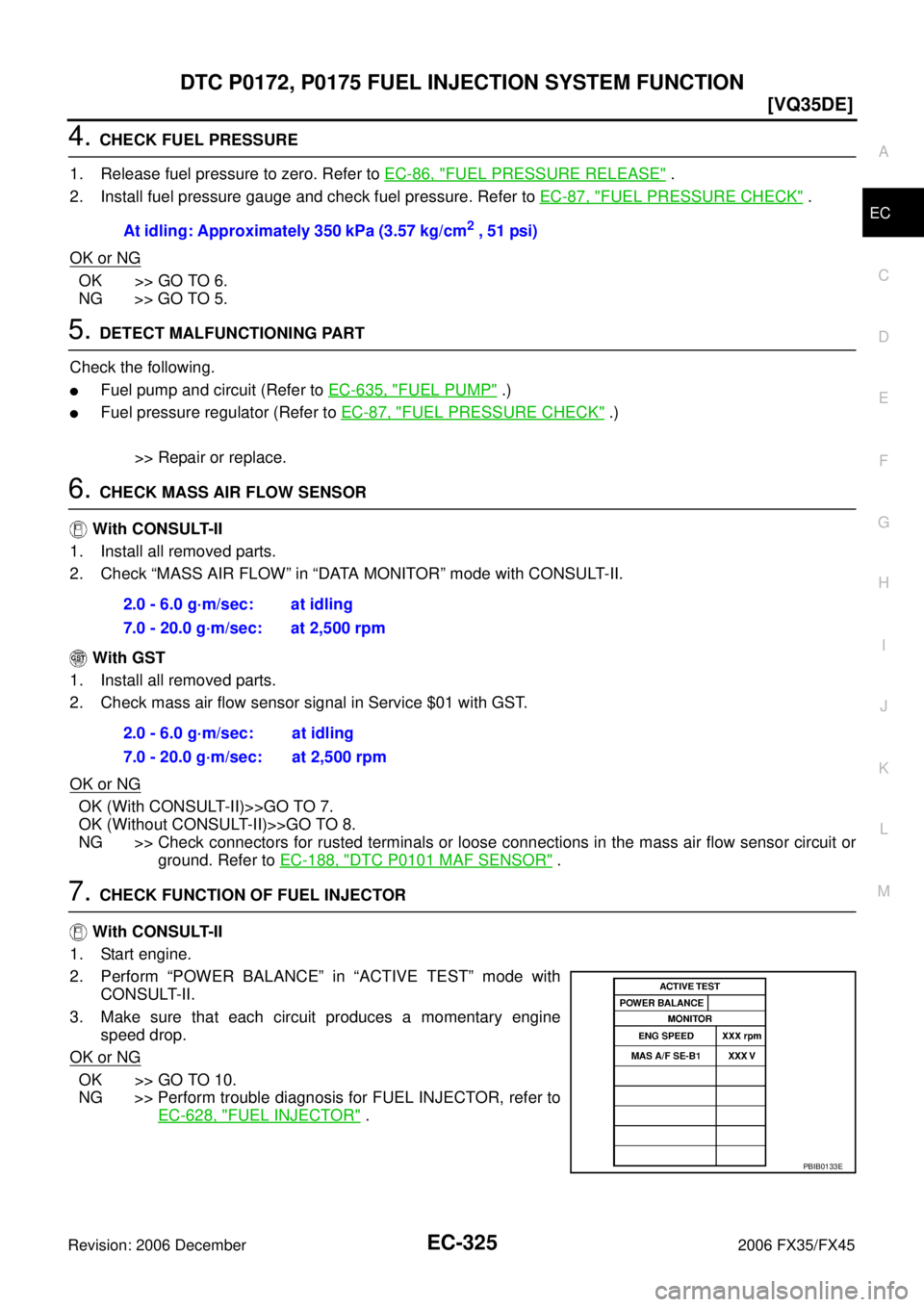

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-325
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-86, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-87, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Fuel pump and circuit (Refer to EC-635, "FUEL PUMP" .)
Fuel pressure regulator (Refer to EC-87, "FUEL PRESSURE CHECK" .)
>> Repair or replace.
6. CHECK MASS AIR FLOW SENSOR
With CONSULT-II
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-II.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in Service $01 with GST.
OK or NG
OK (With CONSULT-II)>>GO TO 7.
OK (Without CONSULT-II)>>GO TO 8.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or ground. Refer to EC-188, "
DTC P0101 MAF SENSOR" .
7. CHECK FUNCTION OF FUEL INJECTOR
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.
3. Make sure that each circuit produces a momentary engine speed drop.
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to EC-628, "
FUEL INJECTOR" .
At idling: Approximately 350 kPa (3.57 kg/cm
2 , 51 psi)
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
PBIB0133E
Page 1710 of 4462
EC-326
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 December 2006 FX35/FX45
8. CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-II
1. Stop engine.
2. Disconnect harness connector F50, F251
3. Turn ignition switch ON.
4. Check voltage between harness connector F50 terminal 5 and ground with CONSULT-II or tester.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between harness connector F50 and ECM as follows.
Refer to Wiring Diagram.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to EC-628, "
FUEL INJECTOR" .
PBIB2624E
Voltage: Battery voltage
Cylinder Harness connector F50
terminal ECM terminal
1623
2442
3222
4341
5121
6740
Continuity should exist.
PBIB2323E
Page 1711 of 4462
![INFINITI FX35 2006 Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-327
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
9. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery vol INFINITI FX35 2006 Service Manual DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-327
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
9. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery vol](/manual-img/42/57019/w960_57019-1710.png)
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION EC-327
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

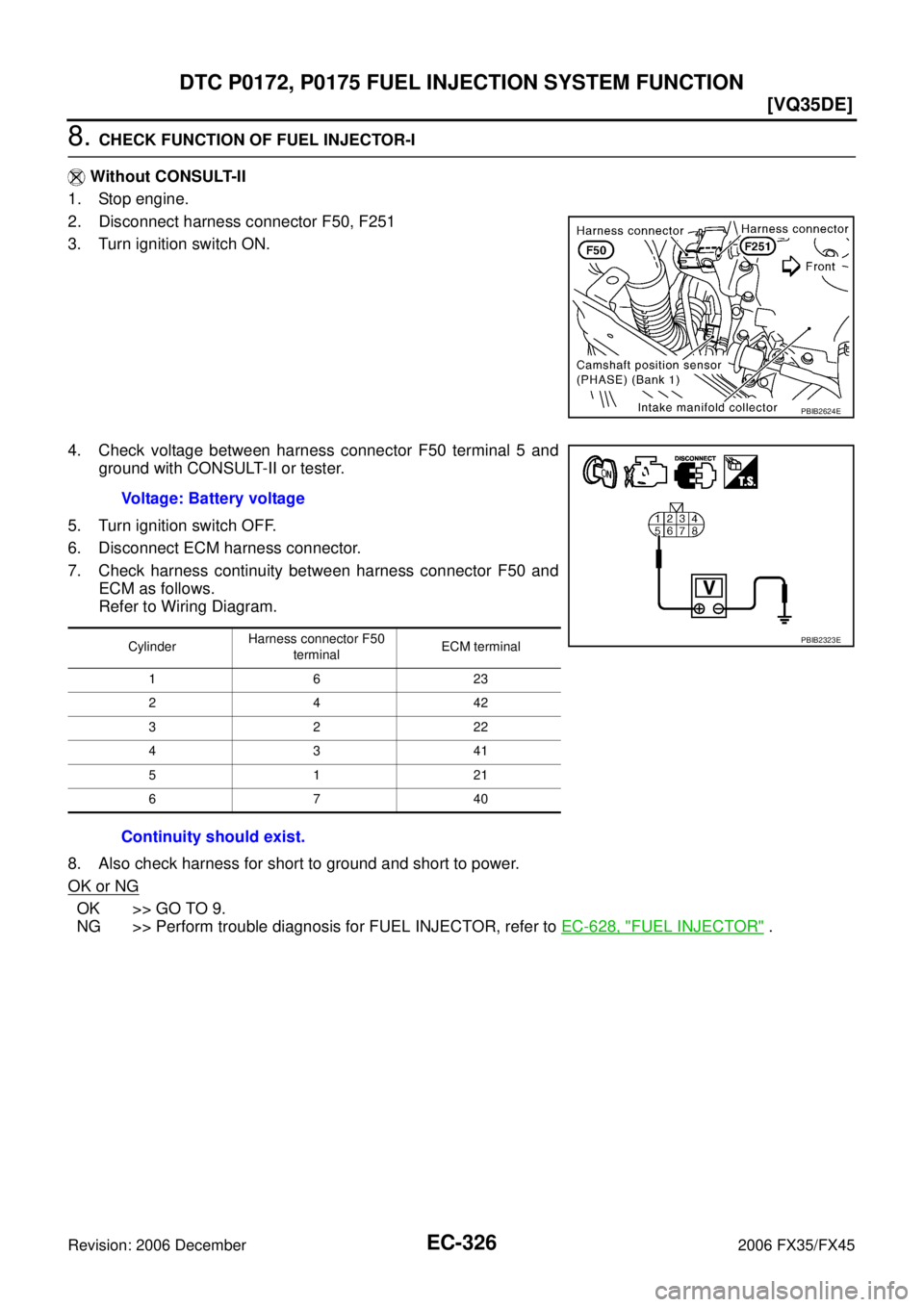

9. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between harness connector F251 as follows
and then interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to EC-628, "
FUEL INJECTOR" .
10. CHECK FUEL INJECTOR
1. Remove fuel injector assembly. Refer to EM-45, "
FUEL INJECTOR AND FUEL TUBE" .
Keep fuel hose and all fuel injectors connected to fuel injector gallery.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Reconnect all harness connectors disconnected.
4. Disconnect all fuel injector harness connectors.
5. Disconnect all ignition coil harness connectors.
6. Prepare pans or saucers under each fuel injectors.
7. Crank engine for about 3 seconds. Make sure fuel does not drip from fuel injector.
OK or NG
OK (Does not drip.)>>GO TO 11.
NG (Drips.)>>Replace the fuel injectors from which fuel is dripping. Always replace O-ring with new one.
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Cylinder Harness connector F251 terminal
(+) (–)
1
5 6
24
32
43
51
67
Operating sound should exist.
PBIB2497E
Page 1712 of 4462
![INFINITI FX35 2006 Service Manual EC-328
[VQ35DE]
DTC P0181 FTT SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS003PC
The fuel tank temperature (FTT) sensor is used to detect the fue INFINITI FX35 2006 Service Manual EC-328
[VQ35DE]
DTC P0181 FTT SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS003PC
The fuel tank temperature (FTT) sensor is used to detect the fue](/manual-img/42/57019/w960_57019-1711.png)
EC-328
[VQ35DE]
DTC P0181 FTT SENSOR
Revision: 2006 December 2006 FX35/FX45
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS003PC
The fuel tank temperature (FTT) sensor is used to detect the fuel
temperature inside the fuel tank. The sensor modifies a voltage sig-
nal from the ECM. The modified signal returns to the ECM as the
fuel temperature input. The sensor uses a thermistor which is sensi-
tive to the change in temperature. The electrical resistance of the
thermistor decreases as temperature increases.
*: This data is reference values and is measured between ECM terminal 107 (fuel
tank temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicNBS003PD
DTC Confirmation ProcedureNBS003PE
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds. If the result is NG, go to EC-331, "
Diagnostic Procedure" .
If the result is OK, go to following step.
4. Check “COOLAN TEMP/S” value. If “COOLAN TEMP/S” is less than 60 °C (140 °F), the result will
be OK.
If “COOLAN TEMP/S” is above 60 °C (140 °F), go to the following
step.
5. Cool engine down until “COOLAN TEMP/S” is less than 60 °C
(140 °F).
6. Wait at least 10 seconds.
7. If 1st trip DTC is detected, go to EC-331, "
Diagnostic Procedure" .
PBIB1572E
Fluid temperature
° C ( °F) Voltage*
V Resistance
k Ω
20 (68) 3.5 2.3 - 2.7
50 (122) 2.2 0.79 - 0.90
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0181
0181 Fuel tank temperature
sensor circuit range/
performance Rationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage sig-
nals from engine coolant temperature sensor
and intake air temperature sensor.
Harness or connectors
(Fuel tank temperature sensor circuit is
open or shorted)
Fuel tank temperature sensor
Unified meter and A/C amp.
SEF174Y
