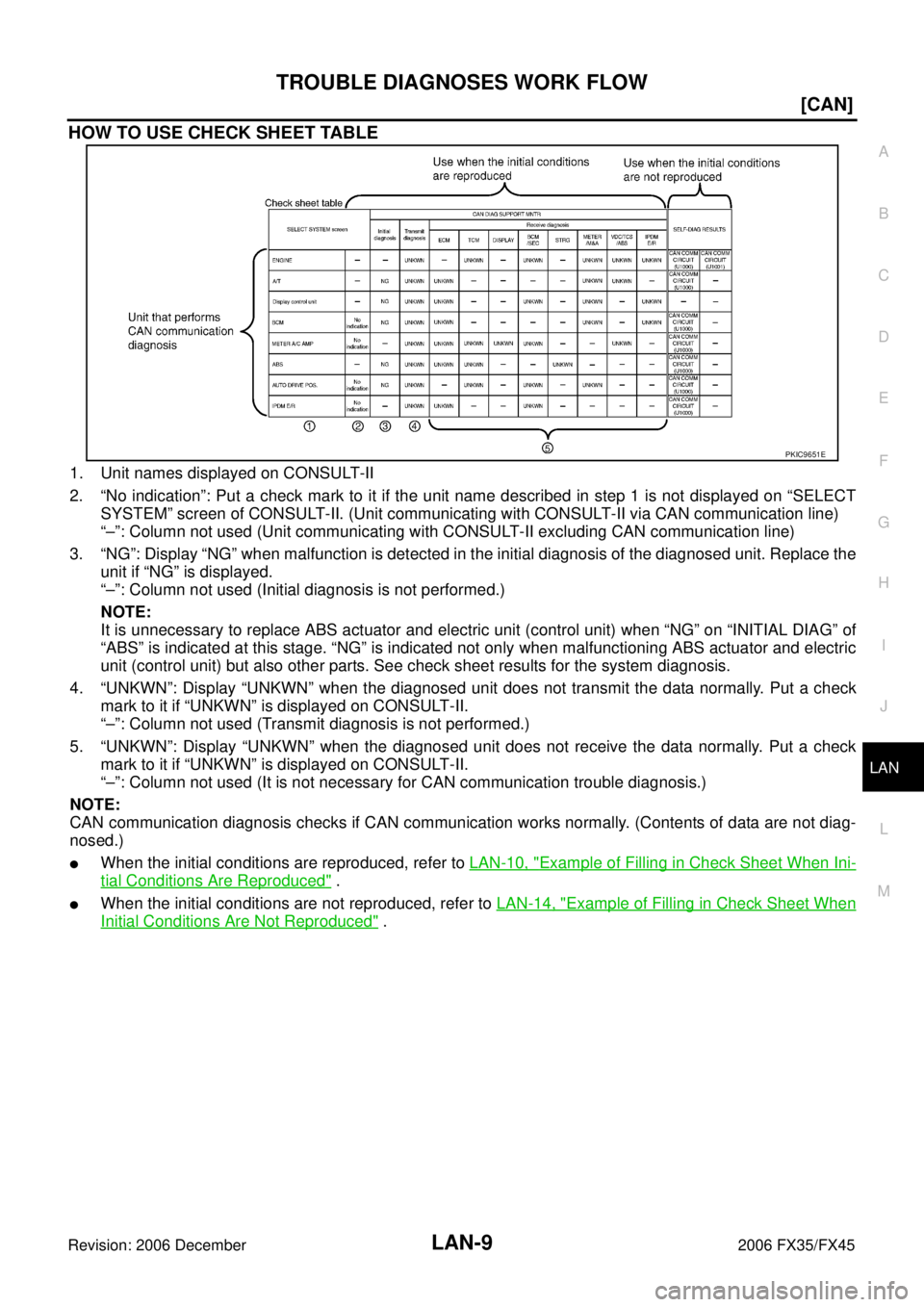

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-9 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 HOW TO USE CHECK SHEET TABLE 1. Unit names displayed on CONSULT-II 2. “No indi

Page 3370 of 4462

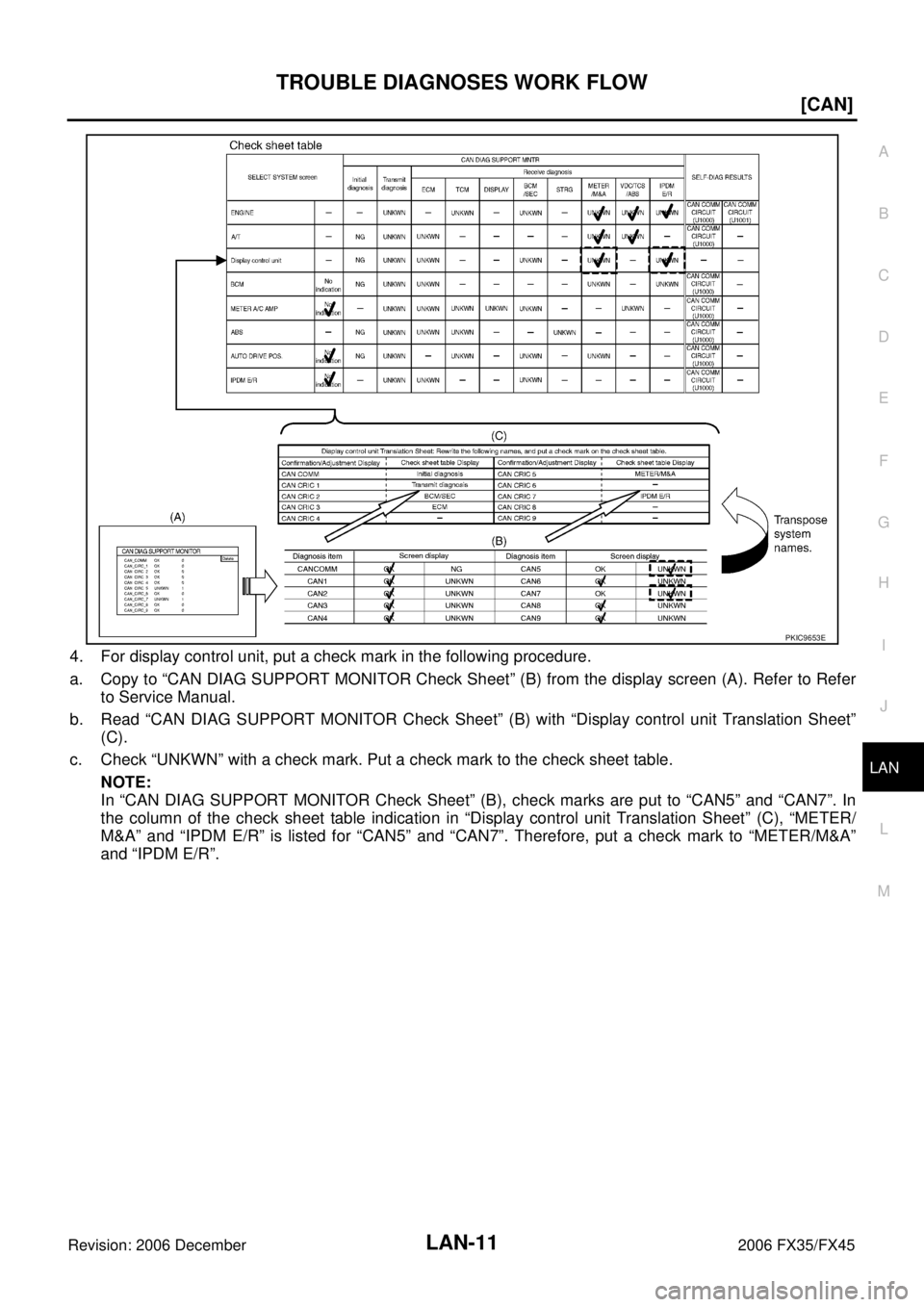

INFINITI FX35 2006 Service Manual LAN-10 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 December 2006 FX35/FX45 Example of Filling in Check Sheet When Initial Conditions Are Reproduced 1. Put a check mark to “No indication” if s

Page 3371 of 4462

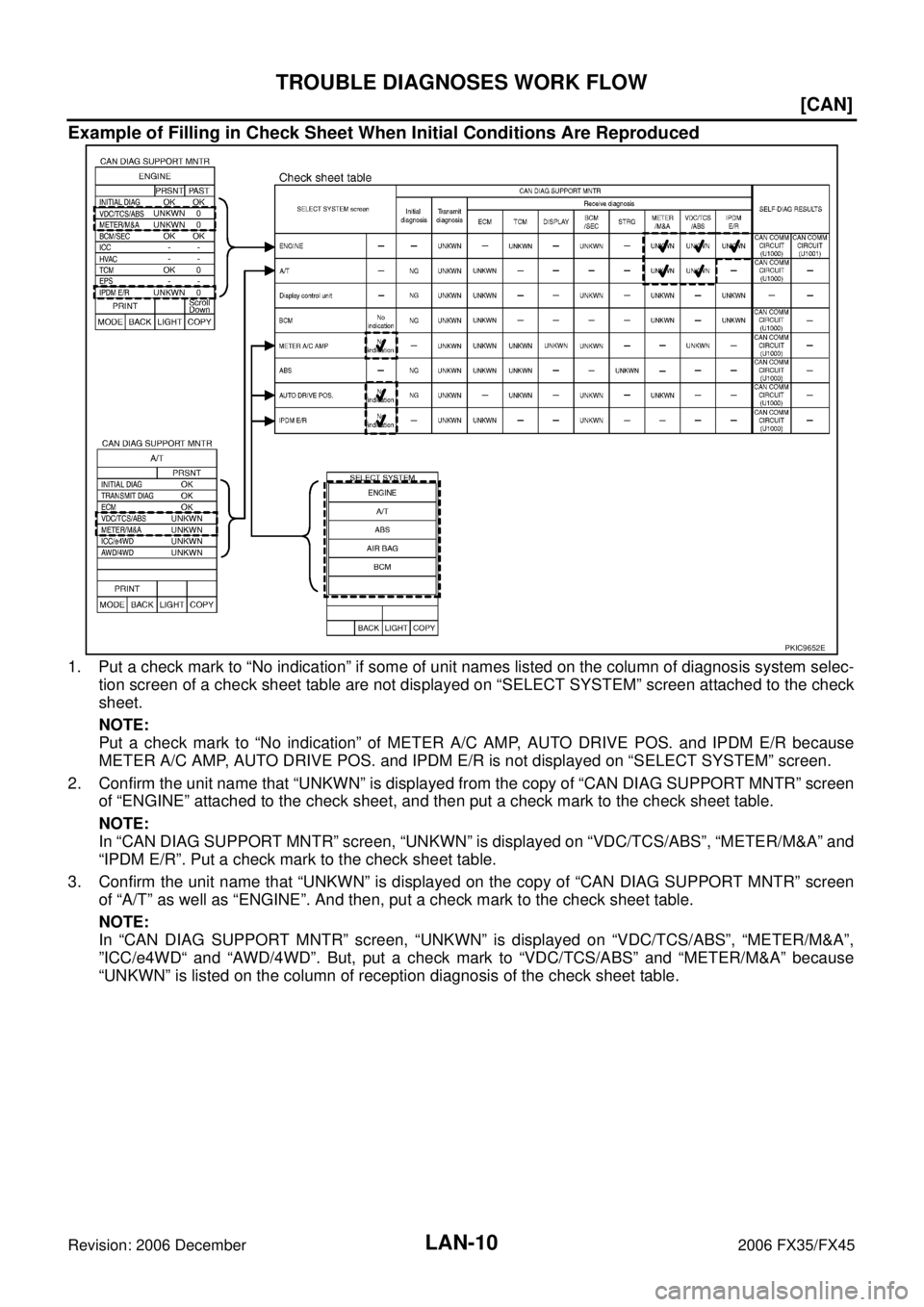

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-11 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 4. For display control unit, put a check mark in the following procedure. a. Co

Page 3372 of 4462

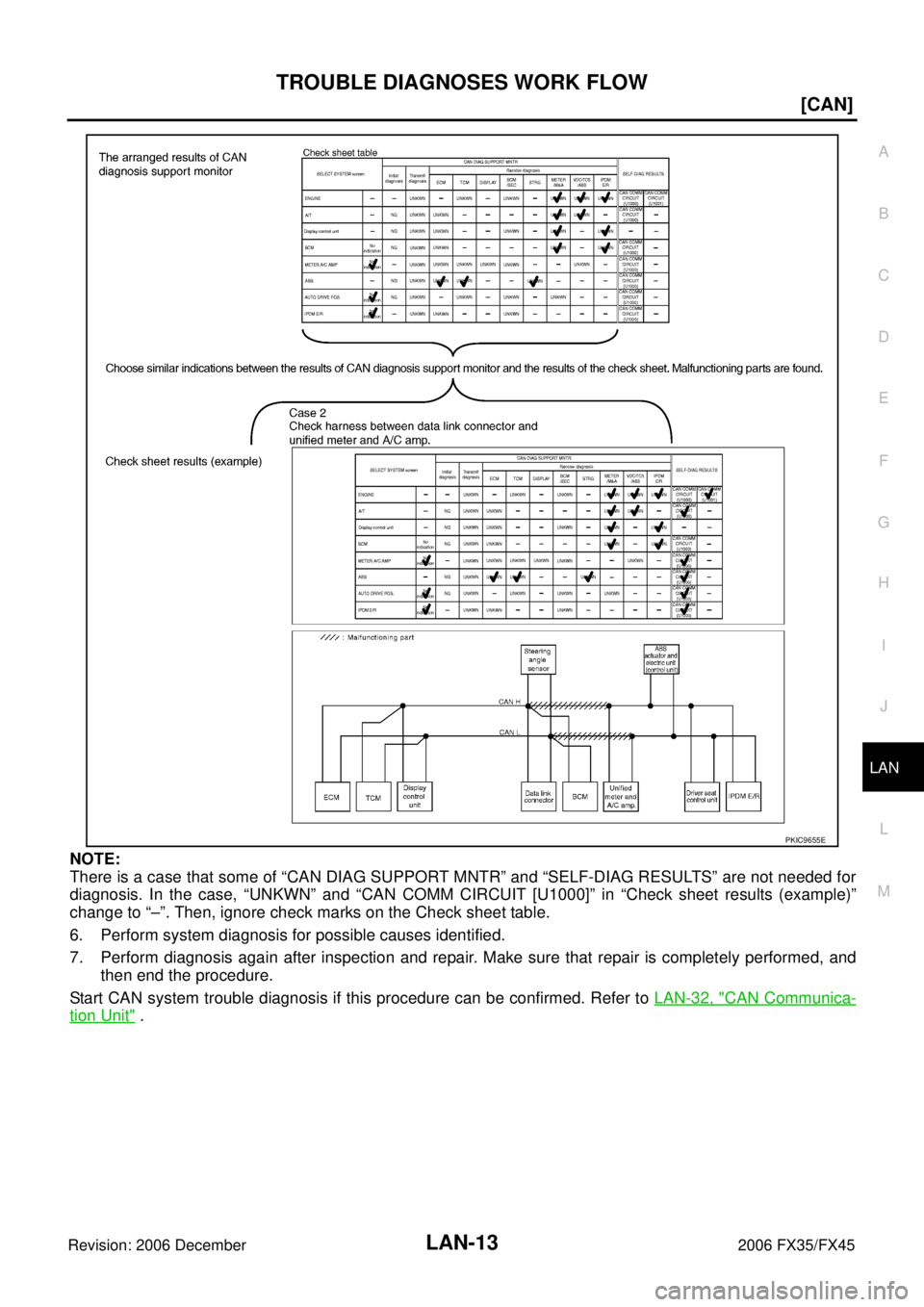

INFINITI FX35 2006 Service Manual LAN-12 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 December 2006 FX35/FX45 5. Confirm the unit name that “UNKWN” is displayed on the copy of “CAN DIAG SUPPORT MNTR” screen of “BCM” an

Page 3373 of 4462

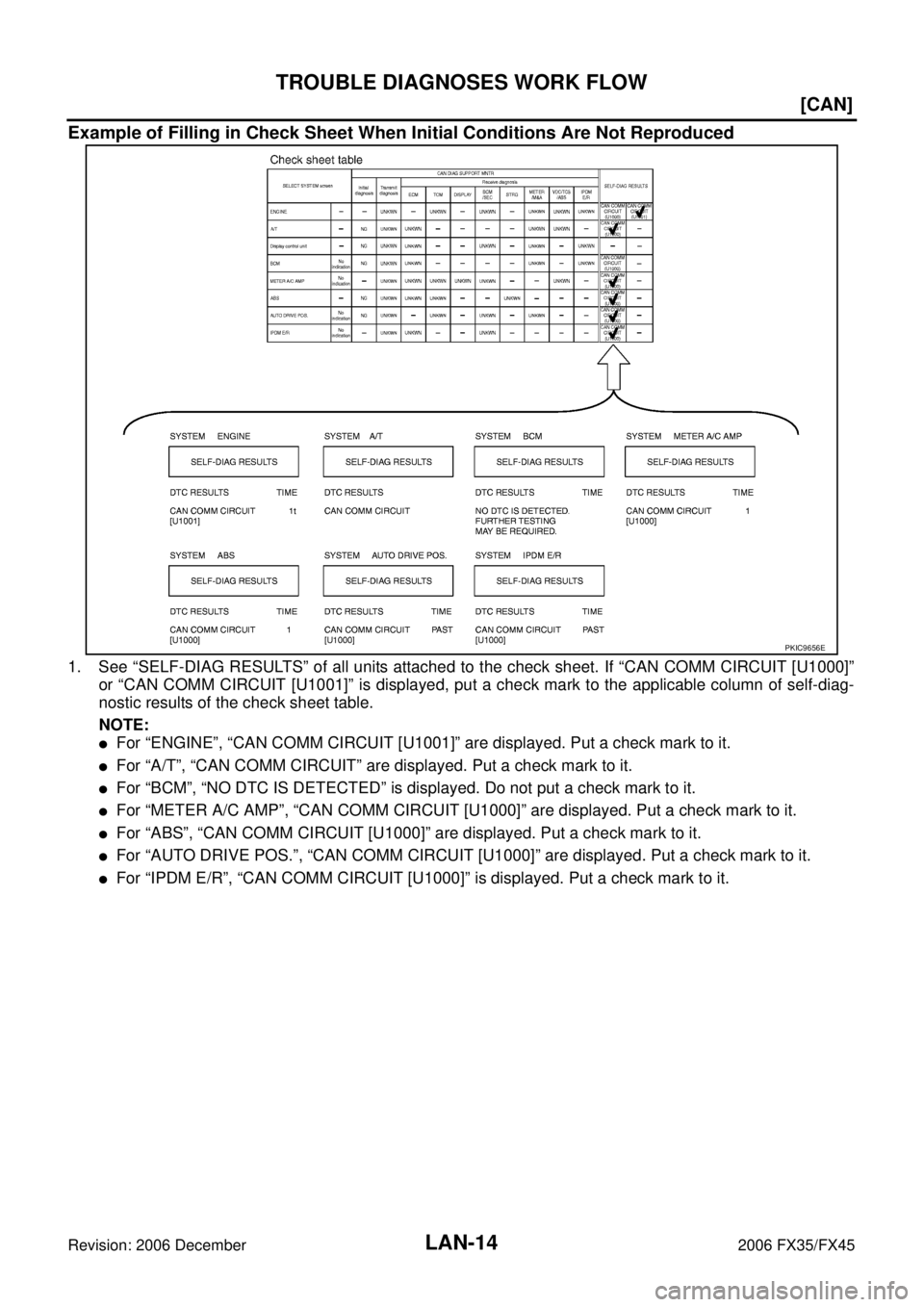

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-13 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 NOTE: There is a case that some of “CAN DIAG SUPPORT MNTR” and “SELF-DIAG

Page 3374 of 4462

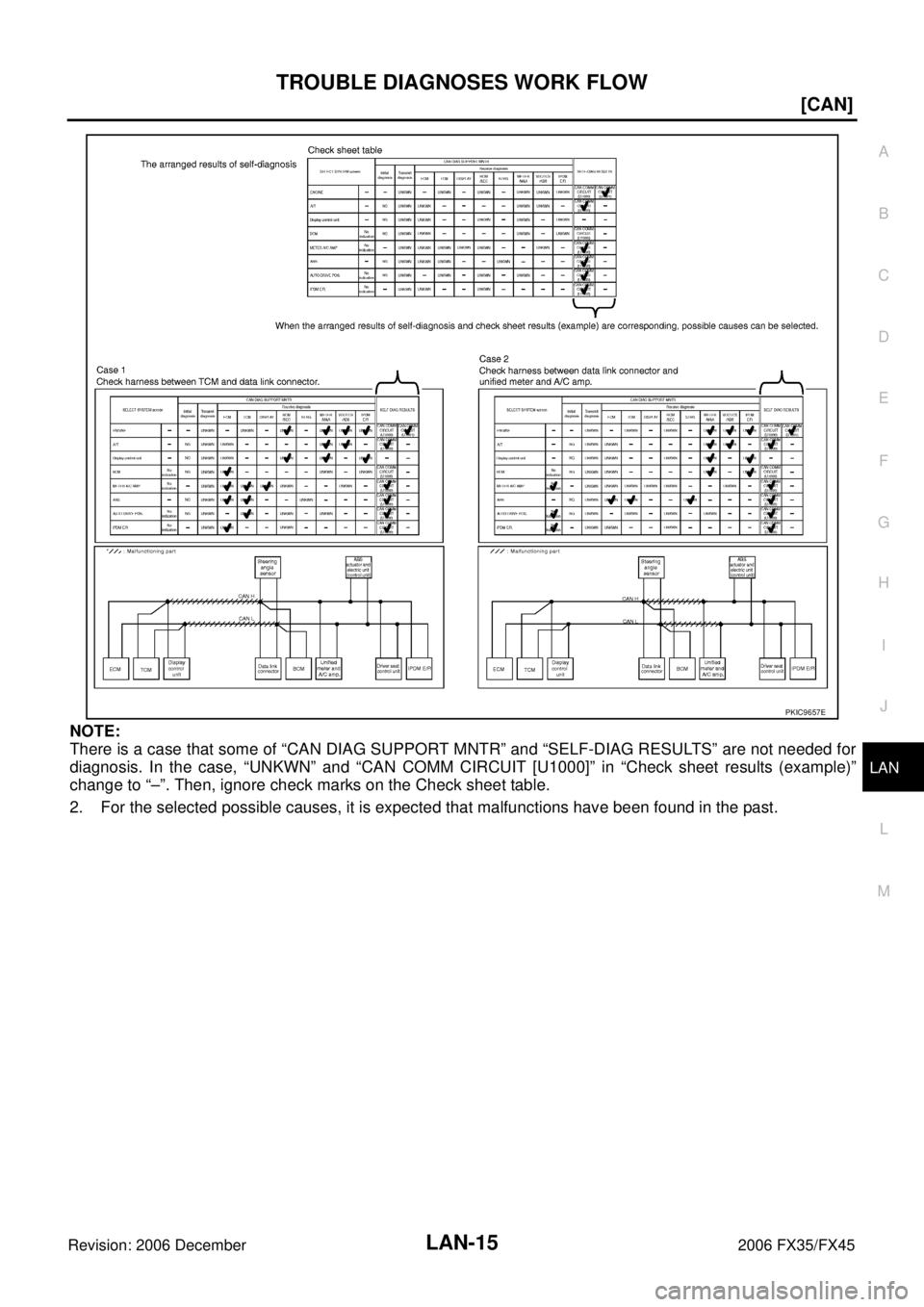

INFINITI FX35 2006 Service Manual LAN-14 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 December 2006 FX35/FX45 Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced 1. See “SELF-DIAG RESULTS” of all units

Page 3375 of 4462

INFINITI FX35 2006 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-15 [CAN] C D E F G H I J L M A B LAN Revision: 2006 December 2006 FX35/FX45 NOTE: There is a case that some of “CAN DIAG SUPPORT MNTR” and “SELF-DIAG

Page 3376 of 4462

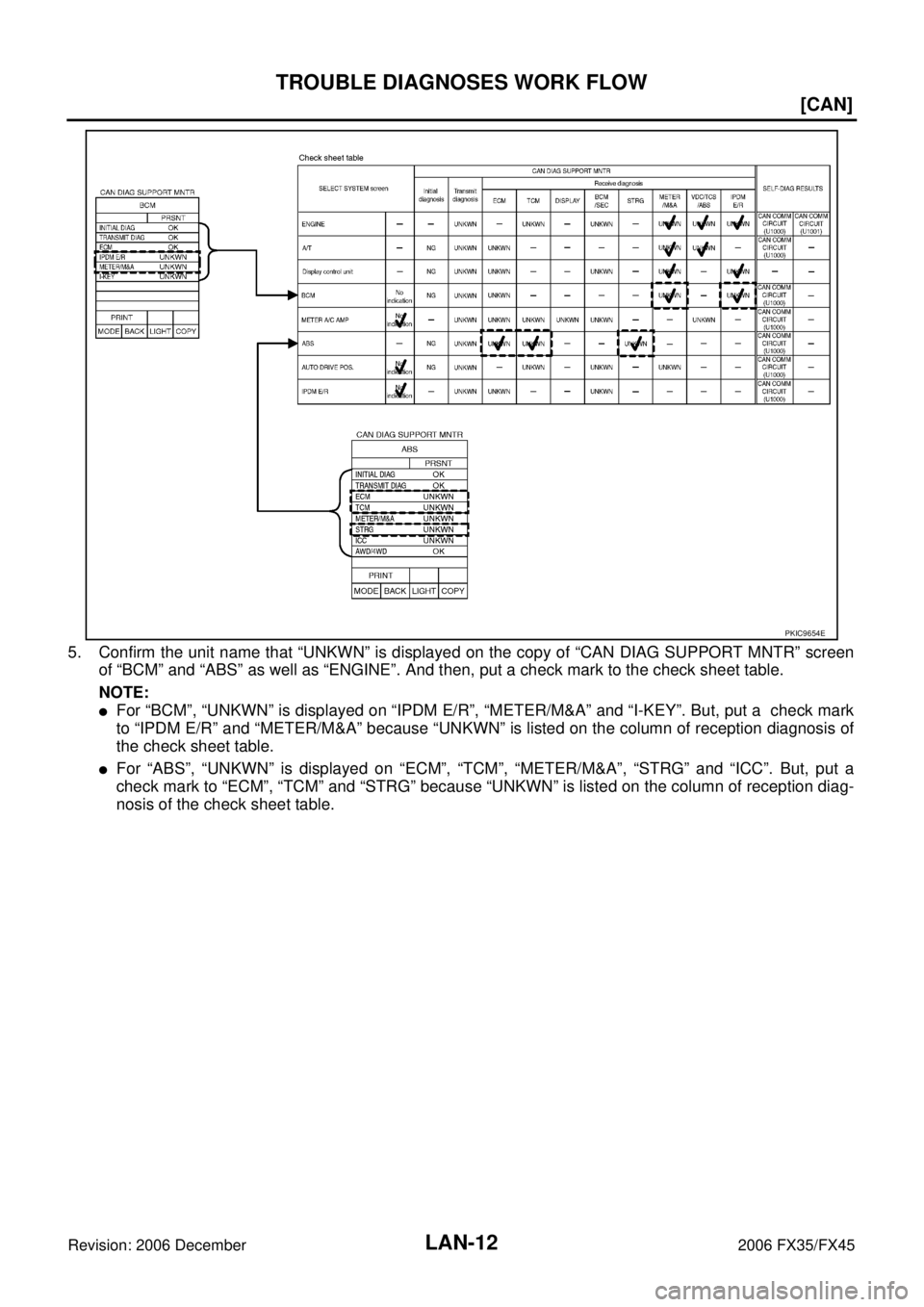

INFINITI FX35 2006 Service Manual LAN-16 [CAN] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 December 2006 FX35/FX45 CAN Diagnostic Support MonitorNKS0034B DESCRIPTION OF “CAN DIAG SUPPORT MNTR” SCREEN FOR ECM Display Results (Presen
