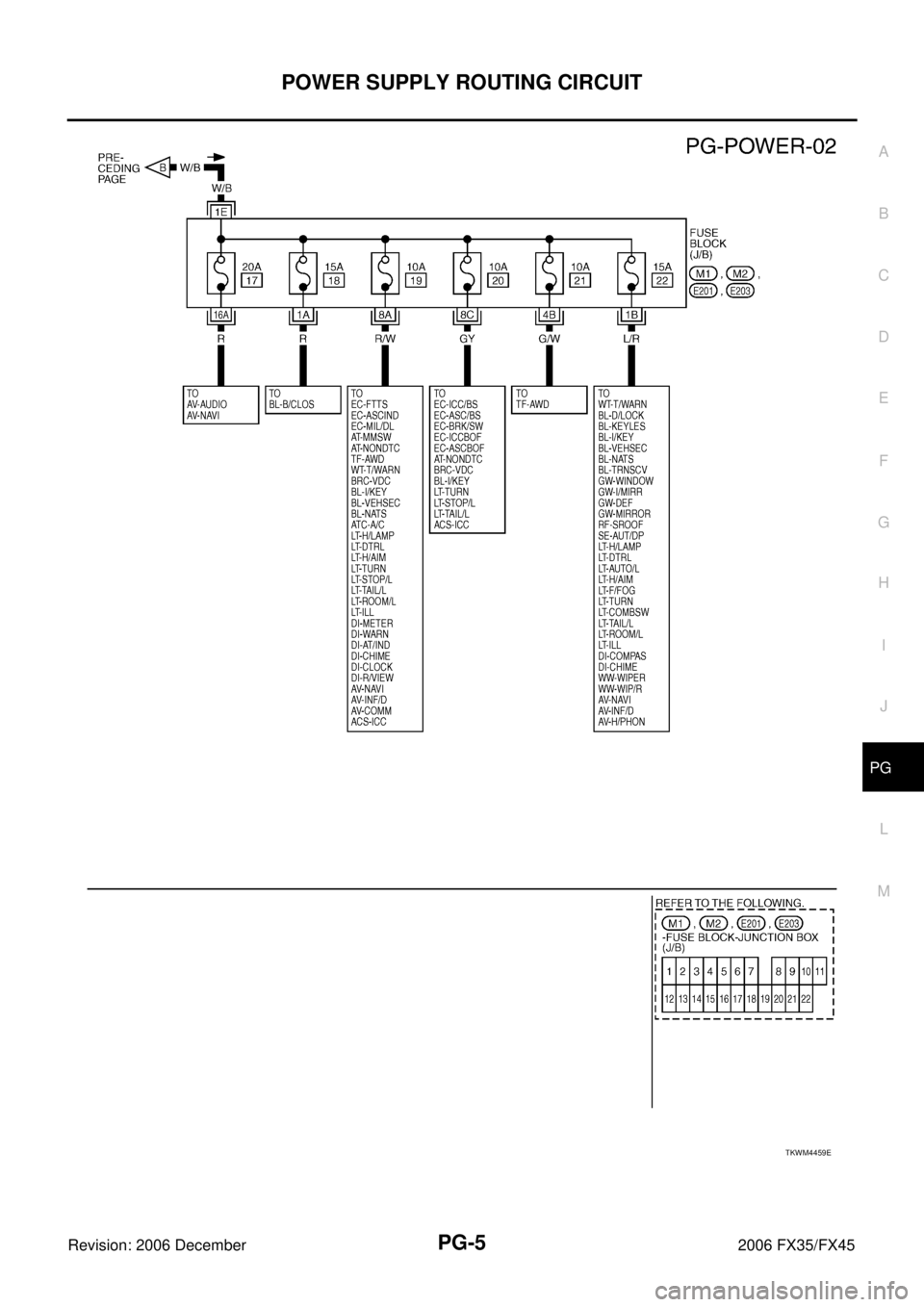

Page 3857 of 4462

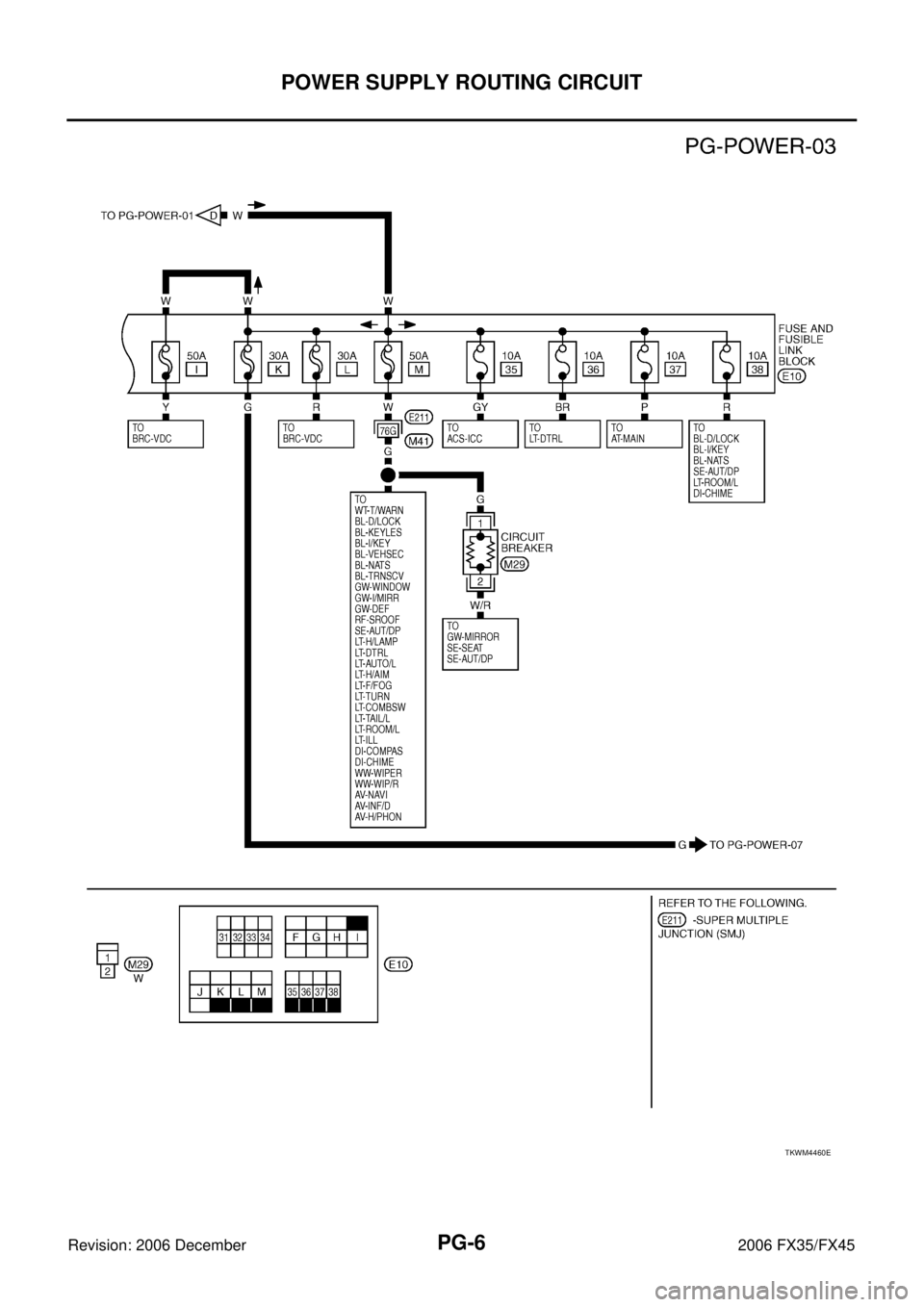

INFINITI FX35 2006 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-5 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 TKWM4459E

Page 3858 of 4462

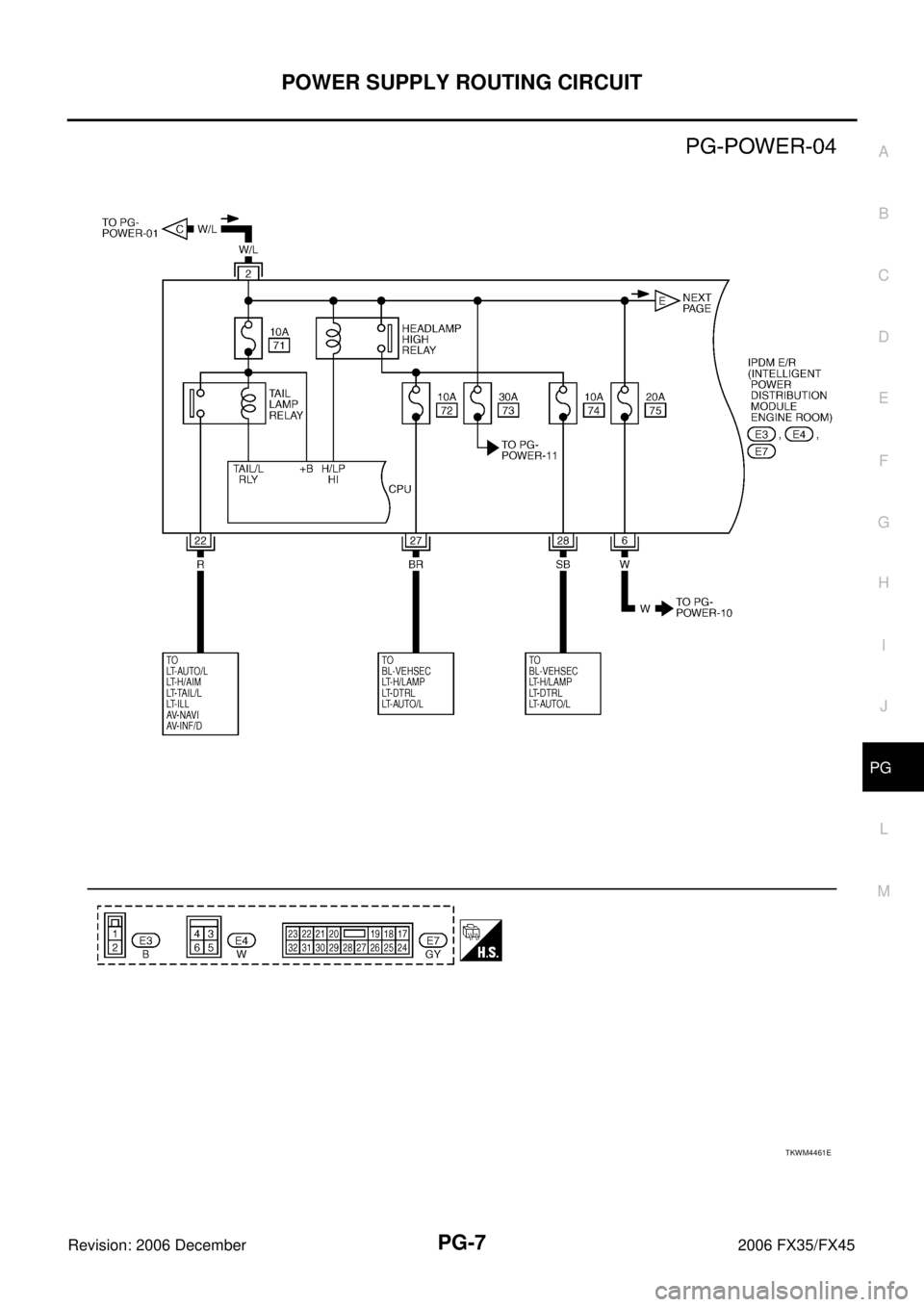

INFINITI FX35 2006 Service Manual PG-6 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 December 2006 FX35/FX45 TKWM4460E

Page 3859 of 4462

INFINITI FX35 2006 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-7 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 TKWM4461E

Page 3860 of 4462

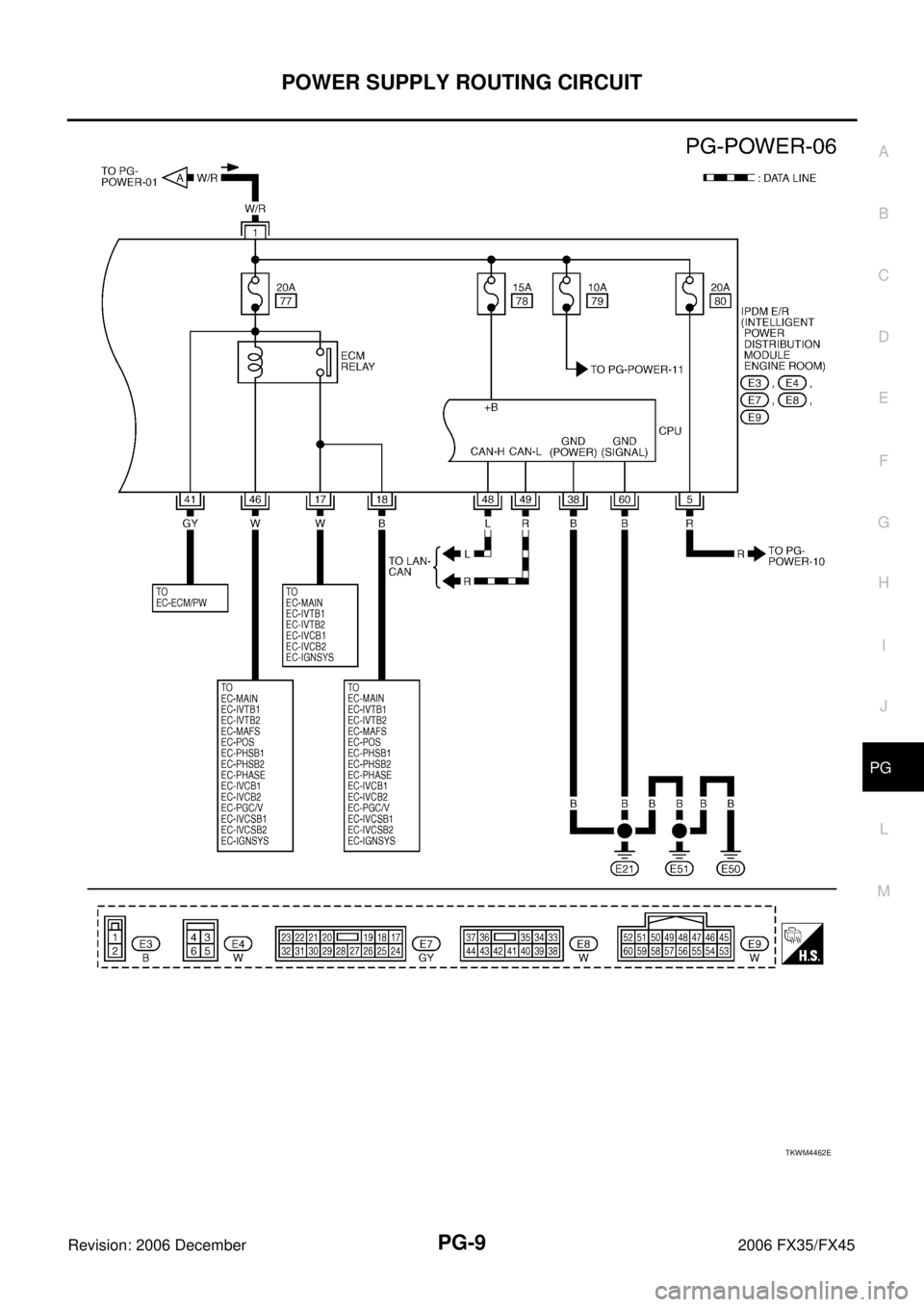

INFINITI FX35 2006 Service Manual PG-8 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 December 2006 FX35/FX45 TKWM0712E

Page 3861 of 4462

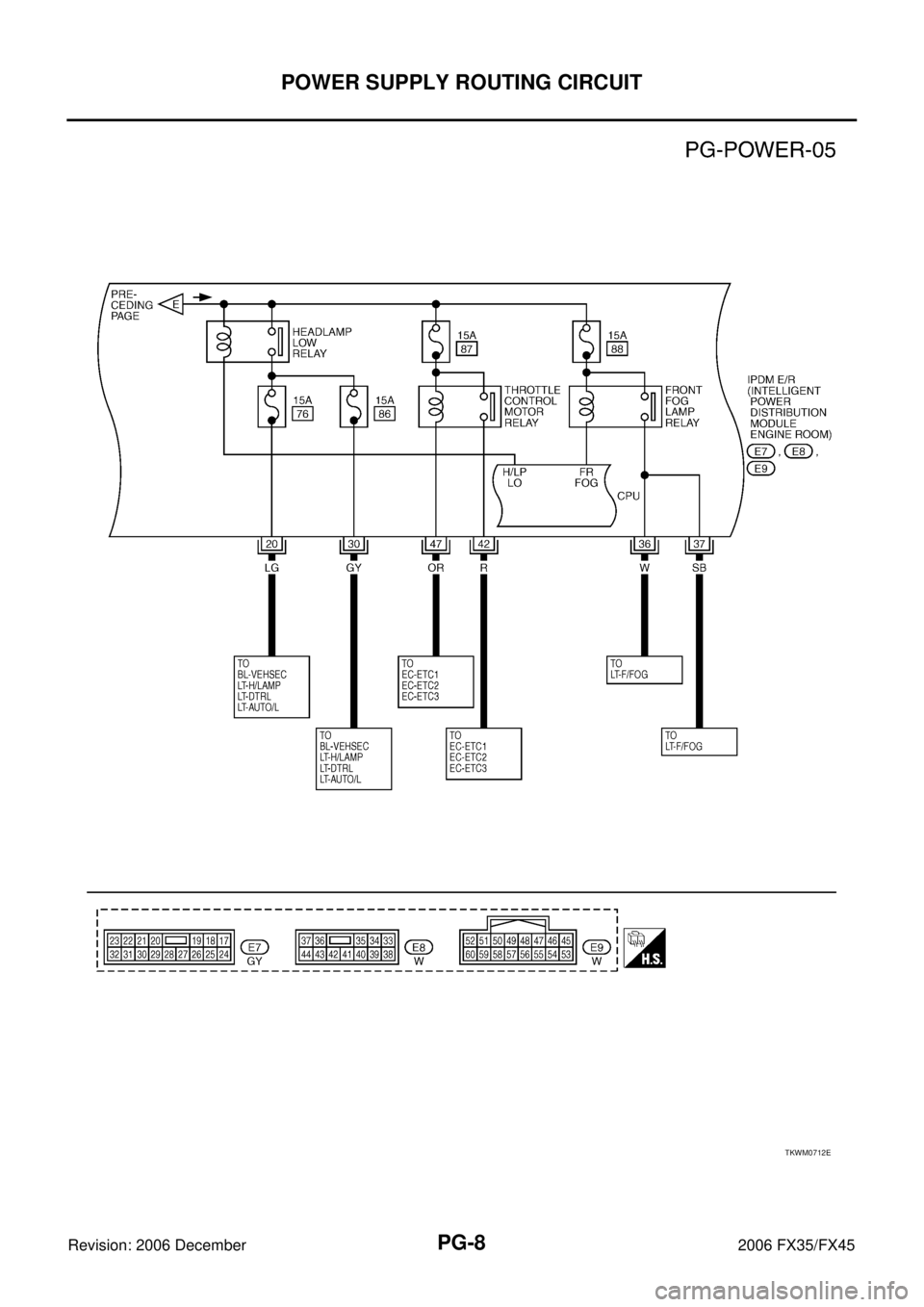

INFINITI FX35 2006 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-9 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 TKWM4462E

Page 3862 of 4462

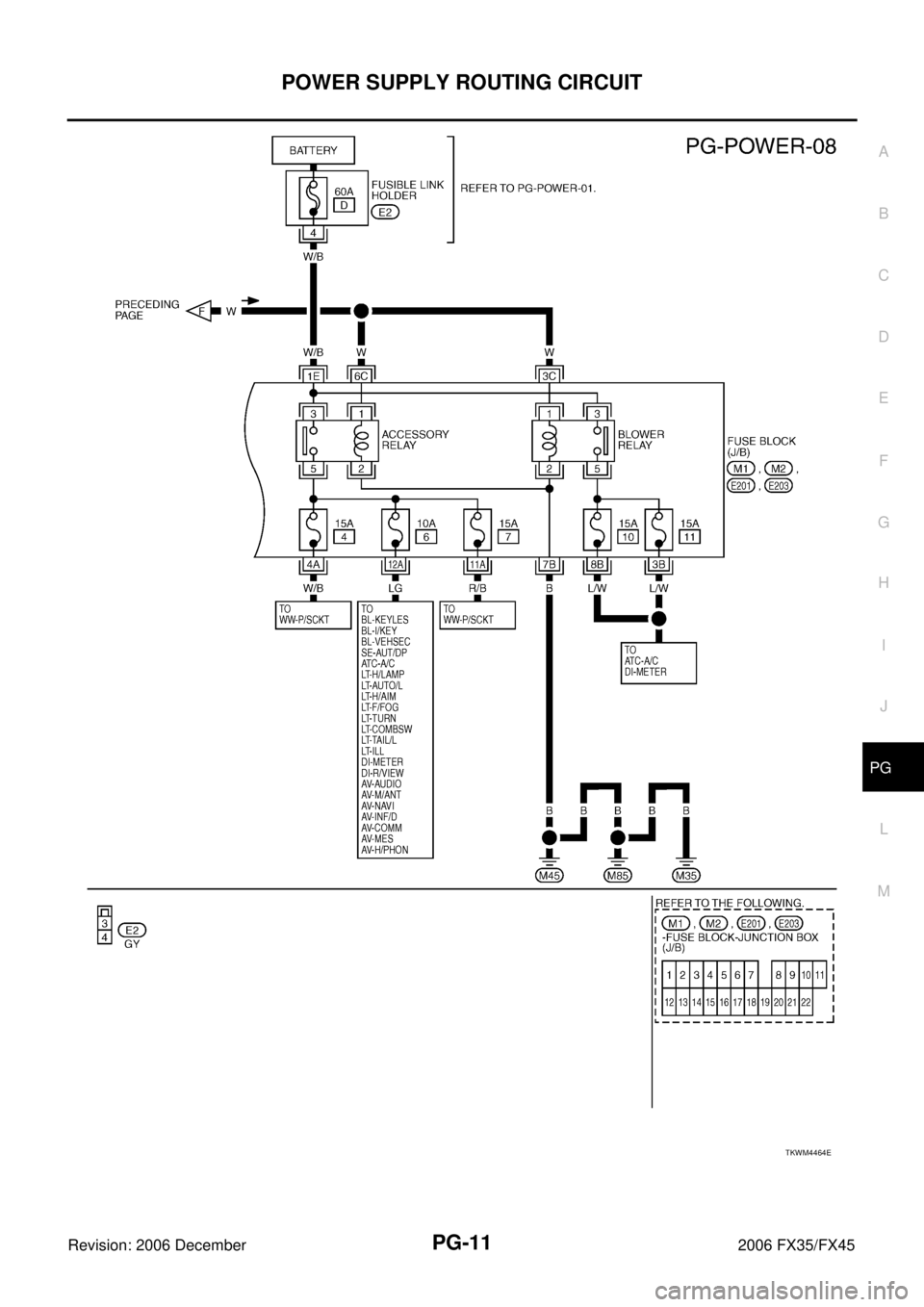

INFINITI FX35 2006 Service Manual PG-10 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 December 2006 FX35/FX45 ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON” TKWM4463E

Page 3863 of 4462

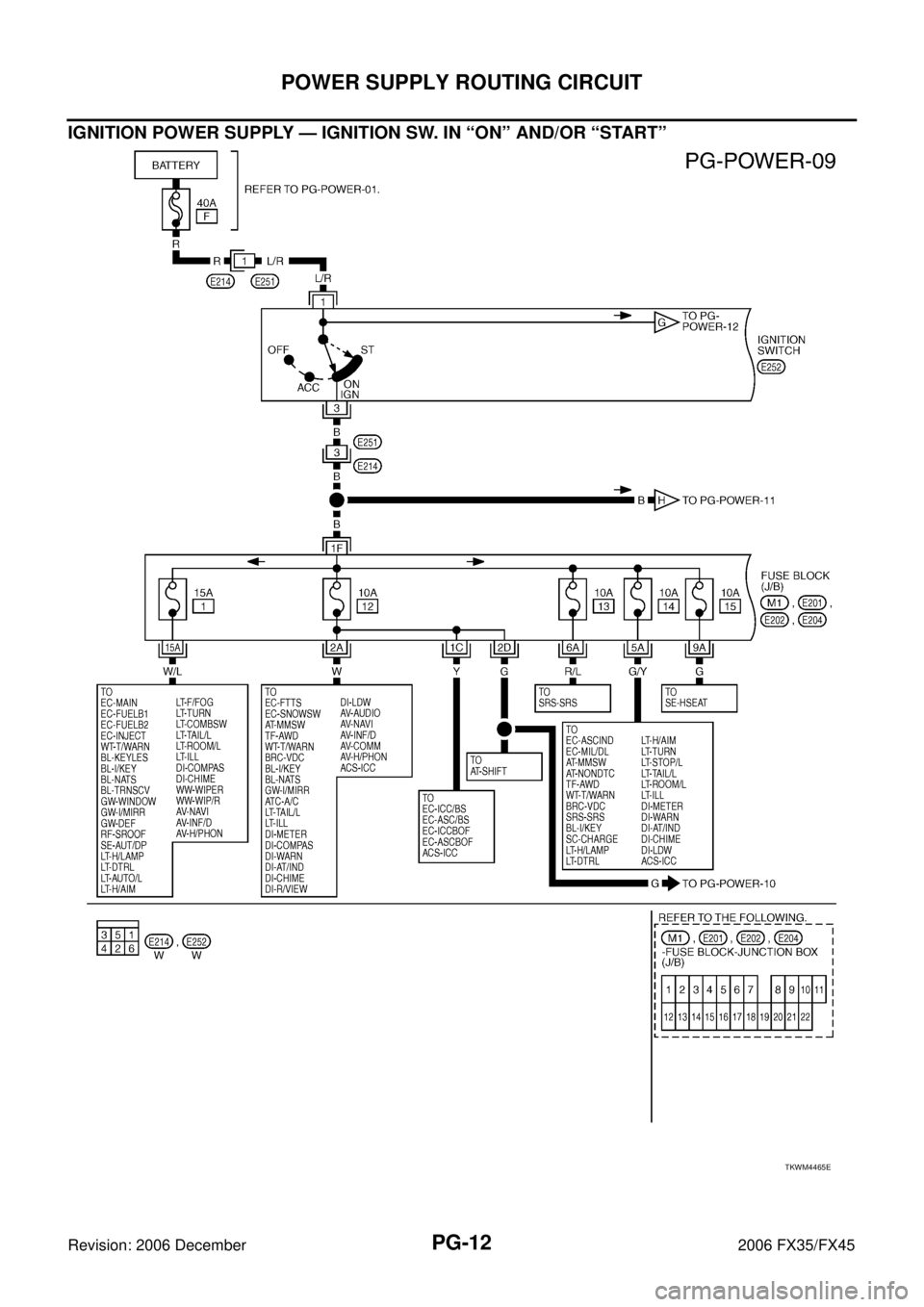

INFINITI FX35 2006 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-11 C D E F G H I J L M A B PG Revision: 2006 December 2006 FX35/FX45 TKWM4464E

Page 3864 of 4462

INFINITI FX35 2006 Service Manual PG-12 POWER SUPPLY ROUTING CIRCUIT Revision: 2006 December 2006 FX35/FX45 IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START” TKWM4465E
