If switch is held in MIST position, low speed operation continues.
FAIL-SAFE FUNCTION
If an abnormality occurs in CAN communications, IPDM E/R holds the condition just before fail-safe status is
initiated until ignition switch is turned OFF. (If wipers were operating in LO just before the initiation of fail-safe
status, they continue to operate in LO until ignition switch is turned OFF.)
Page 4410 of 4462
WW-8
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
COMBINATION SWITCH READING FUNCTION
Description
BCM reads combination switch (wiper) status, and controls related systems such as head lamps and wip-
ers, according to the results.
BCM reads information of a maximum of 20 switches by combining five output terminals (OUTPUT 1-5)
and five input terminals (INPUT 1-5).
Operation Description
BCM activates transistors of output terminals (OUTPUT 1-5) periodically and, and allows current to flow in
turn.
If any (1 or more) switches are turned ON, circuit of output terminals (OUTPUT 1-5) and input terminals
(INPUT 1-5) becomes active.
At this time, transistors of output terminals (OUTPUT 1-5) are activated to allow current to flow. When volt-
age of input terminals (INPUT 1-5) corresponding to that switch changes, interface in BCM detects volt-
age change, and BCM determines that switch is ON.
PKIC9702E
Page 4411 of 4462
FRONT WIPER AND WASHER SYSTEM WW-9
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45
BCM - Operation Table of Combination Switches
BCM reads operation status of combination switch using combinations shown in table below.
Sample Operation: (When Wiper Switch Turned to LOW Position)
When wiper switch is turned to LOW position, front wiper LOW contact in combination switch turns ON. At
this time if OUTPUT 1 transistor is activated, BCM detects that voltage changes in INPUT 3.
When BCM detects that voltage changes in INPUT 3 while OUTPUT 1 transistor is ON, it judges that front
wiper switch is in LOW position. Then BCM sends front wiper request signal (LO) to IPDM E/R using CAN
communication.
If BCM detects that voltage changes in INPUT 3 when OUTPUT 1 transistor is activated again, it recog-
nizes that wiper switch is still in LOW position.
SKIA4959E
PKIC9703E
Page 4412 of 4462

WW-10
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
NOTE:
Each OUTPUT terminal transistor is activated at 10 ms intervals. Therefore after switch is turned ON, electri-
cal loads are activated with time delay. But this time delay is so short that it cannot be detected by human
senses.
Operation Mode
Combination switch reading function has operation modes shown below.
1. Normal status
–When BCM is not in sleep status, OUTPUT terminals (1-5) each turn ON-OFF every 10 ms.
2. Sleep status
–When BCM is in sleep status, transistors of OUTPUT 1 and 5 stop the output, and BCM enters low power
mode. Mean while OUTPUT 2, 3, and 4 send out ON signal every 60 ms, and accept input from lighting
switch system.
CAN Communication System DescriptionNKS00328
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-board multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS00329
Refer to LAN-32, "CAN Communication Unit" .
PKIC4919E
Page 4413 of 4462
FRONT WIPER AND WASHER SYSTEM WW-11
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45

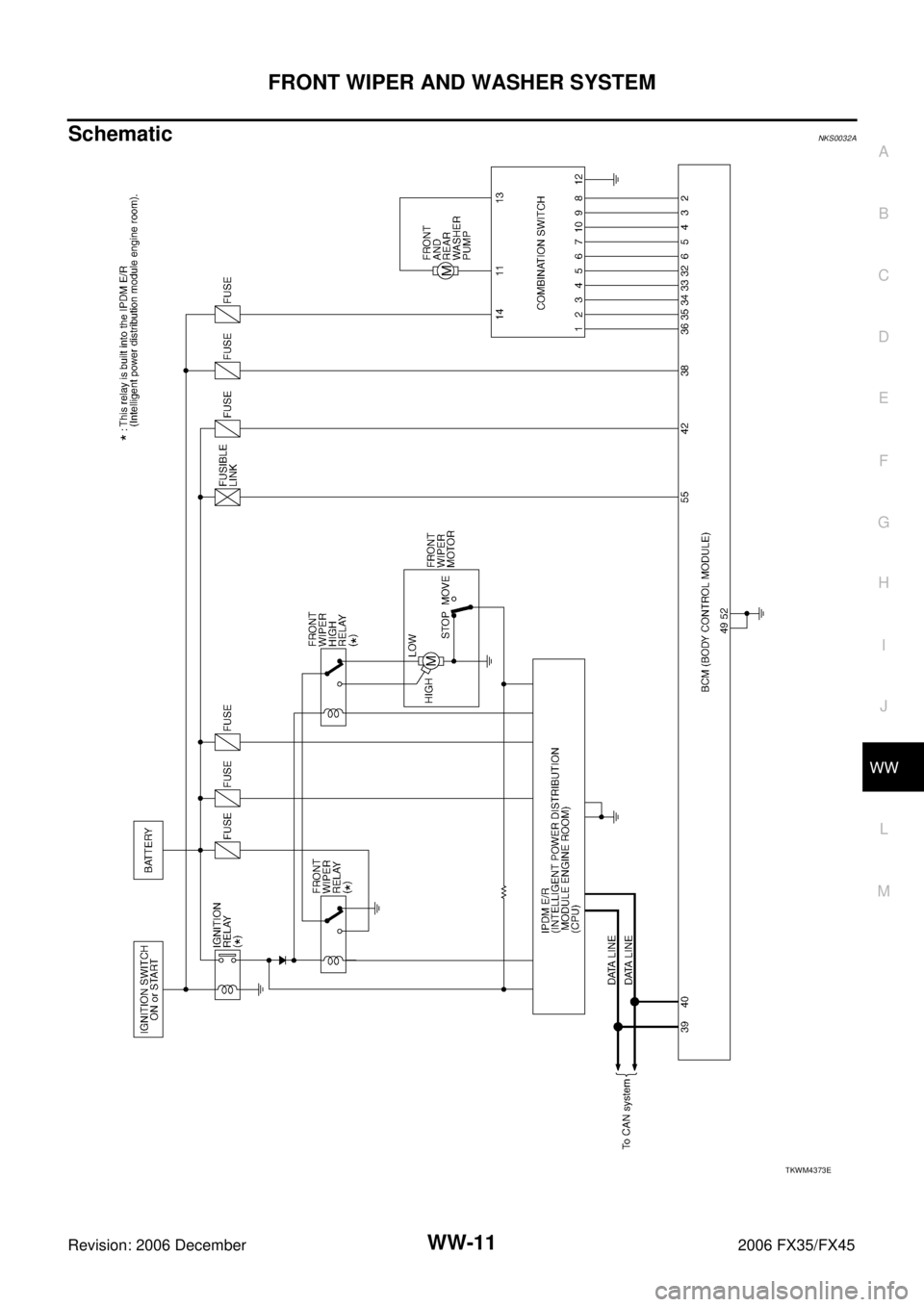

SchematicNKS0032A
TKWM4373E
Page 4414 of 4462
WW-12
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45

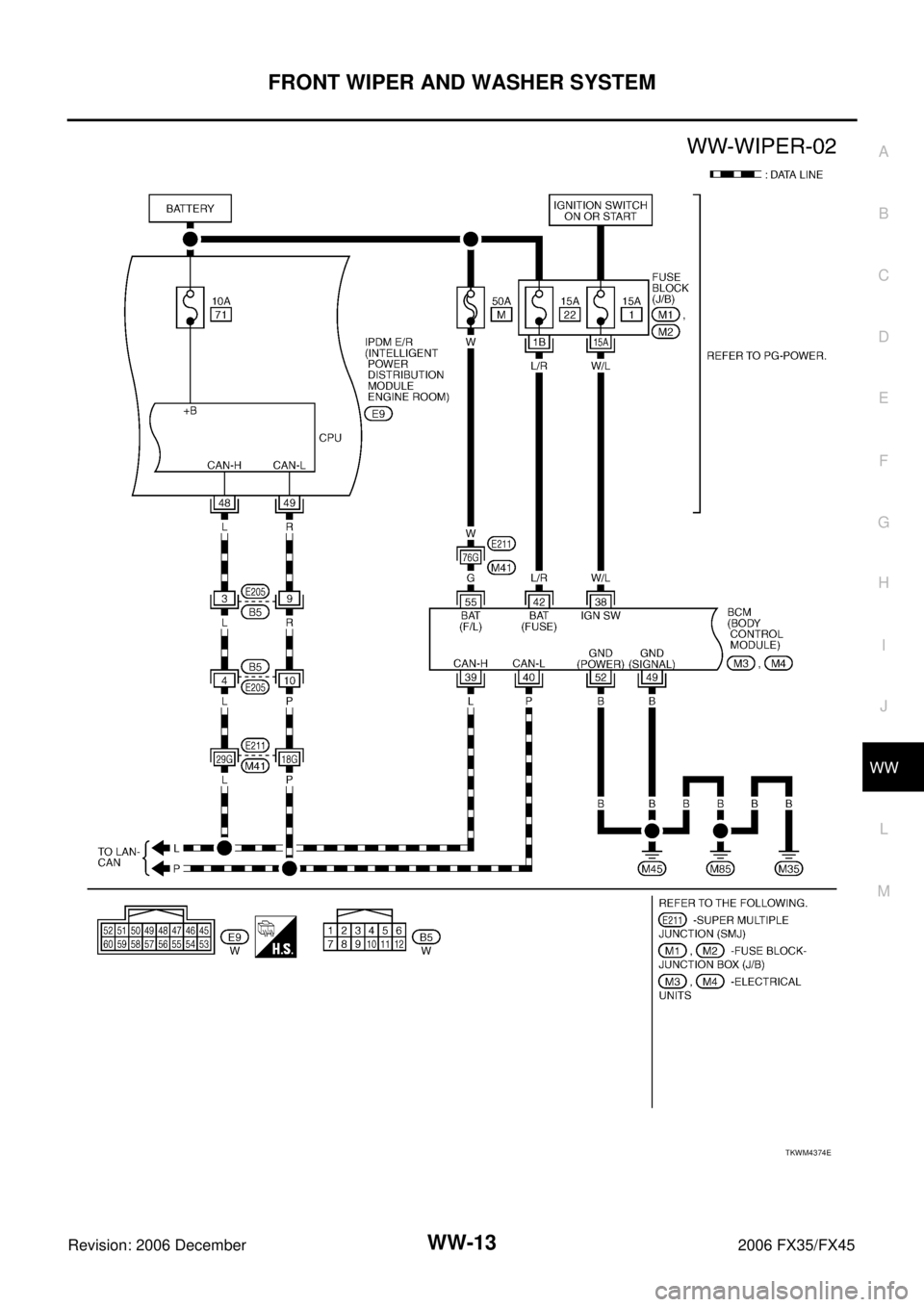

Wiring Diagram — WIPER —NKS0032B
TKWM0663E
Page 4415 of 4462
FRONT WIPER AND WASHER SYSTEM WW-13
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 December 2006 FX35/FX45

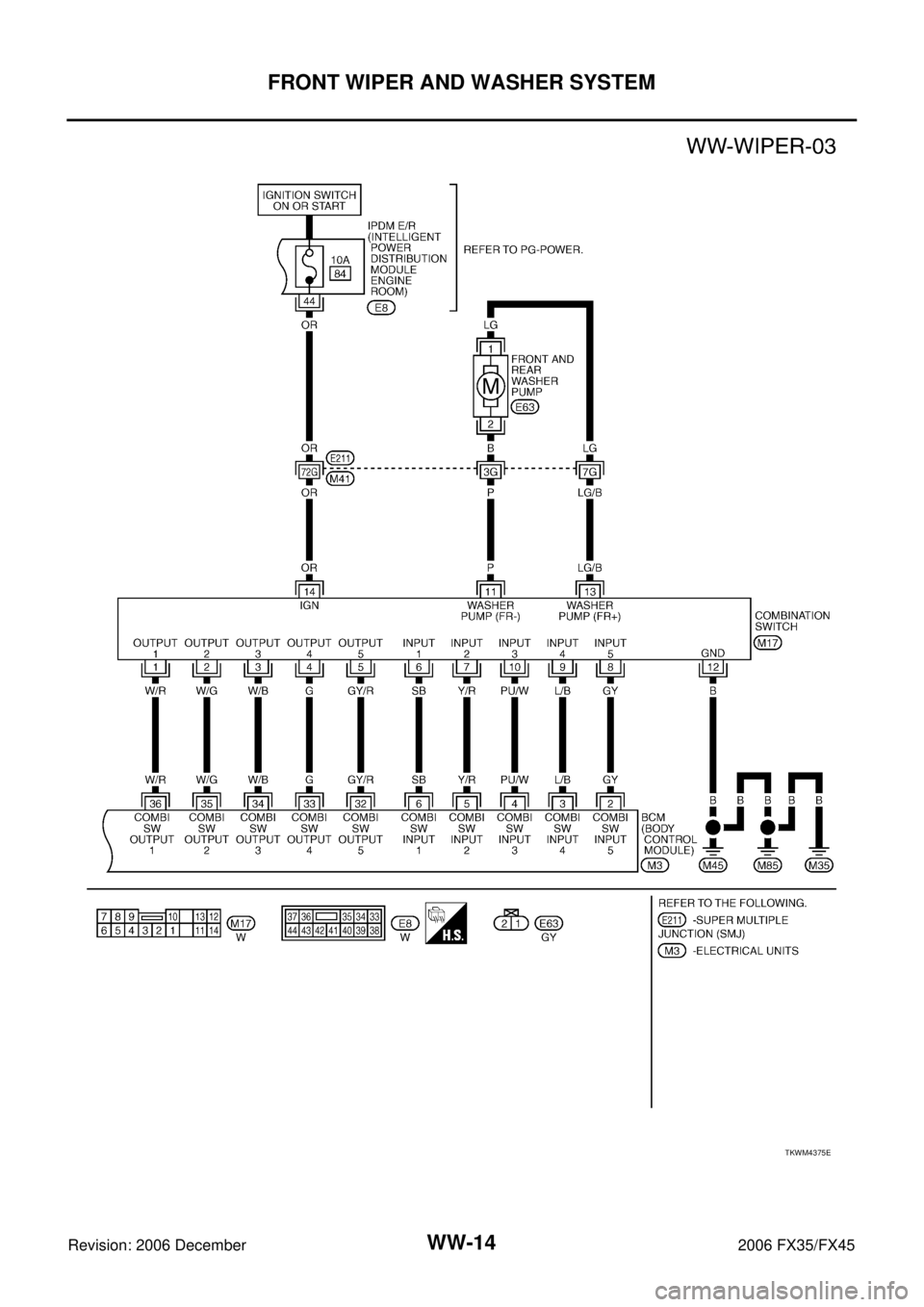

TKWM4374E
Page 4416 of 4462
WW-14
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 December 2006 FX35/FX45
TKWM4375E
