Page 2505 of 4462

INFINITI FX35 2006 Service Manual DTC P0456 EVAP CONTROL SYSTEM EC-1121
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

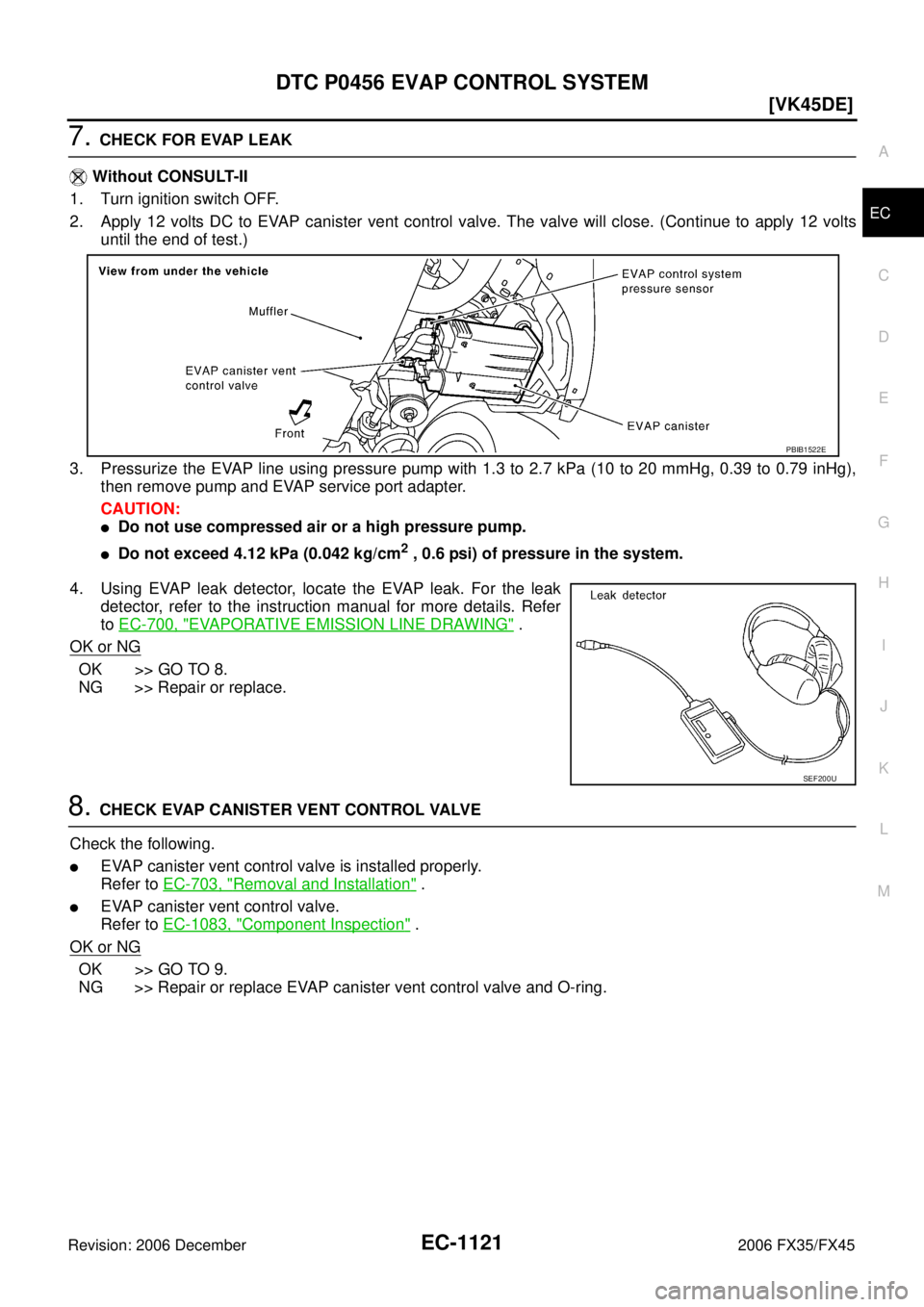

7. CHECK FOR EVAP LEAK
Without CONSULT-II
1. Turn ignition switch OFF.

Page 2506 of 4462

INFINITI FX35 2006 Service Manual EC-1122
[VK45DE]
DTC P0456 EVAP CONTROL SYSTEM
Revision: 2006 December 2006 FX35/FX45
9. CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent control valve and

Page 2507 of 4462

INFINITI FX35 2006 Service Manual DTC P0456 EVAP CONTROL SYSTEM EC-1123
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
13. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
W

Page 2508 of 4462

INFINITI FX35 2006 Service Manual EC-1124
[VK45DE]
DTC P0456 EVAP CONTROL SYSTEM
Revision: 2006 December 2006 FX35/FX45
20. CHECK EVAP/ORVR LINE
Check EVAP/ORVR line between EVAP canister and fuel tank for clogging, kink, looseness a

Page 2509 of 4462

INFINITI FX35 2006 Service Manual DTC P0460 FUEL LEVEL SENSOR EC-1125
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0460 FUEL LEVEL SENSORPFP:25060
Component DescriptionNBS00494
The fuel l

DTC P0460 FUEL LEVEL SENSOR EC-1125
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

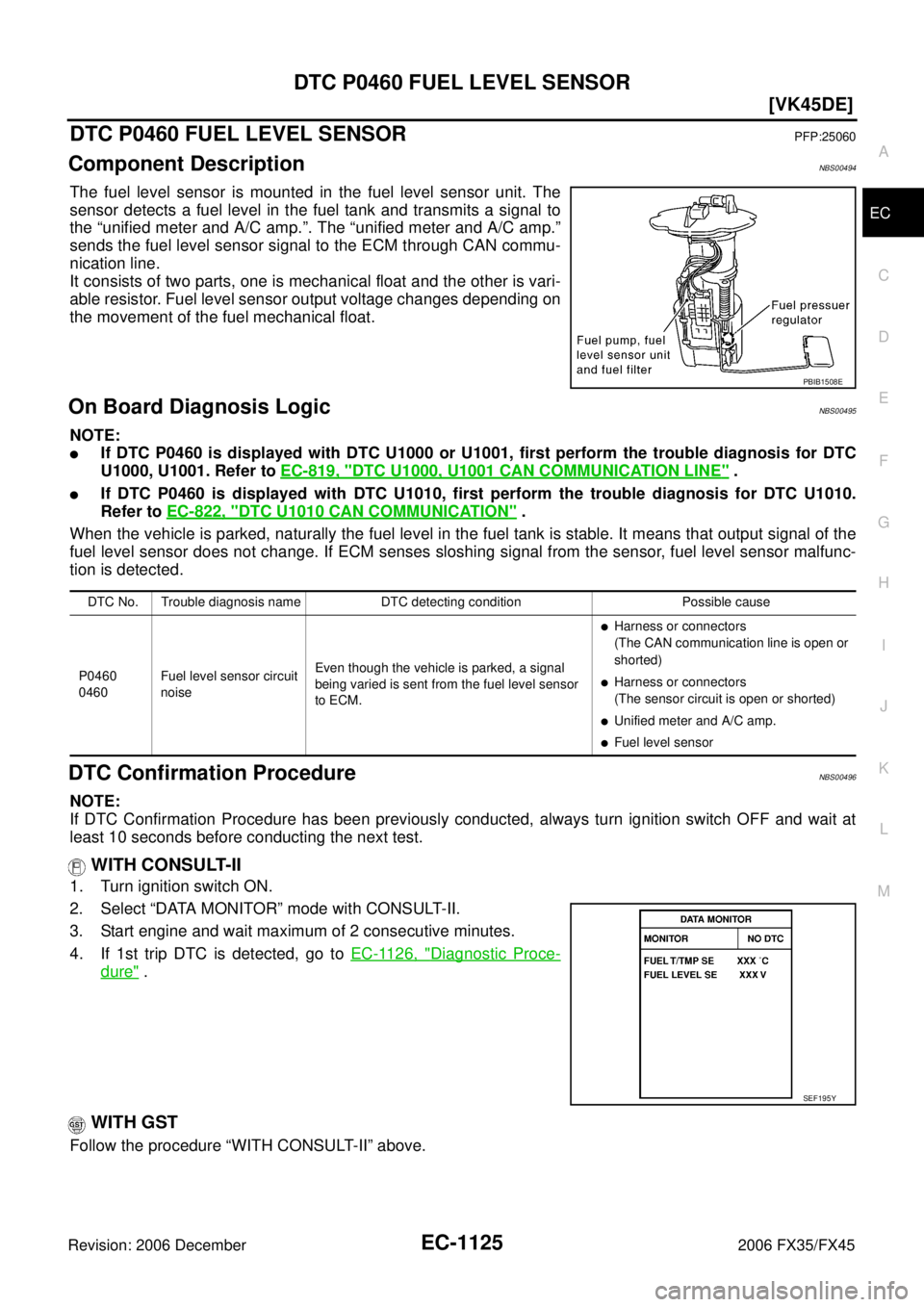

DTC P0460 FUEL LEVEL SENSORPFP:25060
Component DescriptionNBS00494
The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the “unified meter and A/C amp.”. The “unified meter and A/C amp.”
sends the fuel level sensor signal to the ECM through CAN commu-
nication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.
On Board Diagnosis LogicNBS00495
NOTE:
If DTC P0460 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-819, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P0460 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-822, "
DTC U1010 CAN COMMUNICATION" .
When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the
fuel level sensor does not change. If ECM senses sloshing signal from the sensor, fuel level sensor malfunc-
tion is detected.
DTC Confirmation ProcedureNBS00496
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and wait maximum of 2 consecutive minutes.
4. If 1st trip DTC is detected, go to EC-1126, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1508E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0460
0460 Fuel level sensor circuit
noise Even though the vehicle is parked, a signal
being varied is sent from the fuel level sensor
to ECM.
Harness or connectors
(The CAN communication line is open or
shorted)
Harness or connectors
(The sensor circuit is open or shorted)
Unified meter and A/C amp.
Fuel level sensor
SEF195Y

Page 2510 of 4462

INFINITI FX35 2006 Service Manual EC-1126
[VK45DE]
DTC P0460 FUEL LEVEL SENSOR
Revision: 2006 December 2006 FX35/FX45
Diagnostic ProcedureNBS00497
1. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-31, "
SELF-DIAG RESUL

Page 2511 of 4462

INFINITI FX35 2006 Service Manual DTC P0461 FUEL LEVEL SENSOR EC-1127
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0461 FUEL LEVEL SENSORPFP:25060
Component DescriptionNBS00499
The fuel l

DTC P0461 FUEL LEVEL SENSOR EC-1127
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

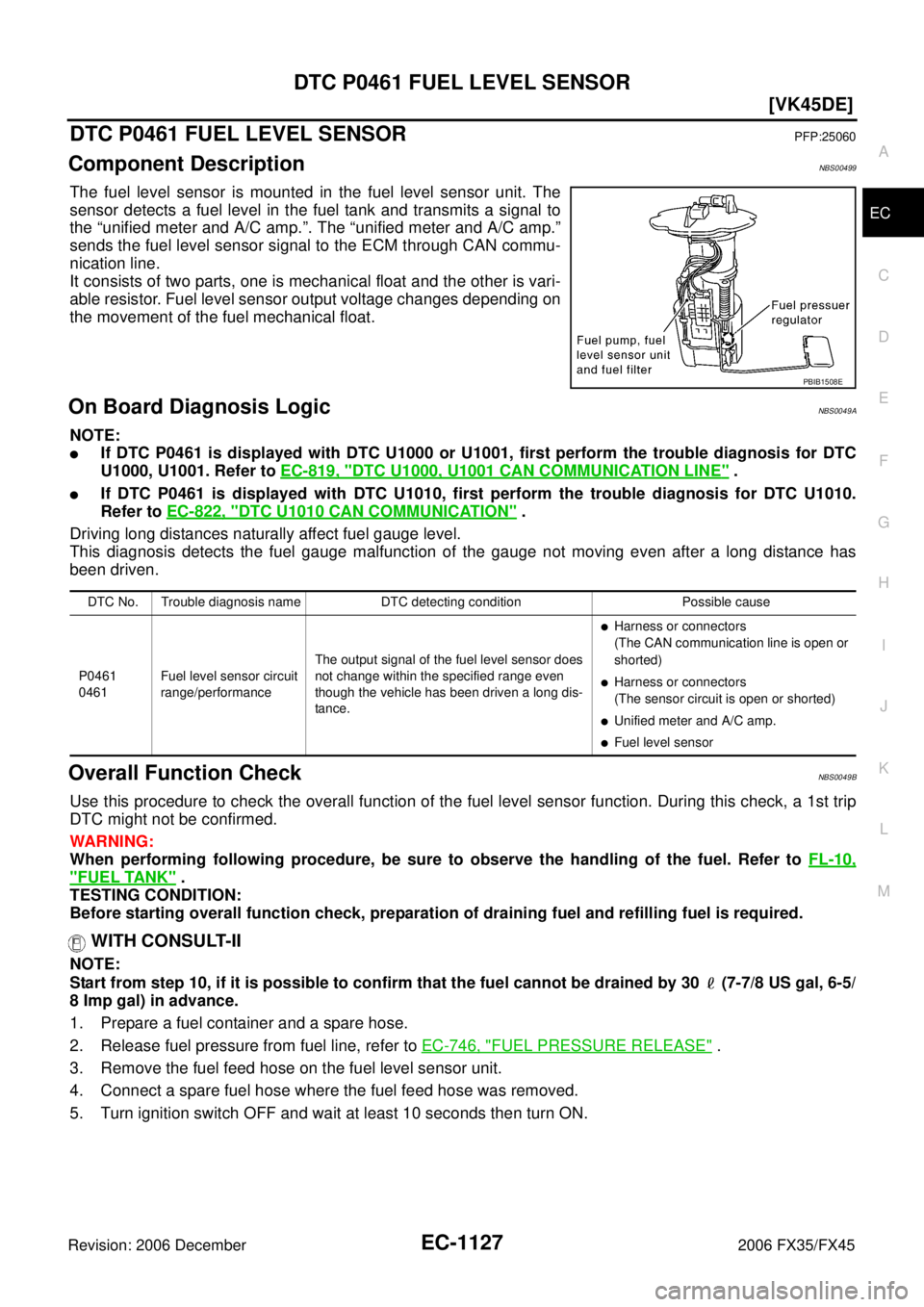

DTC P0461 FUEL LEVEL SENSORPFP:25060
Component DescriptionNBS00499
The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the “unified meter and A/C amp.”. The “unified meter and A/C amp.”
sends the fuel level sensor signal to the ECM through CAN commu-
nication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.
On Board Diagnosis LogicNBS0049A
NOTE:
If DTC P0461 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-819, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P0461 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-822, "
DTC U1010 CAN COMMUNICATION" .
Driving long distances naturally affect fuel gauge level.
This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has
been driven.
Overall Function CheckNBS0049B
Use this procedure to check the overall function of the fuel level sensor function. During this check, a 1st trip
DTC might not be confirmed.
WARNING:
When performing following procedure, be sure to observe the handling of the fuel. Refer to FL-10,
"FUEL TANK" .
TESTING CONDITION:
Before starting overall function check, preparation of draining fuel and refilling fuel is required.
WITH CONSULT-II
NOTE:
Start from step 10, if it is possible to confirm that the fuel cannot be drained by 30 (7-7/8 US gal, 6-5/
8 Imp gal) in advance.
1. Prepare a fuel container and a spare hose.
2. Release fuel pressure from fuel line, refer to EC-746, "
FUEL PRESSURE RELEASE" .
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch OFF and wait at least 10 seconds then turn ON.
PBIB1508E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0461
0461 Fuel level sensor circuit
range/performance The output signal of the fuel level sensor does
not change within the specified range even
though the vehicle has been driven a long dis-
tance.
Harness or connectors
(The CAN communication line is open or
shorted)
Harness or connectors
(The sensor circuit is open or shorted)
Unified meter and A/C amp.
Fuel level sensor

Page 2512 of 4462

INFINITI FX35 2006 Service Manual EC-1128
[VK45DE]
DTC P0461 FUEL LEVEL SENSOR
Revision: 2006 December 2006 FX35/FX45

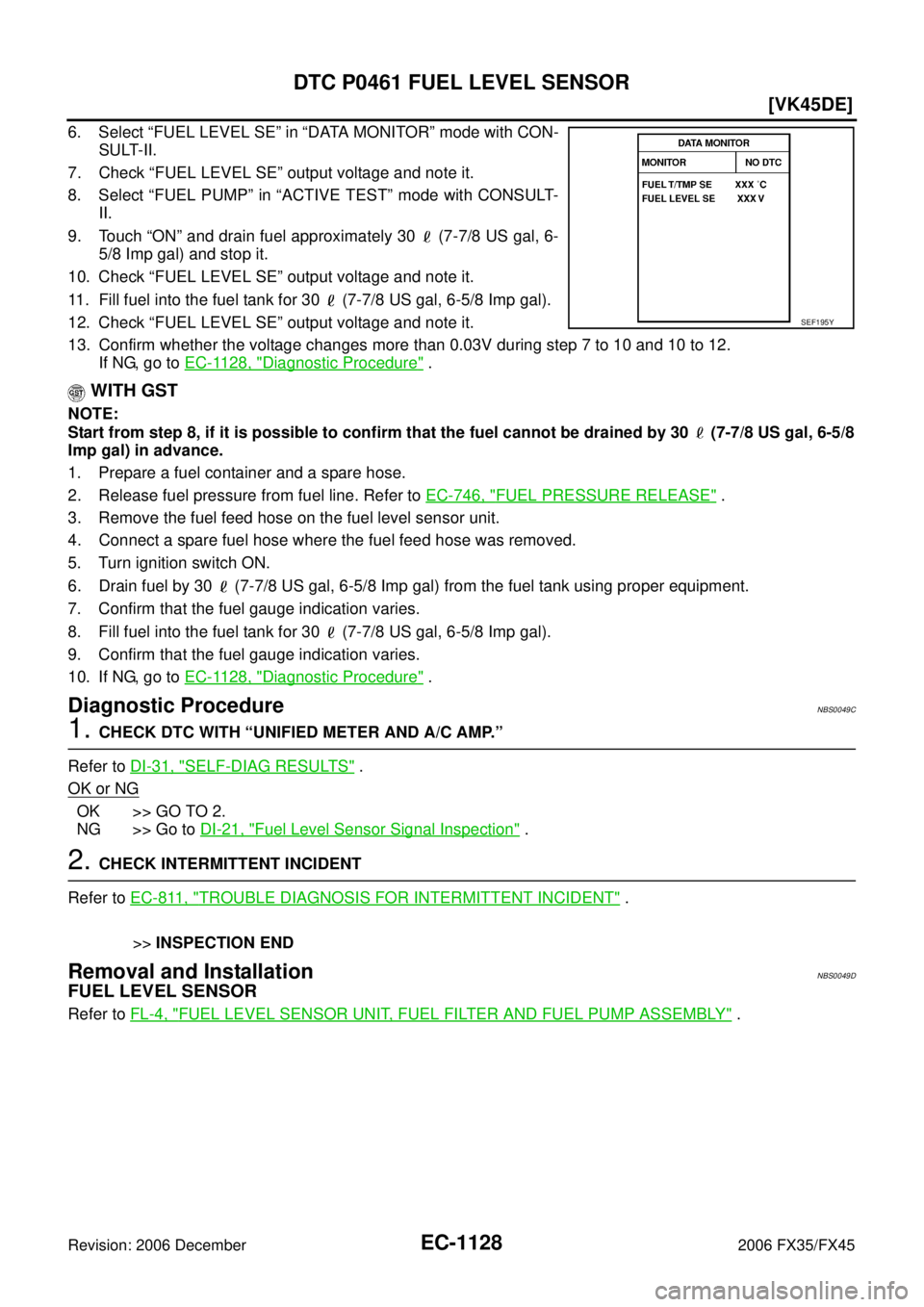

6. Select “FUEL LEVEL SE” in “DATA MONITOR” mode with CON- SULT-II.
7. Check “FUEL LEVEL SE” output vol
