FRONT TIMING CHAIN CASE EM-63
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The followings are procedures for checking fluids leak, lubricates leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil
and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc. Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Page 2858 of 4462
EM-64
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45

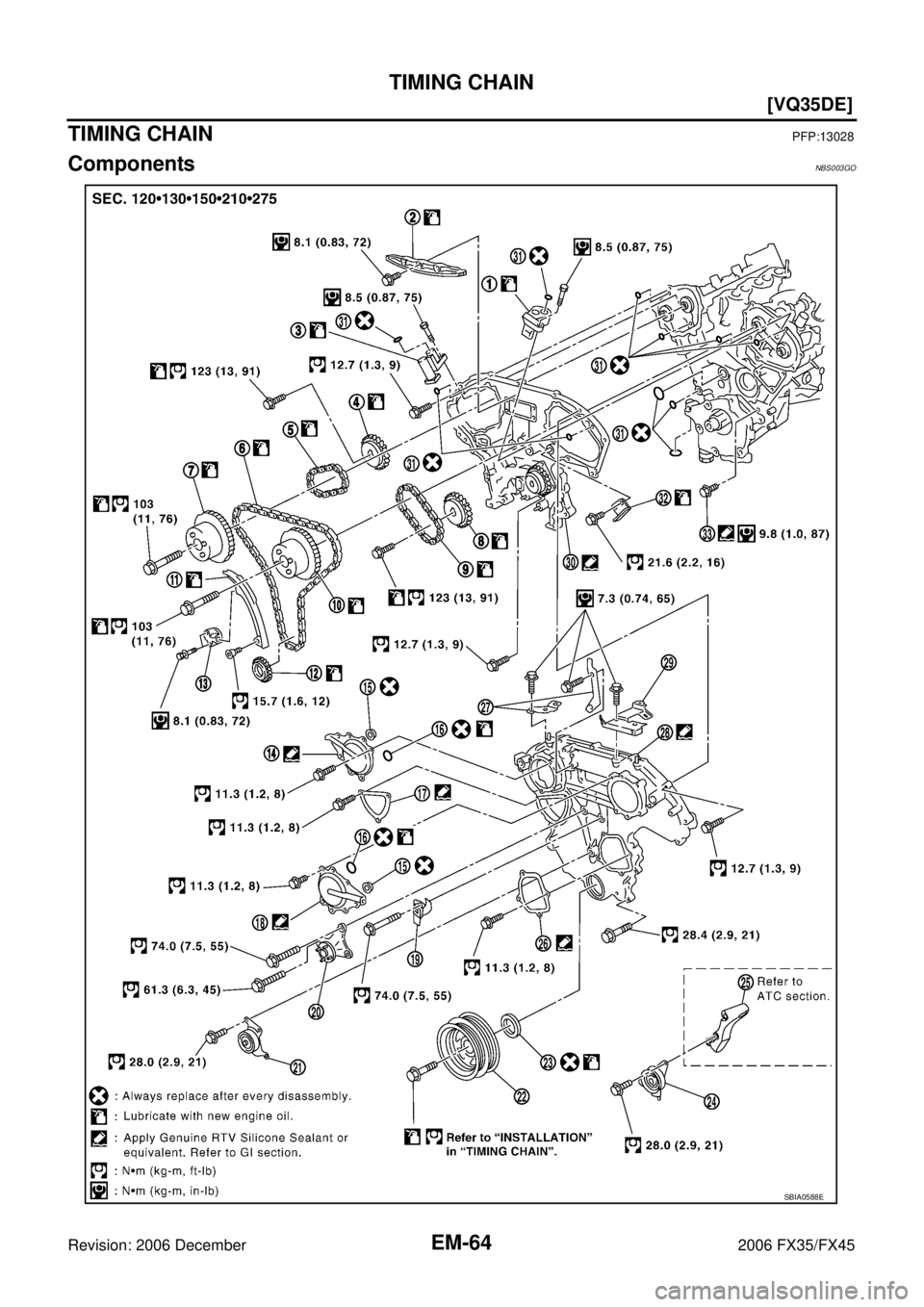

TIMING CHAINPFP:13028
ComponentsNBS003GO
SBIA0588E
Page 2859 of 4462
![INFINITI FX35 2006 Service Manual TIMING CHAIN EM-65
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
Removal and InstallationNBS003GP
NOTE:
This section describes procedures for removing/install INFINITI FX35 2006 Service Manual TIMING CHAIN EM-65
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
Removal and InstallationNBS003GP
NOTE:
This section describes procedures for removing/install](/manual-img/42/57019/w960_57019-2858.png)
TIMING CHAIN EM-65
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
Removal and InstallationNBS003GP
NOTE:
This section describes procedures for removing/installing front timing chain case and timing chain related
parts, and rear timing chain case, when oil pan (upper) needs to be removed/installed for engine overhaul,
etc.
To remove/install front timing chain case, timing chain, and its related parts without removing oil pan
(upper), refer to EM-54, "
FRONT TIMING CHAIN CASE" .
REMOVAL
1. Remove front tire.
2. Disconnect negative battery terminal.
3. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
4. Remove air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
5. Remove front and rear engine undercover with power tool.
6. Release the fuel pressure. Refer to EC-86, "
FUEL PRESSURE RELEASE" .
7. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
8. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
9. Remove engine harnesses.
10. Remove intake manifold collectors (upper and lower). Refer to EM-19, "
INTAKE MANIFOLD COLLEC-
TOR" .
11. Remove radiator cooling fan assembly. Refer to CO-21, "
COOLING FAN" .
12. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
13. Remove A/C compressor from bracket with piping connected, and temporarily secure it aside. Refer to ATC-139, "
Components" .
14. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside. Refer to PS-29, "
POWER STEERING OIL PUMP" .
15. Remove power steering oil pump bracket. Refer to PS-29, "
POWER STEERING OIL PUMP" .
16. Remove alternator. Refer to SC-20, "
CHARGING SYSTEM" .
17. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.
18. Remove intake valve timing control covers.
1. Timing chain tensioner (secondary) 2. Internal chain guide 3. Timing chain tensioner (secondary)
4. Camshaft sprocket (EXH) 5. Timing chain (secondary) 6. Timing chain (primary)
7. Camshaft sprocket (INT) 8. Camshaft sprocket (EXH) 9. Timing chain (secondary)
10. Camshaft sprocket (INT) 11. Slack guide 12. Crankshaft sprocket
13. Timing chain tensioner (primary) 14. Intake valve timing control cover 15. Collared O-ring
16. O-ring 17. Chain tensioner cover 18. Intake valve timing control cover
19. Water hose clamp 20. Idler pulley bracket 21. Idler pulley
22. Crankshaft pulley 23. Front oil seal 24. Idler pulley
25. A/C compressor bracket 26. Water pump cover 27. Bracket
28. Front timing chain case 29. Bracket 30. Rear timing chain case
31. O-ring 32. Tension guide 33. Water drain plug (front side)
Page 2860 of 4462
![INFINITI FX35 2006 Service Manual EM-66
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
Loosen mounting bolts in reverse order as shown in the fig-
ure.
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( INFINITI FX35 2006 Service Manual EM-66
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
Loosen mounting bolts in reverse order as shown in the fig-
ure.
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 (](/manual-img/42/57019/w960_57019-2859.png)
EM-66
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
Loosen mounting bolts in reverse order as shown in the fig-
ure.
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d
gasket for removal.
CAUTION:
Shaft is internally jointed with camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.
19. Remove collared O-ring from front timing chain case (left and right side).
20. Remove rocker covers (right and left). Refer to EM-51, "
ROCKER COVER" .
21. Remove oil pans (lower and upper). Refer to EM-30, "
OIL PAN AND OIL STRAINER" .
22. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align timing mark (grooved line without color) with timing indicator.
b. Make sure that intake and exhaust cam noses on No. 1 cylinder (engine front side of right bank) are located as shown in the fig-
ure.
If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
23. Remove crankshaft pulley as follows:
SEM728G
PBIC2631E
KBIA1717J
SEM418G
Page 2861 of 4462
TIMING CHAIN EM-67
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45

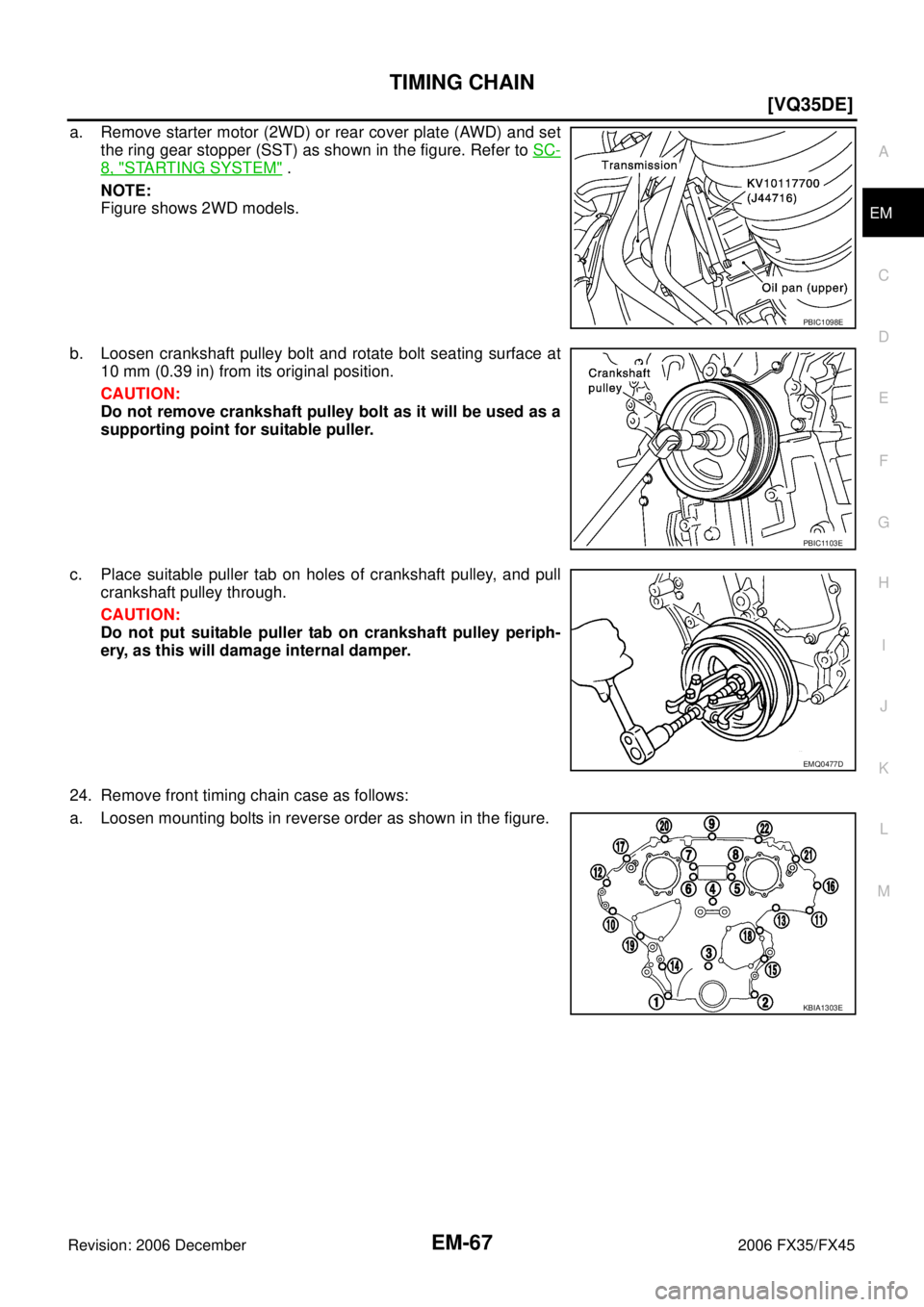

a. Remove starter motor (2WD) or rear cover plate (AWD) and set the ring gear stopper (SST) as shown in the figure. Refer to SC-
8, "STARTING SYSTEM" .
NOTE:
Figure shows 2WD models.
b. Loosen crankshaft pulley bolt and rotate bolt seating surface at 10 mm (0.39 in) from its original position.
CAUTION:
Do not remove crankshaft pulley bolt as it will be used as a
supporting point for suitable puller.
c. Place suitable puller tab on holes of crankshaft pulley, and pull crankshaft pulley through.
CAUTION:
Do not put suitable puller tab on crankshaft pulley periph-
ery, as this will damage internal damper.
24. Remove front timing chain case as follows:
a. Loosen mounting bolts in reverse order as shown in the figure.
PBIC1098E
PBIC1103E
EMQ0477D
KBIA1303E
Page 2862 of 4462
![INFINITI FX35 2006 Service Manual EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
b. Insert a suitable tool into the notch at the top of front timing chain case as shown (1).
c. Pry off case by moving the tool as s INFINITI FX35 2006 Service Manual EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
b. Insert a suitable tool into the notch at the top of front timing chain case as shown (1).
c. Pry off case by moving the tool as s](/manual-img/42/57019/w960_57019-2861.png)
EM-68
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45

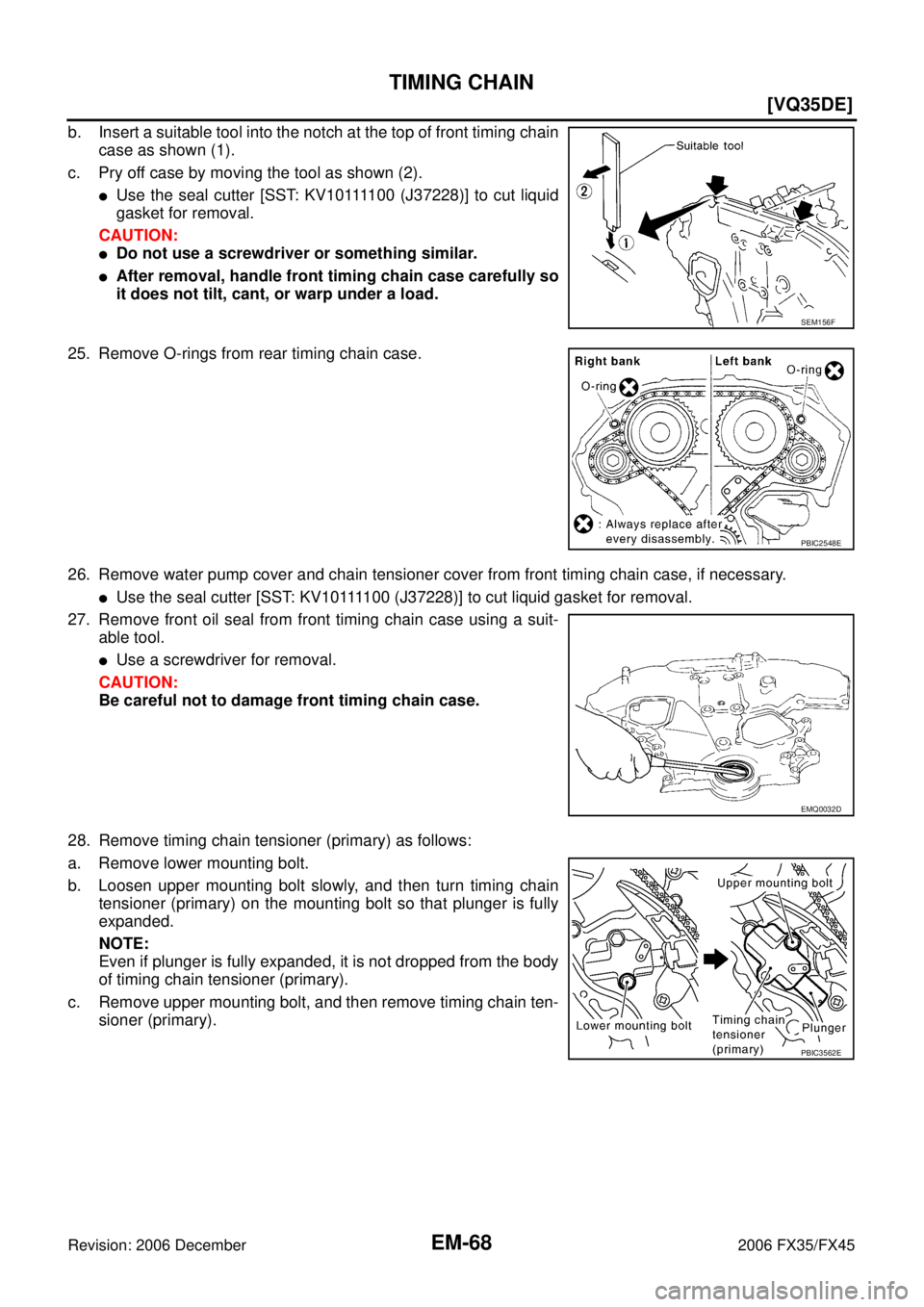

b. Insert a suitable tool into the notch at the top of front timing chain case as shown (1).
c. Pry off case by moving the tool as shown (2).
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d
gasket for removal.
CAUTION:
Do not use a screwdriver or something similar.
After removal, handle front timing chain case carefully so
it does not tilt, cant, or warp under a load.
25. Remove O-rings from rear timing chain case.
26. Remove water pump cover and chain tensioner cover from front timing chain case, if necessary.
U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g a s k e t f o r r e m o v a l .
27. Remove front oil seal from front timing chain case using a suit- able tool.
Use a screwdriver for removal.
CAUTION:
Be careful not to damage front timing chain case.
28. Remove timing chain tensioner (primary) as follows:
a. Remove lower mounting bolt.
b. Loosen upper mounting bolt slowly, and then turn timing chain tensioner (primary) on the mounting bolt so that plunger is fully
expanded.
NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).
c. Remove upper mounting bolt, and then remove timing chain ten- sioner (primary).
SEM156F
PBIC2548E
EMQ0032D
PBIC3562E
Page 2863 of 4462
![INFINITI FX35 2006 Service Manual TIMING CHAIN EM-69
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
29. Remove internal chain guide, tension guide and slack guide. NOTE:
Tension guide can be r INFINITI FX35 2006 Service Manual TIMING CHAIN EM-69
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45
29. Remove internal chain guide, tension guide and slack guide. NOTE:
Tension guide can be r](/manual-img/42/57019/w960_57019-2862.png)
TIMING CHAIN EM-69
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 December 2006 FX35/FX45

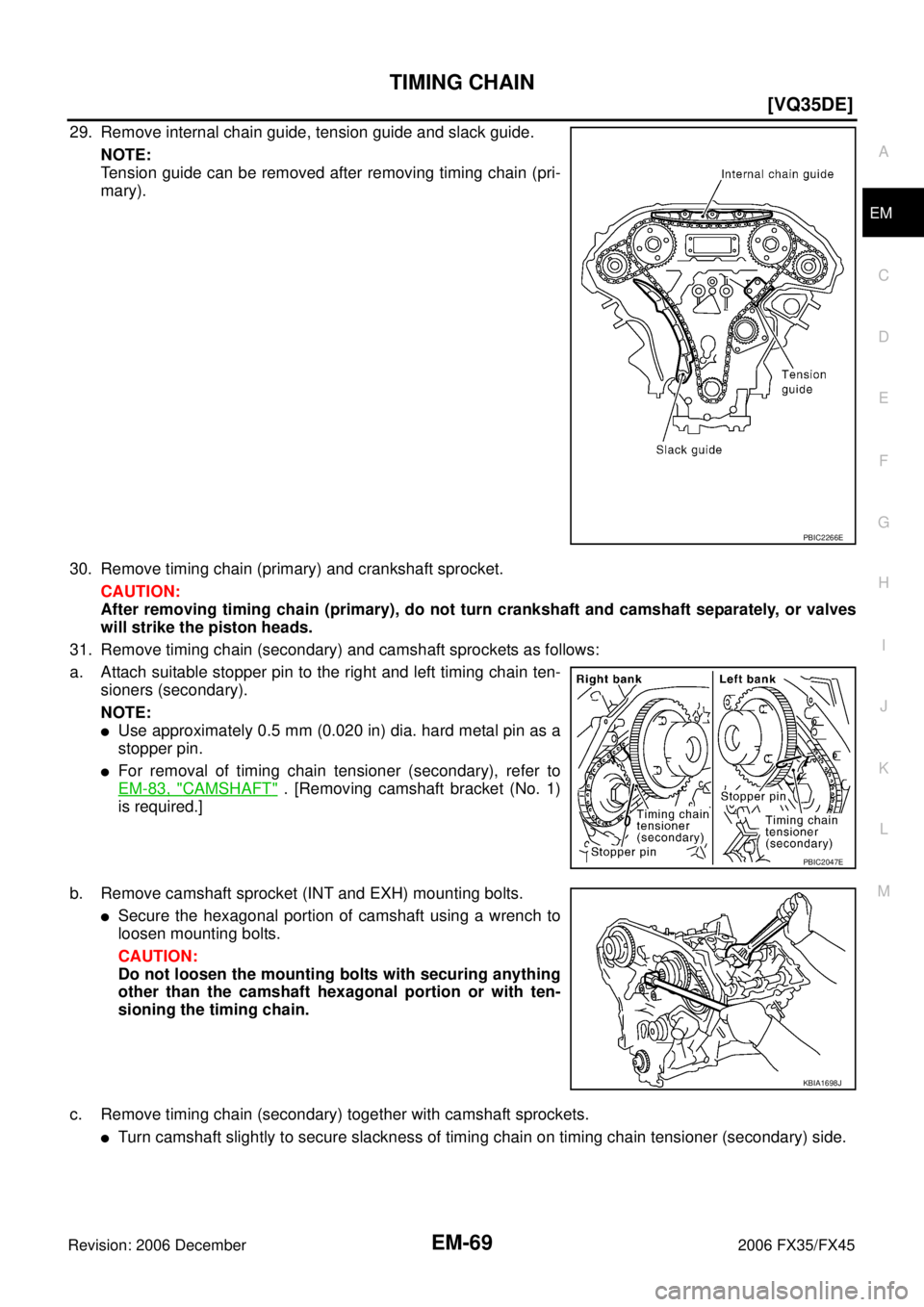

29. Remove internal chain guide, tension guide and slack guide. NOTE:
Tension guide can be removed after removing timing chain (pri-
mary).
30. Remove timing chain (primary) and crankshaft sprocket. CAUTION:
After removing timing chain (primary), do not turn crankshaft and camshaft separately, or valves
will strike the piston heads.
31. Remove timing chain (secondary) and camshaft sprockets as follows:
a. Attach suitable stopper pin to the right and left timing chain ten- sioners (secondary).
NOTE:
Use approximately 0.5 mm (0.020 in) dia. hard metal pin as a
stopper pin.
For removal of timing chain tensioner (secondary), refer to
EM-83, "
CAMSHAFT" . [Removing camshaft bracket (No. 1)
is required.]
b. Remove camshaft sprocket (INT and EXH) mounting bolts.
Secure the hexagonal portion of camshaft using a wrench to
loosen mounting bolts.
CAUTION:
Do not loosen the mounting bolts with securing anything
other than the camshaft hexagonal portion or with ten-
sioning the timing chain.
c. Remove timing chain (secondary) together with camshaft sprockets.
Turn camshaft slightly to secure slackness of timing chain on timing chain tensioner (secondary) side.
PBIC2266E
PBIC2047E
KBIA1698J
Page 2864 of 4462
![INFINITI FX35 2006 Service Manual EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remove timing INFINITI FX35 2006 Service Manual EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remove timing](/manual-img/42/57019/w960_57019-2863.png)
EM-70
[VQ35DE]
TIMING CHAIN
Revision: 2006 December 2006 FX35/FX45
Insert 0.5 mm (0.020 in)-thick metal or resin plate between
timing chain and timing chain tensioner plunger (guide).
Remove timing chain (secondary) together with camshaft
sprockets with timing chain loose from guide groove.
CAUTION:
Be careful of plunger coming-off when removing timing
chain (secondary). This is because plunger of timing
chain tensioner (secondary) moves during operation,
leading to coming-off of fixed stopper pin.
NOTE:
Camshaft sprocket (INT) is two-for-one structure of primary
and secondary sprockets.
When handling camshaft sprocket (INT), be careful of the fol-
lowing caution:
CAUTION:
Handle carefully to avoid any shock to camshaft
sprocket.
Do not disassemble. (Do not loosen bolts “A” as
shown in the figure).
32. Remove rear timing chain case as follows:
a. Loosen and remove mounting bolts in reverse order as shown in the figure.
b. Cut liquid gasket using the seal cutter [SST: KV10111100 (J37228)] and remove rear timing chain case.
CAUTION:
Do not remove plate metal cover of oil passage.
After removal, handle rear timing chain case carefully so
it does not tilt, cant, or warp under a load.
PBIC1978E
PBIC2980E
SEM735G
KBIA1307E
