IGNITION SIGNAL EC-649
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
IGNITION SIGNALPFP:22448
Component DescriptionNBS003Z9
IGNITION COIL & POWER TRANSISTOR
The ignition signal from the ECM is sent to and amplified by the power transistor. The power transistor turns
ON and OFF the ignition coil primary circuit. This ON/OFF operation induces the proper high voltage in the coil
secondary circuit.
PBIB1560E
Page 2034 of 4462
EC-650
[VQ35DE]
IGNITION SIGNAL
Revision: 2006 December 2006 FX35/FX45

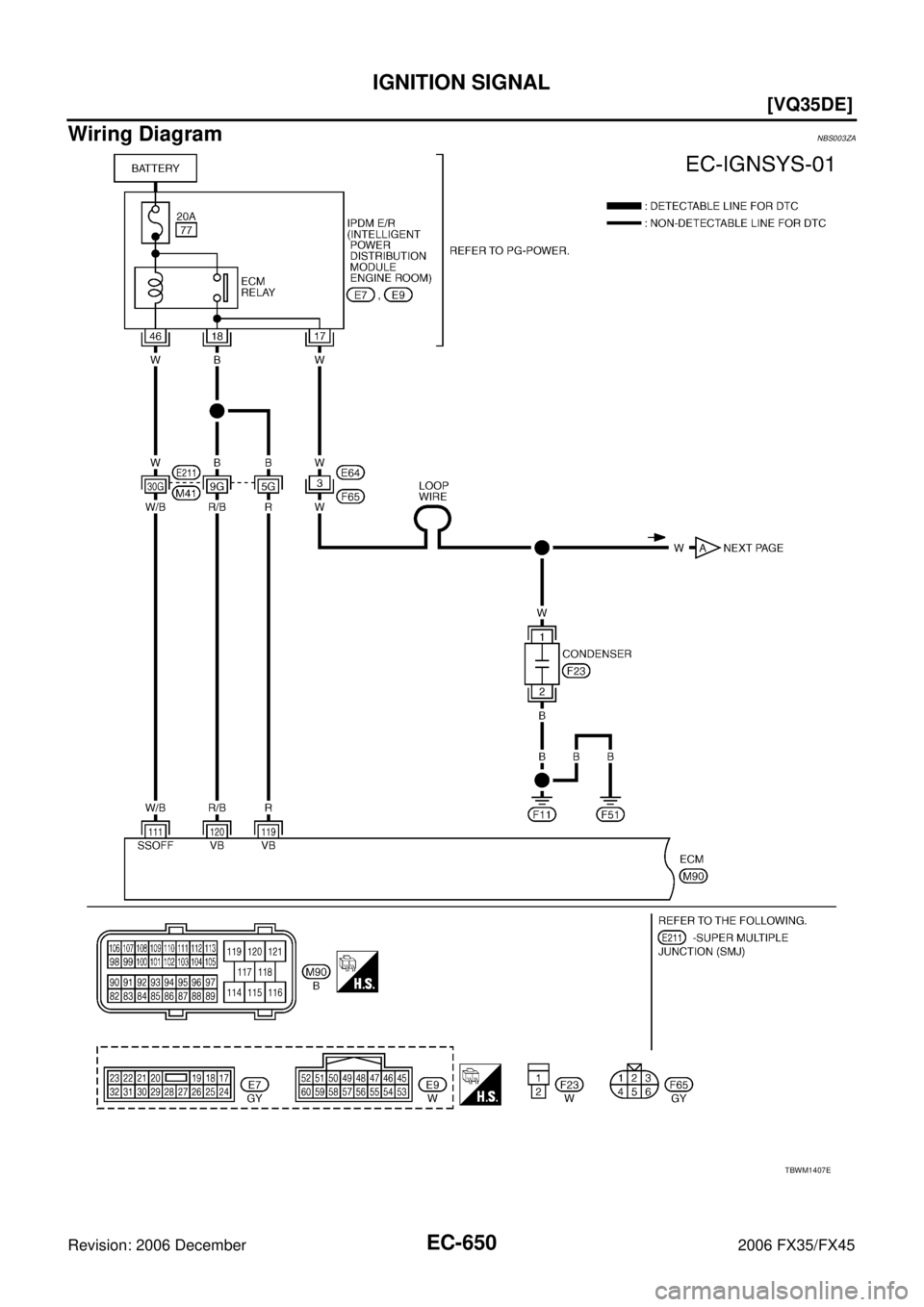

Wiring DiagramNBS003ZA
TBWM1407E
Page 2035 of 4462
IGNITION SIGNAL EC-651
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
More than a few seconds passed after turn-
ing ignition switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
Page 2036 of 4462
EC-652
[VQ35DE]
IGNITION SIGNAL
Revision: 2006 December 2006 FX35/FX45

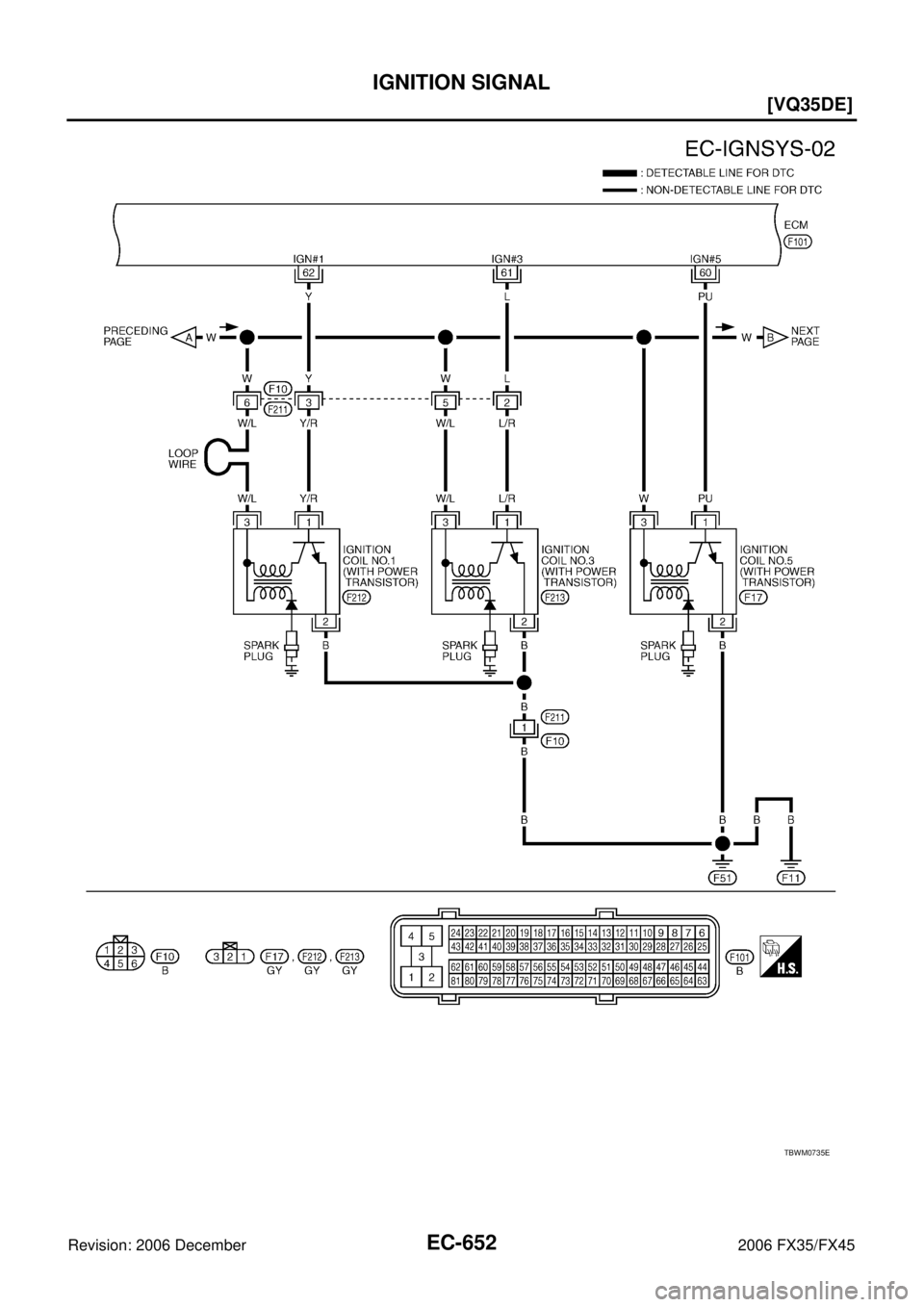

TBWM0735E
Page 2037 of 4462
IGNITION SIGNAL EC-653
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
60
61
62 PU
L
Y Ignition signal No. 5
Ignition signal No. 3
Ignition signal No. 1 [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 0 - 0.2V
[Engine is running]
Warm-up condition
Engine speed: 2,500 rpm 0.1 - 0.4V
SEC986C
SEC987C
Page 2038 of 4462
EC-654
[VQ35DE]
IGNITION SIGNAL
Revision: 2006 December 2006 FX35/FX45
TBWM0736E
Page 2039 of 4462
![INFINITI FX35 2006 Service Manual IGNITION SIGNAL EC-655
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground. INFINITI FX35 2006 Service Manual IGNITION SIGNAL EC-655
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.](/manual-img/42/57019/w960_57019-2038.png)
IGNITION SIGNAL EC-655
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureNBS003ZB
1. CHECK ENGINE START
Turn ignition switch OFF, and restart engine.
Is engine running?
Ye s o r N o
Yes (With CONSULT-II)>>GO TO 2.
Yes (Without CONSULT-II)>>GO TO 3.
No >> GO TO 4.
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-II.
2. Make sure that each circuit produces a momentary engine speed drop.
OK or NG
OK >> INSPECTION END
NG >> GO TO 10.
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
79
80
81 SB
GY
OR Ignition signal No. 6
Ignition signal No. 4
Ignition signal No. 2 [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 0 - 0.2V
[Engine is running]
Warm-up condition
Engine speed: 2,500 rpm 0.1 - 0.4V
SEC986C
SEC987C
PBIB0133E
Page 2040 of 4462
EC-656
[VQ35DE]
IGNITION SIGNAL
Revision: 2006 December 2006 FX35/FX45
3. CHECK OVERALL FUNCTION
Without CONSULT-II
1. Let engine idle.
2. Read the voltage signal between ECM terminals 60, 61, 62, 79, 80, 81 and ground with an oscilloscope.
3. Verify that the oscilloscope screen shows the signal wave as shown below.
NOTE:
The pulse cycle changes depending on rpm at idle.
OK or NG
OK >> INSPECTION END
NG >> GO TO 10.
4. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
2. Check voltage between ECM terminals 119, 120 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> Go to EC-149, "
POWER SUPPLY AND GROUND CIR-
CUIT" .
PBIB1186E
SEC986C
Voltage: Battery voltage
MBIB0034E
