2006 INFINITI FX35 Service Manual

automatic transmission fluid tow wheel bolts automatic transmission fuel cap release horn

Page 3721 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-159
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
through grounds M35, M45 and M85
to map lamp terminal 1.
And power is supplied
from BCM term

INTERIOR ROOM LAMP LT-159
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
through grounds M35, M45 and M85
to map lamp terminal 1.
And power is supplied
from BCM terminal 41
to map lamp terminal 3.
When interior room lamp switch is ON, ground supplied (without DVD player)
through grounds M35, M45 and M85
to interior room lamp terminal 3.
And power is supplied (without DVD player)
from BCM terminal 41
to interior room lamp terminal 2.
When personal lamp LH or RH switch is ON, ground supplied
through grounds M35, M45 and M85
to personal lamp LH or RH terminal 3.
And power is supplied
from BCM terminal 41
to personal lamp LH or RH terminal 2.
When vanity mirror lamp (driver side or passenger side) is ON, ground is supplied
through grounds M35, M45 and M85
to vanity mirror lamp (driver side or passenger side) terminal 2.
And power is supplied
from BCM terminal 41
to vanity mirror lamp (driver side or passenger side) terminal 1.
When luggage room lamp (back door side) is ON, ground is supplied
through grounds B15 and B45
to luggage room lamp (back door side) terminal 3.
And power is supplied
from BCM terminal 41
to luggage room lamp (back door side) terminals 2.
ROOM LAMP TIMER OPERATION
Without Intelligent Key System
When the interior room lamp and map lamp switch is in DOOR position, and when all conditions below are
met, BCM performs timer control (maximum 30 seconds) for interior room lamp and map lamp ON/OFF.
In addition, when spot turns ON or OFF there is gradual brightening or dimming over 1 second.
Power is supplied
to 15A fuse [No. 22, located infuse block (J/B)]
through key switch terminal 2.
Key is removed from ignition key cylinder (key switch OFF), power will not be supplied to BCM terminal 37.
Ground is supplied
from BCM terminal 22
to power window main switch (door lock and unlock switch) terminal 14.
At the time that driver door are opened, BCM detects that driver door is unlocked. It determines that interior
room lamp and map lamp timer operation conditions are met, and turns interior room lamp and map lamp ON
for 30 seconds.
Key is in ignition key cylinder (key switch ON),
Power is supplied
through key switch terminal 1
to BCM terminal 37.

Page 3722 of 4462

INFINITI FX35 2006 Service Manual LT-160
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
When the key is removed from key switch (key switch OFF), power supply to BCM terminal 37 is terminated.
BCM detects that key has been

LT-160
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
When the key is removed from key switch (key switch OFF), power supply to BCM terminal 37 is terminated.
BCM detects that key has been removed, determines that interior room lamp and map lamp timer conditions
are met, and turns interior room lamp and map lamp ON for 30 seconds.
When driver door opens → closes, and key is not inserted in key switch (key switch OFF), BCM terminal 62
changes between 0V (door open) → 12V (door closed). BCM determines that conditions for interior room lamp
and map lamp operation are met and turns interior room lamp ON for 30 seconds.
Timer control is canceled under the following conditions.
Driver door is locked [when locked keyfob or power window main switch (door lock and unlock switch),
door key cylinder switch].
Driver door is opened (driver door switch turns ON).
Ignition switch ON.
With Intelligent Key System
When the interior room lamp and map lamp switch is in DOOR position, and when all conditions below are
met, BCM performs timer control (maximum 30 second) for interior room lamp and map lamp ON/OFF.
In addition, when spot turns ON or OFF there is gradual brightening or dimming over 1 second.
Power is supplied
to 15A fuse [No. 22, located in fuse and fuse block (J/B)]
through key switch and ignition knob switch terminal 3.
Key is removed from ignition key cylinder (key switch OFF), power will not be supplied to BCM terminal 37.
And not turned ignition knob switch, power will not be supplied to Intelligent Key unit.
Ground is supplied
from BCM terminal 22
to power window main switch (door lock and unlock switch) terminal 14.
At the time that driver door are opened, BCM detects that driver door is unlocked. It determines that interior
room lamp and map lamp timer operation conditions are met, and turns interior room lamp and map lamp ON
for 30 seconds.
Key is in ignition key cylinder (key switch ON), or turned ignition knob switch,
Power is supplied
through key switch and ignition knob switch terminal 4
to BCM terminal 37,
through key switch and ignition knob switch terminal 2
to intelligent key unit terminal 27.
When the key is removed from key switch (key switch OFF), power supply to BCM terminal 37 is terminated.
And turned ignition knob switch, power supply to Intelligent Key unit is terminated. BCM detects that key has
been removed, determines that interior room lamp and map lamp timer conditions are met, and turns interior
room lamp and map lamp ON for 30 seconds.
When driver door opens → closes, and key is not inserted in key switch (or not turned ignition knob switch),
BCM terminal 62 changes between 0V (door open) → 12V (door closed). BCM determines that conditions for
interior room lamp and map lamp operation are met and turns interior room lamp ON for 30 seconds.
Timer control is canceled under the following conditions.
Driver door is locked [when locked keyfob, power window main switch (door lock and unlock switch) or
door key cylinder switch].
Driver door is opened (driver door switch terns ON).
Ignition switch ON.
INTERIOR LAMP BATTERY SAVER CONTROL
If interior lamp is left “ON”, it will not be turned out even when door is closed.
BCM turns off interior lamp automatically to save battery 30 minutes after ignition switch is turned off.
BCM controls interior lamps listed below:
Luggage room lamp
Vanity mirror lamp
Map lamp
Interior room lamp
Personal lamp
After lamps turn OFF by battery saver system, lamps illuminate again when

Page 3723 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-161
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
signal from keyfob, or power window main switch (door lock and unlock switch) or key cylinder i

Page 3724 of 4462

INFINITI FX35 2006 Service Manual LT-162
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45

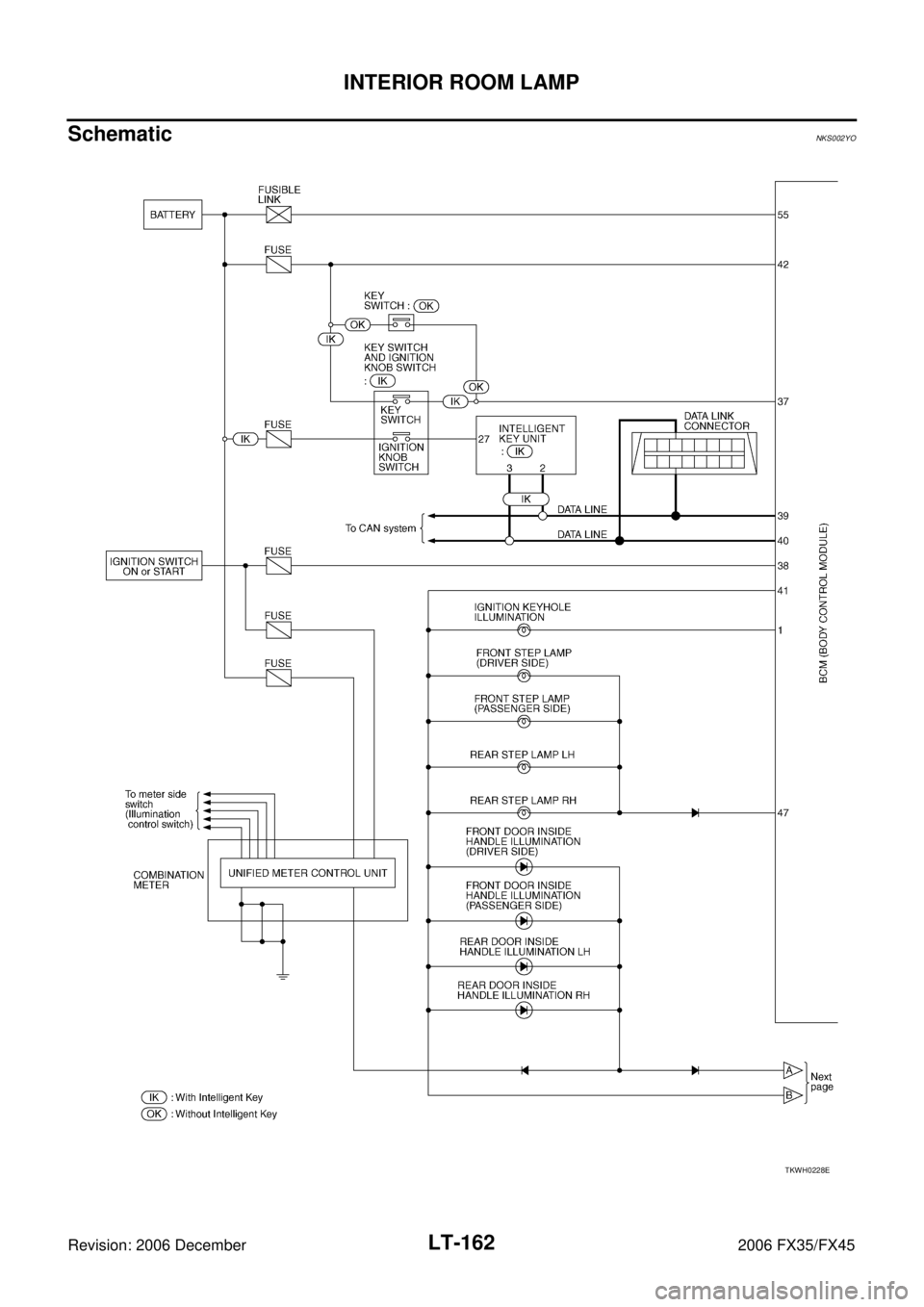

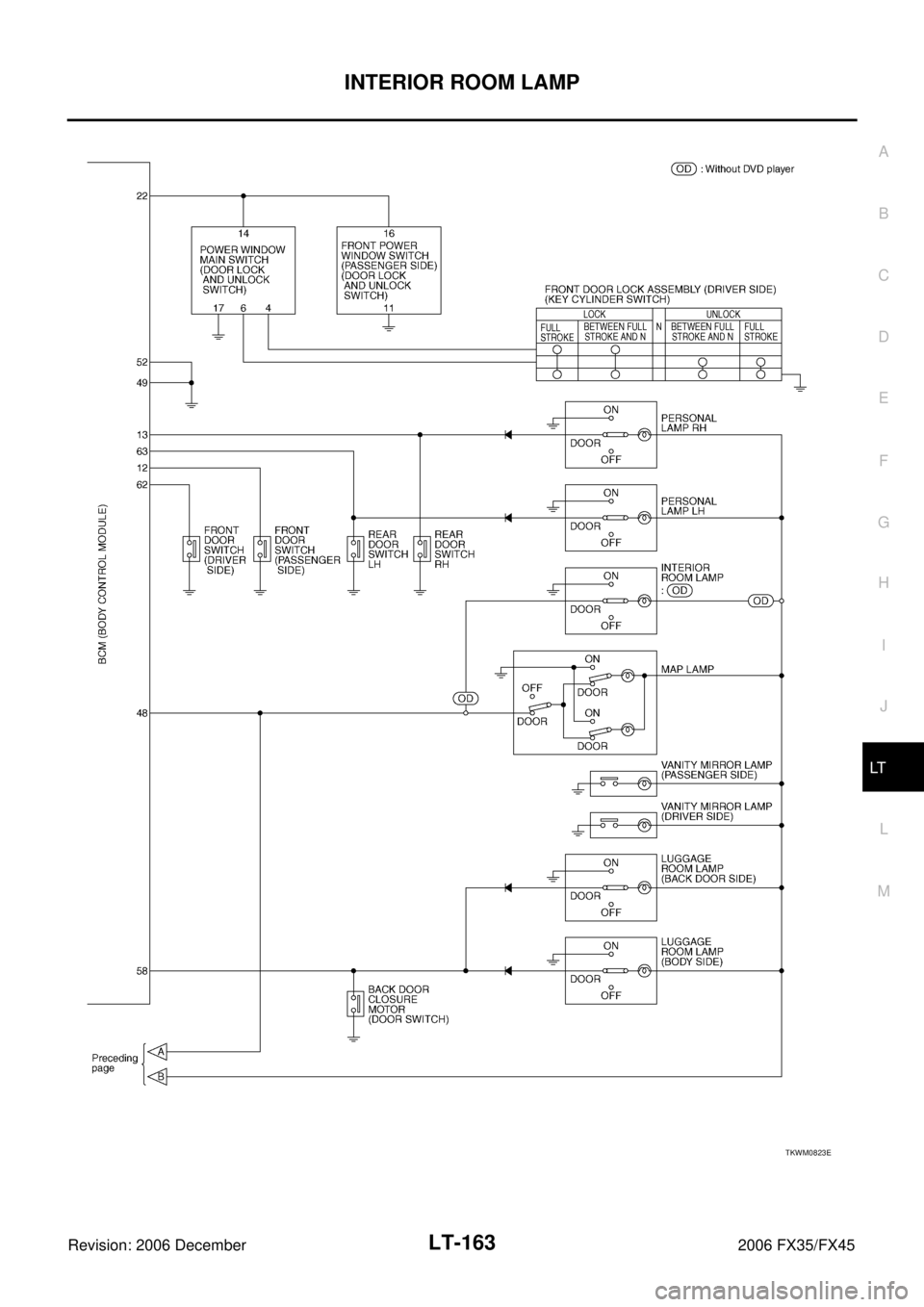

SchematicNKS002YO
TKWH0228E

Page 3725 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-163
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
TKWM0823E

Page 3726 of 4462

INFINITI FX35 2006 Service Manual LT-164
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45

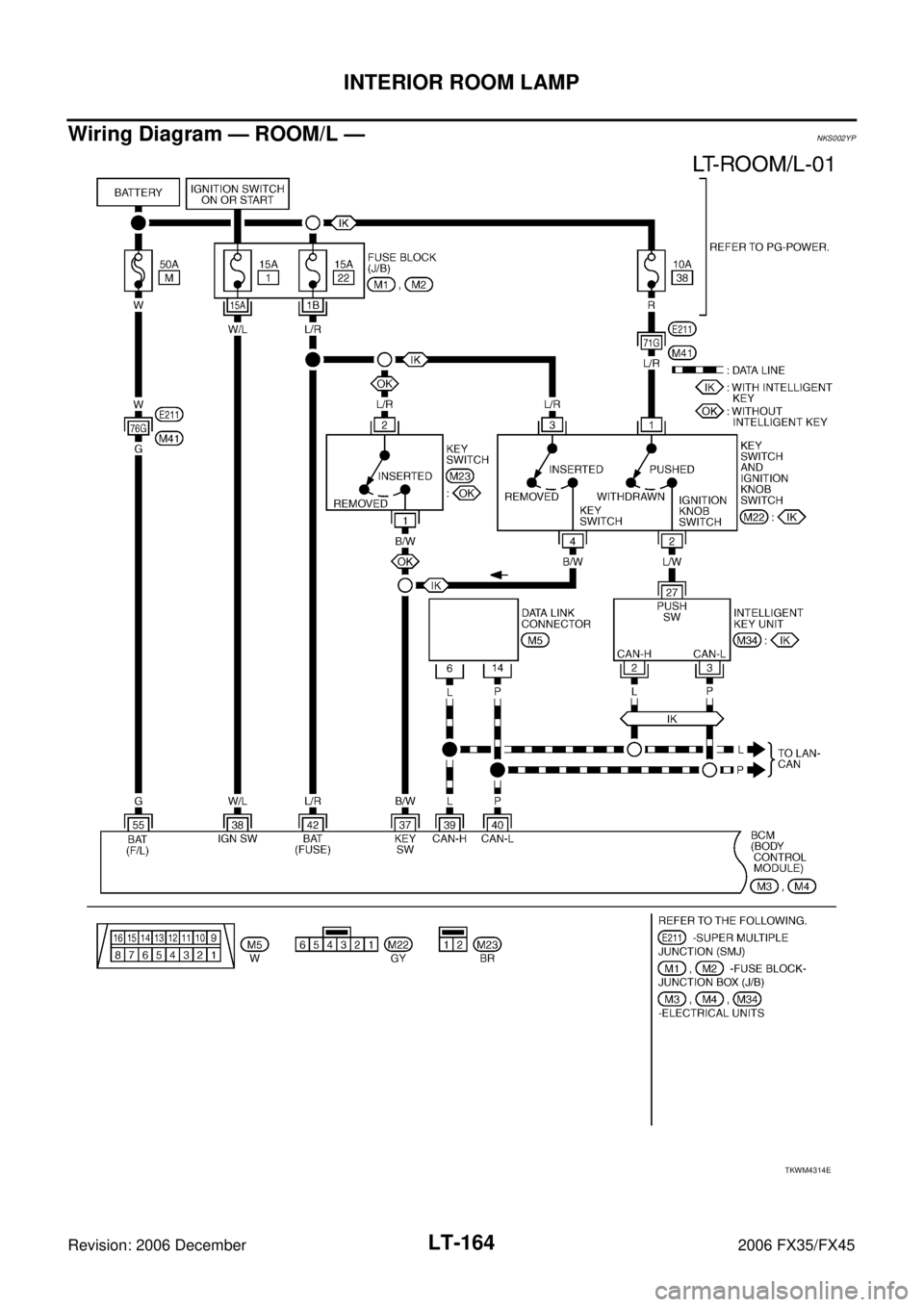

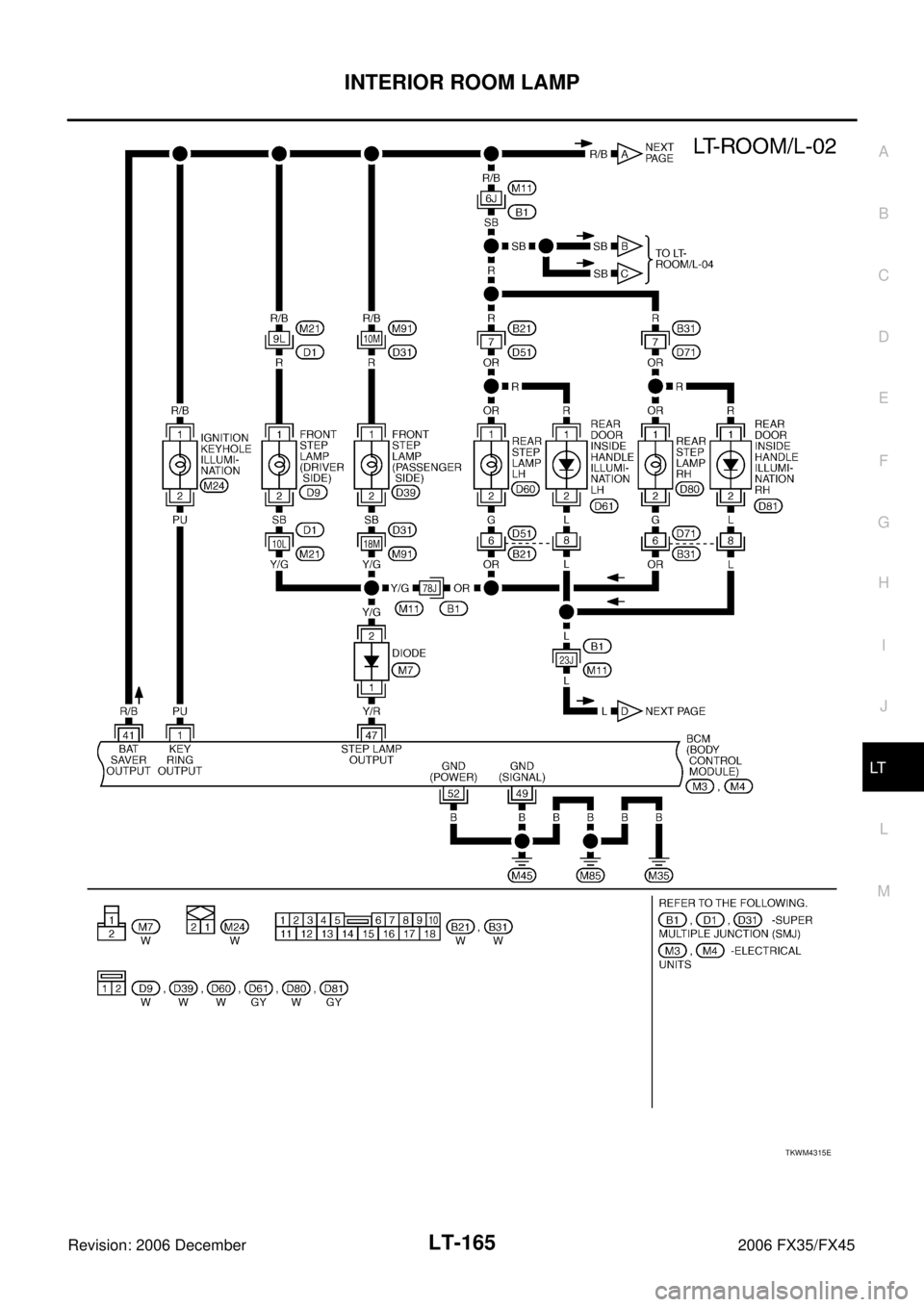

Wiring Diagram — ROOM/L —NKS002YP
TKWM4314E

Page 3727 of 4462

INFINITI FX35 2006 Service Manual INTERIOR ROOM LAMP LT-165
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 December 2006 FX35/FX45
TKWM4315E

Page 3728 of 4462

INFINITI FX35 2006 Service Manual LT-166
INTERIOR ROOM LAMP
Revision: 2006 December 2006 FX35/FX45
TKWM4316E
