Page 2777 of 4462
CENTER MUD GUARD EI-29
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45
CENTER MUD GUARDPFP:76850
Removal and InstallationNIS001TW
REMOVAL
1. Remove bolts center mud-guard lower portion.
2. Remove screws center mud-guard front and rear portion.
3. Insert driver rolled with cloth or tapes between guard and body side sill, then pull it back to your side.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When installing center mud guard, make sure that clips are securely fitted in panel holes on body, and
then press them in.
1. Center mud-guard 2. Grommet 3. Clip
4. Bolt 5. Screw
PIIA4328E
Page 2778 of 4462
EI-30
WINDSHIELD MOLDING
Revision: 2006 December 2006 FX35/FX45
WINDSHIELD MOLDINGPFP:72700
Removal and InstallationNIS001TX
REMOVAL
Remove windshield molding. Refer to GW-11, "REMOVAL" .
INSTALLATION
Install windshield molding. Refer to GW-12, "INSTALLATION" .
PIIA9190E
1. Dam rubber 2. Molding 3. Windshield glass
4. Spacer 5. Mirror base 6. Bond
7. Insulator 8. Panel 9. Body side (outer)
10. Cowl top cover 11. Pad 12. Bracket
Page 2779 of 4462
BACK DOOR WINDOW MOLDING EI-31
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

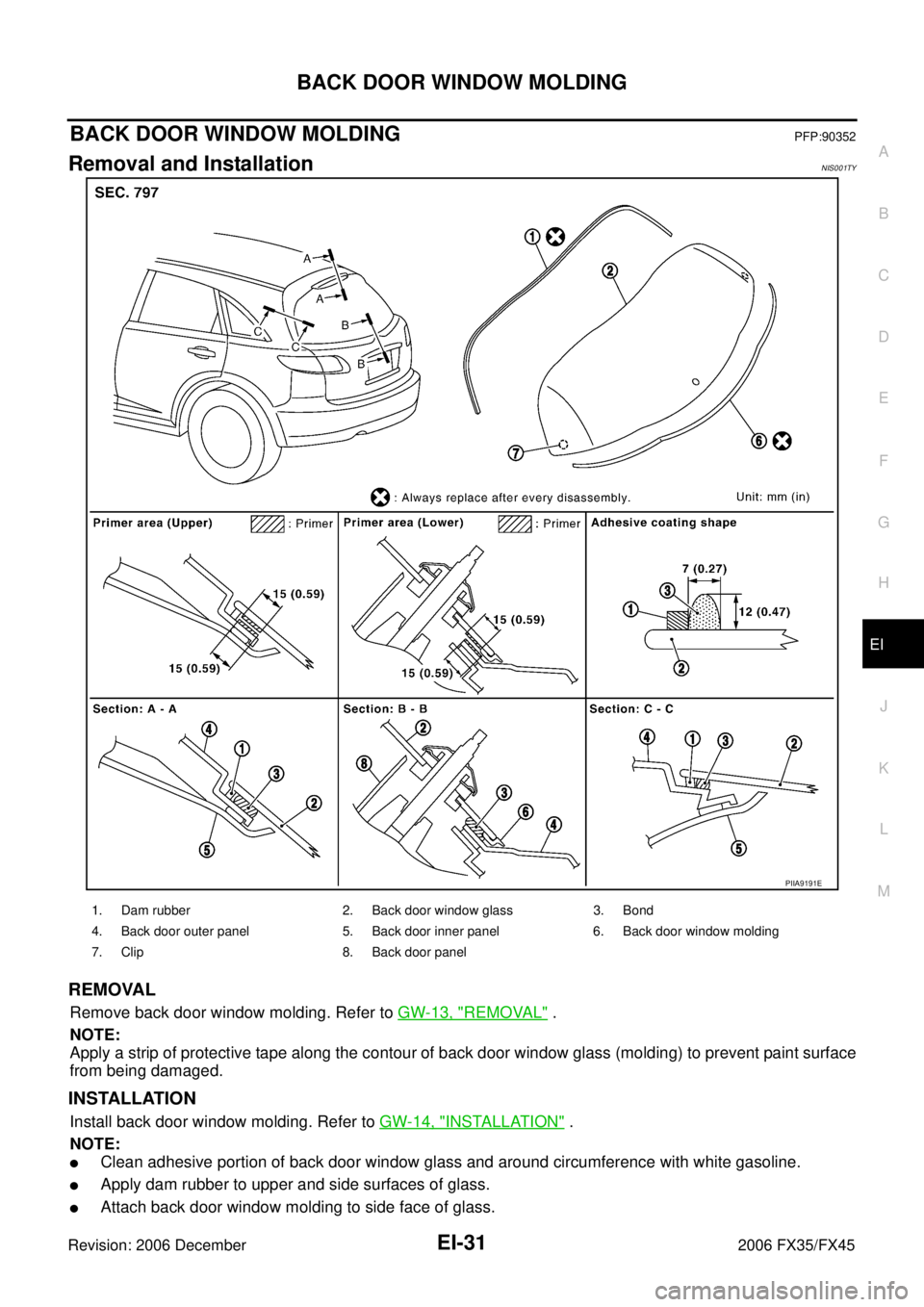

BACK DOOR WINDOW MOLDINGPFP:90352
Removal and InstallationNIS001TY
REMOVAL
Remove back door window molding. Refer to GW-13, "REMOVAL" .
NOTE:
Apply a strip of protective tape along the contour of back door window glass (molding) to prevent paint surface
from being damaged.
INSTALLATION
Install back door window molding. Refer to GW-14, "INSTALLATION" .
NOTE:
Clean adhesive portion of back door window glass and around circumference with white gasoline.
Apply dam rubber to upper and side surfaces of glass.
Attach back door window molding to side face of glass.
PIIA9191E
1. Dam rubber 2. Back door window glass 3. Bond
4. Back door outer panel 5. Back door inner panel 6. Back door window molding
7. Clip 8. Back door panel
Page 2780 of 4462
EI-32
BACK DOOR WINDOW MOLDING
Revision: 2006 December 2006 FX35/FX45
Back door window molding should not overlap on the surface of back door window glass.
Page 2781 of 4462
ROOF SIDE MOLDING EI-33
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

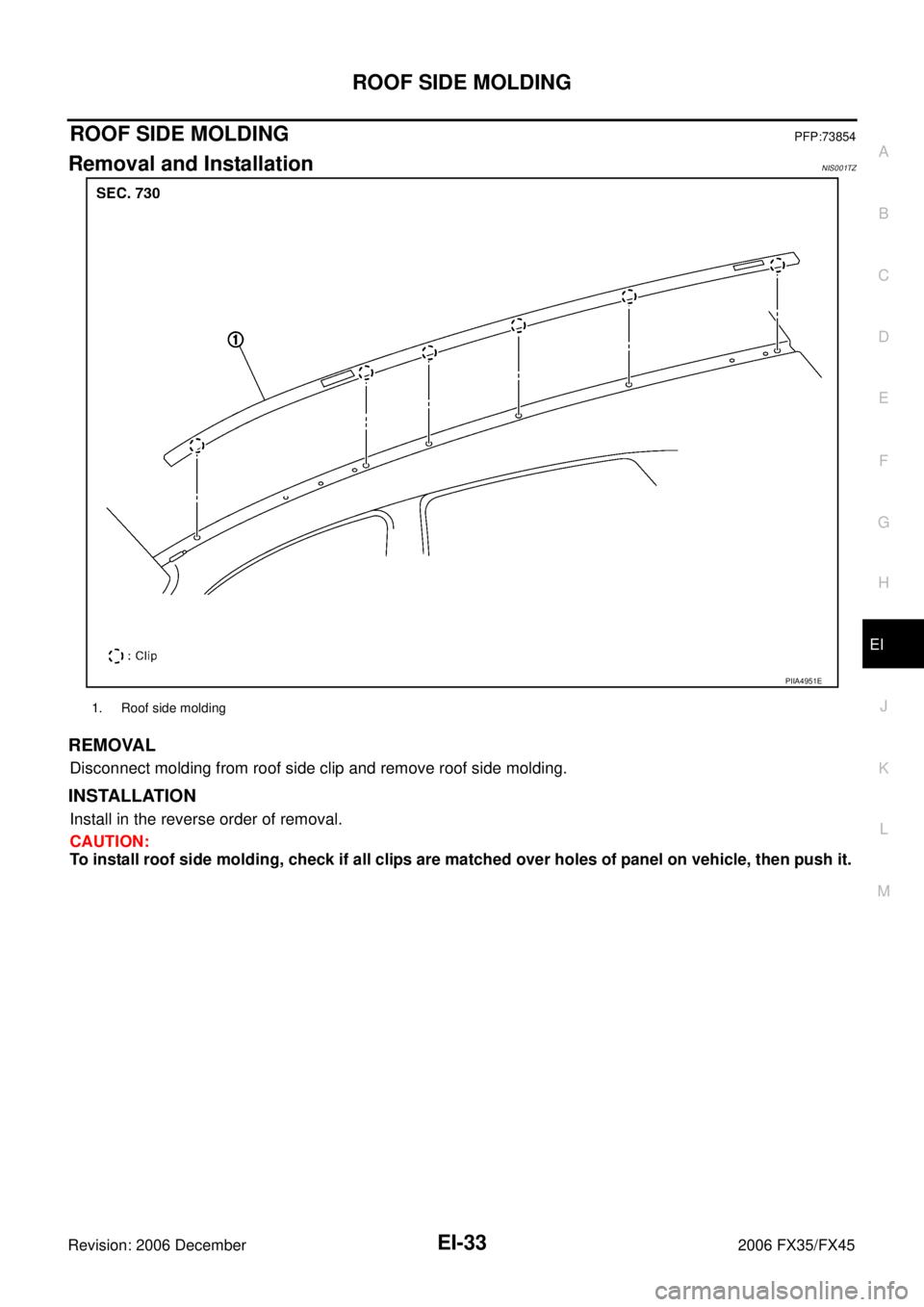

ROOF SIDE MOLDINGPFP:73854
Removal and InstallationNIS001TZ
REMOVAL
Disconnect molding from roof side clip and remove roof side molding.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push it.
PIIA4951E
1. Roof side molding
Page 2782 of 4462
EI-34
ROOF RAIL
Revision: 2006 December 2006 FX35/FX45
ROOF RAILPFP:73820
Removal and InstallationNIS001U0
REMOVAL
1. Remove cover roof rail (front/rear).
2. Remove nuts of roof rail and remove roof rail assembly.
INSTALLATION
Install in the reverse order of removal.
REMOVAL AND INSTALLATION OF ROOF RAIL BRACKET
Removal
1. Remove roof rail assembly.
2. Remove roof side molding. Refer to EI-33, "
ROOF SIDE MOLDING" .
3. Remove headlining. Refer to EI-42, "
HEADLINING" .
4. Remove nuts of roof rail bracket assembly and remove roof rail bracket assembly.
Installation
Install in the reverse order of removal.
CAUTION:
Replace sealing washer.
1. Cover roof rail (front) 2. Nut 3. Roof rail assembly
4. Rubber seal (front) 5. Roof side molding 6. Roof rail bracket assembly
7. Seal 8. Nut 9. Rubber seal (rear)
10. Cover roof rail (rear)
PIIA4948E
Page 2783 of 4462
DOOR FINISHER EI-35
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 December 2006 FX35/FX45

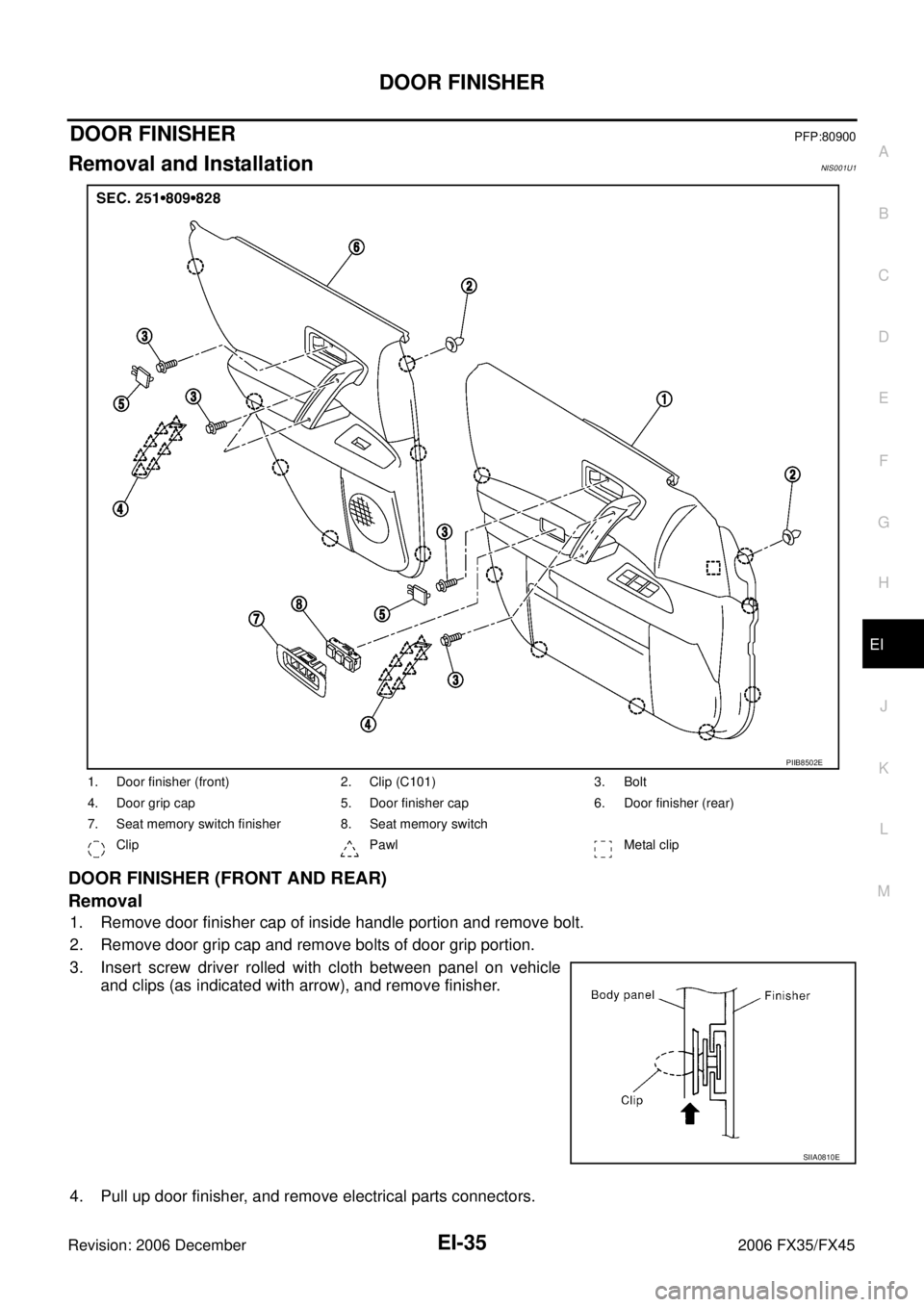

DOOR FINISHERPFP:80900
Removal and InstallationNIS001U1
DOOR FINISHER (FRONT AND REAR)
Removal
1. Remove door finisher cap of inside handle portion and remove bolt.
2. Remove door grip cap and remove bolts of door grip portion.
3. Insert screw driver rolled with cloth between panel on vehicle and clips (as indicated with arrow), and remove finisher.
4. Pull up door finisher, and remove electrical parts connectors.
1. Door finisher (front) 2. Clip (C101) 3. Bolt
4. Door grip cap 5. Door finisher cap 6. Door finisher (rear)
7. Seat memory switch finisher 8. Seat memory switch Clip Pawl Metal clip
PIIB8502E
SIIA0810E
Page 2784 of 4462
EI-36
DOOR FINISHER
Revision: 2006 December 2006 FX35/FX45
5. Remove lock knob cable, inside handle cable and illumination harness connector (front door only) from backside of inside han-
dle assembly.
6. Remove the following parts after removing door finisher.
Inside handle
Seat memory switch and seat memory switch finisher
Power window switch
St ep la mp
Installation
Install in the reverse order of removal.
CAUTION:
To install finisher, check if all clips are matched over holes of panel on vehicle, then push it.
PIIA4959E
