NISSAN LATIO 2009 Service Repair Manual

Page 250 of 4331

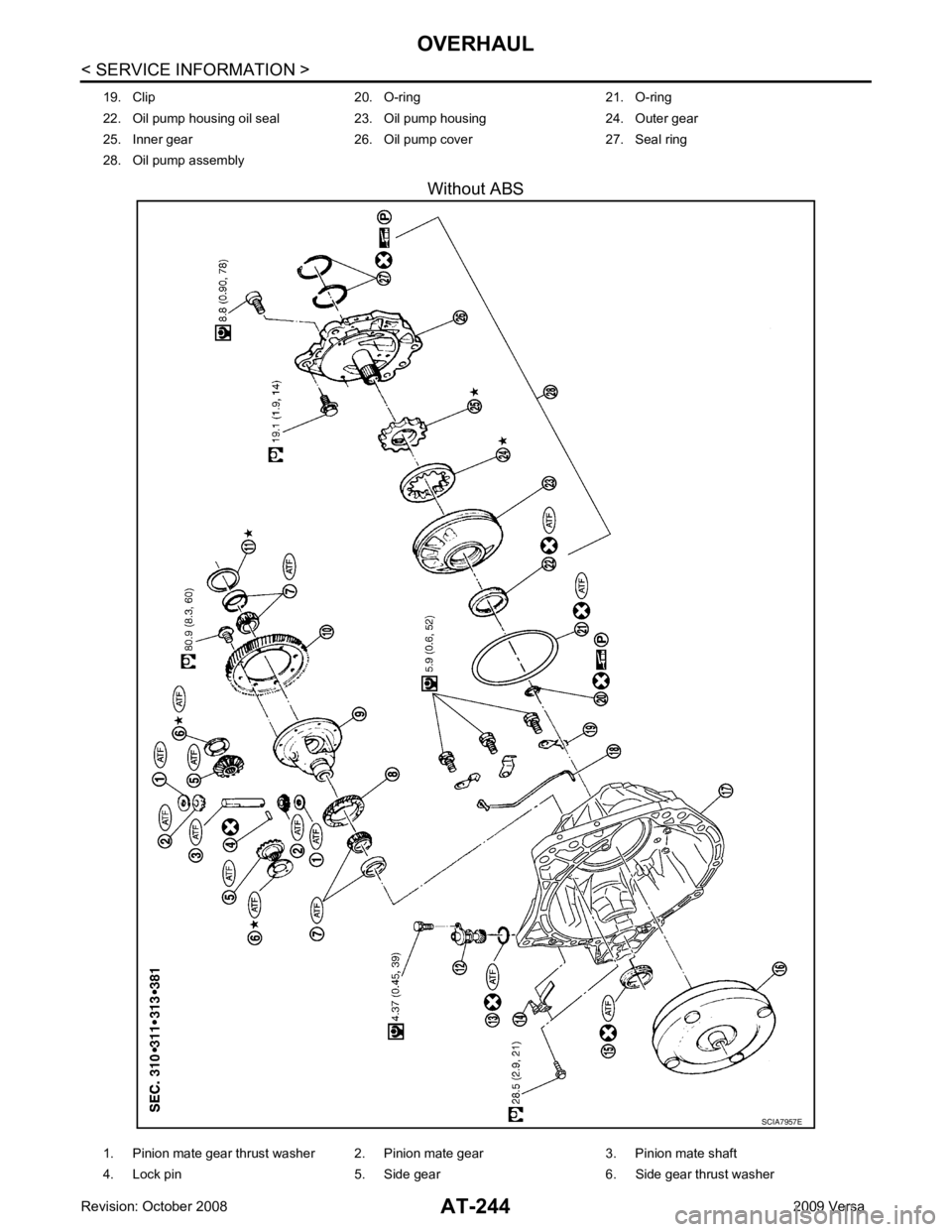

NISSAN LATIO 2009 Service Repair Manual AT N O P 7. Differential side bearing 8. Speedometer drive gear 9. Differential case 10. Final gear 11. Differential side bearing adjusting shim12. Speedometer pinion 13. O-ring 14. Bracket 15. RH di

Page 251 of 4331

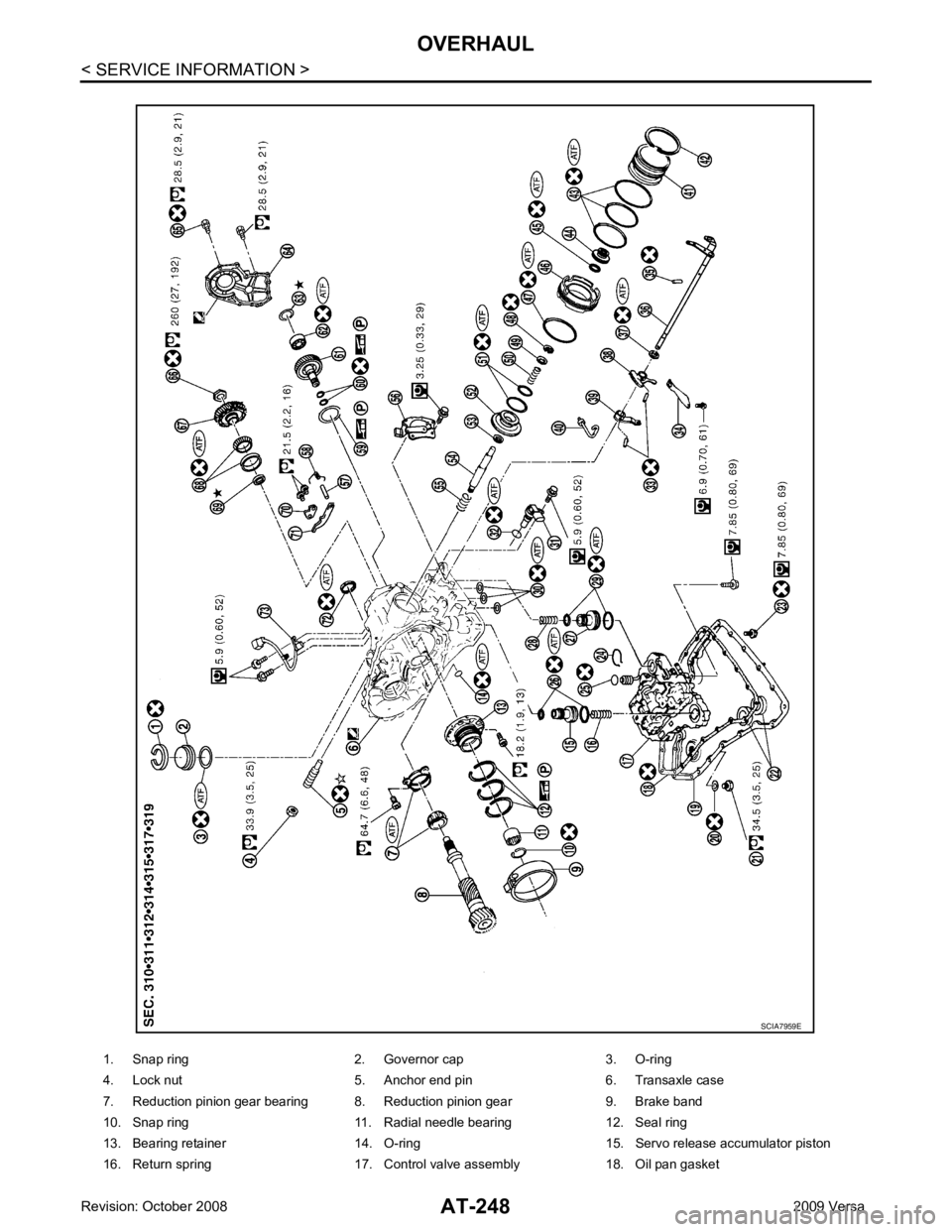

NISSAN LATIO 2009 Service Repair Manual

Page 252 of 4331

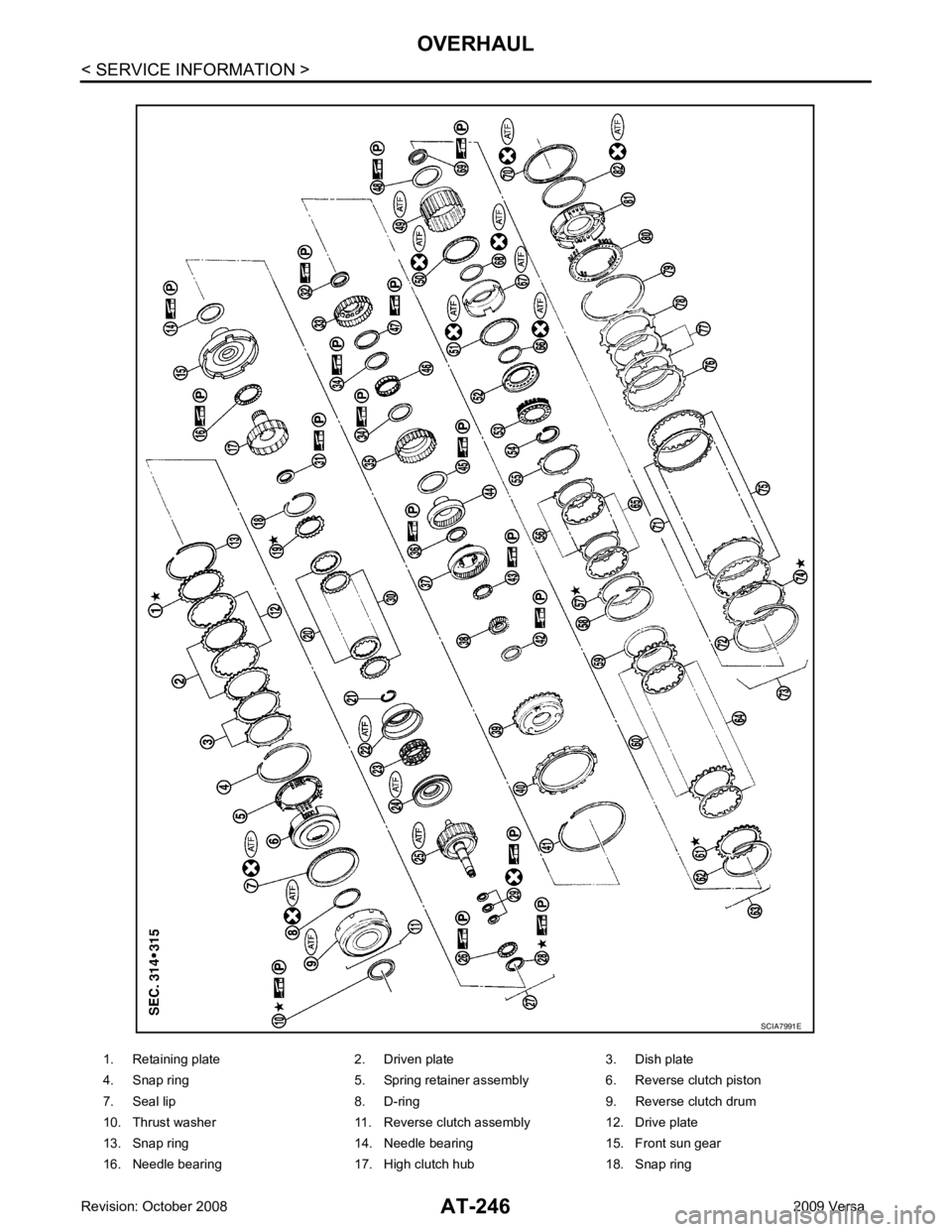

NISSAN LATIO 2009 Service Repair Manual AT N O P 19. Retaining plate 20. Drive plate 21. Snap ring 22. Cancel cover 23. Spring retainer assembly 24. High clutch piston 25. Input shaft assembly (high clutch drum) 26. Needle bearing 27. High

Page 253 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 254 of 4331

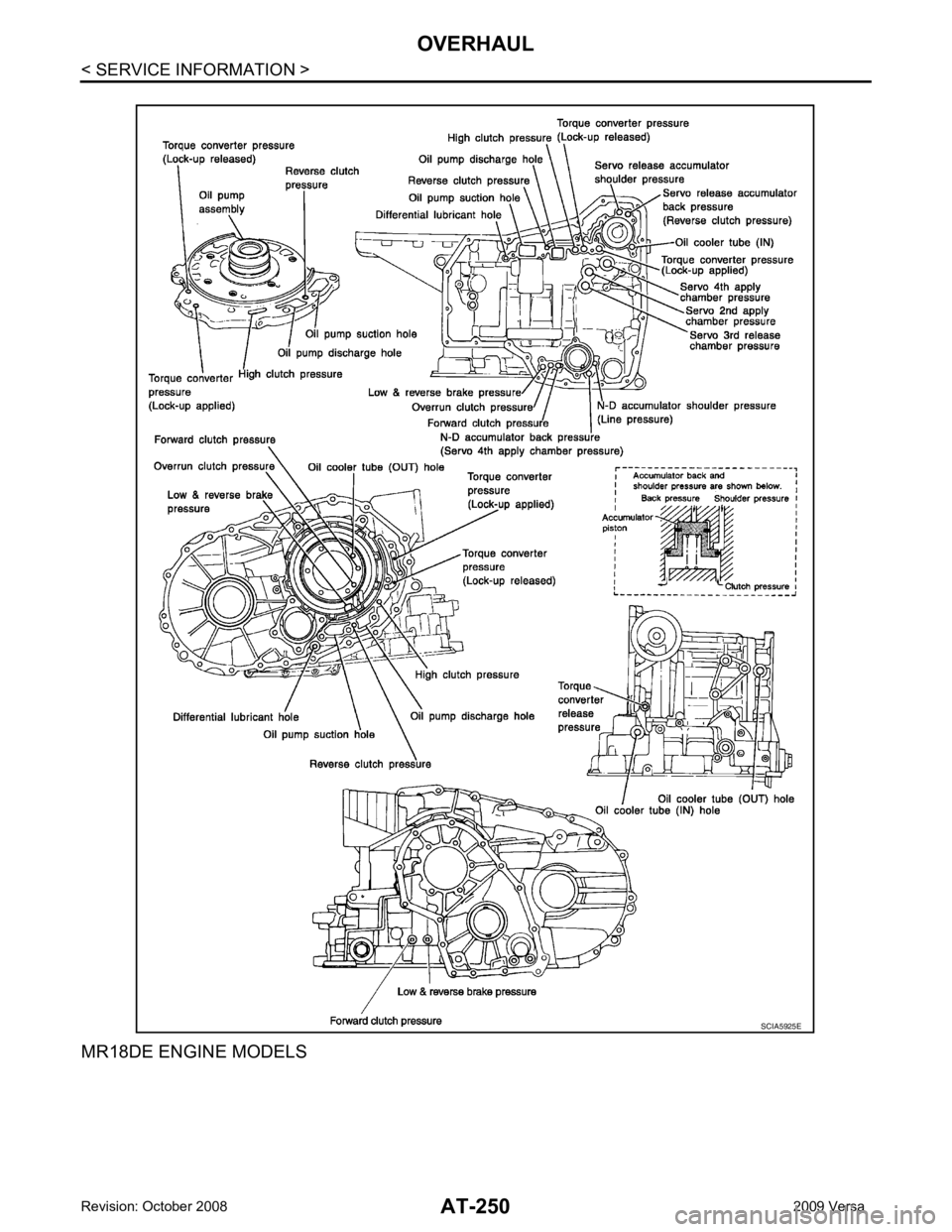

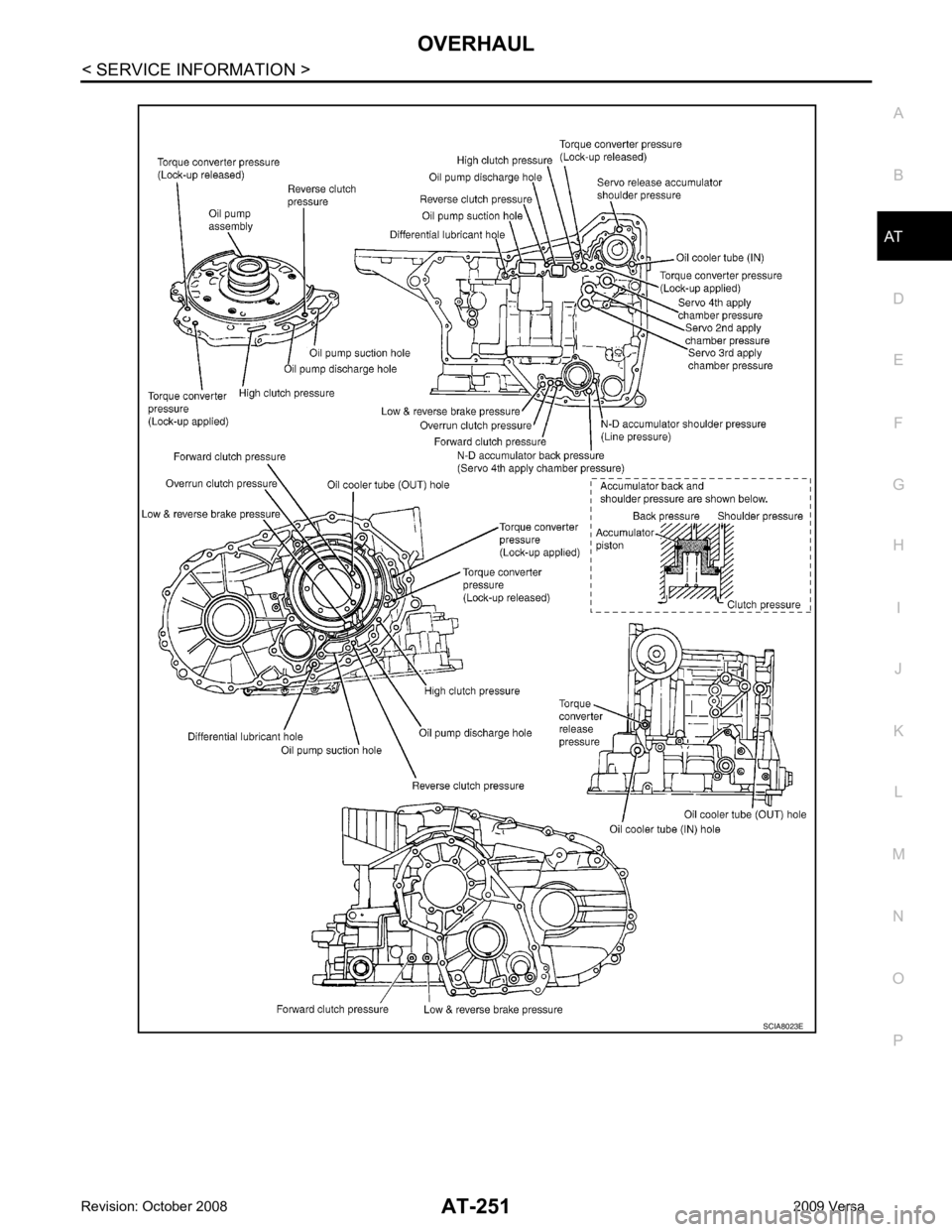

NISSAN LATIO 2009 Service Repair Manual AT N O P Oil Channel INFOID:0000000004305511 HR16DE ENGINE MODELS 19. Oil pan 20. Drain plug gasket 21. Drain plug 22. Magnet 23. Oil pan bolt 24. Snap ring 25. O-ring 26. O-ring 27. N-D accumulator

Page 255 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 256 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P
