Page 4249 of 4331

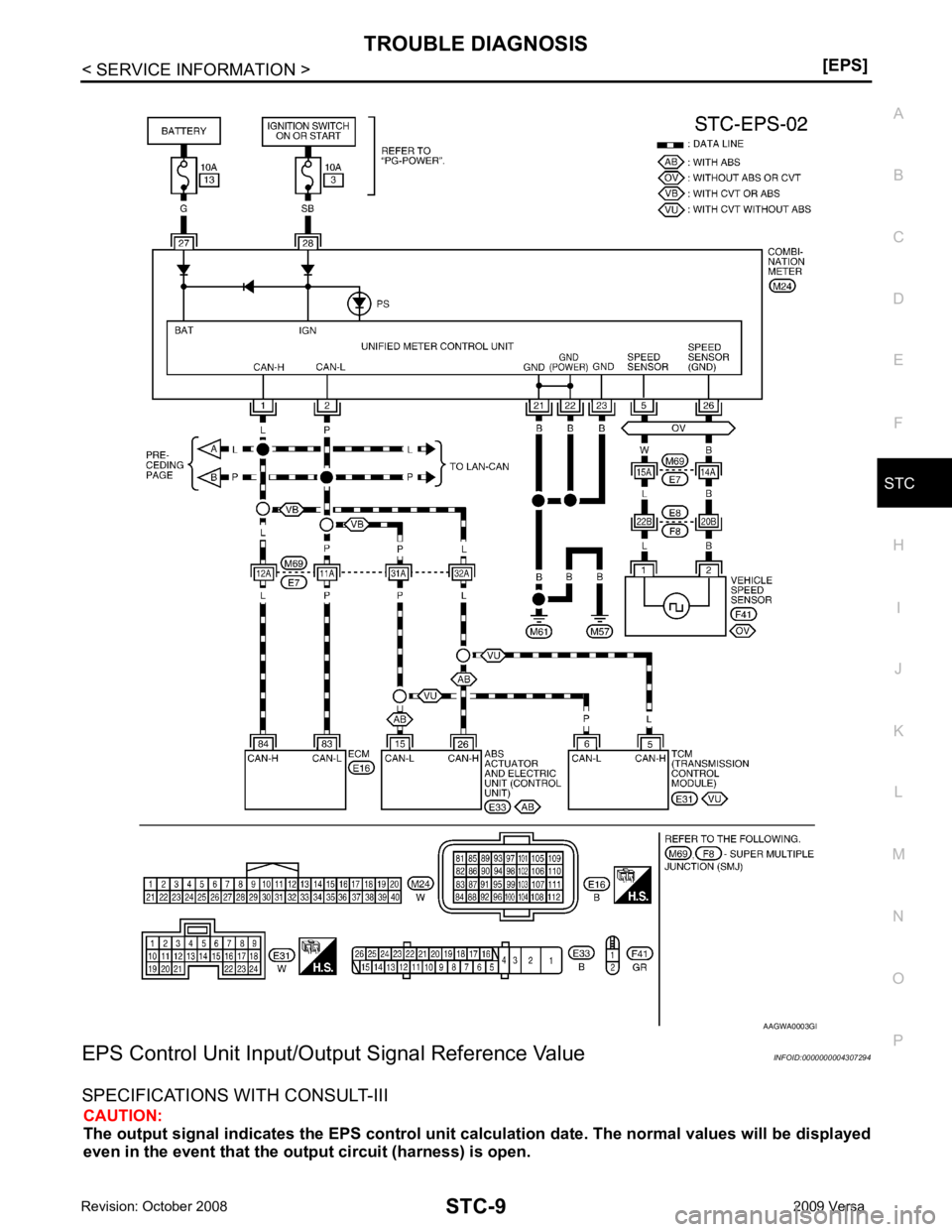

NISSAN LATIO 2009 Service Repair Manual STC N O P EPS Control Unit Input/Output Signal Reference Value INFOID:0000000004307294 SPECIFICATIONS WITH CONSULT-III CAUTION: The output signal indicates the EPS control unit calculation date. The

Page 4250 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4251 of 4331

NISSAN LATIO 2009 Service Repair Manual STC N O P Data are reference values and are measured between each terminal and ground. CAUTION: When using a circuit tester to measure voltage for inspection , be sure not to extend forcibly any conn

Page 4252 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC C1601 BATTERY VOLT " TORQUE SENSOR [C1604] When the torque sensor malfunction assembled in steering column assembly is detected. STC-15, " DTC C1604 TORQUE SENSOR " EPS MOTOR [C1606] When the

Page 4253 of 4331

NISSAN LATIO 2009 Service Repair Manual STC N O P Symptom Chart INFOID:0000000004307297 If EPS warning lamp turns ON, perform self-diagnosis. Refer to STC-11, " CONSULT-III Function (EPS) " . Symptom Condition Check item Reference page EP

Page 4254 of 4331

NISSAN LATIO 2009 Service Repair Manual EPS Terminal and Reference Value " . DIAGNOSTIC PROCEDURE OK >> GO TO 2. NG >> Check the following. If any items are damaged, repair or replace damaged parts. • 60 A fusible link (No. m, located in

Page 4255 of 4331

NISSAN LATIO 2009 Service Repair Manual STC N O P 3. Check continuity between EPS control unit harness connector (A) terminal and ground. Also check harness for short to power. 4. Connect EPS control unit harness connector. OK or NG

Page 4256 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 3. NG >> Repair or replace damaged parts. EPS Control Unit Input/Output Signal Reference Value " . OK or NG OK >> GO TO 4. NG >> Check EPS control unit pin terminals for dam age or
