Page 1017 of 4331
CVT
N
O P
3. Check continuity between TCM connector terminals and ground.
4. If OK, check harness for short-circuit to ground or power supply.
OK or NG OK >> GO TO 5.
NG >> GO TO 3. OK >> GO TO 4.
NG >> Repair or replace damaged parts. Component Inspection " .
OK or NG OK >> GO TO 5.
NG >> Repair or replace damaged parts. DTC Confirmation Procedure " .
Connector Terminal Condition Continuity
E32 27 - ground
Select lever in “P”
and “L” positions No
Select lever in other positions Yes
34 - ground Select lever in “P”
and “R” positions No
Select lever in other positions Yes
35 - ground Select lever in “P”,
“R” and “N” posi-
tions No
Select lever in other positions Yes
36 - ground Select lever in “P”,“N
” and “L” positions No
Select lever in other positions Yes
32 - ground Select lever in “P”,
“R” and “N” posi-
tions No
Select lever in other positions Yes
Page 1018 of 4331

OK >>
INSPECTION END
NG >> GO TO 6. TCM Terminal and Reference Value " .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG OK >>
INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace the transaxle assembly. Refer to CVT-182, " Removal and Installation " .
Component Inspection INFOID:0000000004666925
PNP SWITCH
1. Change selector lever to various positions to check the continu- ity between terminals on the PNP switch and ground.
2. If NG, check continuity with control c able disconnected. (Refer to step 1 above.)
3. If OK, with the control cable disconnect ed, adjust the control cable. Refer to CVT-175, " Adjustment of CVT
Position " .
4. If NG, even when the control cable is disconnected, replace the transaxle assembly. Refer to CVT-182," Removal and Installation " .
PNP SW Shift position Connector Terminal Continuity
SW 1 “R”, “N”, “D”
F464 - Ground
Yes
other positions No
SW 2 “N”, “D”, “L”
5 - Ground Yes
other positions No
SW 3 “D”, “L”
14 - Ground Yes
other positions No
SW 4 “R”, “D”
15 - Ground Yes
other positions No
SW 3 Moni-
tor “D”, “L”
18 - Ground Yes
other positions No
Page 1019 of 4331

CVT
N
O P

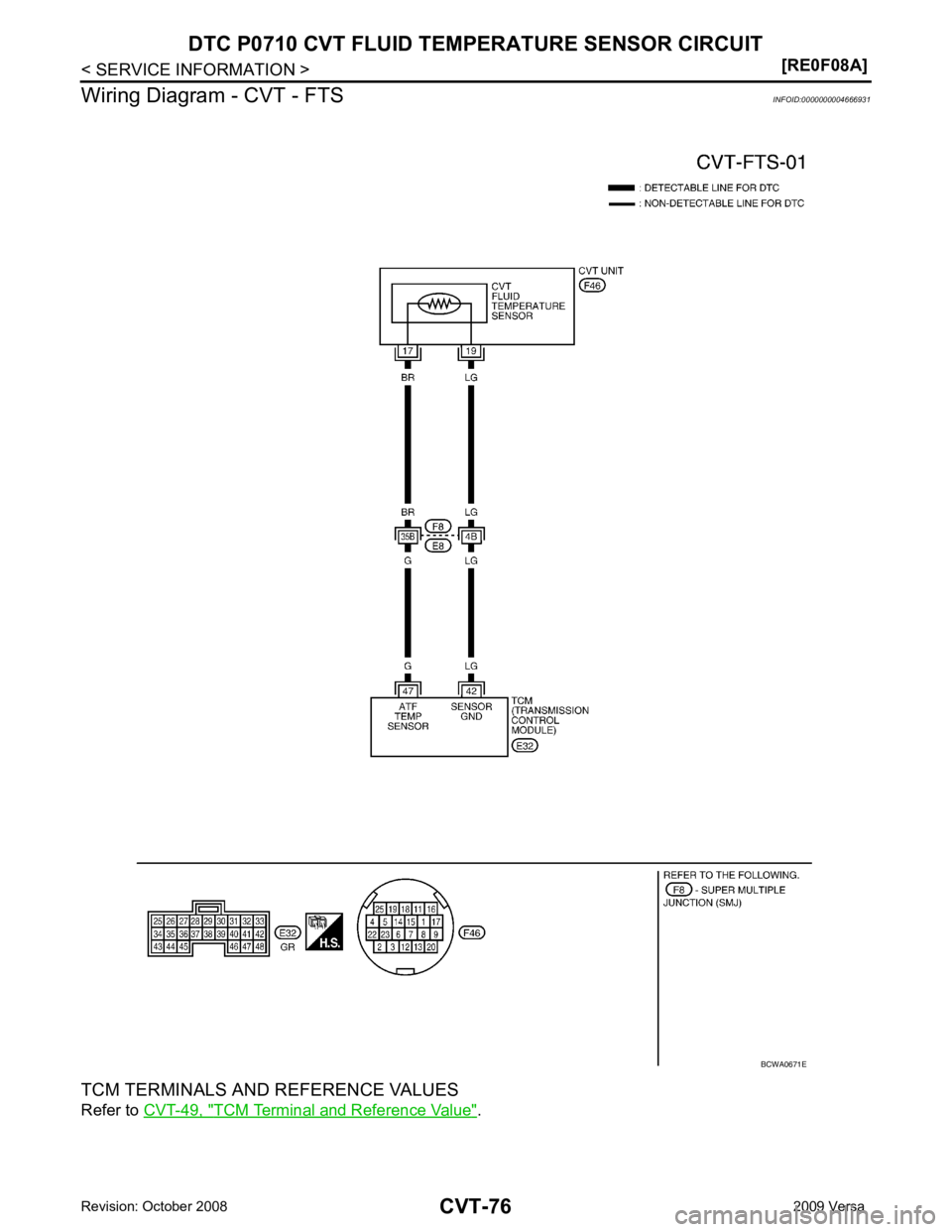

DTC P0710 CVT FLUID TEMPER
ATURE SENSOR CIRCUIT
Description INFOID:0000000004666926
• The CVT fluid temperature sensor is included in the control valve assembly.
• The CVT fluid temperature sensor detects the CV T fluid temperature and sends a signal to the TCM.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004666927
Remarks: Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004666928
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0710 ATF TEMP SEN/CIRC” with CONSULT-III is detected when TCM receives
an excessively low or high voltage from the sensor.
Possible Cause INFOID:0000000004666929
• Harness or connectors (Sensor circuit is open or shorted.)
• CVT fluid temperature sensor
DTC Confirmation Procedure INFOID:0000000004666930
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESU LTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine and maintain the following conditions for at least 10 minutes (Total). VEHICLE SPEED: 10 km/h (6 MPH) or more
ENG SPEED: 450 rpm more than
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
4. If DTC is detected, go to CVT-77, " Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”. Item name Condition Display value (Approx.)
ATF TEMP SEN When CVT fluid temperature is 20
°C (68 °F). 2.0 V
When CVT fluid temperature is 80 °C (176 °F). 1.0 V
Page 1020 of 4331
TCM Terminal and Reference Value " .
Page 1021 of 4331
CVT
N
O P
Diagnosis Procedure
INFOID:0000000004666932OK >> GO TO 5.
NG >> GO TO 2. OK >> GO TO 5.
NG >> GO TO 3. Name Connector Terminal
Temperature
°C ( °F) Voltage
(Approx.)
CVT fluid tem-
perature sen-
sor E32 47 - 42 20 (68) 2.0 V
80 (176) 1.0 V
Page 1022 of 4331
OK >> GO TO 4.
NG >> Replace the transaxle assembly. Refer to CVT-182, " Removal and Installation " .
OK >> GO TO 5.
NG >> Repair or replace damaged parts. DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> GO TO 6. TCM Terminal and Reference Value " .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG OK >>
INSPECTION END
NG >> Repair or replace damaged parts.
Component Inspection INFOID:0000000004666933
CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector. Name Connector Terminal
Tempera-
ture °C ( °F) Resistance
(Approx.)
CVT fluid
temperature
sensor F46 17 - 19 20 (68) 6.5 k
Ω
80 (176) 0.9 k Ω
Page 1023 of 4331
DTC P0710 CVT FLUID TEMP
ERATURE SENSOR CIRCUIT
CVT-79
< SERVICE INFORMATION >
[RE0F08A] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
3. Check resistance between CVT unit harness connector termi-
nals.
4. If NG, replace the transaxle assembly. Refer to CVT-182," Removal and Installation " .
Name Connector Terminal
Tempera-
ture °C ( °F) Resistance
(Approx.)
CVT fluid
temperature
sensor F46 17 - 19 20 (68) 6.5 k
Ω
80 (176) 0.9 k Ω SCIA4679E
Page 1024 of 4331
Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”. Item name Condition Display value
ENG SPEED SIG Engine running Closely matches the tachometer reading.
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed.
