2009 NISSAN LATIO Service Repair Manual

adblue resetseat memory radiowheel bolt torquefuse chartfuse box diagram
Popular search:
washer fluidwindowstart stop buttontorquetowingwarning lightjacking points
Previous
Next
Load previous 8 pages

Page 3681 of 4331

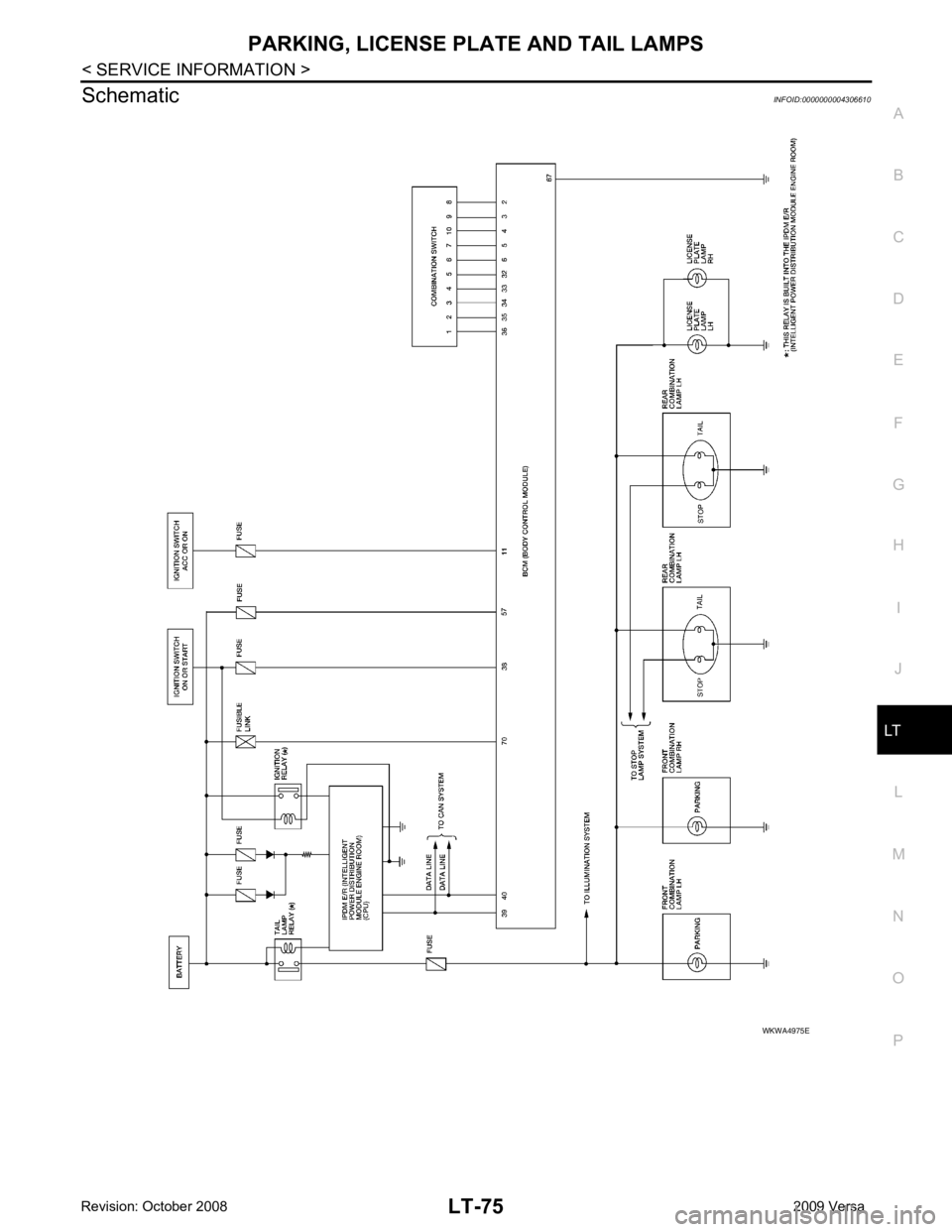

NISSAN LATIO 2009 Service Repair Manual LT N O P Schematic INFOID:0000000004306610

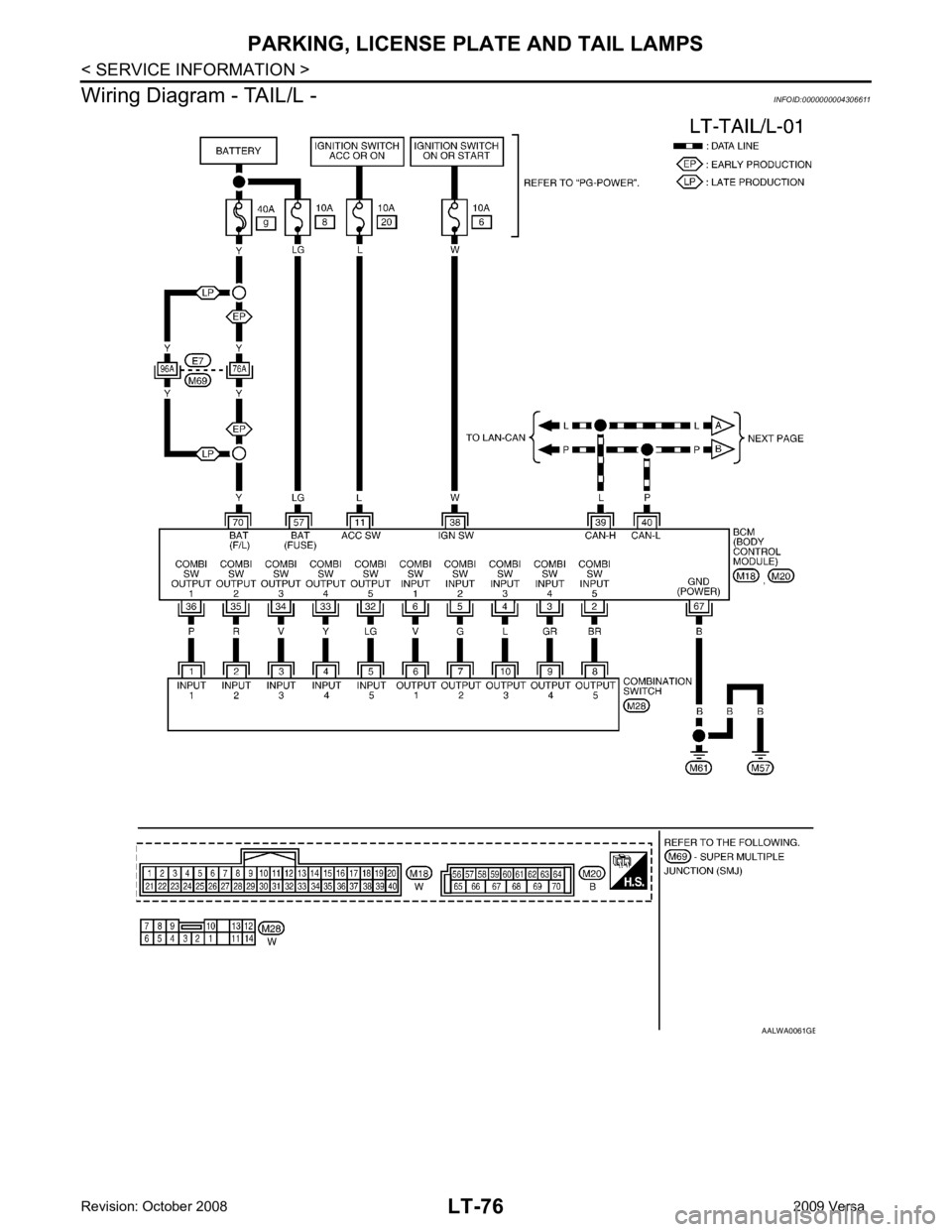

Page 3682 of 4331

NISSAN LATIO 2009 Service Repair Manual B

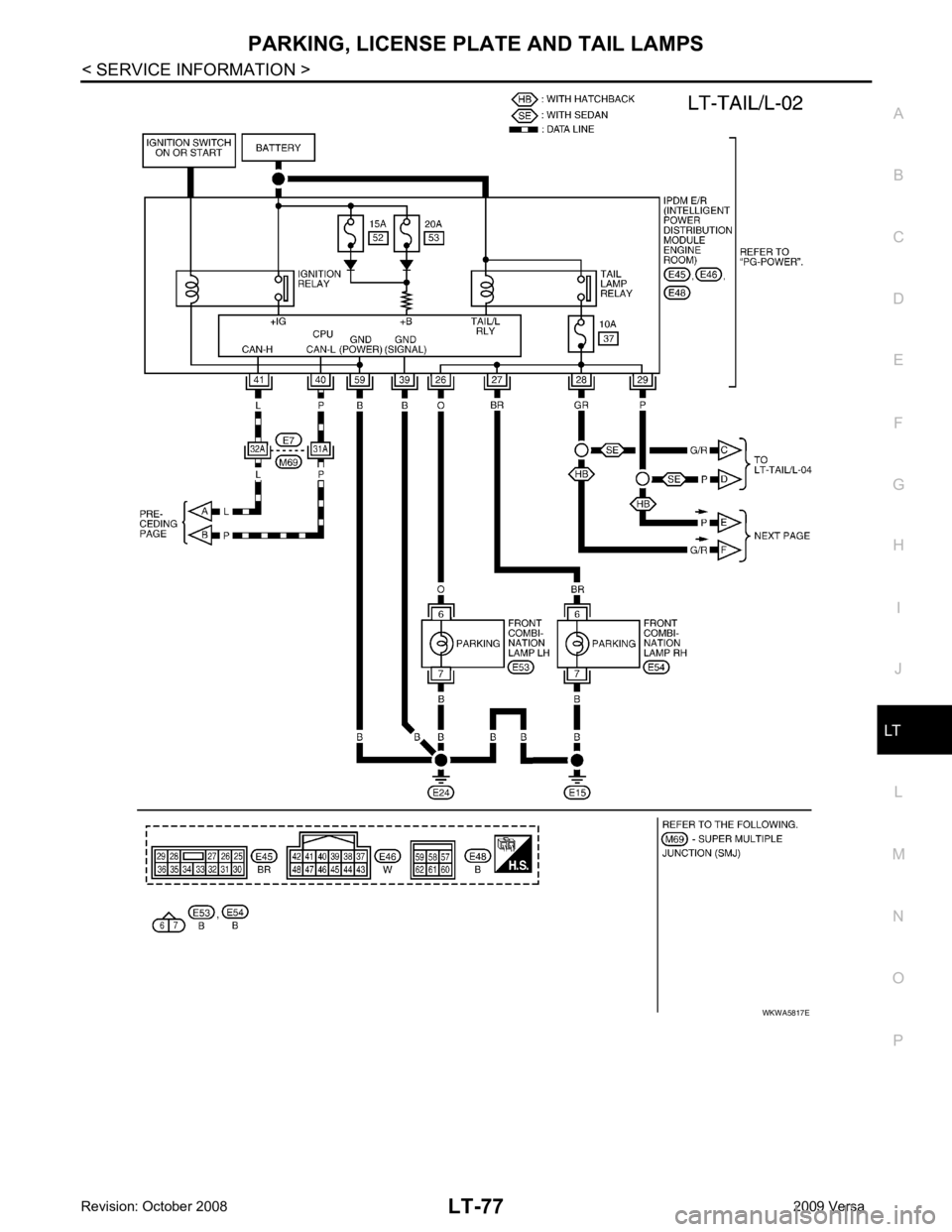

Page 3683 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P

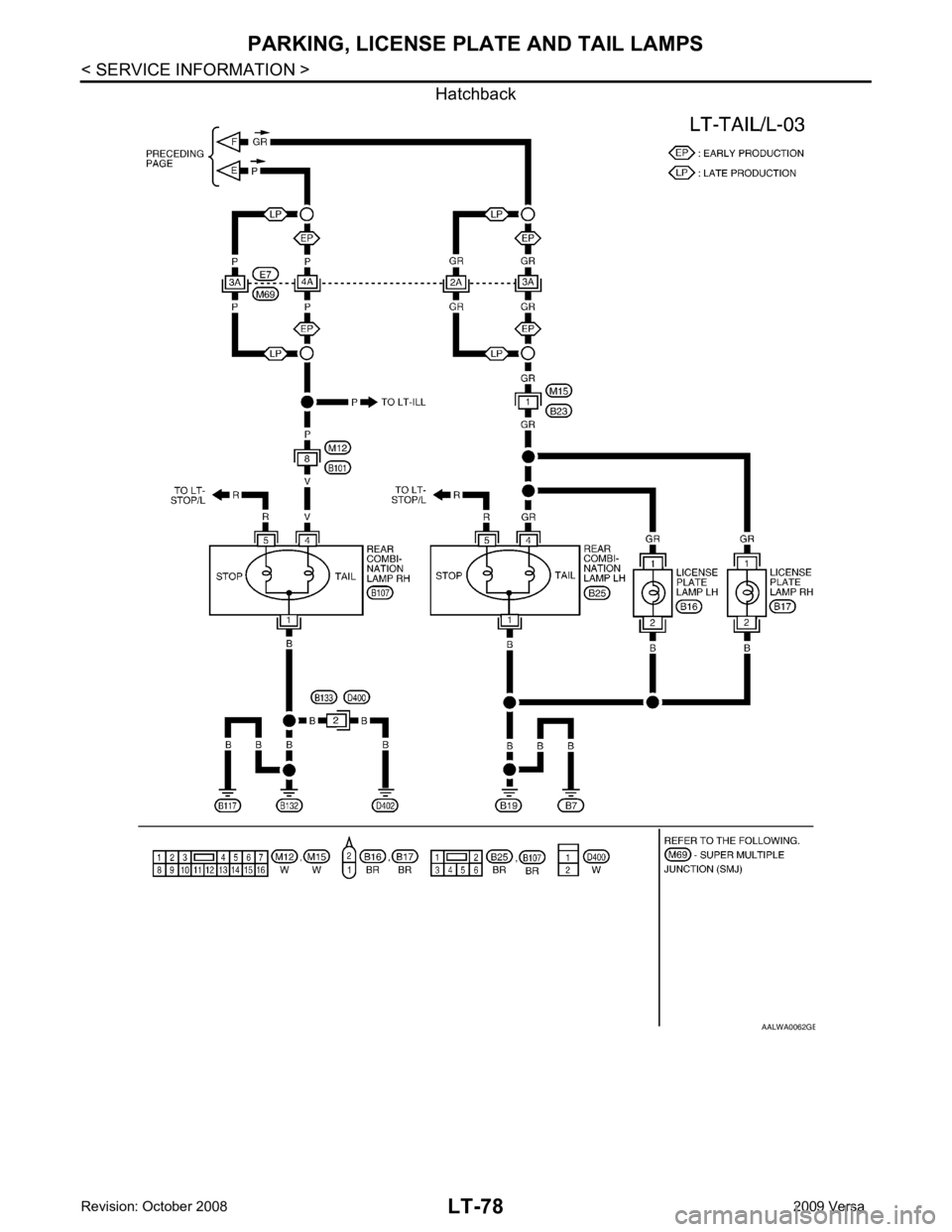

Page 3684 of 4331

NISSAN LATIO 2009 Service Repair Manual B

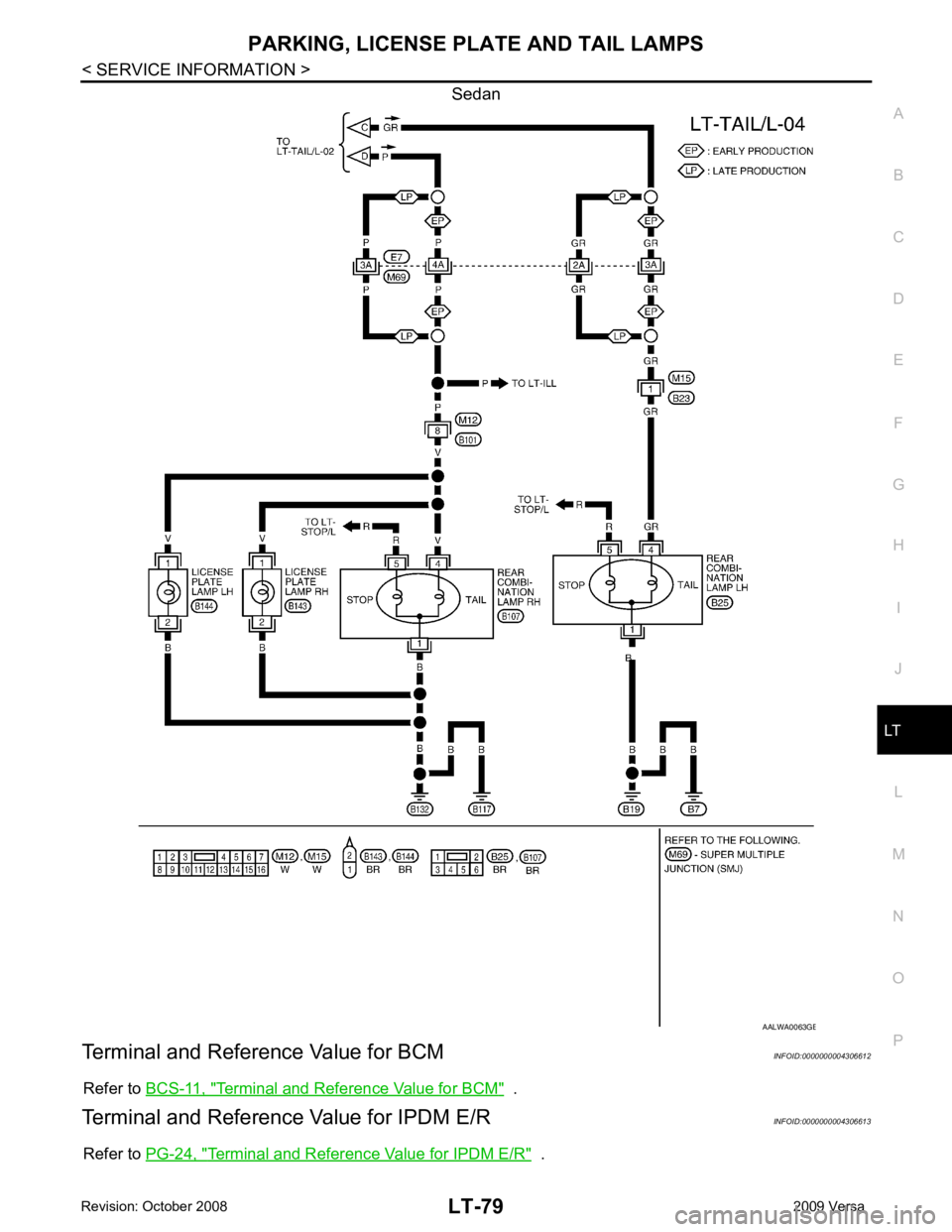

Page 3685 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P Sedan Terminal and Reference Value for BCM INFOID:0000000004306612 Refer to BCS-11, " Terminal and Reference Value for BCM " . Terminal and Reference Value for IPDM E/R INFOID:000000000430

Page 3686 of 4331

NISSAN LATIO 2009 Service Repair Manual System Description " . 3. Perform the preliminary check. Refer to LT-80, " Preliminary Check " . 4. Check symptom and repair or repl ace the cause of the malfunction. 5. Do the parking, license p

Page 3687 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P 1. Start auto active test. Refer to PG-19, " Auto Active Test " . 2. Make sure parking, license plate and tail lamps operate. OK or NG OK >> GO TO 4. NG >> GO TO 5. OK >> Replace IPDM E/R.

Page 3688 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 7. NG >> GO TO 6. OK >> Replace IPDM E/R. Refer to PG-27, " Removal and Installation of IPDM E/R " . NG >> Repair harness or connector.
