Page 4153 of 4331

NISSAN LATIO 2009 Service Repair Manual SC N O P DIAGNOSTIC PROCEDURE 1 Check Starter Motor Circuit

Page 4154 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 2. NG >> Check harness between the battery and the starter motor for open circuit. OK >> GO TO 3. NG >> Check harness between the battery and the starter motor for poor conti

Page 4155 of 4331

NISSAN LATIO 2009 Service Repair Manual SC N O P • 10A fuse (No. 49, M/T model s, located in the IPDM E/R) • 15A fuse (No. 52, located in the IPDM E/R) • 20A fuse (No. 53, located in the IPDM E/R) • PNP switch, clutch interlock swit

Page 4156 of 4331

NISSAN LATIO 2009 Service Repair Manual Removal and Installation " . 3. Remove reservoir tank. Refer to CO-16, " Removal and Installation " . 4. Remove “S” terminal nut. 5. Remove “B” terminal nut. 6. Remove starter motor bolts.

Page 4157 of 4331

NISSAN LATIO 2009 Service Repair Manual SC N O P CHARGING SYSTEM System Description INFOID:0000000004306825 The generator provides DC voltage to operate the vehicl es electrical system and to keep the battery charged. The voltage output is

Page 4158 of 4331

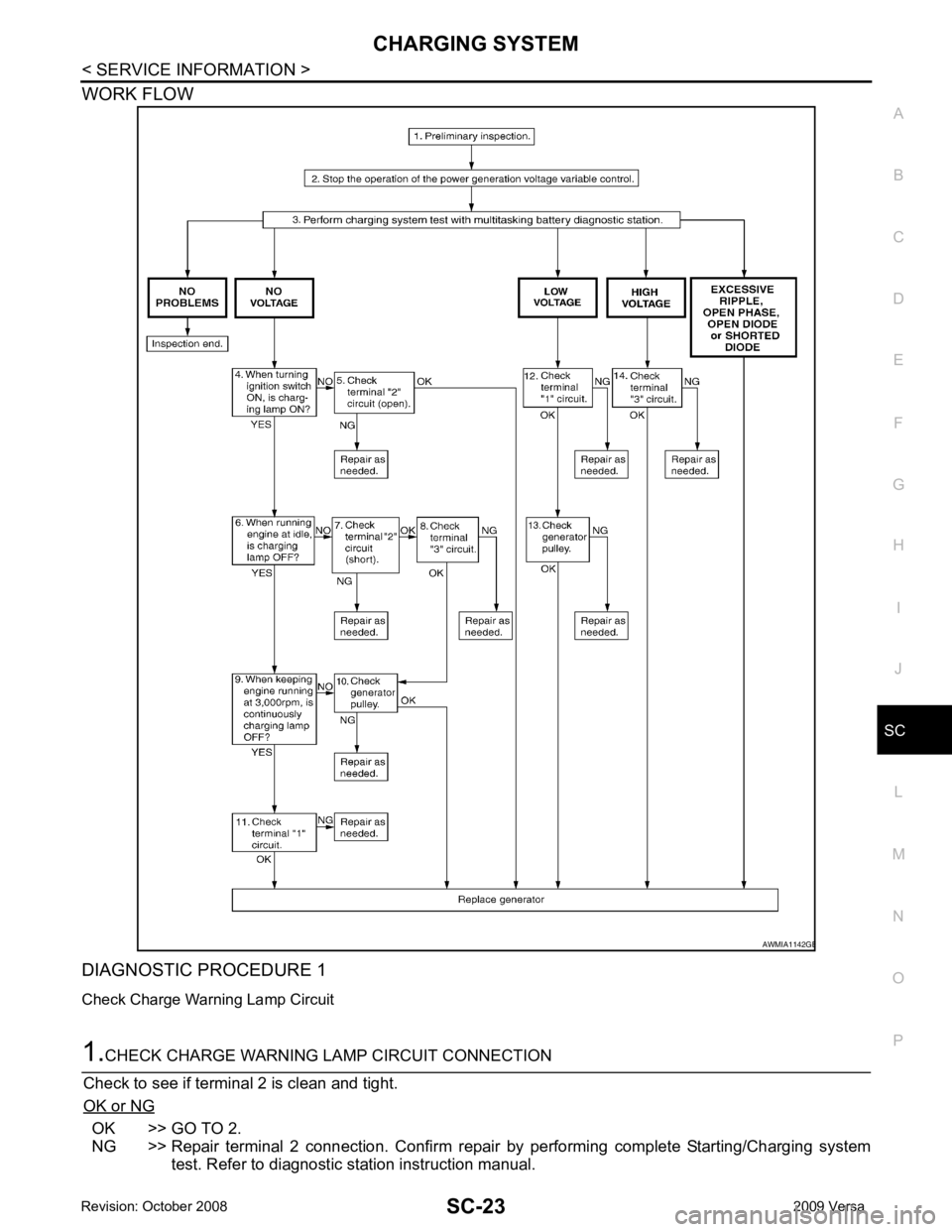

NISSAN LATIO 2009 Service Repair Manual

Page 4159 of 4331

NISSAN LATIO 2009 Service Repair Manual SC N O P WORK FLOW DIAGNOSTIC PROCEDURE 1 Check Charge Warning Lamp Circuit OK >> GO TO 2. NG >> Repair terminal 2 connection. Confirm repair by performing complete Starting/Charging system

Page 4160 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO "WORK FLOW" . NG >> Check the following. • 10A fuse [No. 3, located in fuse block (J/B)] • CHARGE lamp • Harness for open or short between combination meter and fuse • Harness for
