EM-38< ON-VEHICLE REPAIR >
[HR16DE]
FUEL INJECTOR AND FUEL TUBE
c. Align center to insert quick connector straightly into fuel tube. • Insert quick connector to fuel tube until the top spool on fueltube is inserted completely and the 2nd level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:
• Hold “A” position shown when inserting fuel tube into
quick connector.
• Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
• Insert until you hear a “click” sound and actually feel
the engagement.
• To avoid misidentification of engagement with a similar sound, be sure to pe rform the next step.
d. Before clamping fuel feed hose with hose clamp, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
e. Install quick connector cap (1) to quick connector connection. • Install quick connector cap with the side arrow facing quick
connector side (fuel feed hose side).
CAUTION:
• Make sure that the quick connector and fuel tube are
securely engaged with the quick connector cap mount-
ing groove.
• Quick connector may not be connected correctly if quick connector cap cannot be installed easily. Remove
the quick connector cap, and then check the connection
of quick connector again.
f. Install fuel feed hose to hose clamp.
7. Installation of the remaining components is in the reverse order of removal.
Inspection INFOID:0000000004784288
INSPECTION AFTER INSTALLATION
Check on Fuel Leakage
1. Turn ignition switch “ON” (with the engine stopped). With fuel pressure applied to fuel piping, make sure
there are no fuel leaks at connection points.
NOTE:
Use mirrors for checking at points out of clear sight.
2. Start the engine. With engine speed increased, make su re again that there are no fuel leaks at connection
points.
CAUTION:
Never touch the engine immediately after it is stopped, as the engine becomes extremely hot. KBIA0272E
PBIC3664E
Page 2986 of 4331
EM
NP
O
OIL PAN (LOWER)

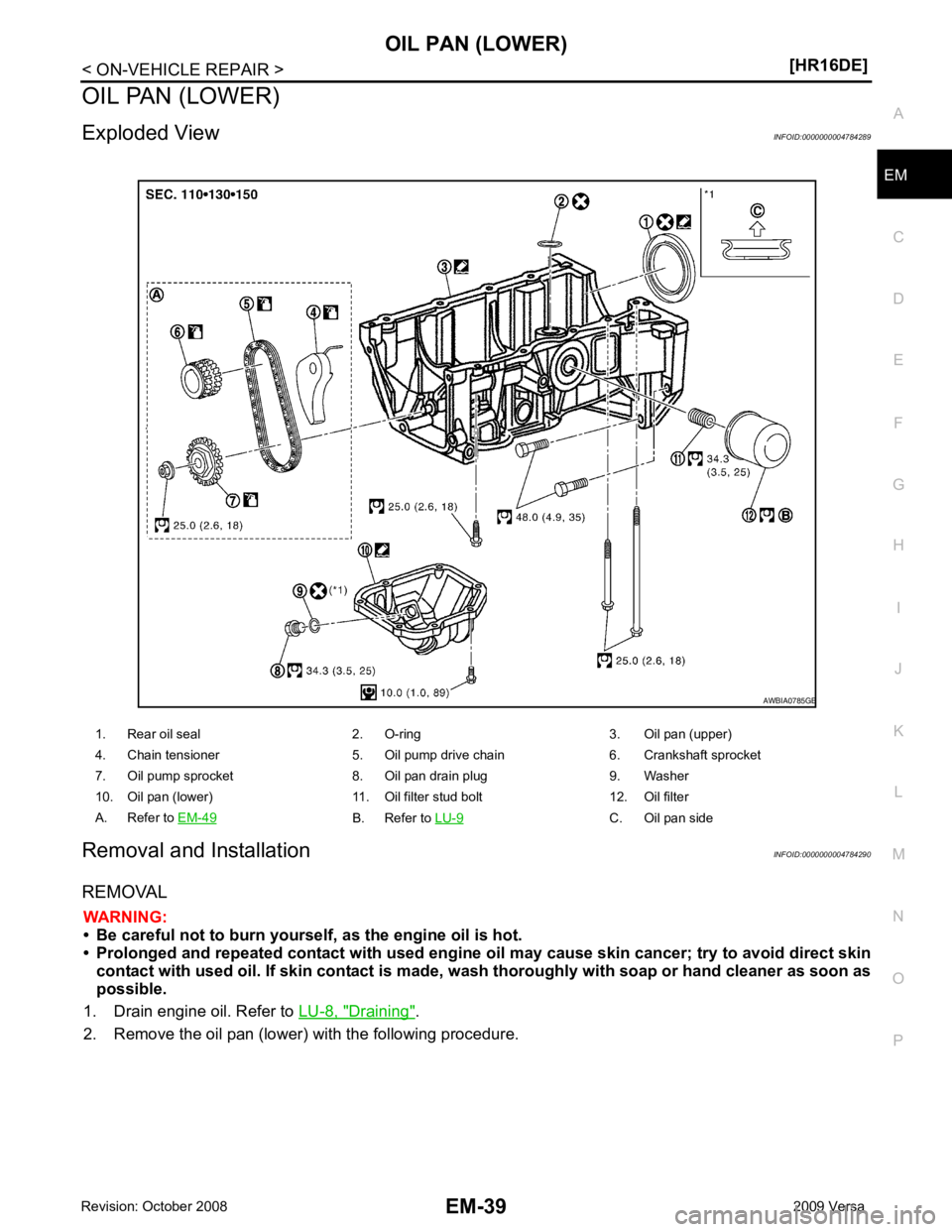

Exploded View INFOID:0000000004784289
Removal and Installation INFOID:0000000004784290
REMOVAL WARNING:
• Be careful not to burn yourself, as the engine oil is hot.
• Prolonged and repeated contact with used engine oil may cau se skin cancer; try to avoid direct skin
contact with used oil. If skin contact is made, w ash thoroughly with soap or hand cleaner as soon as
possible.
1. Drain engine oil. Refer to LU-8, " Draining " .
2. Remove the oil pan (lower) with the following procedure. 1. Rear oil seal 2. O-ring 3. Oil pan (upper)
4. Chain tensioner 5. Oil pump drive chain 6. Crankshaft sprocket
7. Oil pump sprocket 8. Oil pan drain plug 9. Washer
10. Oil pan (lower) 11. Oil filter stud bolt 12. Oil filter
A. Refer to EM-49 B. Refer to
LU-9 C. Oil pan side
Page 2987 of 4331

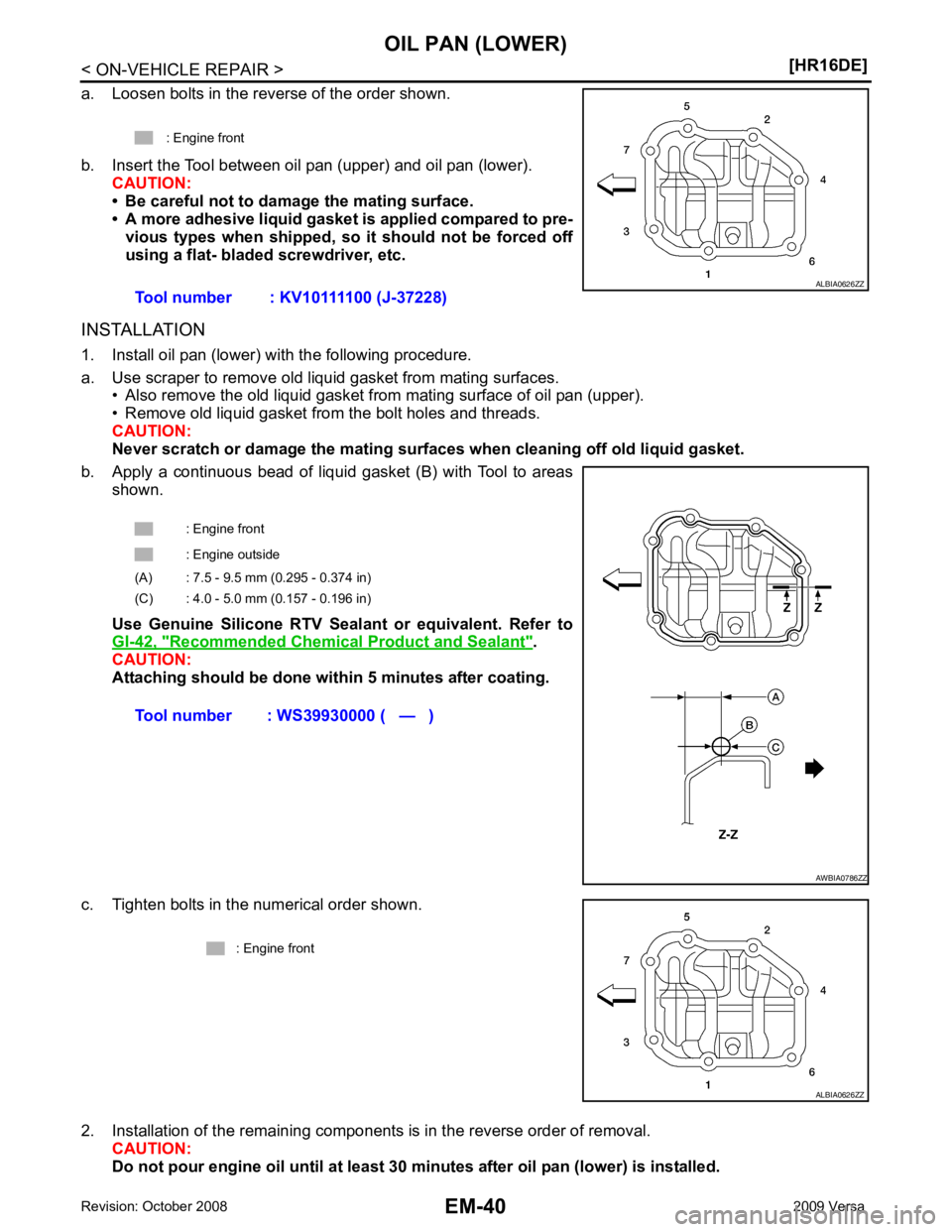

Recommended Chemical
Product and Sealant " .
CAUTION:
Attaching should be done with in 5 minutes after coating.
c. Tighten bolts in the numerical order shown.
2. Installation of the remaining components is in the reverse order of removal. CAUTION:
Do not pour engine oil unti l at least 30 minutes after oil pan (lower) is installed.
: Engine front
Tool number : KV10111100 (J-37228)
Page 2988 of 4331
EM
NP
O
Inspection
INFOID:0000000004784291
INSPECTION AFTER INSTALLATION 1. Check the engine oil level and adjust as necessary. Refer to LU-7, " Inspection " .
2. Start engine, and check there are no leaks of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level again. Refer to LU-7, " Inspection " .
Page 2989 of 4331
![NISSAN LATIO 2009 Service Repair Manual EM-42< ON-VEHICLE REPAIR >
[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
OIL PAN (UPPER) AND OIL STRAINER
Component INFOID:0000000004784292
Removal and Installation INFOID:0000000004784293
NOTE:
The oil s NISSAN LATIO 2009 Service Repair Manual EM-42< ON-VEHICLE REPAIR >
[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
OIL PAN (UPPER) AND OIL STRAINER
Component INFOID:0000000004784292
Removal and Installation INFOID:0000000004784293
NOTE:
The oil s](/manual-img/5/57359/w960_57359-2988.png)
EM-42< ON-VEHICLE REPAIR >
[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
OIL PAN (UPPER) AND OIL STRAINER
Component INFOID:0000000004784292
Removal and Installation INFOID:0000000004784293
NOTE:
The oil strainer and oil pump are included in the oil pan (upper). Individual disassembly is prohibited.
REMOVAL
1. Remove engine and transaxle assembly from the vehicle, and then separate engine and transaxle. Refer to EM-88, " Removal and Installation " .
2. Install engine assembly to widely use engine stand. Refer to EM-93, " Setting " .
3. Drain engine oil. Refer to LU-8, " Draining " .
4. Remove the oil pan (lower). Refer to EM-39, " Removal and Installation " .
5. Remove oil level gauge.
6. Remove front cover and timing chain. Refer to EM-49, " Removal and Installation " .
7. Remove oil pump sprocket and crankshaft sprocket together with oil pump drive chain. Refer to EM-49," Exploded View " .
8. Remove oil pan (upper) using the following procedure. 1. Rear oil seal 2. O-ring 3. Oil pan (upper)
4. Chain tensioner 5. Oil pump drive chain 6. Crankshaft sprocket
7. Oil pump sprocket 8. Oil pan drain plug 9. Washer
10. Oil pan (lower) 11. Oil filter stud bolt 12. Oil filter
A. Refer to EM-49 B. Refer to
LU-9 C. Oil pan side AWBIA0785GB
Page 2990 of 4331

EM
NP
O
a. Loosen oil pan (upper) bolts in the reverse of the order shown.
b. Insert a flat-bladed offset screwdriver into the arrow ( ) shown and open up a crack between the oil pan (upper) cylinder block.
c. Insert the Tool between the oil pan (upper) and cylinder block. Slide seal cutter by tapping on the side of tool with a hammer.
CAUTION:
• Be careful not to damage the mating surface.
• A more adhesive liquid gasket is applied compared to pre-
vious types when shipped, so it should not be forced off
using a screwdriver, etc. ou tside the indicated location.
• Do not remove oil pump and oil strainer from oil pan (upper).
9. Remove rear oil seal from crankshaft.
INSTALLATION 1. Install the oil pan (upper) in the following procedure.
a. Use scraper to remove old liquid gasket from mating surfaces. • Also remove the old liquid gasket from mating surface of cylinder block.
• Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Do not scratch or damage the mating su rfaces when cleaning off old liquid gasket.
b. Install O-ring to the cylinder block. : Engine front
Page 2991 of 4331
![NISSAN LATIO 2009 Service Repair Manual EM-44< ON-VEHICLE REPAIR >
[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
c. Apply a continuous bead of liquid gasket (D) with Tool to areas shown.
Use Genuine Silicone RTV Seal ant or equ NISSAN LATIO 2009 Service Repair Manual EM-44< ON-VEHICLE REPAIR >
[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
c. Apply a continuous bead of liquid gasket (D) with Tool to areas shown.
Use Genuine Silicone RTV Seal ant or equ](/manual-img/5/57359/w960_57359-2990.png)
EM-44< ON-VEHICLE REPAIR >
[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
c. Apply a continuous bead of liquid gasket (D) with Tool to areas shown.
Use Genuine Silicone RTV Seal ant or equivalent. Refer to
GI-42, " Recommended Chemical
Product and Sealant " .
CAUTION:
Installation should be done within 5 minutes after coating.
d. Tighten bolts in the numerical order shown. CAUTION:
Avoid misalignment of both oil pan gasket and O-ring.
• The bolts are different according to the installation position. Follow the numbers shown.
2. Install rear oil seal with the following procedure: CAUTION:
• The installation of rear oil seal should be co mpleted within 5 minutes after installing oil pan
(upper).
• Do not touch oil seal lip.
a. Wipe off any liquid gasket protruding to the rear oil seal mounting part of oil pan (upper) and cylinder block using a spatula.
b. Apply the liquid gasket lightly to entire outside area of new rear oil seal. Use Genuine Silicone RTV Seal ant or equivalent. Refer to GI-42, " Recommended Chemical Prod-
uct and Sealant " .
c. Press-fit the rear oil seal using a drift with outer diameter 113 mm (4.45 in) and inner diameter 90 mm (3.54 in) (A). A : 2 mm (0.07 in) protruded to outside
B : 2 mm (0.07 in) protruded to rear oil seal mounting side
C : 5.5 - 7.5 mm (0.216 - 0.295 in)
E : 4.0 - 5.0 mm (0.157 - 0.196 in) dia.
: Engine front
: Engine out side
Tool number : WS39930000 ( — ) AWBIA0790ZZ
: Engine front
M8 × 179 mm (7.09 in) : No. 9, 10
M8 × 25 mm (0.98 in) : No. 3, 4, 7, 8
M8 × 90 mm (3.54 in) : No. 1, 2, 5, 6 ALBIA0627ZZ
PBIC3660E
Page 2992 of 4331

EM
NP
O

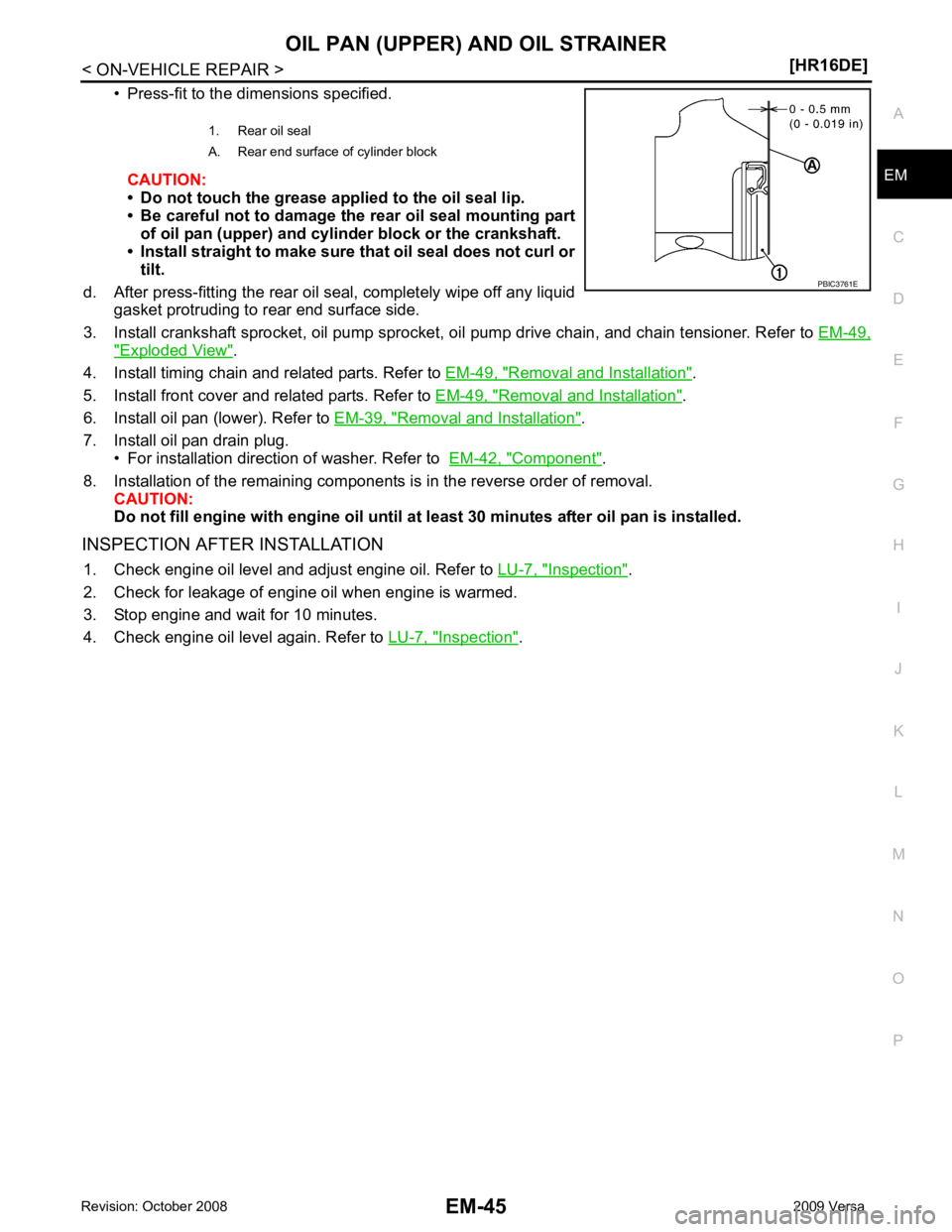

• Press-fit to the dimensions specified.
CAUTION:
• Do not touch the grease applied to the oil seal lip.
• Be careful not to damage the rear oil seal mounting part of oil pan (upper) and cylinder block or the crankshaft.
• Install straight to make sure that oil seal does not curl or tilt.
d. After press-fitting the rear oil seal, completely wipe off any liquid gasket protruding to rear end surface side.
3. Install crankshaft sprocket, oil pump sprocket, oi l pump drive chain, and chain tensioner. Refer to EM-49," Exploded View " .
4. Install timing chain and related parts. Refer to EM-49, " Removal and Installation " .
5. Install front cover and related parts. Refer to EM-49, " Removal and Installation " .
6. Install oil pan (lower). Refer to EM-39, " Removal and Installation " .
7. Install oil pan drain plug. • For installation direction of washer. Refer to EM-42, " Component " .
8. Installation of the remaining components is in the reverse order of removal. CAUTION:
Do not fill engine with engi ne oil until at least 30 minutes after oil pan is installed.
INSPECTION AFTER INSTALLATION 1. Check engine oil level and adjust engine oil. Refer to LU-7, " Inspection " .
2. Check for leakage of engine oil when engine is warmed.
3. Stop engine and wait for 10 minutes.
4. Check engine oil level again. Refer to LU-7, " Inspection " .
1. Rear oil seal
A. Rear end surface of cylinder block
