DTC P1421 COLD START CONTROL
Description INFOID:0000000004500297
ECM controls ignition timing and engine idle speed when engine is started with prewarming up condition.
This control promotes the activation of three way ca talyst by heating the catalyst and reduces emissions.
On Board Diagnosis Logic INFOID:0000000004500298
DTC Confirmation Procedure INFOID:0000000004500299
NOTE:
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
• If DTC P1421 is displayed with other DTC, firs t perform the trouble diagnosis for other DTC.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-III.
4. Check that the “COOLAN TE MP/S” indication is between 4°C (39 °F) and 36 °C (97 °F).
If “COOLAN TEMP/S” indication is within the specified value, go to the following step.
If “COOLAN TEMP/S” indication is out of the s pecified value, cool engine down or warm engine up and go
to step 1.
5. Start engine and let it idle for 5 minutes.
6. Check 1st trip DTC.
7. If 1st trip DTC is detected, go to EC-1421, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:0000000004500300Idle Air Volume Learning " .
Is Idle Air Volume Learning carried out successfully?
Yes or No Yes >> GO TO 2.
No >> Follow the instruction of Idle Air Volume Learning. OK >> GO TO 3.
NG >> Repair or replace malfunctioning part DTC Confirmation Procedure " for DTC P0171.
OK or NG OK >> GO TO 4.DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1421
1421 Cold start emission reduction
strategy monitoring ECM does not control ignition timing and engine
idle speed properly when engine is started with
prewarming up condition. • Lack of intake air volume
• Fuel injection system
• ECM
Page 2778 of 4331
Diagnosis Procedure " for DTC P0171.
DTC Confirmation Procedure " .
3. Is the 1st trip DTC P1421 displayed again?
Yes or No Yes >> GO TO 5.
No >> INSPECTION END ECM Re-communicating Function " .
3. Perform EC-1084, " VIN Registration " .
4. Perform EC-1084, " Accelerator Pedal Released Position Learning " .
5. Perform EC-1084, " Throttle Valve Closed Position Learning " .
6. Perform EC-1084, " Idle Air Volume Learning " .
>> INSPECTION END
Page 2779 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P1564 ASCD STEERING SWITCH
EC-1423
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P1564 ASCD STEERING SWITCH
Component Description INFOID:0000000004500301
ASCD steering swi NISSAN LATIO 2009 Service Repair Manual DTC P1564 ASCD STEERING SWITCH
EC-1423
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P1564 ASCD STEERING SWITCH
Component Description INFOID:0000000004500301
ASCD steering swi](/manual-img/5/57359/w960_57359-2778.png)
DTC P1564 ASCD STEERING SWITCH
EC-1423
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P1564 ASCD STEERING SWITCH
Component Description INFOID:0000000004500301
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-1033 for the ASCD function.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004500302
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004500303
This self-diagnosis has the on e trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1393 .
1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. RESUME/ACCELERATE switch 5. SET/COAST switch BBIA0707E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW • Ignition switch: ON MAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW • Ignition switch: ON CANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW • Ignition switch: ON RESUME/ACCELERATE switch:
Pressed ON
RESUME/ACCELERATE switch: Re-
leased OFF
SET SW • Ignition switch: ON SET/COAST switch: Pressed ON
SET/COAST switch: Released OFF DTC No.
Trouble diagnosis
name DTC detecting condition Possible cause
P1564
1564 ASCD steering switch • An excessively high voltage signal from the
ASCD steering switch is sent to ECM.
• ECM detects that input signal from the
ASCD steering switch is out of the specified
range.
• ECM detects that the ASCD steering switch
is stuck ON. • Harness or connectors
(ASCD switch circuit is open or shorted.)
• ASCD steering switch
• ECM
Page 2780 of 4331
Page 2781 of 4331
EC
NP
O

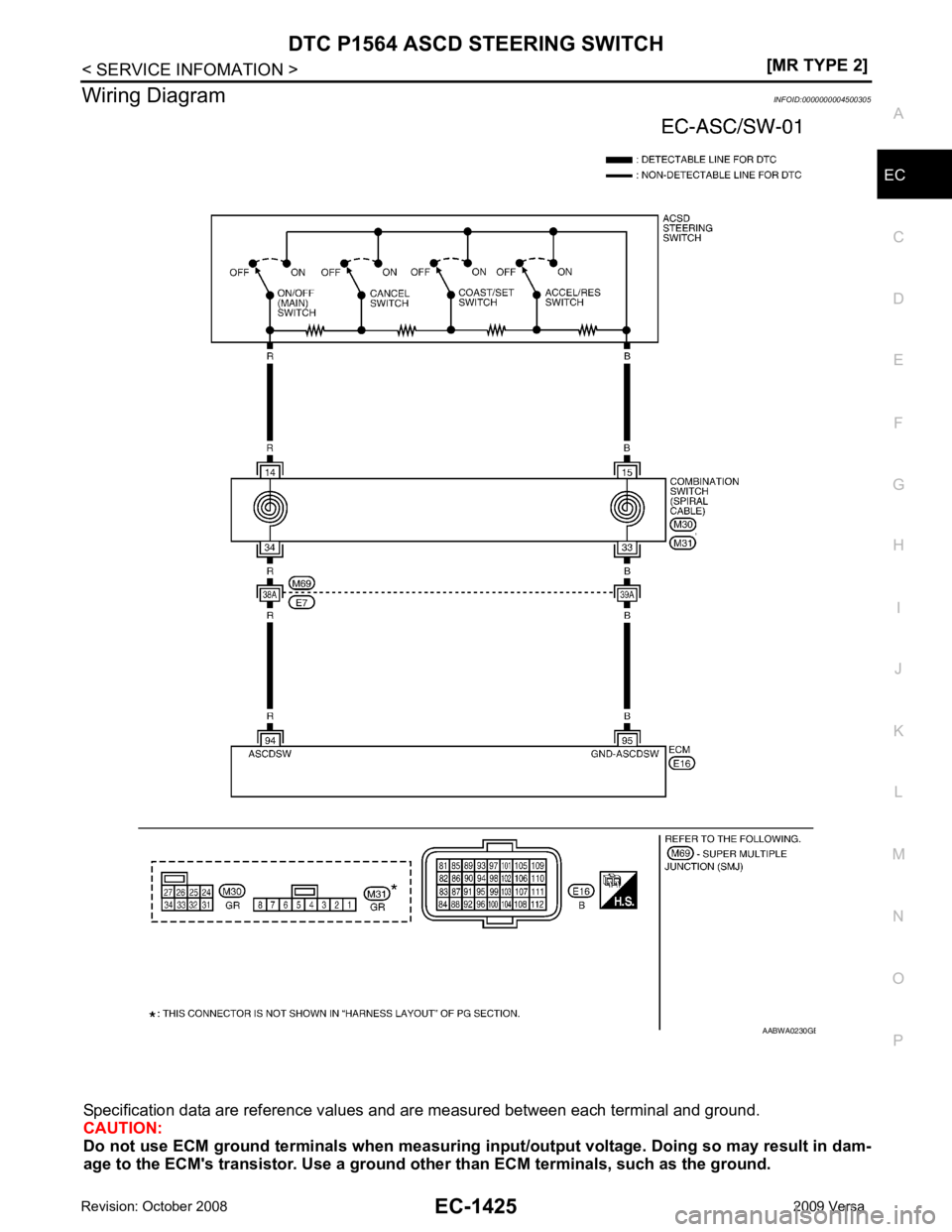

Wiring Diagram
INFOID:0000000004500305
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground. B
Page 2782 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-1426< SERVICE INFOMATION >
[MR TYPE 2]
DTC P1564 ASCD STEERING SWITCH
Diagnosis Procedure INFOID:00000000045003061.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten gro NISSAN LATIO 2009 Service Repair Manual EC-1426< SERVICE INFOMATION >
[MR TYPE 2]
DTC P1564 ASCD STEERING SWITCH
Diagnosis Procedure INFOID:00000000045003061.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten gro](/manual-img/5/57359/w960_57359-2781.png)
EC-1426< SERVICE INFOMATION >
[MR TYPE 2]
DTC P1564 ASCD STEERING SWITCH
Diagnosis Procedure INFOID:00000000045003061.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-1144, " Ground Inspection " .
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch ON.
2. Select “MAIN SW”, “RESUME/ACC SW”, “SET SW and “CANCEL SW” in “DATA MONITOR” mode with
CONSULT-III.
3. Check each item indication under the following conditions. TERMI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
94 R ASCD steering switch [Ignition switch: ON]
• ASCD steering switch: OFF Approximately 4V
[Ignition switch: ON]
• MAIN switch: Pressed Approximately 0V
[Ignition switch: ON]
• CANCEL switch: Pressed Approximately 1V
[Ignition switch: ON]
• RESUME/ACCELERATE switch: Pressed Approximately 3V
[Ignition switch: ON]
• SET/COAST switch: Pressed Approximately 2V
95 B Sensor ground [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V:
Vehicle front
1. Body ground E24 2. Engine ground F9 3. Engine ground F16
4. Body ground E15 BBIA0698E
Switch Monitor item Condition Indication
MAIN switch MAIN SW Pressed ON
Released OFF
CANCEL switch CANCEL SW Pressed ON
Released OFF
Page 2783 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P1564 ASCD STEERING SWITCH
EC-1427
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 94 and NISSAN LATIO 2009 Service Repair Manual DTC P1564 ASCD STEERING SWITCH
EC-1427
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 94 and](/manual-img/5/57359/w960_57359-2782.png)
DTC P1564 ASCD STEERING SWITCH
EC-1427
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O

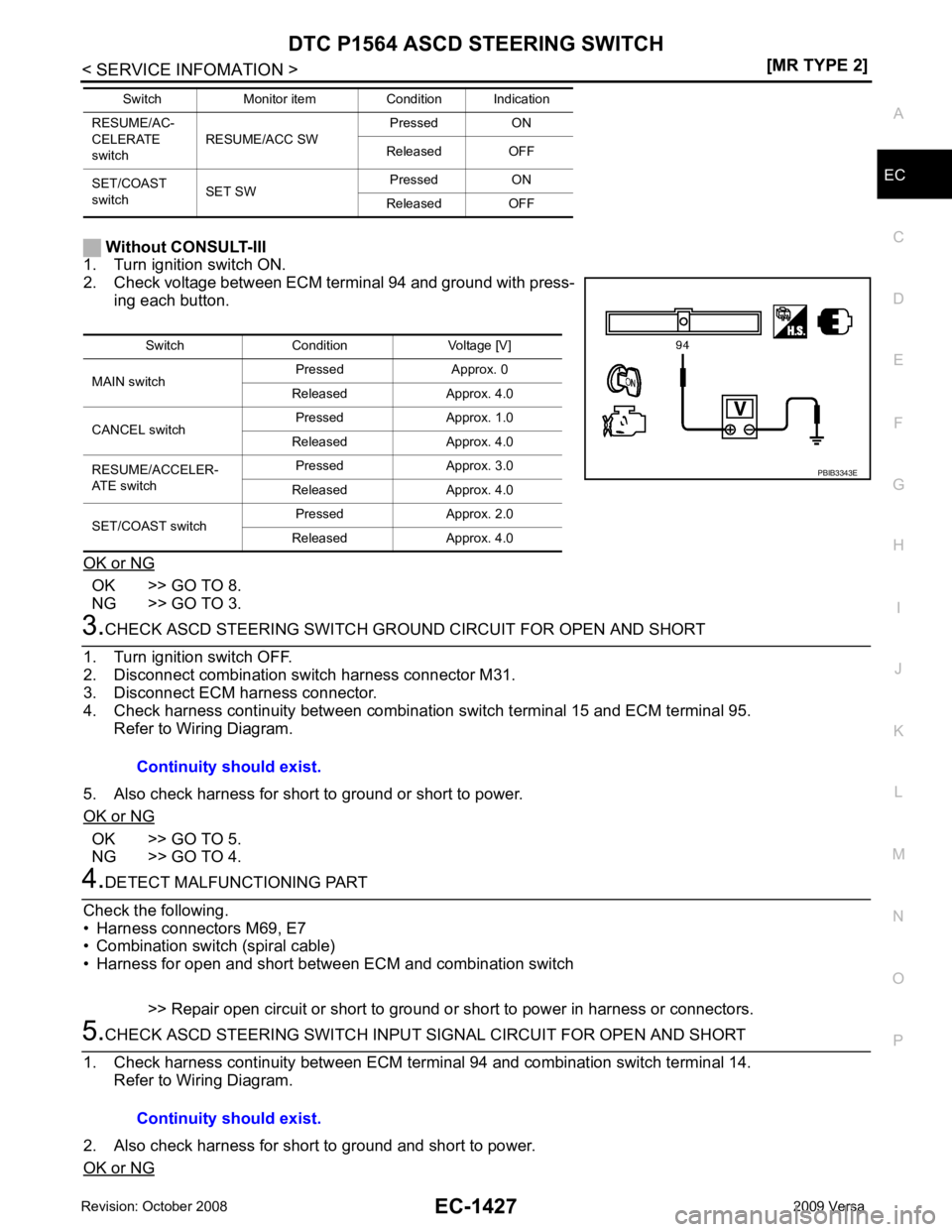

Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 94 and ground with press- ing each button.
OK or NG OK >> GO TO 8.
NG >> GO TO 3. 3.
CHECK ASCD STEERING SWITCH GRO UND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect combination switch harness connector M31.
3. Disconnect ECM harness connector.
4. Check harness continuity between combinati on switch terminal 15 and ECM terminal 95.
Refer to Wiring Diagram.
5. Also check harness for short to ground or short to power.
OK or NG OK >> GO TO 5.
NG >> GO TO 4. 4.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• Combination switch (spiral cable)
• Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors. 5.
CHECK ASCD STEERING SWITCH INPUT S IGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 94 and combination switch terminal 14. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG RESUME/AC-
CELERATE
switch RESUME/ACC SW
Pressed ON
Released OFF
SET/COAST
switch SET SW Pressed ON
Released OFF
Switch Monitor item Condition Indication Switch Condition Voltage [V]
MAIN switch Pressed Approx. 0
Released Approx. 4.0
CANCEL switch Pressed Approx. 1.0
Released Approx. 4.0
RESUME/ACCELER-
ATE switch Pressed Approx. 3.0
Released Approx. 4.0
SET/COAST switch Pressed Approx. 2.0
Released Approx. 4.0 PBIB3343E
Continuity should exist.
Continuity should exist.
Page 2784 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-1428< SERVICE INFOMATION >
[MR TYPE 2]
DTC P1564 ASCD STEERING SWITCH
OK >> GO TO 7.
NG >> GO TO 6. 6.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• Combination NISSAN LATIO 2009 Service Repair Manual EC-1428< SERVICE INFOMATION >
[MR TYPE 2]
DTC P1564 ASCD STEERING SWITCH
OK >> GO TO 7.
NG >> GO TO 6. 6.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• Combination](/manual-img/5/57359/w960_57359-2783.png)
EC-1428< SERVICE INFOMATION >
[MR TYPE 2]
DTC P1564 ASCD STEERING SWITCH
OK >> GO TO 7.
NG >> GO TO 6. 6.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• Combination switch (spiral cable)
• Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors. 7.
CHECK ASCD STEERING SWITCH
Refer to EC-1428, " Component Inspection " .
OK or NG OK >> GO TO 8.
NG >> Replace ASCD steering switch. 8.
CHECK INTERMITTENT INCIDENT
Refer to EC-1138 .
>> INSPECTION END

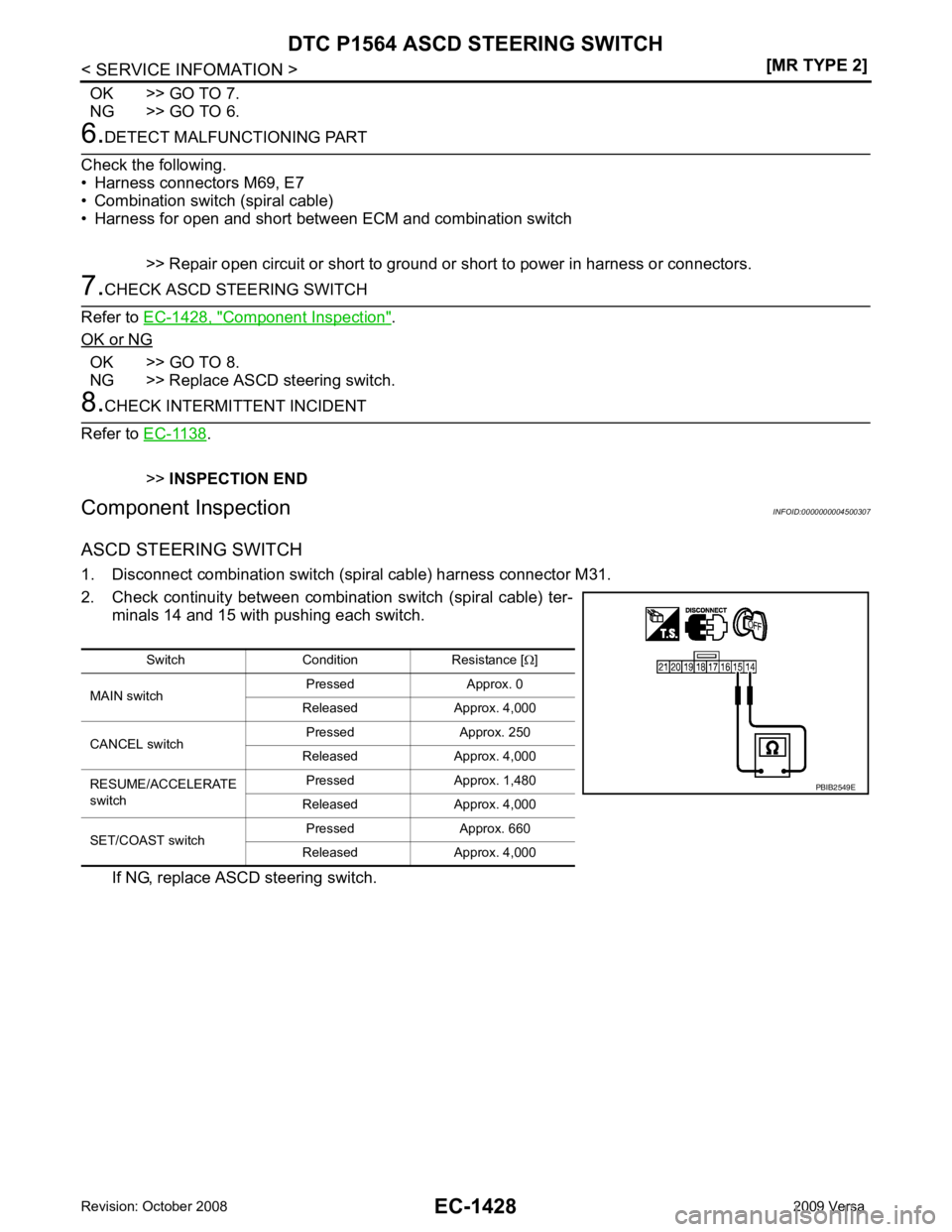

Component Inspection INFOID:0000000004500307
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M31.
2. Check continuity between combination switch (spiral cable) ter- minals 14 and 15 with pushing each switch.
If NG, replace ASCD steering switch. Switch Condition Resistance [
Ω]
MAIN switch Pressed Approx. 0
Released Approx. 4,000
CANCEL switch Pressed Approx. 250
Released Approx. 4,000
RESUME/ACCELERATE
switch Pressed Approx. 1,480
Released Approx. 4,000
SET/COAST switch Pressed Approx. 660
Released Approx. 4,000 PBIB2549E
