NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 2. NG >> Replace fuse or fusible link. Terminal No. Signal name Fuse, fusible link No. 1, 2 Battery power a, b, d

Page 4010 of 4331

NISSAN LATIO 2009 Service Repair Manual PG N O P OK or NG OK >> GO TO 3. NG >> Repair or replace IPDM E/R power circuit harness. OK >> Inspection End. NG >> Repair or replace IPDM E/R ground circuit harness. Inspection with CONSULT-III (Sel

Page 4011 of 4331

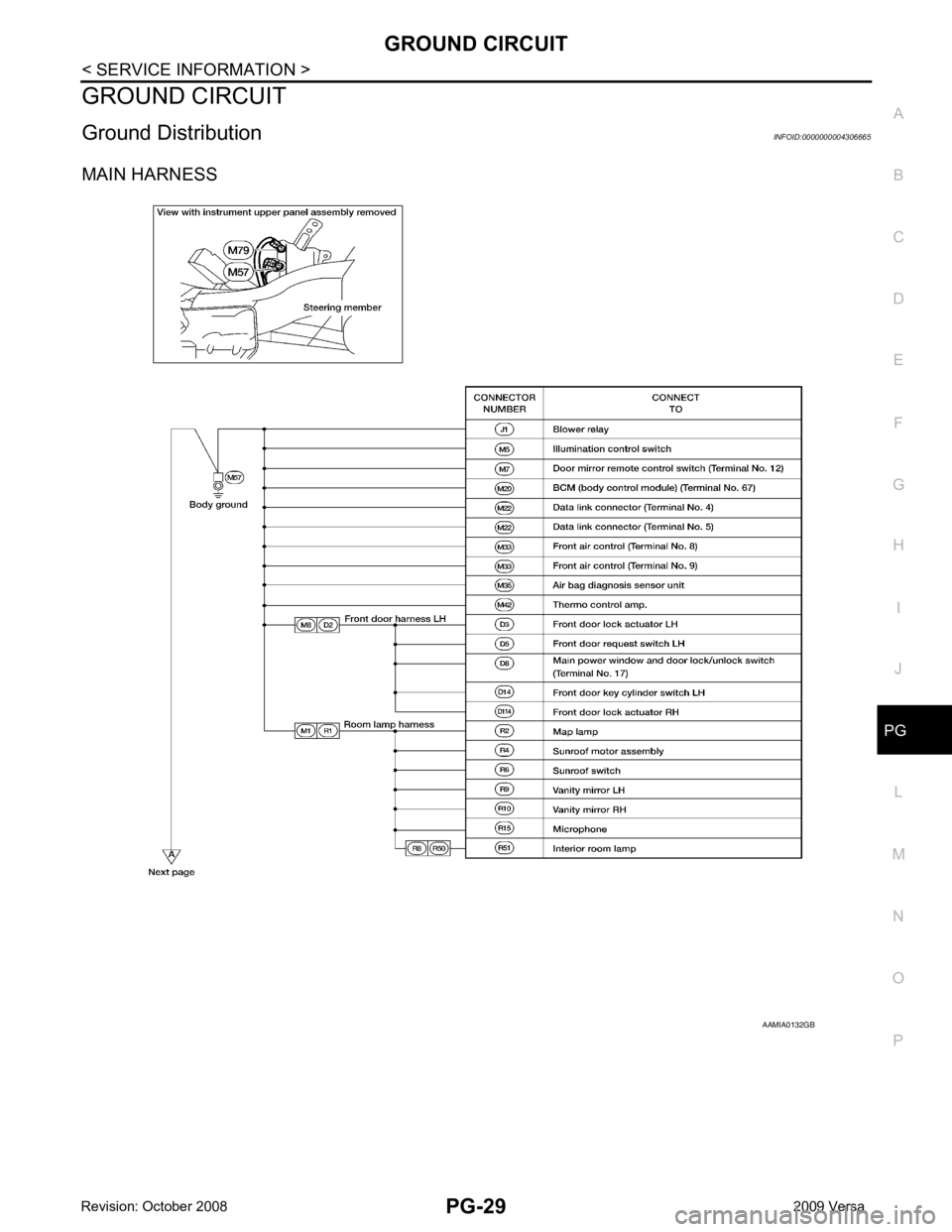

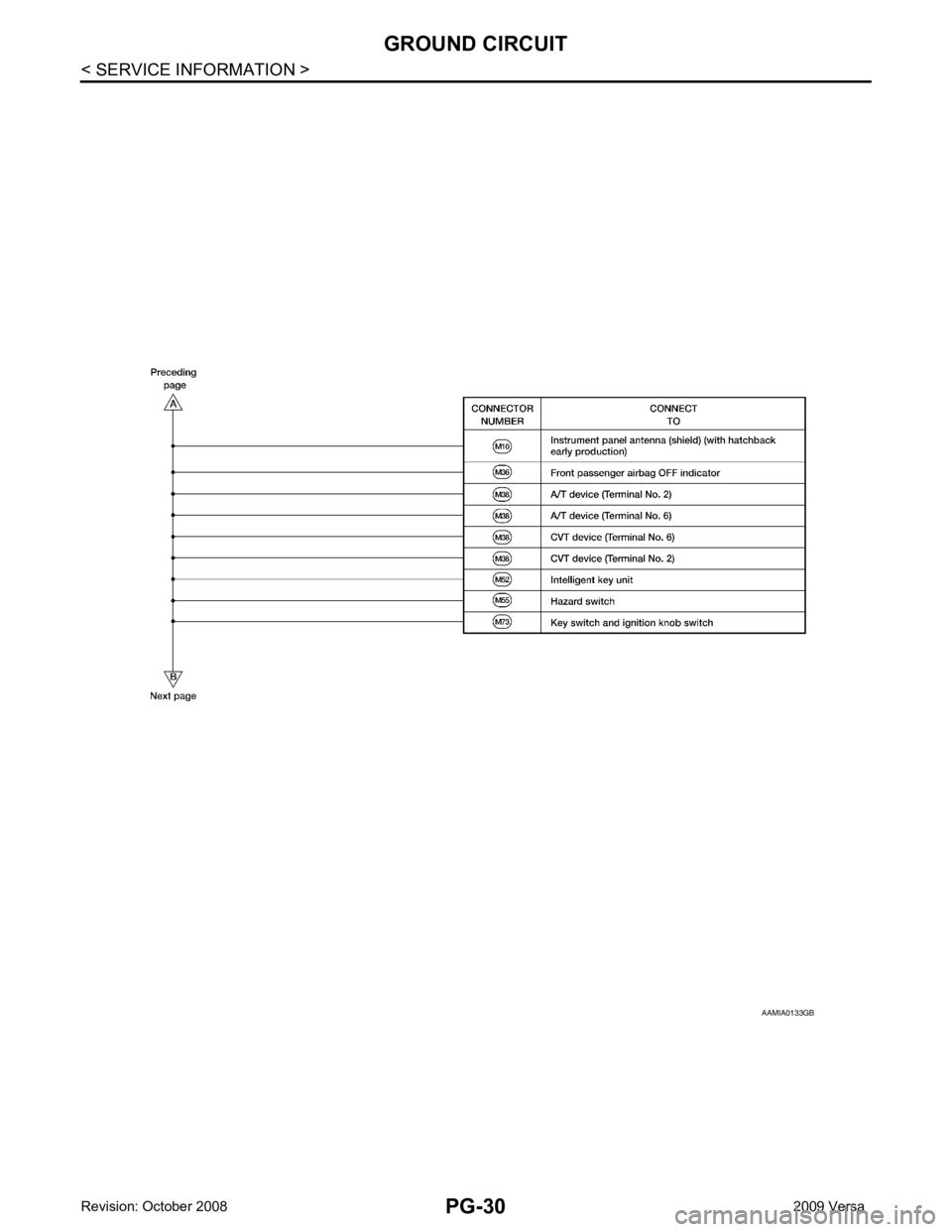

NISSAN LATIO 2009 Service Repair Manual

Page 4012 of 4331

NISSAN LATIO 2009 Service Repair Manual PG N O P GROUND CIRCUIT Ground Distribution INFOID:0000000004306665 MAIN HARNESS

Page 4013 of 4331

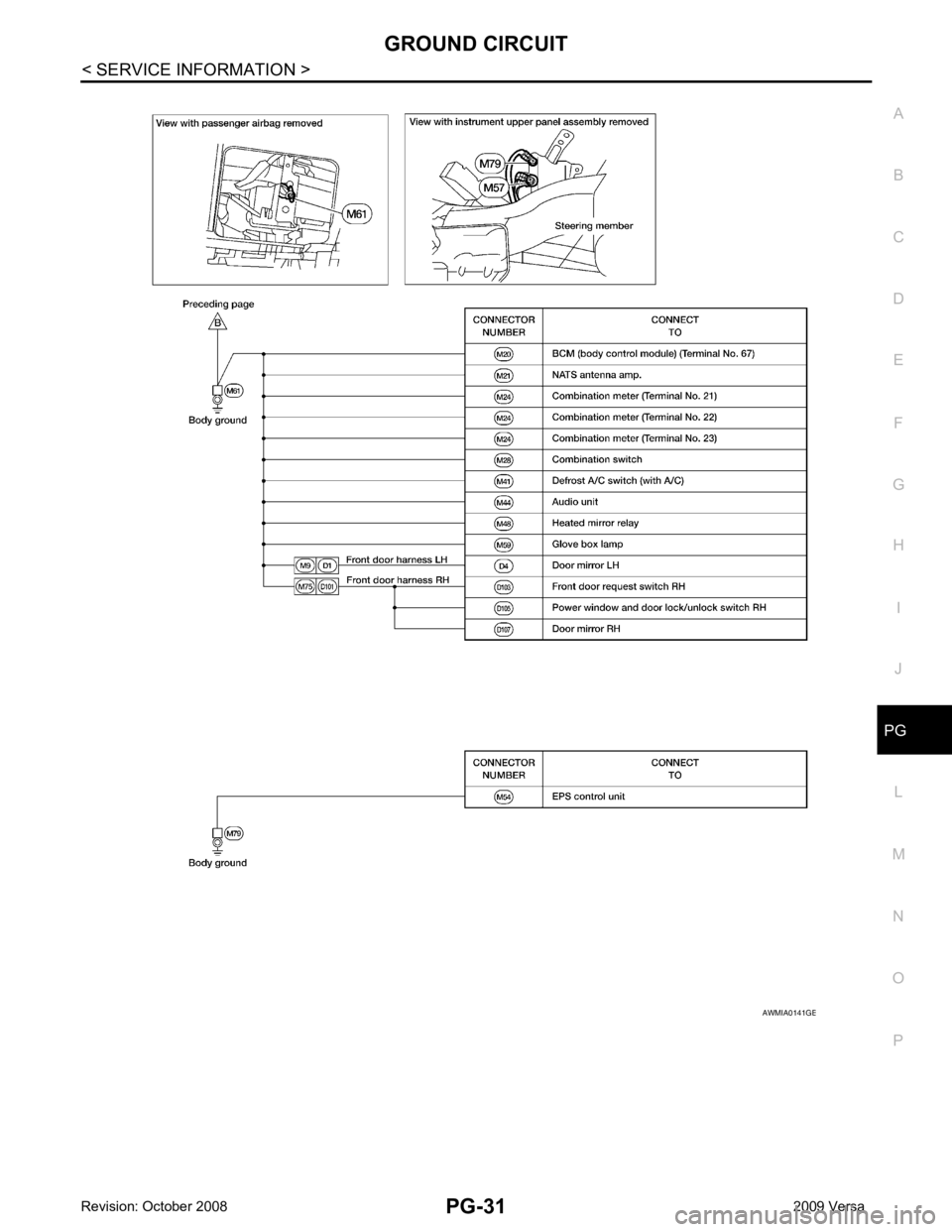

NISSAN LATIO 2009 Service Repair Manual

Page 4014 of 4331

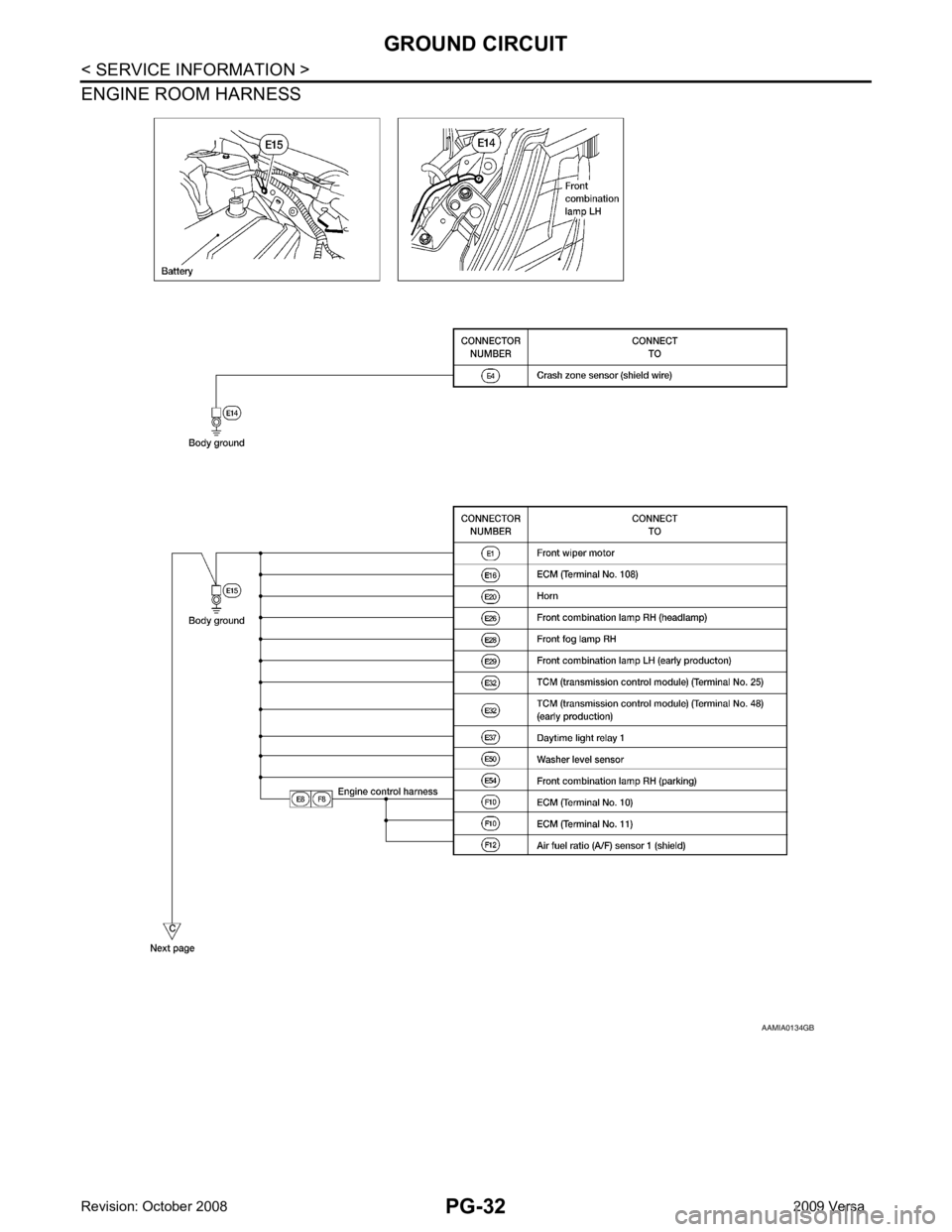

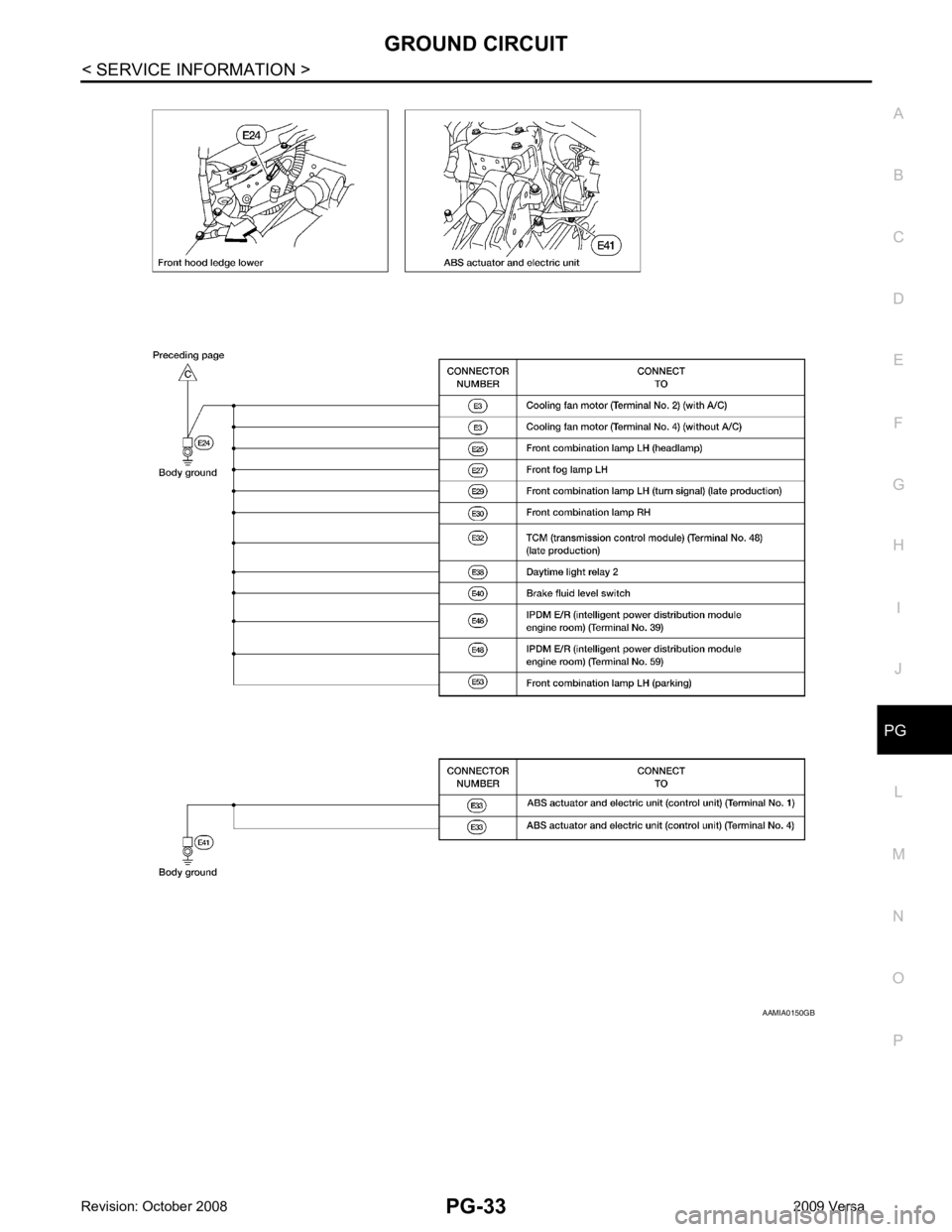

NISSAN LATIO 2009 Service Repair Manual PG N O P B

Page 4015 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4016 of 4331

NISSAN LATIO 2009 Service Repair Manual PG N O P
