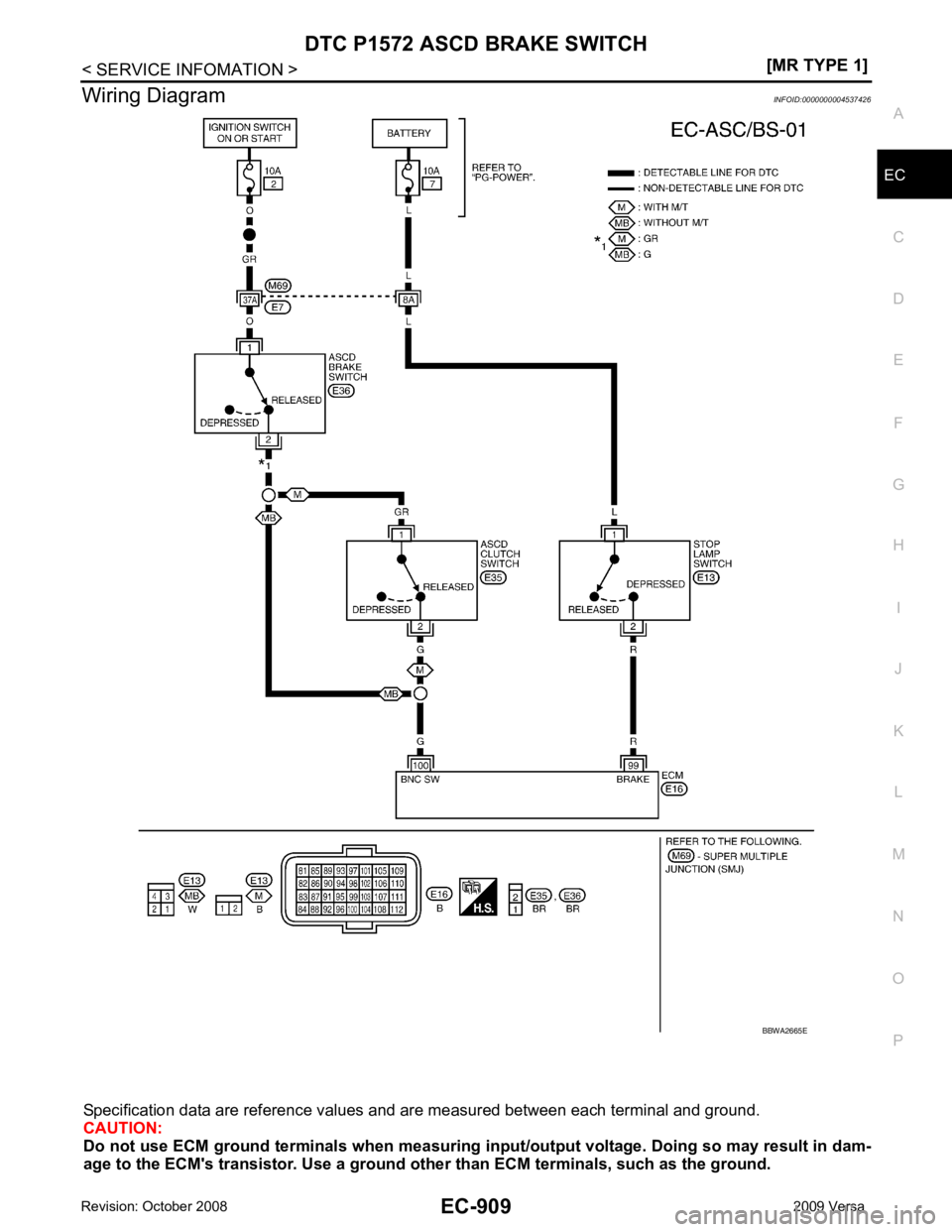

Wiring Diagram
INFOID:0000000004537426
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
Page 2266 of 4331

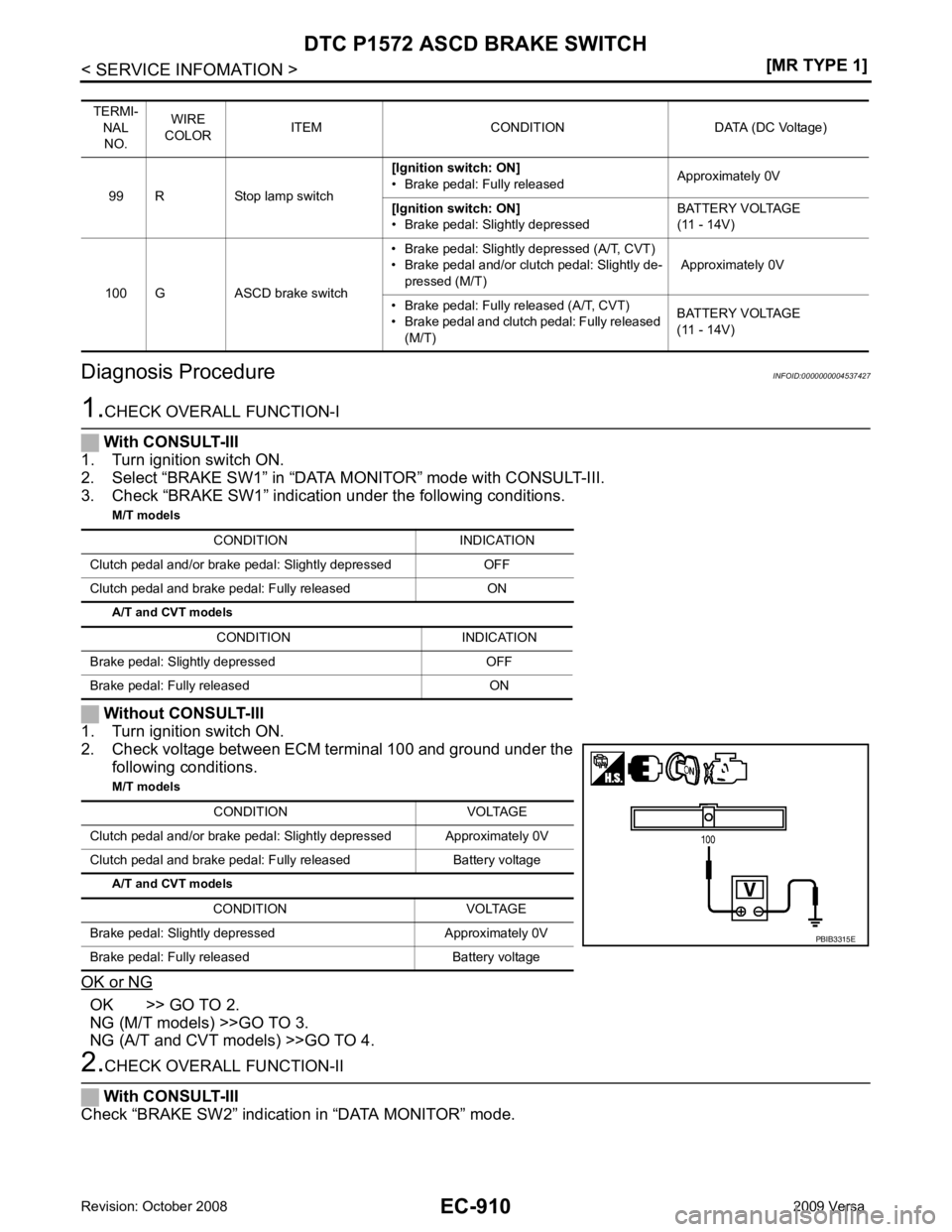

OK >> GO TO 2.
NG (M/T models) >>GO TO 3.
NG (A/T and CVT models) >>GO TO 4. CONDITION INDICATION
Clutch pedal and/or brake pedal: Slightly depressed OFF
Clutch pedal and brake pedal: Fully released ON
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
CONDITION VOLTAGE
Clutch pedal and/or brake pedal: Slightly depressed Approximately 0V
Clutch pedal and brake pedal: Fully released Battery voltage
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
Page 2267 of 4331
EC
NP
O
Without CONSULT-III

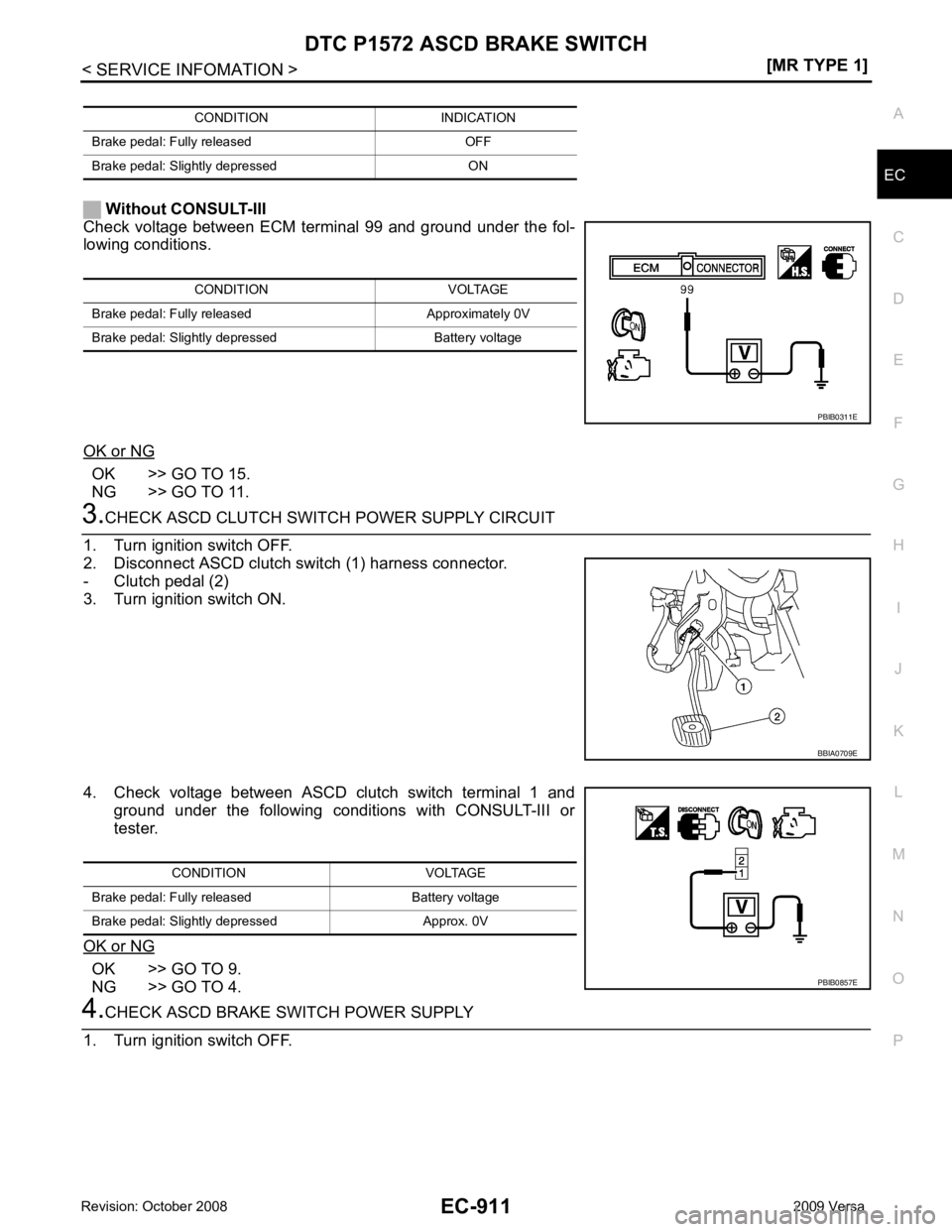

Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.
OK or NG OK >> GO TO 15.
NG >> GO TO 11. OK >> GO TO 9.
NG >> GO TO 4. CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage BBIA0709E
Page 2268 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-912< SERVICE INFOMATION >
[MR TYPE 1]
DTC P1572 ASCD BRAKE SWITCH
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.
4. Check voltage betwee NISSAN LATIO 2009 Service Repair Manual EC-912< SERVICE INFOMATION >
[MR TYPE 1]
DTC P1572 ASCD BRAKE SWITCH
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.
4. Check voltage betwee](/manual-img/5/57359/w960_57359-2267.png)
EC-912< SERVICE INFOMATION >
[MR TYPE 1]
DTC P1572 ASCD BRAKE SWITCH
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.

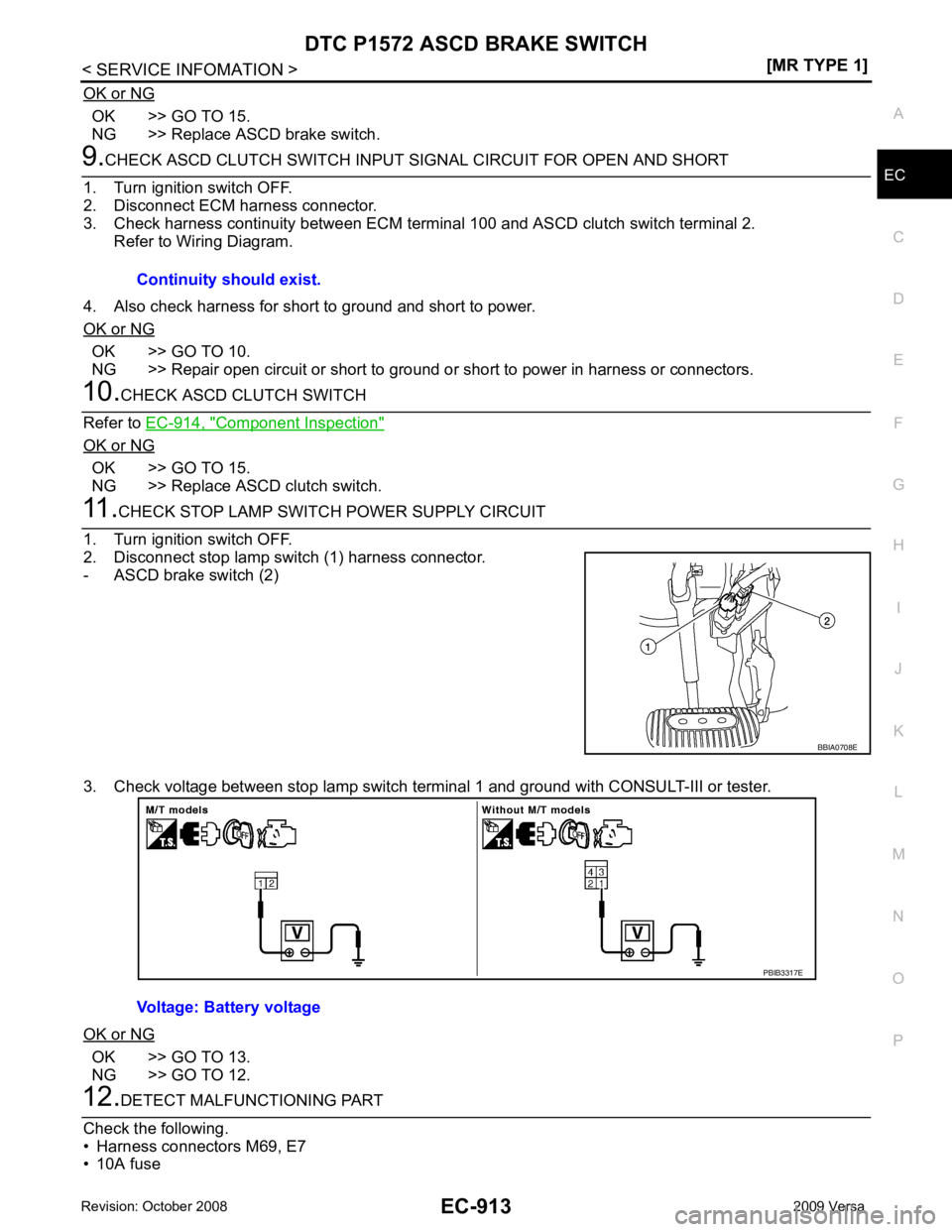

4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.
OK or NG OK (M/T models) >>GO TO 6.
OK (A/T and CVT m odels) >>GO TO 7.
NG >> GO TO 5. 5.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10A fuse
• Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors. 6.
CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 7.
CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 8.
CHECK ASCD BRAKE SWITCH
Refer to EC-914, " Component Inspection " . BBIA0708E
Voltage: Battery voltage
PBIB0857E
Continuity should exist.
Continuity should exist.
Page 2269 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P1572 ASCD BRAKE SWITCH
EC-913
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 15.
NG >> Replace ASCD brake switch. 9.
CHECK ASCD CLUTCH SWITCH INPUT SIGNAL NISSAN LATIO 2009 Service Repair Manual DTC P1572 ASCD BRAKE SWITCH
EC-913
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 15.
NG >> Replace ASCD brake switch. 9.
CHECK ASCD CLUTCH SWITCH INPUT SIGNAL](/manual-img/5/57359/w960_57359-2268.png)
DTC P1572 ASCD BRAKE SWITCH
EC-913
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 15.
NG >> Replace ASCD brake switch. 9.
CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD clutch switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 10.
CHECK ASCD CLUTCH SWITCH
Refer to EC-914, " Component Inspection "
OK or NG OK >> GO TO 15.
NG >> Replace ASCD clutch switch. 11.
CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
- ASCD brake switch (2)

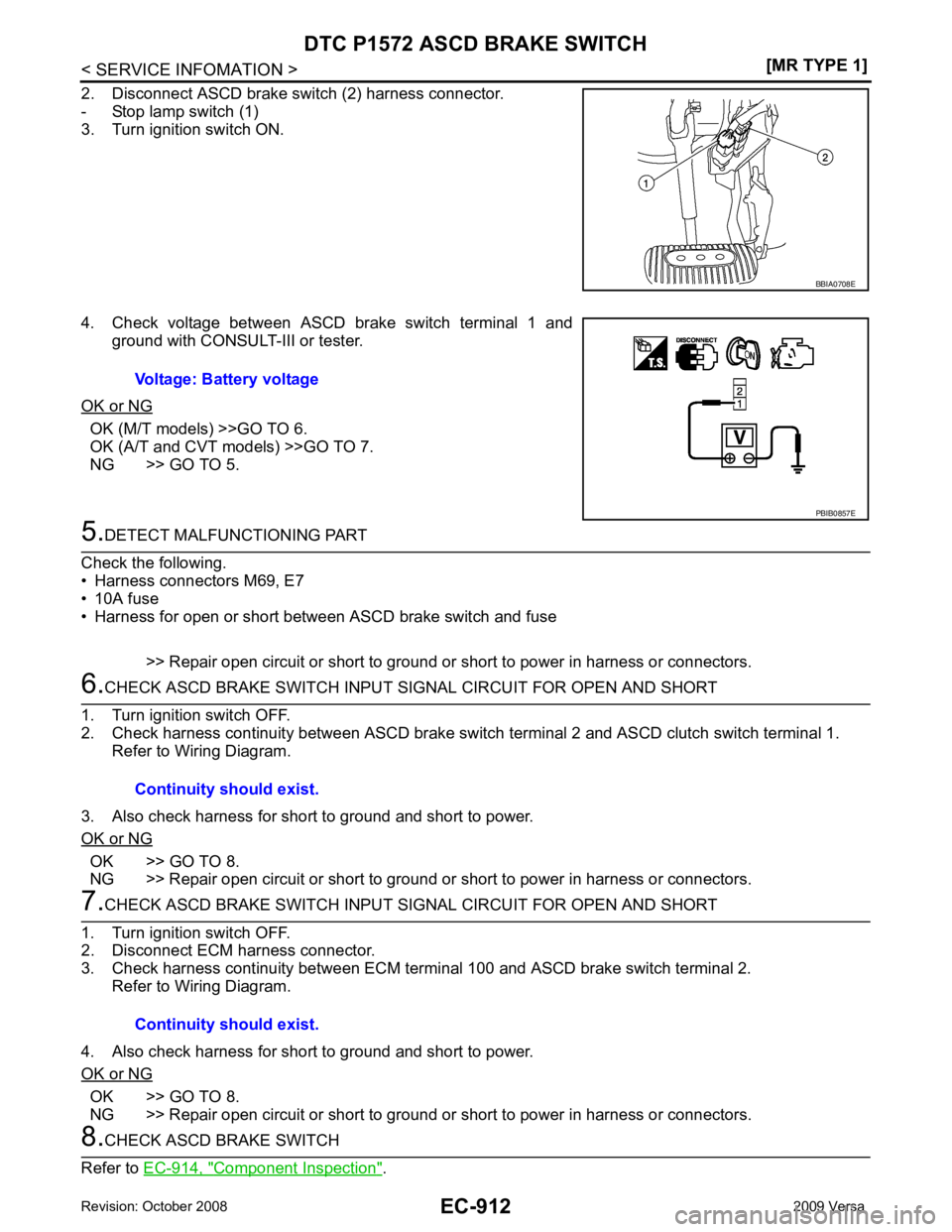

3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-III or tester.
OK or NG OK >> GO TO 13.
NG >> GO TO 12. 12.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10A fuse Continuity should exist.
BBIA0708E
Voltage: Battery voltage PBIB3317E
Page 2270 of 4331
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Component Inspection "
OK or NG OK >> GO TO 15.
NG >> Replace stop lamp switch. .
>> INSPECTION END
Component Inspection INFOID:0000000004537428
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6 , and
perform step 3 again.
ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector. Continuity should exist.
Condition Continuity
Brake pedal: Fully released. Should exist.
Brake pedal: Slightly depressed. Should not exist.
Page 2271 of 4331
DTC P1572 ASCD BRAKE SWITCH
EC-915
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
3. Check continuity between ASCD clutch switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD clutch switch installation, refer to CL-5 , and
perform step 3 again.
STOP LAMP SWITCH 1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.

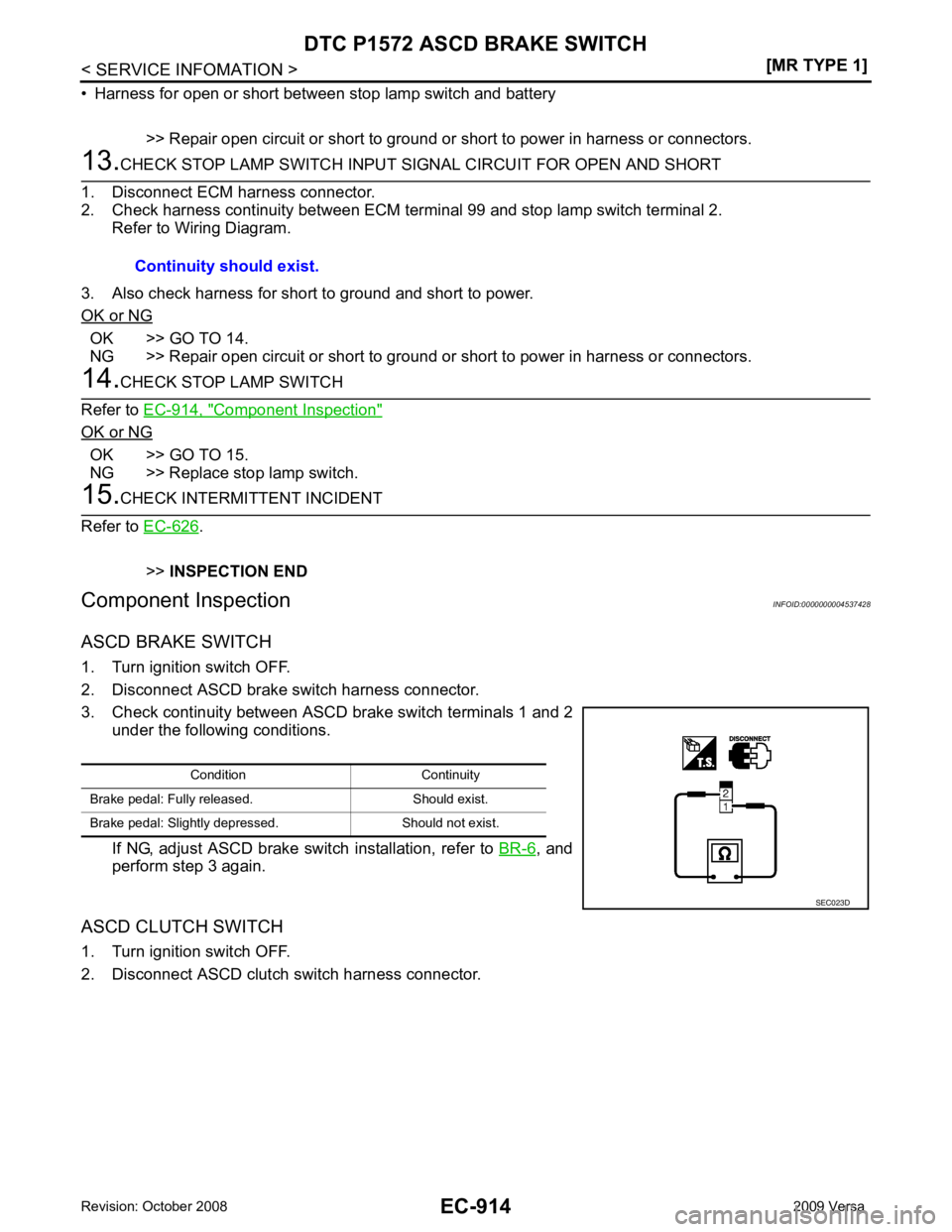

3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
If NG, adjust stop lamp switch installation, refer to BR-6 , and perform step 3 again.
Condition Continuity
Clutch pedal: Fully released. Should exist.
Clutch pedal: Slightly depressed. Should not exist. SEC023D
Condition Continuity
Brake pedal: Fully released. Should not exist.
Brake pedal: Slightly depressed. Should exist. PBIB3318E
Page 2272 of 4331
for ASCD functions.
On Board Diagn osis Logic INFOID:0000000004537430
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
• If DTC P1574 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-633 .
• If DTC P1574 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-635 .
• If DTC P1574 is displayed with DTC P0500, first pe rform the trouble diagnosis for DTC P0500. Refer
to EC-866 Diagnosis Procedure " .
Diagnosis Procedure INFOID:0000000004537432 (A/T) or
CVT-209 (CVT).
OK or NG OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated. .
OK or NG
