Page 1649 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
Wiring Diagram
INFOID:0000000004780686
Diagnosis Procedure INFOID:0000000004780177

Page 1650 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-294< COMPONENT DIAGNOSIS >
[HR16DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and grou

EC-294< COMPONENT DIAGNOSIS >
[HR16DE]
P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
4. Check the voltage between EVAP canister purge volume control solenoid valve harness connector and ground.
Is the inspection result normal? YES >> GO TO 3.
NO >> GO TO 2. 2.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• IPDM E/R harness connector E43
• Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R
• Harness for open or short between EVAP canister purge volume control solenoid valve and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK EVAP CANISTER PURGE VOLUME CONTRO L SOLENOID VALVE OUTPUT SIGNAL CIRCUITFOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP canister pur ge volume control solenoid valve harness connector and
ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal? YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors. 4.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check connectors for water.
Is the inspection result normal? YES >> GO TO 5.
NO >> Replace EVAP control system pressure sensor. 5.
CHECK EVAP CONTROL SY STEM PRESSURE SENSOR
Refer to EC-314, " Component Inspection " .
Is the inspection result normal? YES-1 >> With CONSULT-III: GO TO 6.
YES-2 >> Without CONSULT-III: GO TO 7.
NO >> Replace EVAP control system pressure sensor. 6.

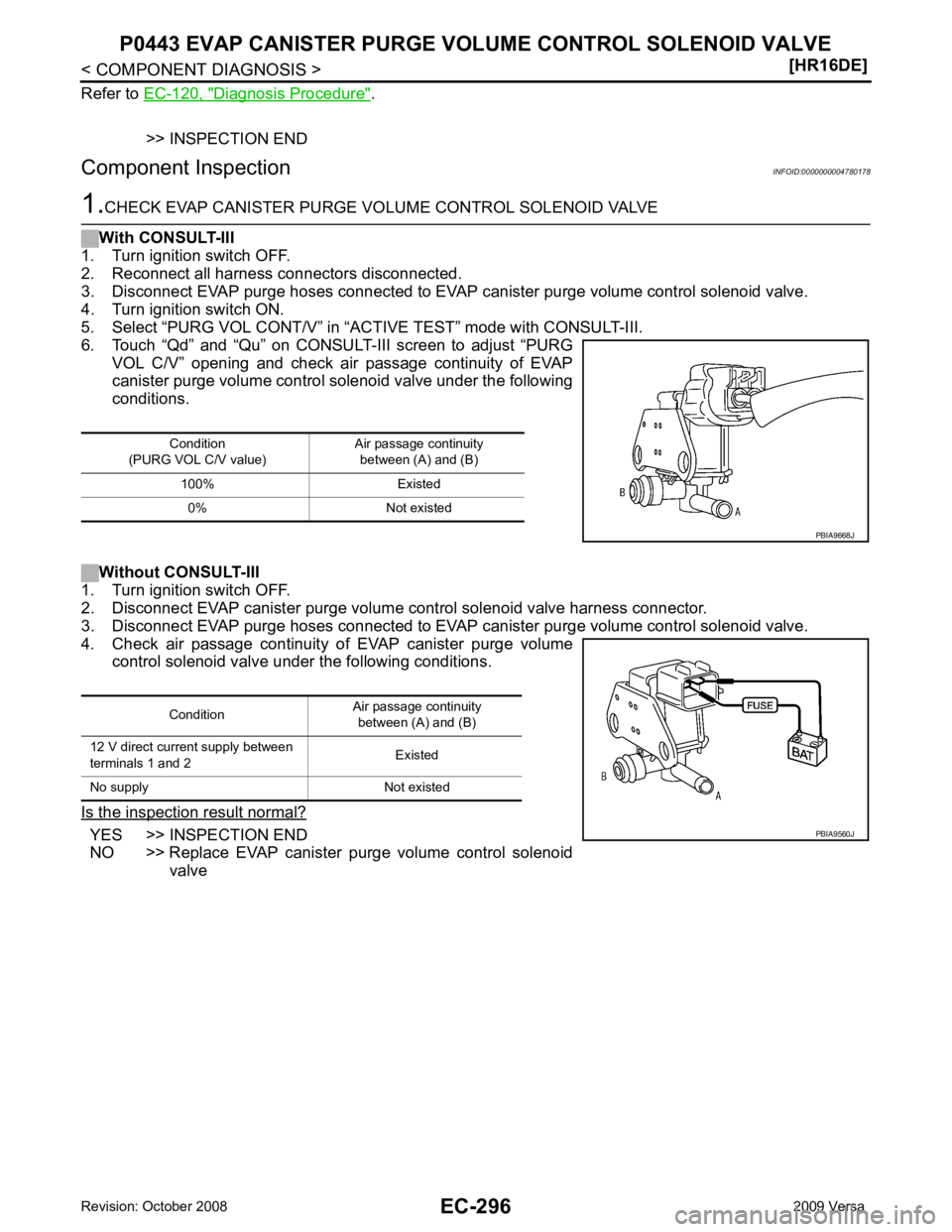

CHECK EVAP CANISTER PURGE VO LUME CONTROL SOLENOID VALVE
With CONSULT-III
1. Turn ignition switch OFF. EVAP canister purge volume
control solenoid valve Ground Voltage
Connector Terminal
F22 1 Ground Battery voltage PBIB0080E
EVAP canister purge volume
control solenoid valve ECM
Continuity
Connector Terminal Connector Terminal
F22 2 F10 9 Existed Water should not exist.

Page 1651 of 4331

NISSAN LATIO 2009 Service Repair Manual P0443 EVAP CANISTER PURGE VOLU
ME CONTROL SOLENOID VALVE
EC-295
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
2. Reconnect harness connectors disconnected.
3. Start engine.
4. Perfo

Page 1652 of 4331

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " .
>> INSPECTION END

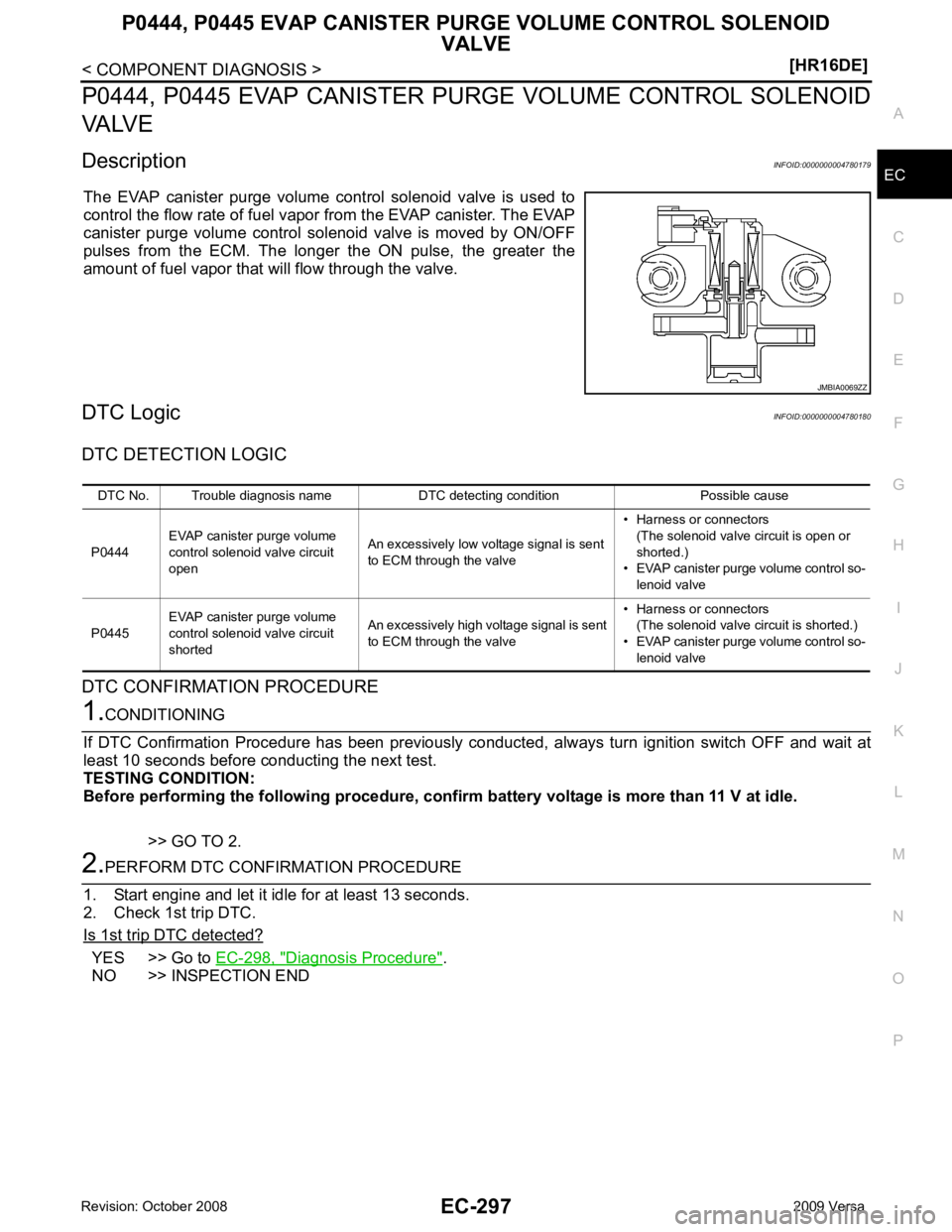

Component Inspection INFOID:0000000004780178YES >> INSPECTION END
NO >> Replace EVAP canister purge volume control solenoid valveCondition
(PURG VOL C/V

Page 1653 of 4331

NISSAN LATIO 2009 Service Repair Manual P0444, P0445 EVAP CANISTER PURG
E VOLUME CONTROL SOLENOID
VALVE
EC-297
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P0444, P0445 EVAP CANISTER PU
RGE VOLUME CONTROL SOLENOID
VALVE

Page 1654 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-298< COMPONENT DIAGNOSIS >
[HR16DE]
P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE

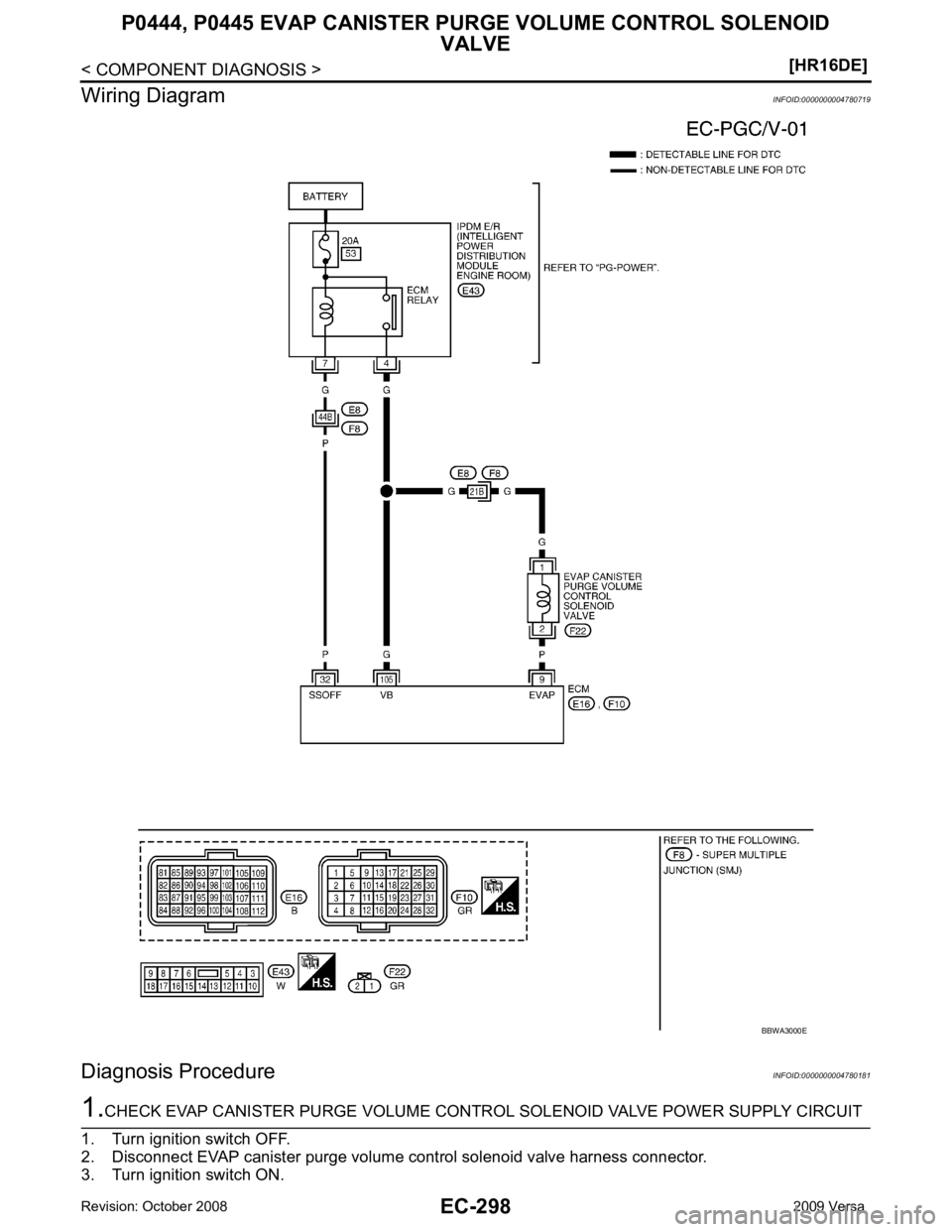

Wiring Diagram INFOID:0000000004780719
Diagnosis Procedure INFOID:00000000047801811.
CHECK EVAP

Page 1655 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O

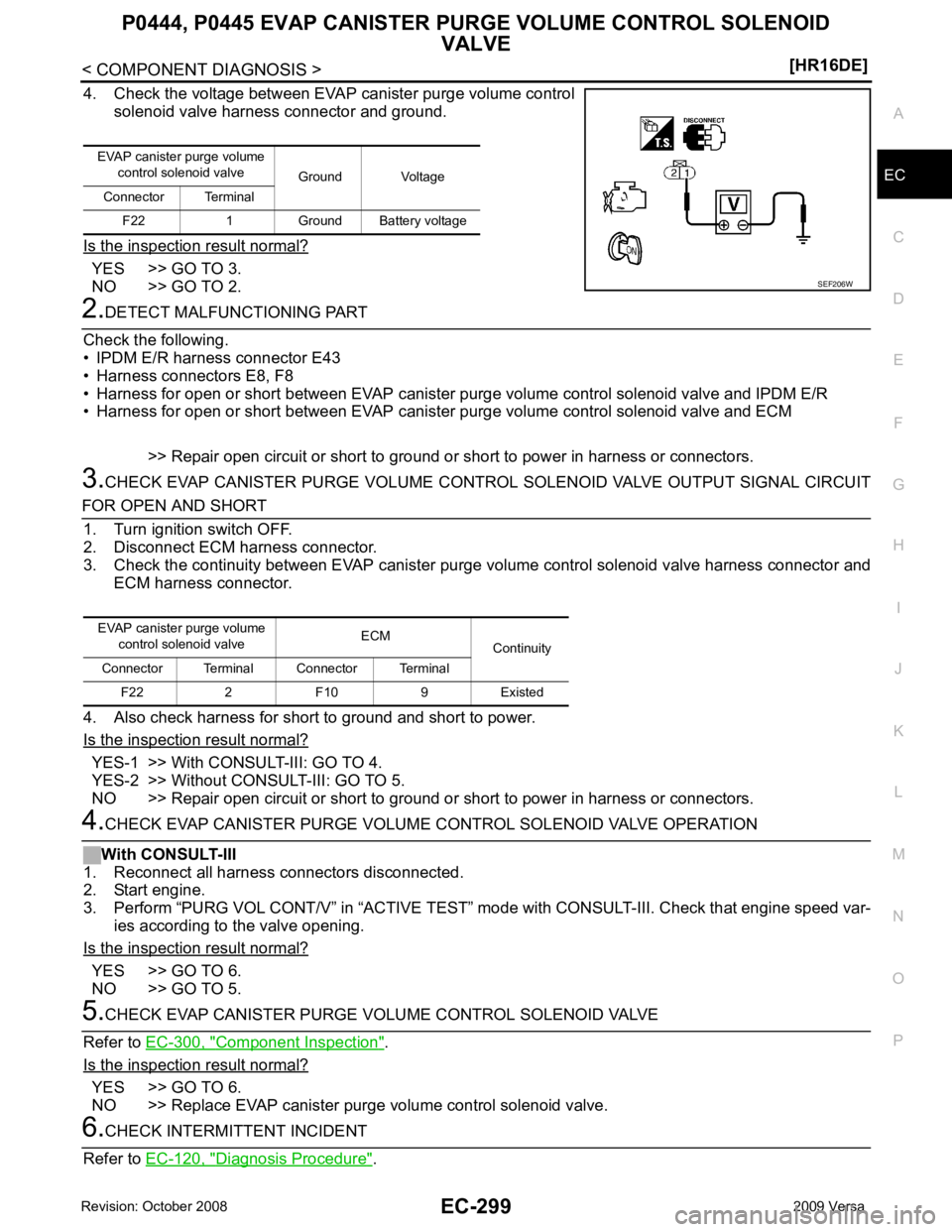

4. Check the voltage between EVAP canister purge volume control
solenoid valve harness connector and ground.
Is the inspection result normal? YES >> GO TO 3.
NO >> GO TO 2. YES-1 >> With CONSU

Page 1656 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-300< COMPONENT DIAGNOSIS >
[HR16DE]
P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
>> INSPECTION END

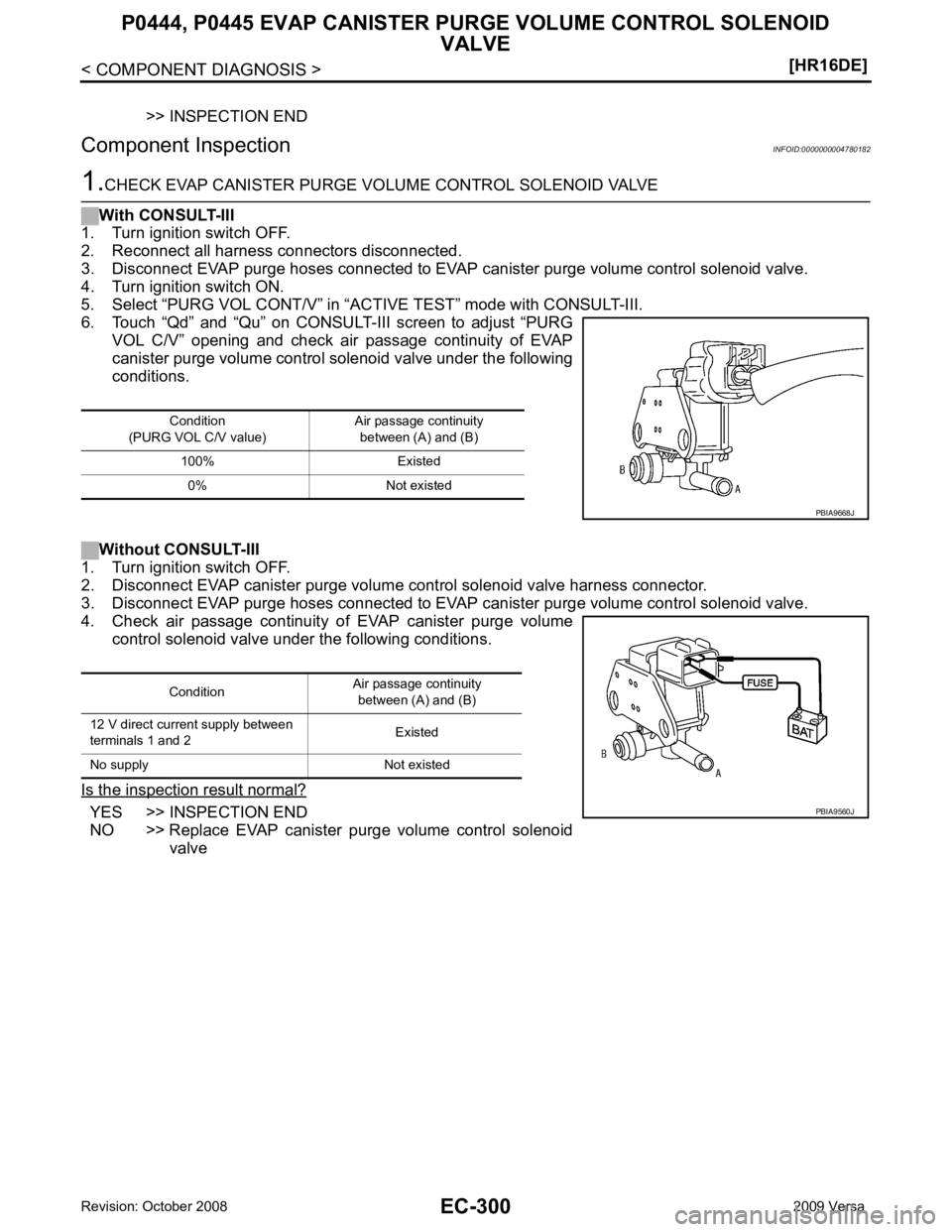

Component Inspection INFOID:00000000047801821.
CHECK EVAP CANISTER PURGE VO LU
