Page 3665 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P 1. Disconnect hazard switch connector. 2. Check continuity hazard switch terminals. OK or NG OK >> Replace BCM if hazard warning lamps do not operate after setting the connector a

Page 3666 of 4331

NISSAN LATIO 2009 Service Repair Manual . 2. While pressing pawls (A) in direction as shown, pull lighting and turn signal switch (1) toward LH door and disconnect from the base. INSTALLATION Installation is in the reverse order

Page 3667 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P HAZARD SWITCH Removal and Installation INFOID:0000000004306591 REMOVAL 1. Remove cluster lid C. Refer to IP-11 . 2. Disconnect hazard switch connector. 3. Press pawl (A) on reverse sid

Page 3668 of 4331

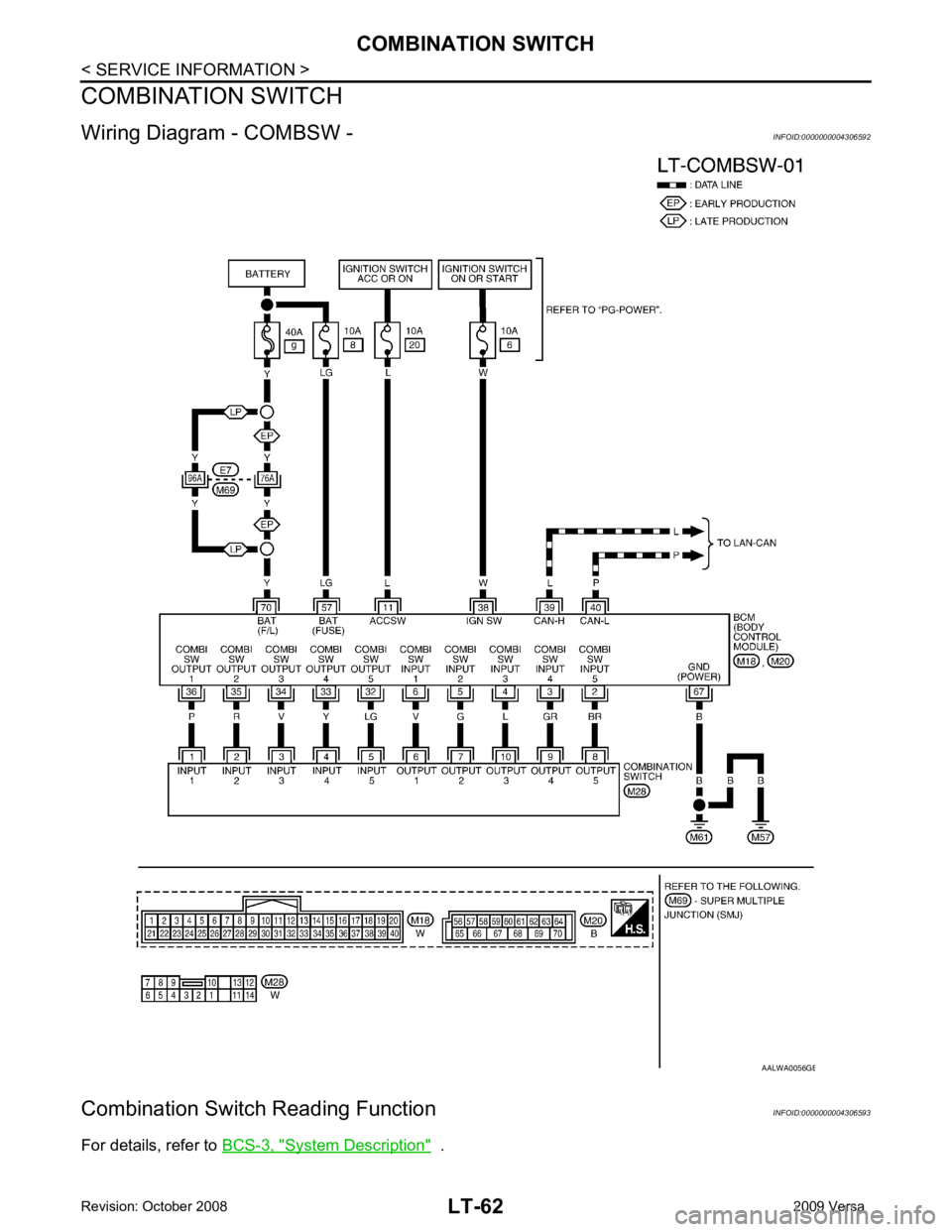

NISSAN LATIO 2009 Service Repair Manual System Description " . B

Page 3669 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P Terminal and Reference Value for BCM INFOID:0000000004306594 Refer to BCS-11, " Terminal and Reference Value for BCM " . CONSULT-III Function (BCM) INFOID:0000000004306595 Refer to LT-11,

Page 3670 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 4. NG >> Check harness between BCM and combination switch for open or short circuit. WKIA5500E PKIC1020E

Page 3671 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P OK or NG OK >> Open circuit in combination switch, GO TO 5. NG >> Replace BCM. Refer to BCS-18, " Removal and Installation of BCM " . . Suspect system Terminal Reference value (+) (−

Page 3672 of 4331

NISSAN LATIO 2009 Service Repair Manual B
