Page 4025 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4026 of 4331

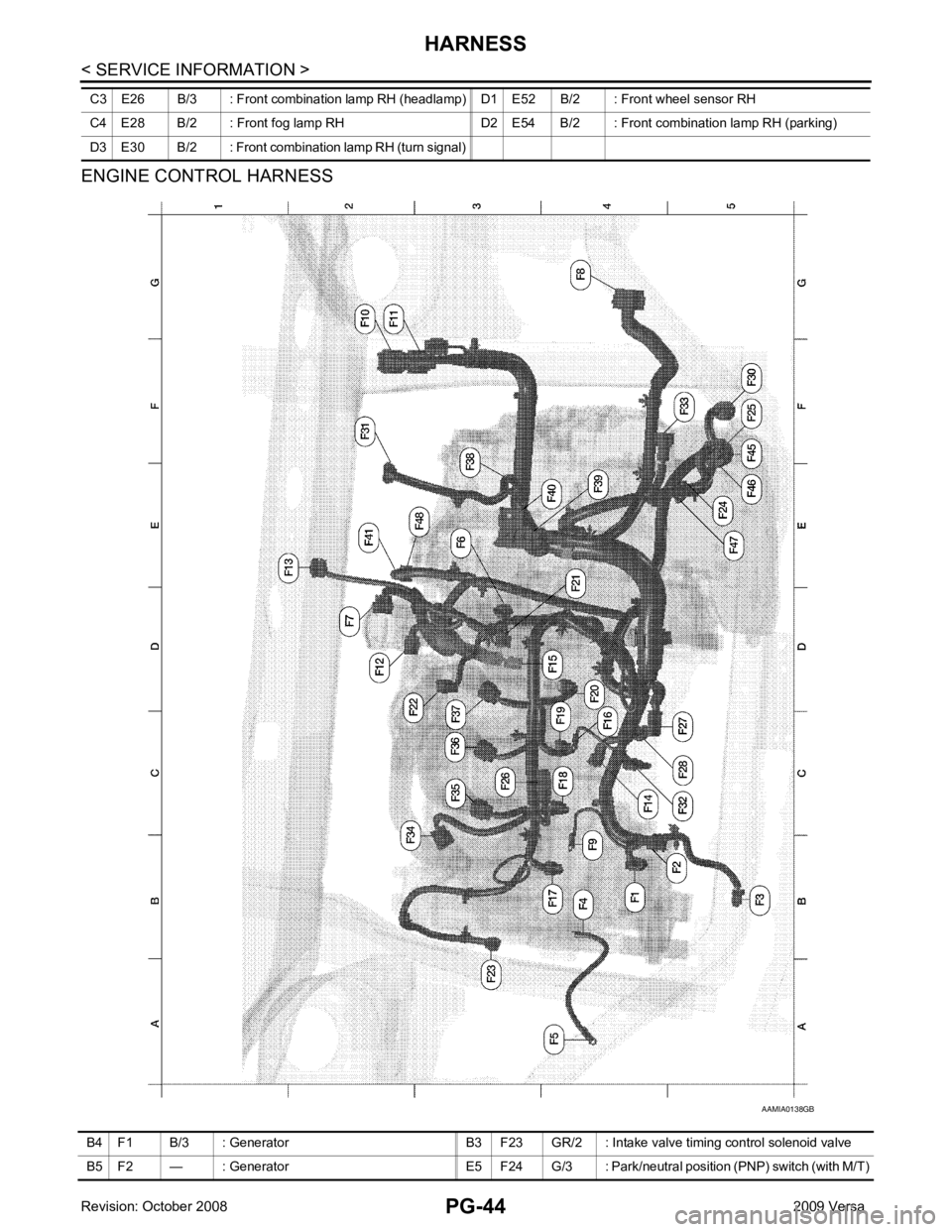

NISSAN LATIO 2009 Service Repair Manual PG N O P ENGINE ROOM HARNESS (RH VIEW) Refer to "ENGINE ROOM HARNE SS (LH VIEW)" for continuation of engine room harness.

Page 4027 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4028 of 4331

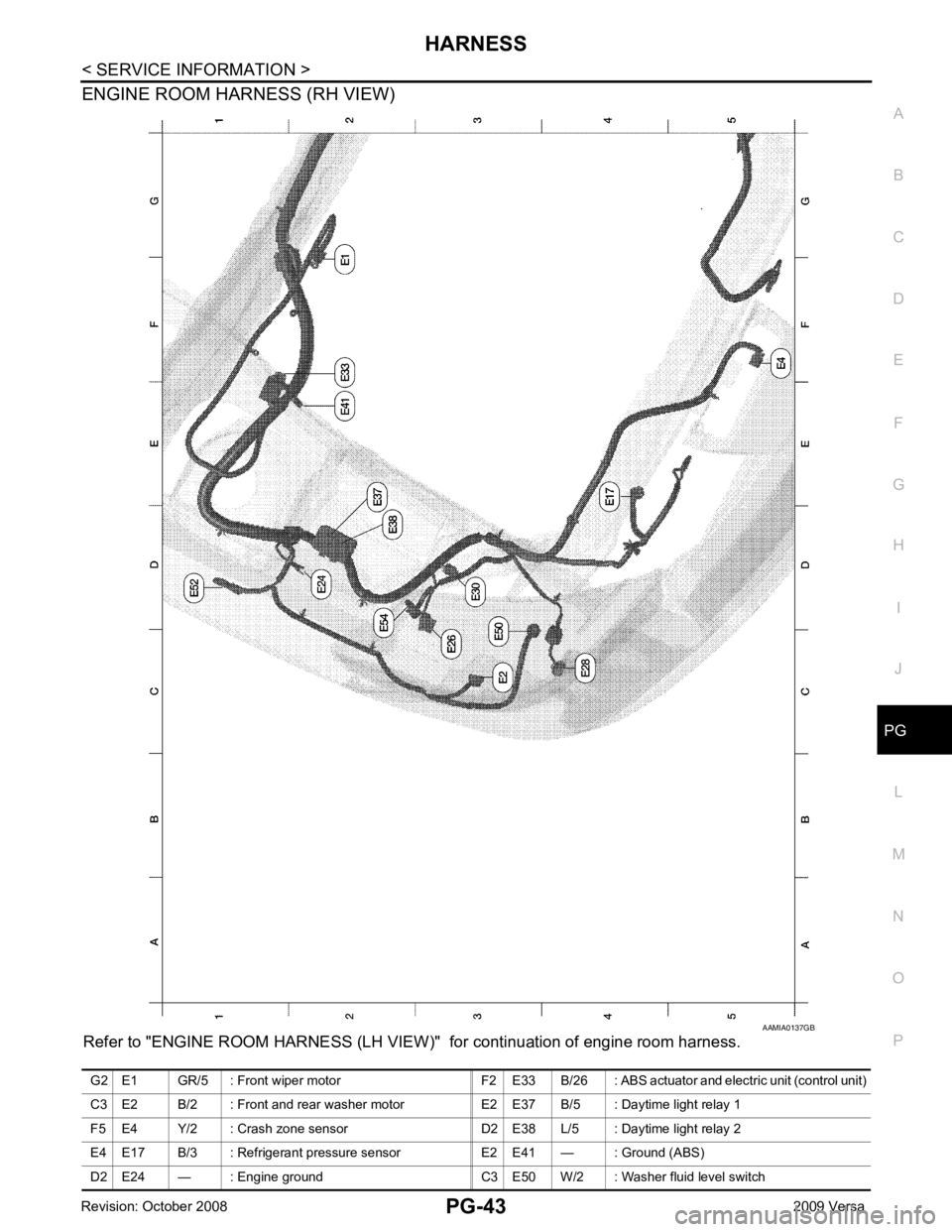

NISSAN LATIO 2009 Service Repair Manual PG N O P BODY HARNESS (HATCHBACK) B5 F3 B/1 : A/C compressor F5 F25 B/10 : Park/n eutral position (PNP) switch (with A/T) B4 F4 — : Generator C3 F26 W/2 : Condenser-2 A4 F5 — : Generator ground C5

Page 4029 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4030 of 4331

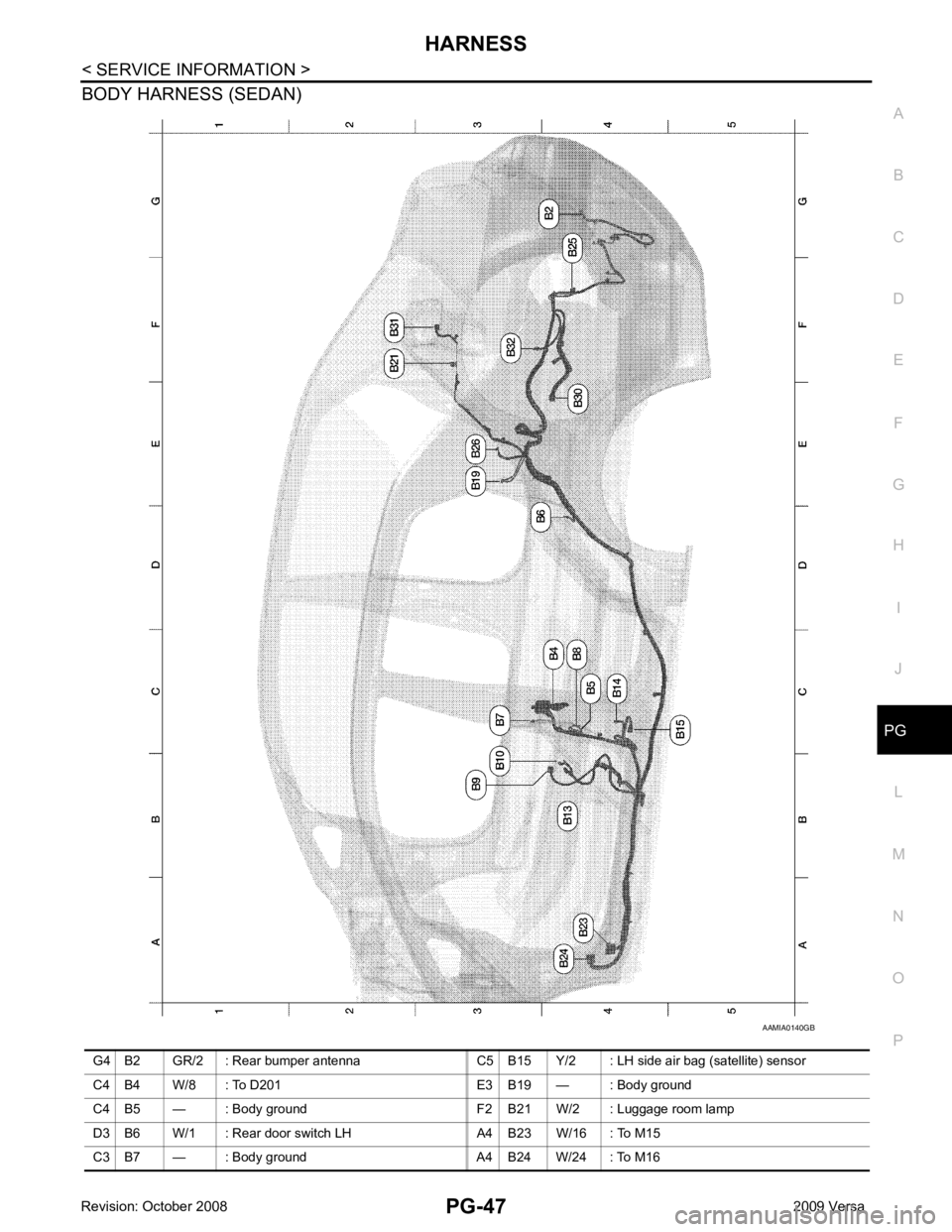

NISSAN LATIO 2009 Service Repair Manual PG N O P BODY HARNESS (SEDAN)

Page 4031 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4032 of 4331

NISSAN LATIO 2009 Service Repair Manual PG N O P D3 B100 GR/5 : Fuel level sensor unit and fuel pump C3 B116 W/1 : Rear door switch RH G5 B101 W/16 : To M12 E3 B117 — : Body ground G5 B102 W/24 : To M13 B2 B118 Y/2 : RH side curtain air b
