Page 2609 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0139 HO2S2
EC-1253
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O

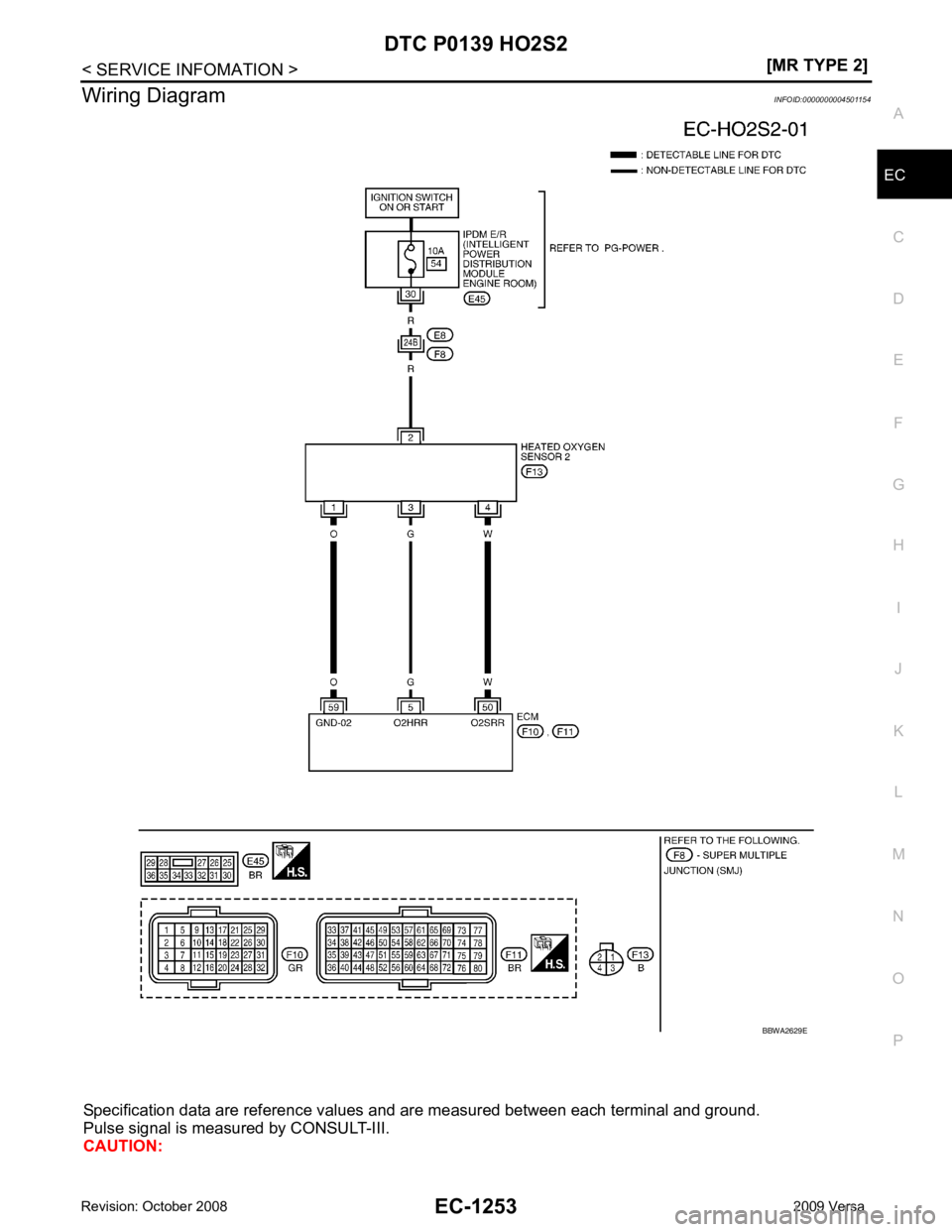

Wiring Diagram
INFOID:0000000004501154
Specification data are reference values and are measured between each

Page 2610 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1254< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0139 HO2S2
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground ot

Page 2611 of 4331

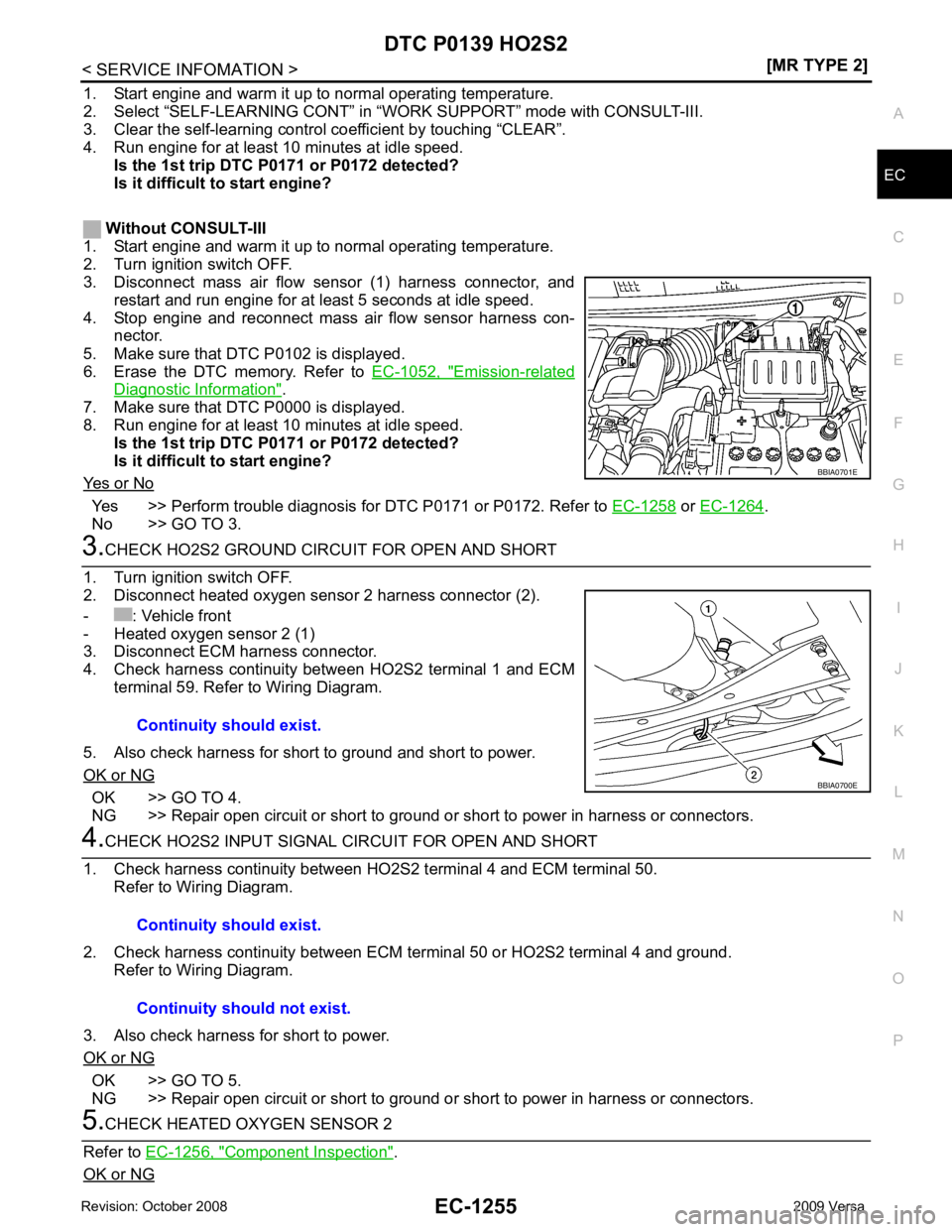

NISSAN LATIO 2009 Service Repair Manual DTC P0139 HO2S2
EC-1255
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “W OR

DTC P0139 HO2S2
EC-1255
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “W ORK SUPPORT” mode with CONSULT-III.
3. Clear the self-learning control coefficient by touching “CLEAR”.
4. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detected?
Is it difficult to start engine?
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor (1) harness connector, and
restart and run engine for at least 5 seconds at idle speed.
4. Stop engine and reconnect mass air flow sensor harness con- nector.
5. Make sure that DTC P0102 is displayed.
6. Erase the DTC memory. Refer to EC-1052, " Emission-related
Diagnostic Information " .
7. Make sure that DTC P0000 is displayed.
8. Run engine for at least 10 minutes at idle speed. Is the 1st trip DTC P0171 or P0172 detected?
Is it difficult to start engine?
Yes or No Yes >> Perform trouble diagnosis for DTC P0171 or P0172. Refer to
EC-1258 or
EC-1264 .
No >> GO TO 3. 3.
CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector (2).
- : Vehicle front
- Heated oxygen sensor 2 (1)
3. Disconnect ECM harness connector.
4. Check harness continuity between HO2S2 terminal 1 and ECM
terminal 59. Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 4.
CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between HO2S2 terminal 4 and ECM terminal 50. Refer to Wiring Diagram.
2. Check harness continuity between ECM terminal 50 or HO2S2 terminal 4 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5.
CHECK HEATED OXYGEN SENSOR 2
Refer to EC-1256, " Component Inspection " .
OK or NG BBIA0701E
Continuity should exist.
BBIA0700E
Continuity should exist.
Continuity should not exist.

Page 2612 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1256< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0139 HO2S2
OK >> GO TO 6.
NG >> Replace heated oxygen sensor 2. 6.
CHECK INTERMITTENT INCIDENT
Refer to EC-1138 .
>> INSPECTION END
Component Inspection

EC-1256< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0139 HO2S2
OK >> GO TO 6.
NG >> Replace heated oxygen sensor 2. 6.
CHECK INTERMITTENT INCIDENT
Refer to EC-1138 .
>> INSPECTION END
Component Inspection INFOID:0000000004501156

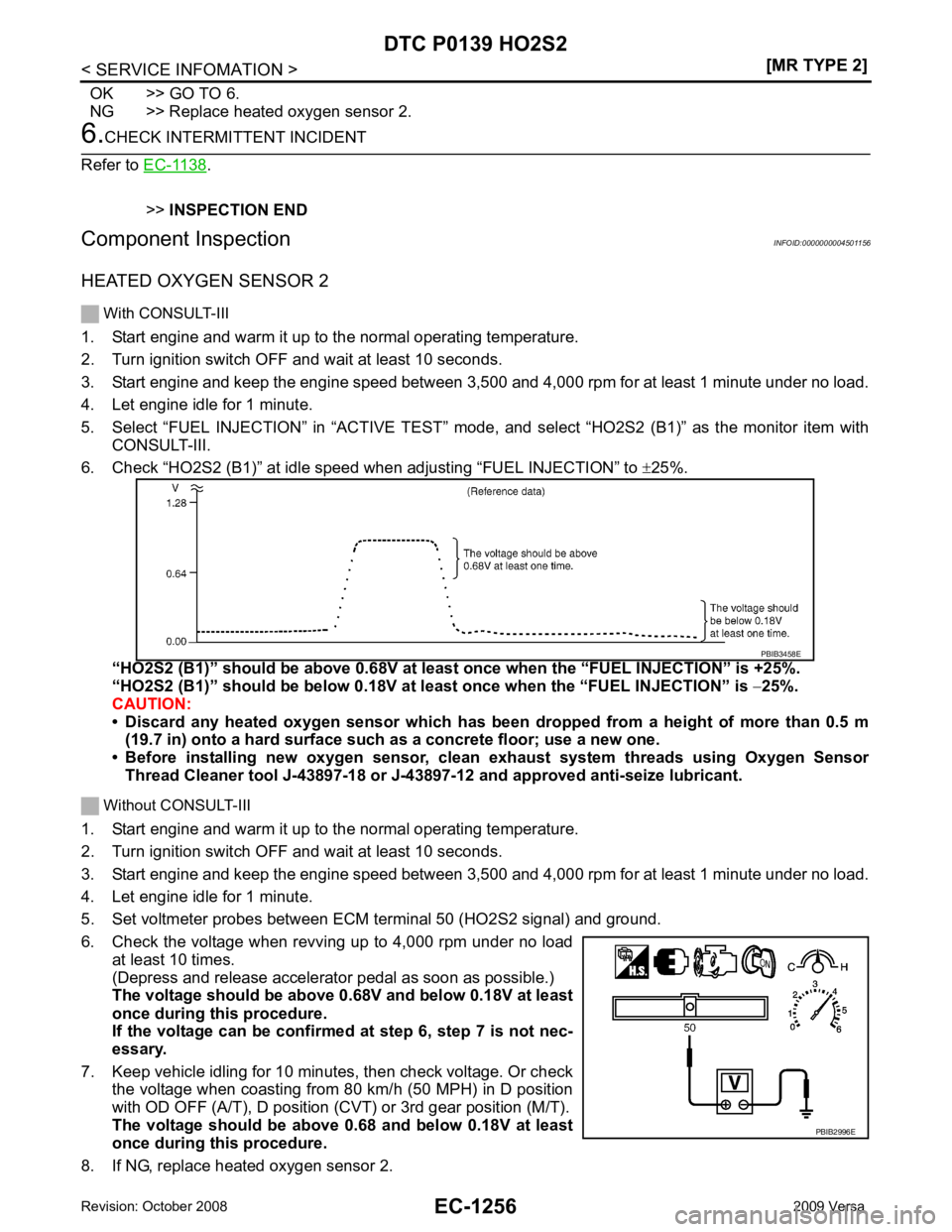

HEATED OXYGEN SENSOR 2 With CONSULT-III
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Select “FUEL INJECTION” in “ACT IVE TEST” mode, and select “HO2S2 (B1)” as the monitor item with
CONSULT-III.
6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.18V at least once when the “FUEL INJECTION” is −25%.
CAUTION:
• Discard any heated oxygen senso r which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.
• Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor
Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-III
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Set voltmeter probes between ECM terminal 50 (HO2S2 signal) and ground.
6. Check the voltage when revving up to 4,000 rpm under no load at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V and below 0.18V at least
once during this procedure.
If the voltage can be confirmed at step 6, step 7 is not nec-
essary.
7. Keep vehicle idling for 10 minutes, then check voltage. Or check the voltage when coasting from 80 km/h (50 MPH) in D position
with OD OFF (A/T), D position (CVT) or 3rd gear position (M/T).
The voltage should be above 0.68 and below 0.18V at least
once during this procedure.
8. If NG, replace heated oxygen sensor 2. PBIB3458E
PBIB2996E

Page 2613 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
CAUTION:
• Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.
�

Page 2614 of 4331

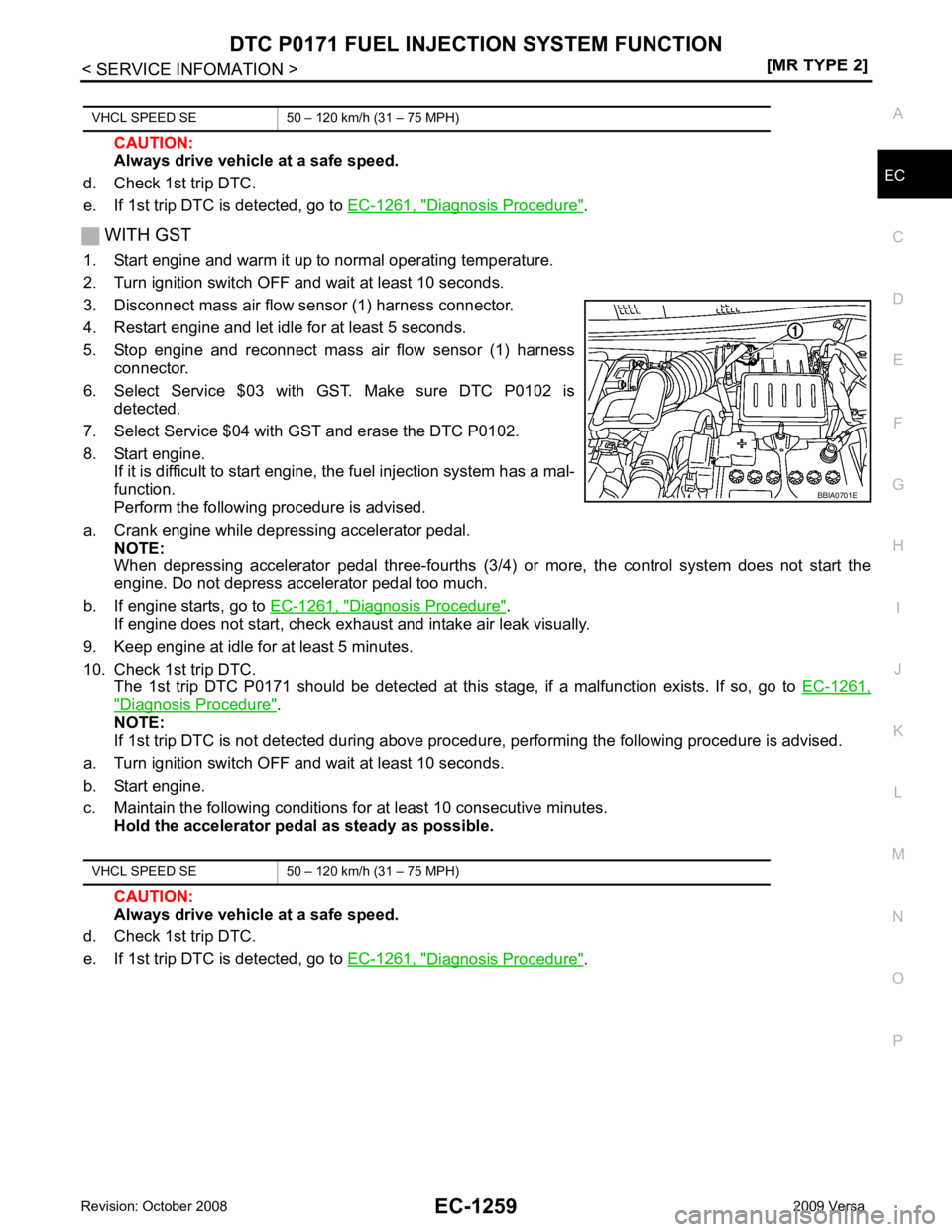

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " .
If engine does not start, check exhaus t and intake air leak visually.
6. Keep engine at idle for at least 5 minutes.
7. Check 1st trip DTC. The 1st trip DTC P0171 should

Page 2615 of 4331

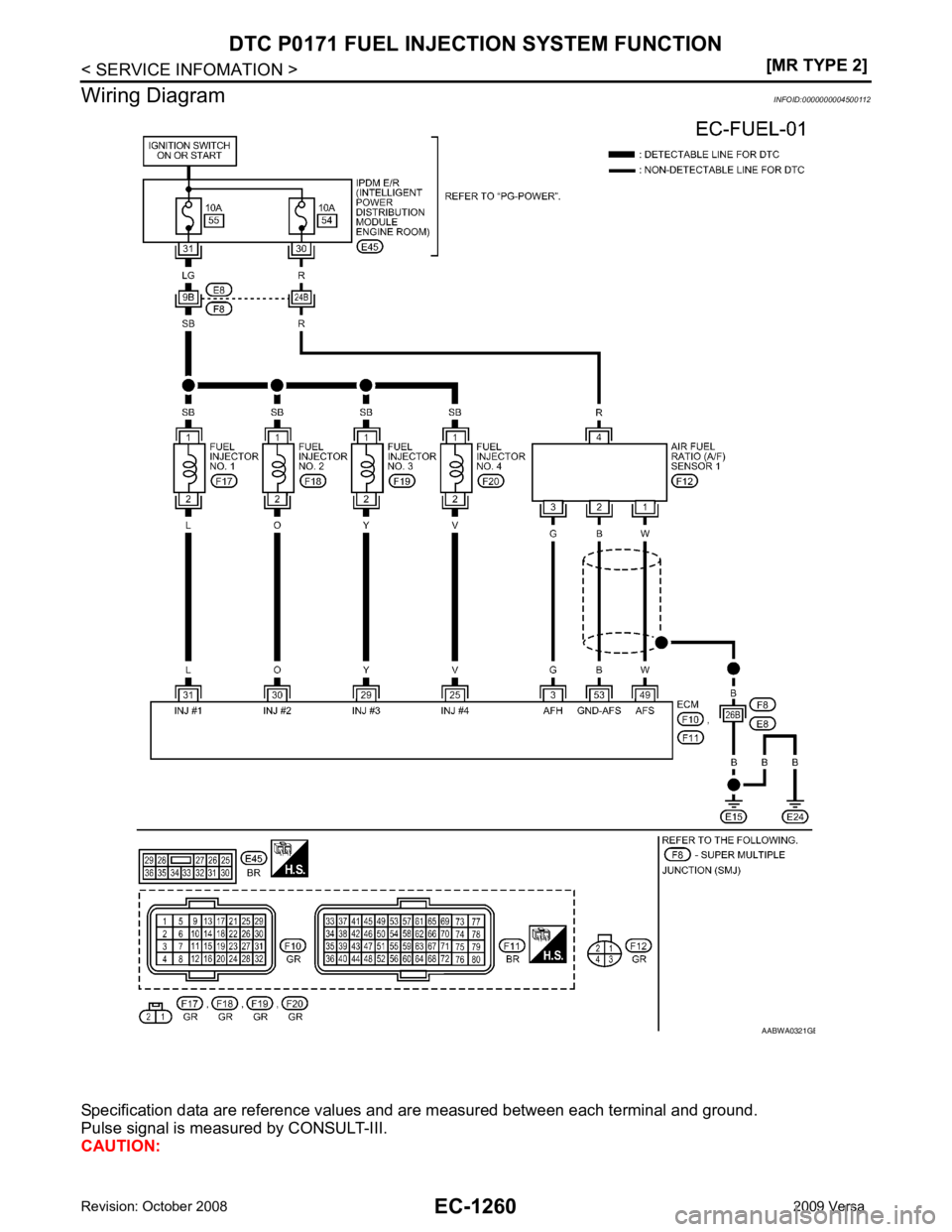

NISSAN LATIO 2009 Service Repair Manual DTC P0171 FUEL INJECT
ION SYSTEM FUNCTION
EC-1259
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
CAUTION:
Always drive vehicle at a safe speed.
d. Check 1st trip DTC.
e. If 1st tri

Page 2616 of 4331

NISSAN LATIO 2009 Service Repair Manual B
