NISSAN LATIO 2009 Service Repair Manual DTC P0335 CKP SENSOR (POS)
EC-1293
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0335 CKP SENSOR (POS)
Component Description INFOID:0000000004500150
The crankshaft position

DTC P0335 CKP SENSOR (POS)
EC-1293
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0335 CKP SENSOR (POS)
Component Description INFOID:0000000004500150

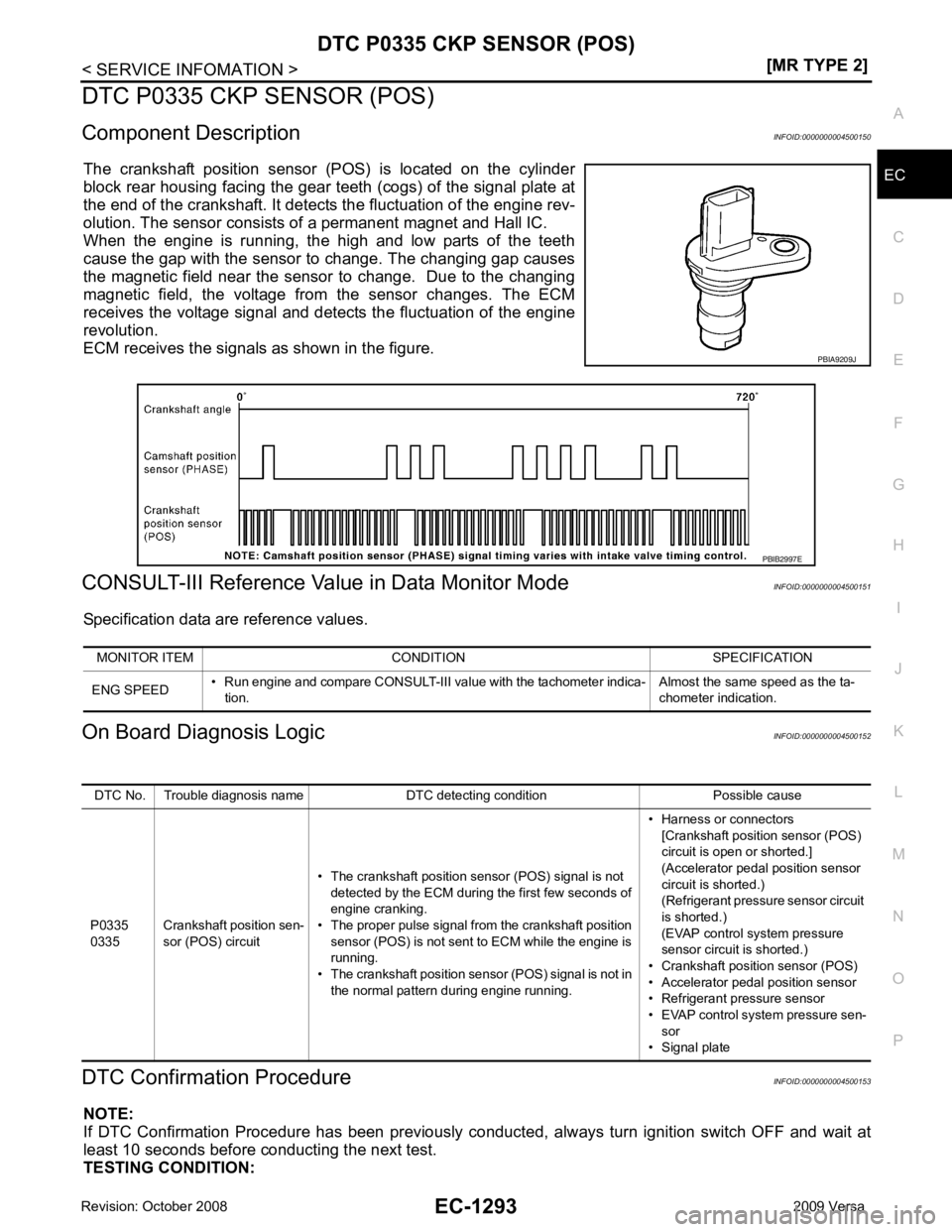

The crankshaft position sensor (POS) is located on the cylinder
block rear housing facing the gear t eeth (cogs) of the signal plate at
the end of the crankshaft. It detects the fluctuation of the engine rev-
olution. The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change. The changing gap causes
the magnetic field near the sensor to change. Due to the changing
magnetic field, the voltage from the sensor changes. The ECM
receives the voltage signal and detects the fluctuation of the engine
revolution.
ECM receives the signals as shown in the figure.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004500151
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004500152
DTC Confirmation Procedure INFOID:0000000004500153
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION: PBIA9209J
PBIB2997E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED • Run engine and compare CONSULT-III value with the tachometer indica-
tion. Almost the same speed as the ta-
chometer indication. DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335 Crankshaft position sen-
sor (POS) circuit • The crankshaft position sensor (POS) signal is not
detected by the ECM during the first few seconds of
engine cranking.
• The proper pulse signal from the crankshaft position sensor (POS) is not sent to ECM while the engine is
running.
• The crankshaft position sensor (POS) signal is not in the normal pattern during engine running. • Harness or connectors
[Crankshaft position sensor (POS)
circuit is open or shorted.]
(Accelerator pedal position sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit
is shorted.)
(EVAP control system pressure
sensor circuit is shorted.)
• Crankshaft position sensor (POS)
• Accelerator pedal position sensor
• Refrigerant pressure sensor
• EVAP control system pressure sen- sor
• Signal plate

Page 2650 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1294< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0335 CKP SENSOR (POS)

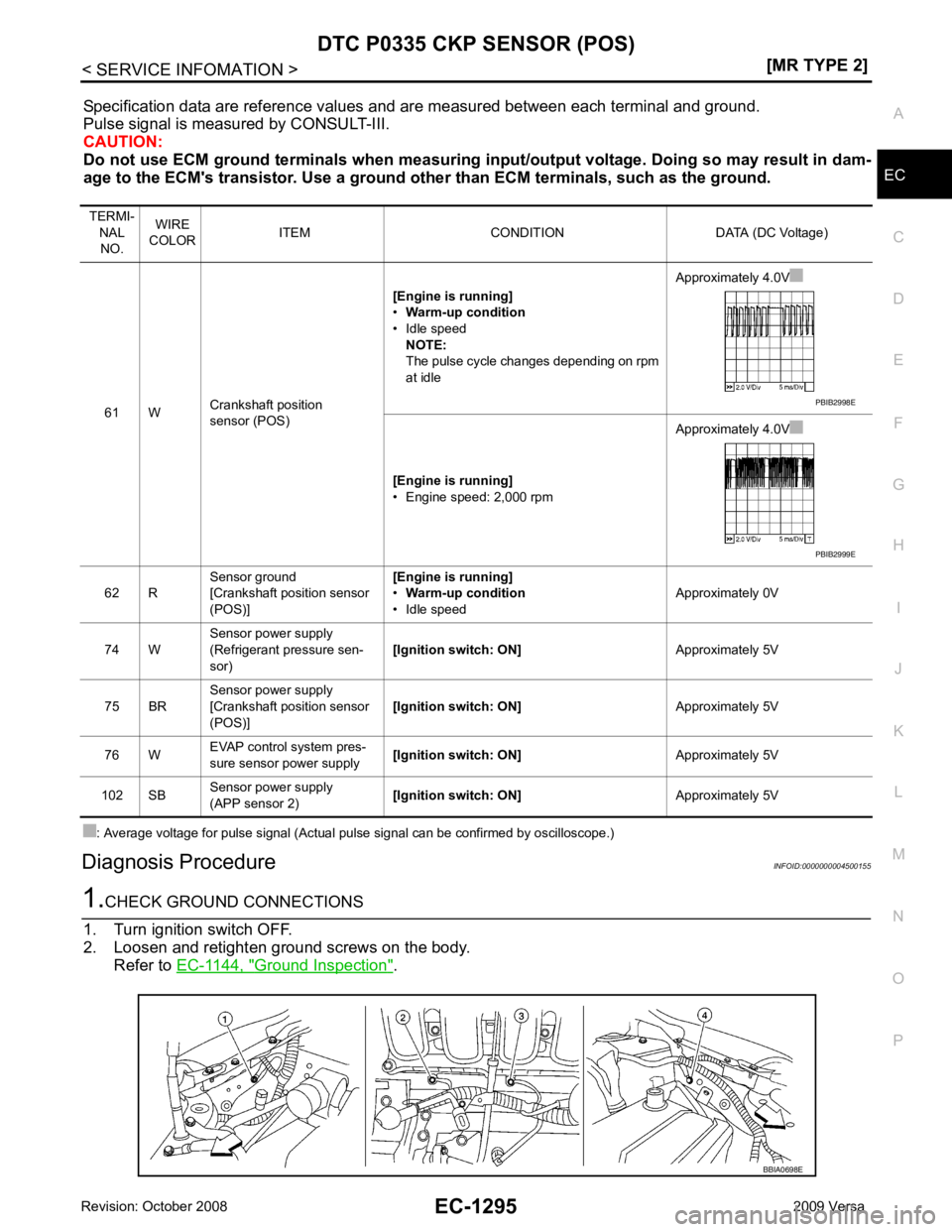

Before performing the following pro cedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
1. Crank eng

Page 2651 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0335 CKP SENSOR (POS)
EC-1295
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O

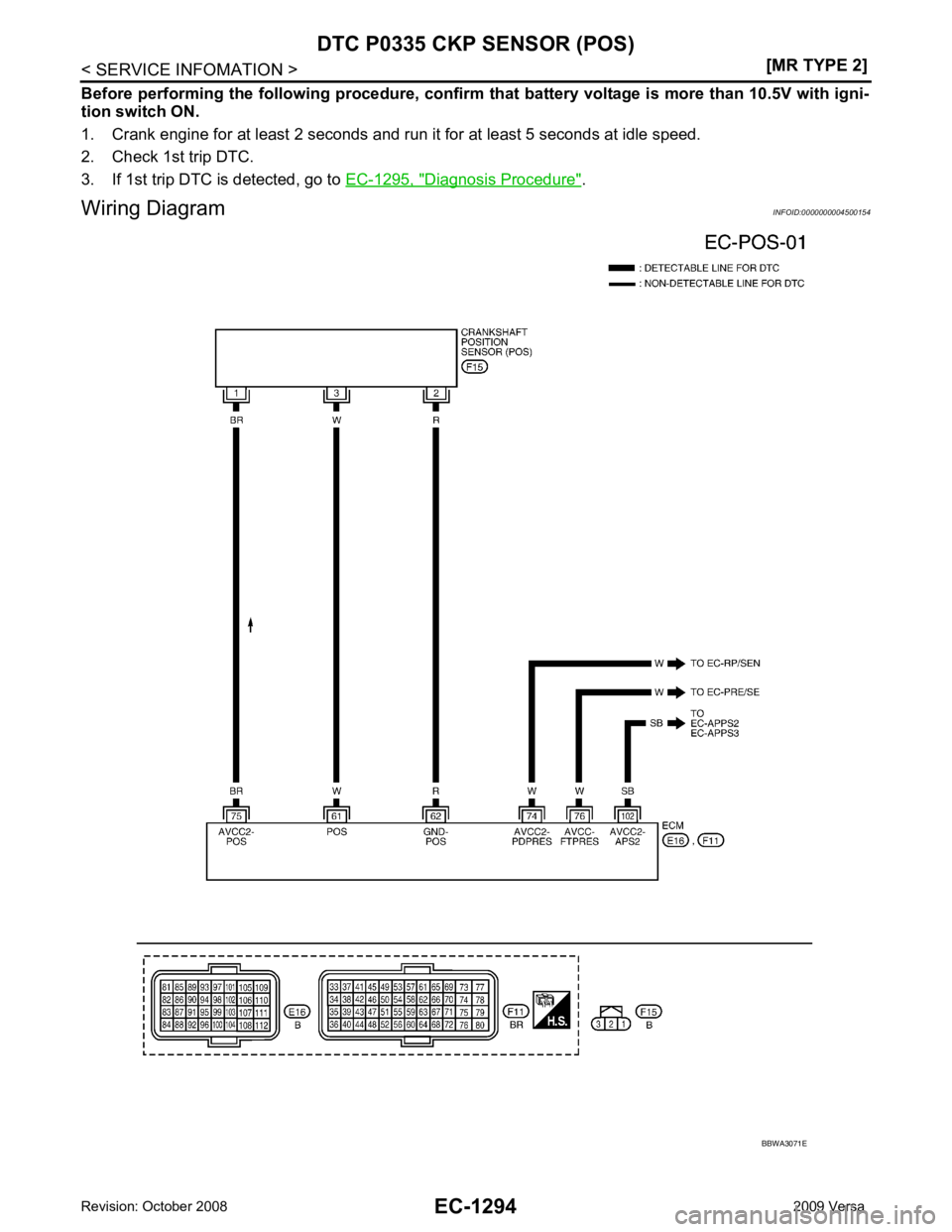

Specification data are reference values
and are measured between each terminal and ground.
Pulse

Page 2652 of 4331

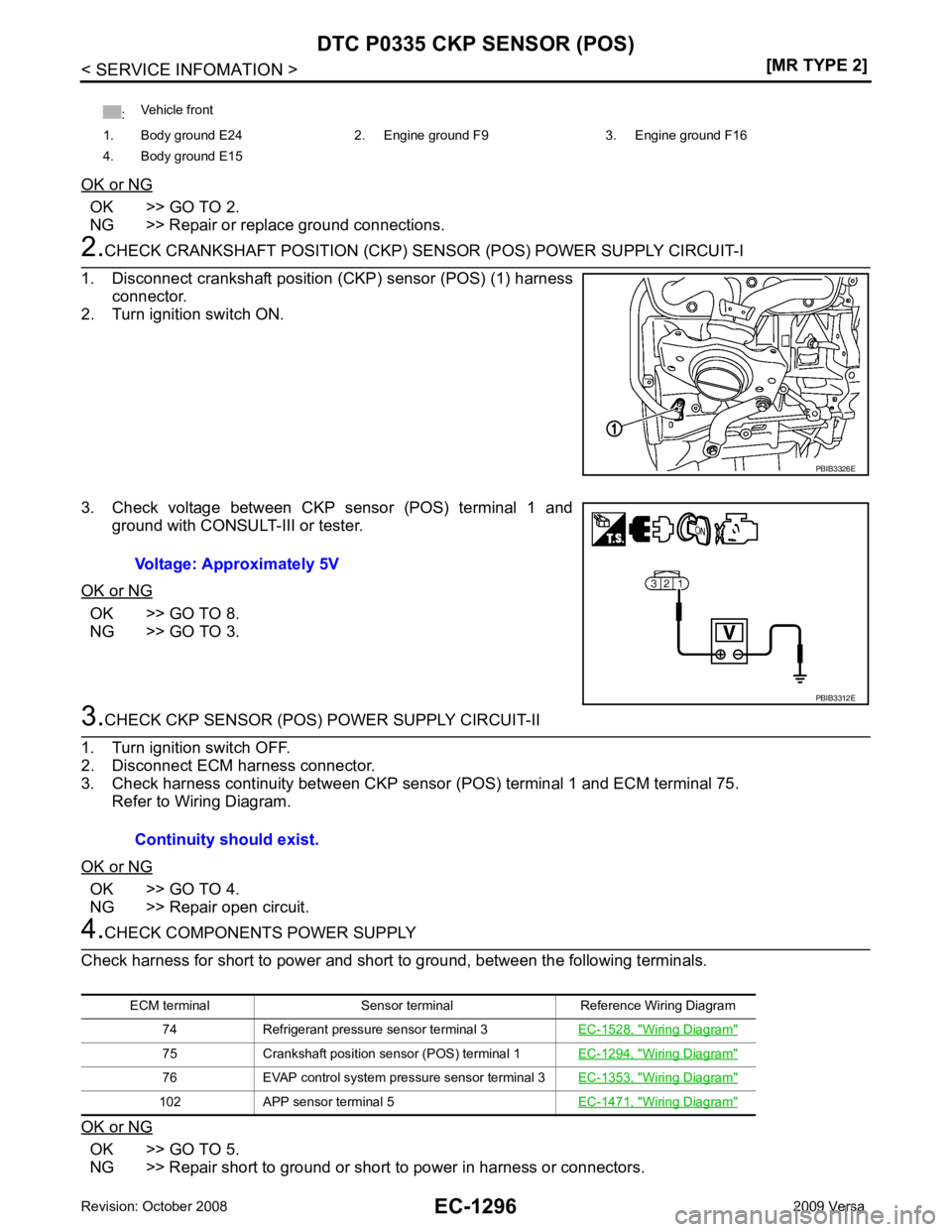

NISSAN LATIO 2009 Service Repair Manual EC-1296< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0335 CKP SENSOR (POS)
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK CRANKSHAFT POSITION (CKP) SENS OR (POS) POWER SUPPLY C

Page 2653 of 4331

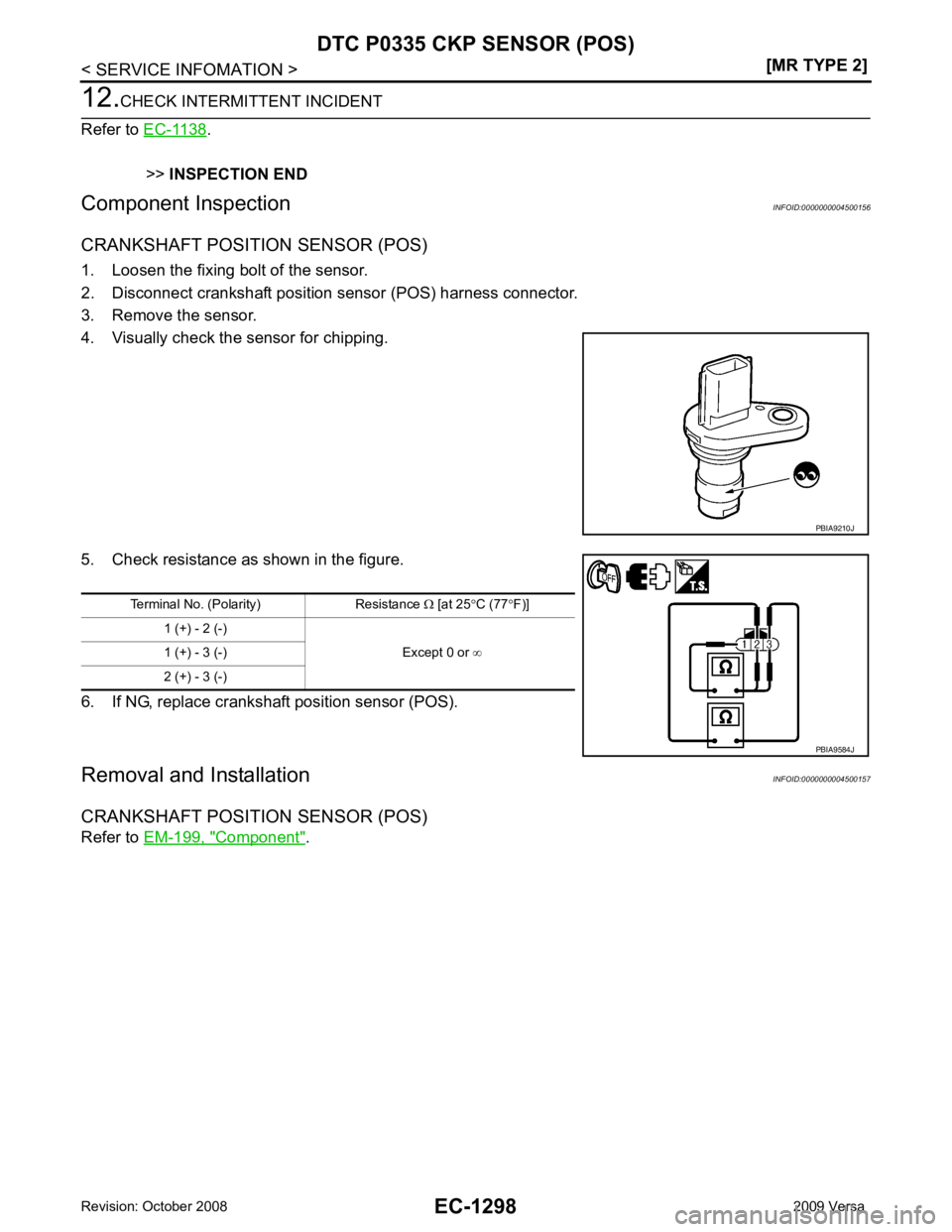

NISSAN LATIO 2009 Service Repair Manual EC
NP
O .)
• EVAP control system pressure sensor. (Refer to EC-1350 .)
OK or NG OK >> GO TO 6.
NG >> Replace malfunctioning components. Component Inspection " .
OK or NG OK >> GO TO 8.
NG >> GO TO

Page 2654 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1298< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0335 CKP SENSOR (POS) 12.
CHECK INTERMITTENT INCIDENT
Refer to EC-1138 .
>> INSPECTION END
Component Inspection INFOID:0000000004500156
CRANKSHAFT POSIT

Page 2655 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-1299
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0340 CMP SENSOR (PHASE)
Component Description INFOID:0000000004500158
The camshaft positi

DTC P0340 CMP SENSOR (PHASE)
EC-1299
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0340 CMP SENSOR (PHASE)
Component Description INFOID:0000000004500158

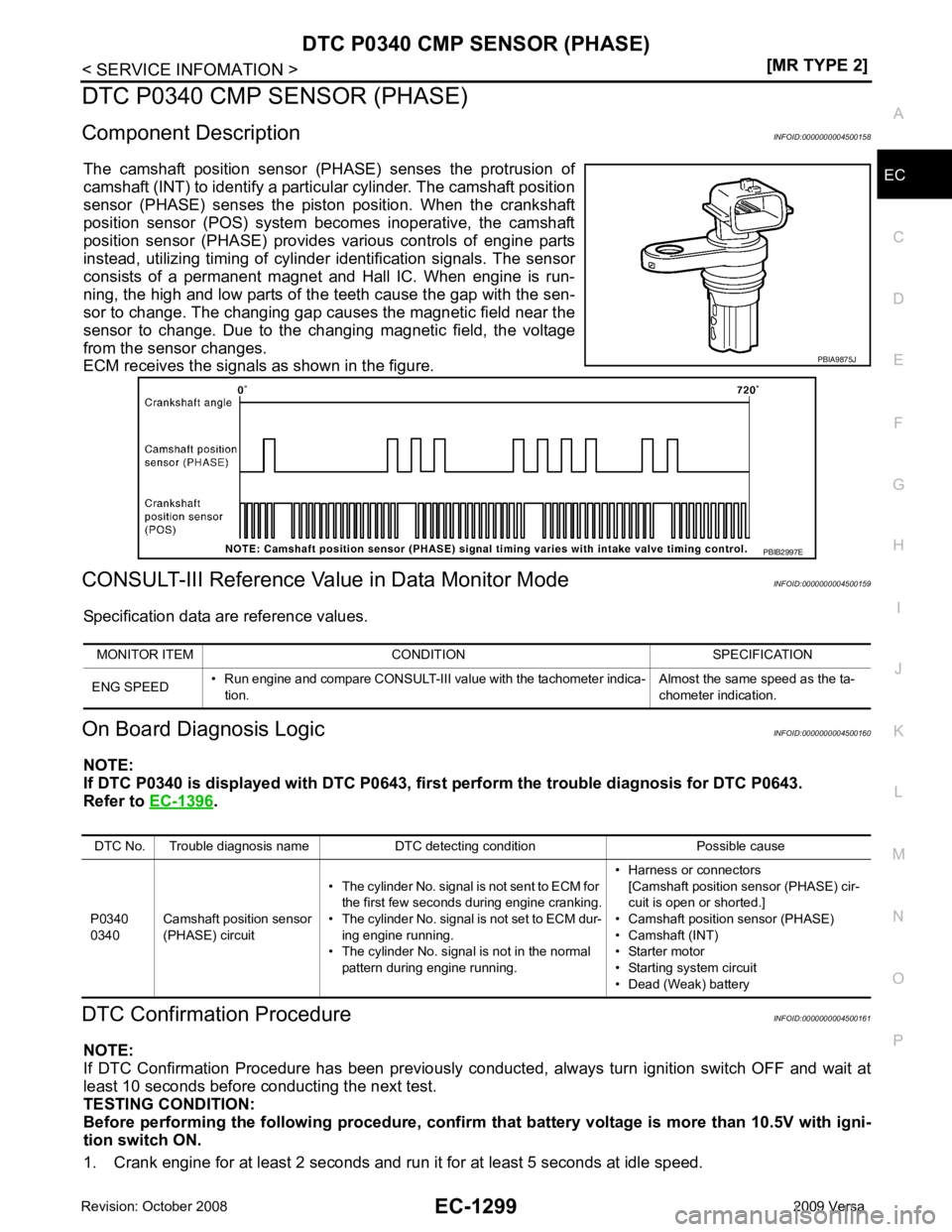

The camshaft position sensor (PHASE) senses the protrusion of
camshaft (INT) to identify a particular cylinder. The camshaft position
sensor (PHASE) senses the pist on position. When the crankshaft
position sensor (POS) system becomes inoperative, the camshaft
position sensor (PHASE) provides various controls of engine parts
instead, utilizing timing of cylinder identification signals. The sensor
consists of a permanent magnet and Hall IC. When engine is run-
ning, the high and low parts of the teeth cause the gap with the sen-
sor to change. The changing gap causes the magnetic field near the
sensor to change. Due to the changing magnetic field, the voltage
from the sensor changes.
ECM receives the signals as shown in the figure.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004500159
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004500160
NOTE:
If DTC P0340 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-1396 .
DTC Confirmation Procedure INFOID:0000000004500161
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm th at battery voltage is more than 10.5V with igni-
tion switch ON.
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed. PBIA9875J
PBIB2997E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED • Run engine and compare CONSULT-III value with the tachometer indica-
tion. Almost the same speed as the ta-
chometer indication. DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340 Camshaft position sensor
(PHASE) circuit • The cylinder No. signal is not sent to ECM for
the first few seconds during engine cranking.
• The cylinder No. signal is not set to ECM dur- ing engine running.
• The cylinder No. signal is not in the normal
pattern during engine running. • Harness or connectors
[Camshaft position sensor (PHASE) cir-
cuit is open or shorted.]
• Camshaft position sensor (PHASE)
• Camshaft (INT)
• Starter motor
• Starting system circuit
• Dead (Weak) battery

Page 2656 of 4331

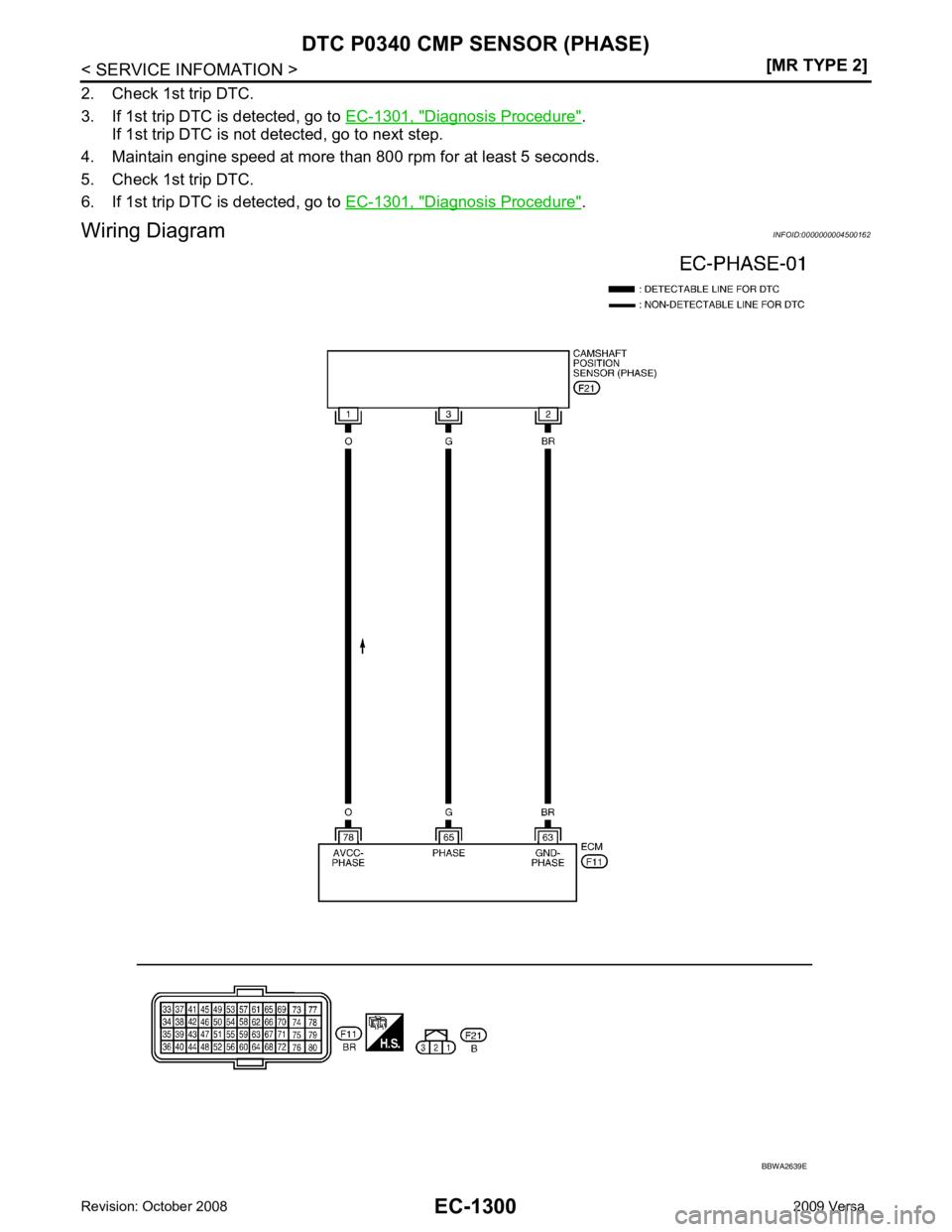

NISSAN LATIO 2009 Service Repair Manual EC-1300< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0340 CMP SENSOR (PHASE)
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1301, " Diagnosis Procedure " .
If 1st trip DTC is not detected
