Diagnosis Procedure " .
PROCEDURE FOR MALFUNCTION C
1. Turn ignition switch ON and wait at least 1 second.
2. Set shift lever to D position (A/T, CVT) or 1st position (M/T) and wait at least 3 seconds.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2119
2119 Electric throttle control
actuator A)
Electric throttle control
actuator does not func-
tion properly due to the return spring malfunc-
tion. • Electric throttle control actuator
B) Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detects the throttle valve is stuck open. Detected items Engine operating condition in fail-safe mode
Malfunction A ECM controls the electric throttle actuator by regulating the throttle opening around the idle position. The
engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction C While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position (A/T, CVT), neutral (M/T), and engine speed will not exceed 1,000
rpm or more.
Page 2819 of 4331
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-1463
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
3. Set shift lever to N, P position (A/T, CVT) or Neutral (M/T) position.
4. Start engine and let it idle for 3 seconds.
5. Check DTC.
6. If DTC is detected, go to EC-1463, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:00000000045003581.
CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if a foreign matter is caught between the throttle valve (1) and the housing.
- : Vehicle front
OK or NG OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside. 2.
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-1084, " Throttle Valve Closed Position Learning " .
3. Perform EC-1084, " Idle Air Volume Learning " .
>> INSPECTION END BBIA0711E
Page 2820 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-1464< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
DTC P2122, P2123 APP SENSOR
Component Description INFOID:0000000004500359
The accelerator pedal position sensor is installed NISSAN LATIO 2009 Service Repair Manual EC-1464< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
DTC P2122, P2123 APP SENSOR
Component Description INFOID:0000000004500359
The accelerator pedal position sensor is installed](/manual-img/5/57359/w960_57359-2819.png)
EC-1464< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
DTC P2122, P2123 APP SENSOR
Component Description INFOID:0000000004500359
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal positi on sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004500360
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagn osis Logic INFOID:0000000004500361
These self-diagnoses have the one trip detection logic.
NOTE:
If DTC P2122 or P2123 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-1396 .
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation Procedure INFOID:0000000004500362
NOTE: PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1 • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 3.9 - 4.8V
CLSD THL POS • Ignition switch: ON
(Engine stopped) Accelerator pedal:
Fully released ON
Accelerator pedal: Slightly depressed OFF DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2122
2122 Accelerator pedal position
sensor 1 circuit low input An excessively low
voltage from the APP
sensor 1 is sent to ECM. • Harness or connectors
(APP sensor 1 circuit is open or shorted.)
• Accelerator pedal position sensor (APP sensor 1)
P2123
2123 Accelerator pedal position
sensor 1 circuit high input An excessively high voltage from the APP
sensor 1 is sent to ECM. Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 2821 of 4331
DTC P2122, P2123 APP SENSOR
EC-1465
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
If DTC Confirmation Procedure has been previously conduc
ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-1466, " Diagnosis Procedure " .
Wiring Diagram INFOID:0000000004500363 BBWA2652E
Page 2822 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-1466< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminal NISSAN LATIO 2009 Service Repair Manual EC-1466< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminal](/manual-img/5/57359/w960_57359-2821.png)
EC-1466< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
Diagnosis Procedure INFOID:00000000045003641.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body.
Refer to EC-1144, " Ground Inspection " .
OK or NG OK >> GO TO 2.TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
102 SB Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
103 GR Accelerator pedal position
sensor 2 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released 0.3 - 0.6V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 1.95 - 2.4V
104 Y Sensor ground
(APP sensor 2) [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V
106 P Sensor power supply
(APP sensor 1) [Ignition switch: ON]
Approximately 5V
110 G Accelerator pedal position
sensor 1 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released 0.6 - 0.9V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 3.9 - 4.7V
111 R Sensor ground
(APP sensor 1) [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V:
Vehicle front
1. Body ground E24 2. Engine ground F9 3. Engine ground F16
4. Body ground E15 BBIA0698E
Page 2823 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P2122, P2123 APP SENSOR
EC-1467
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
NG >> Repair or replace ground connections. 2.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconn NISSAN LATIO 2009 Service Repair Manual DTC P2122, P2123 APP SENSOR
EC-1467
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
NG >> Repair or replace ground connections. 2.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconn](/manual-img/5/57359/w960_57359-2822.png)
DTC P2122, P2123 APP SENSOR
EC-1467
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
NG >> Repair or replace ground connections. 2.

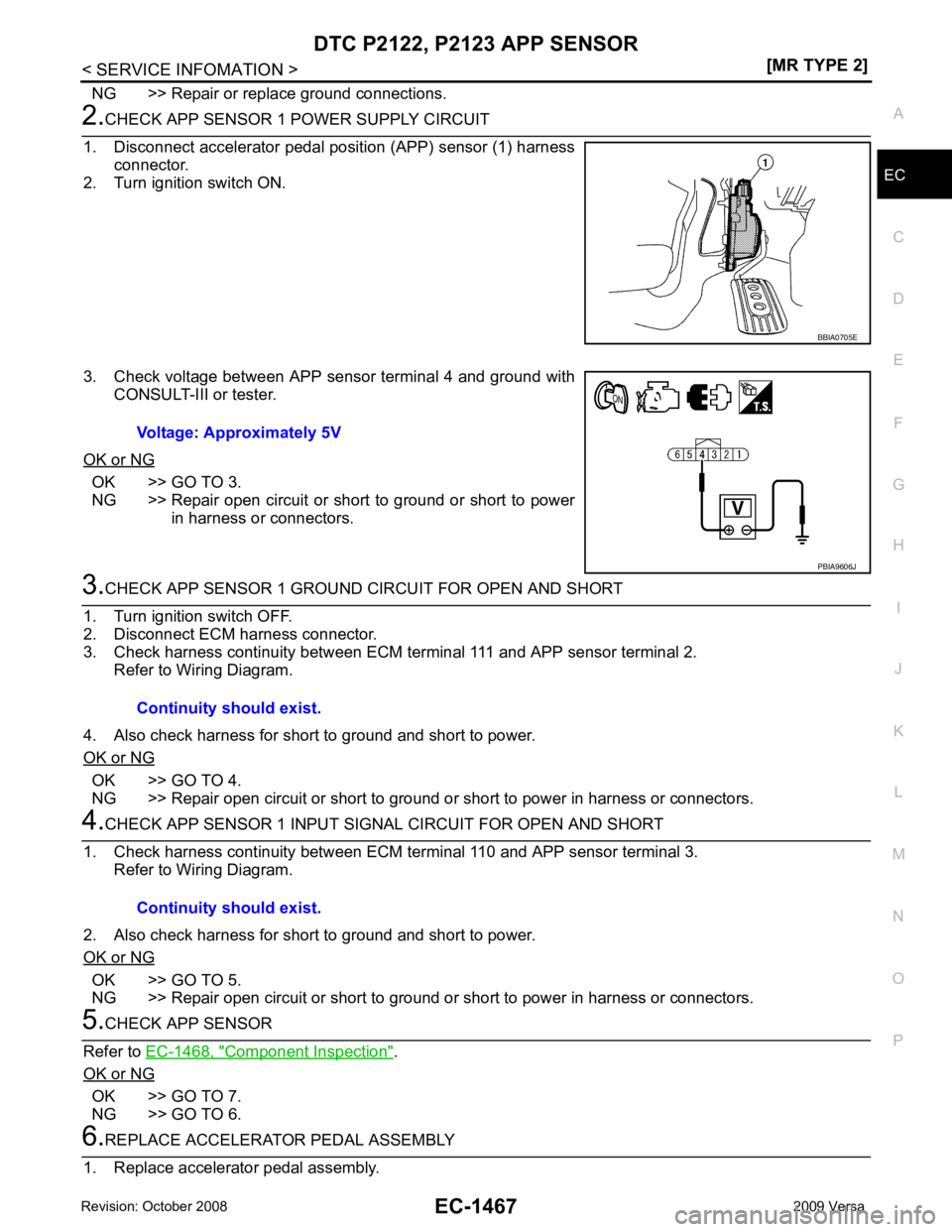

CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with CONSULT-III or tester.
OK or NG OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. 3.
CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 111 and APP sensor terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 4.
CHECK APP SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 110 and APP sensor terminal 3. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5.
CHECK APP SENSOR
Refer to EC-1468, " Component Inspection " .
OK or NG OK >> GO TO 7.
NG >> GO TO 6. 6.
REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly. BBIA0705E
Voltage: Approximately 5V
PBIA9606J
Continuity should exist.
Continuity should exist.
Page 2824 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-1468< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
2. Perform EC-1084, " Accelerator Pedal Released Position Learning " .
3. Perform EC-1084, " Throttle Valve Closed Position Lear NISSAN LATIO 2009 Service Repair Manual EC-1468< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
2. Perform EC-1084, " Accelerator Pedal Released Position Learning " .
3. Perform EC-1084, " Throttle Valve Closed Position Lear](/manual-img/5/57359/w960_57359-2823.png)

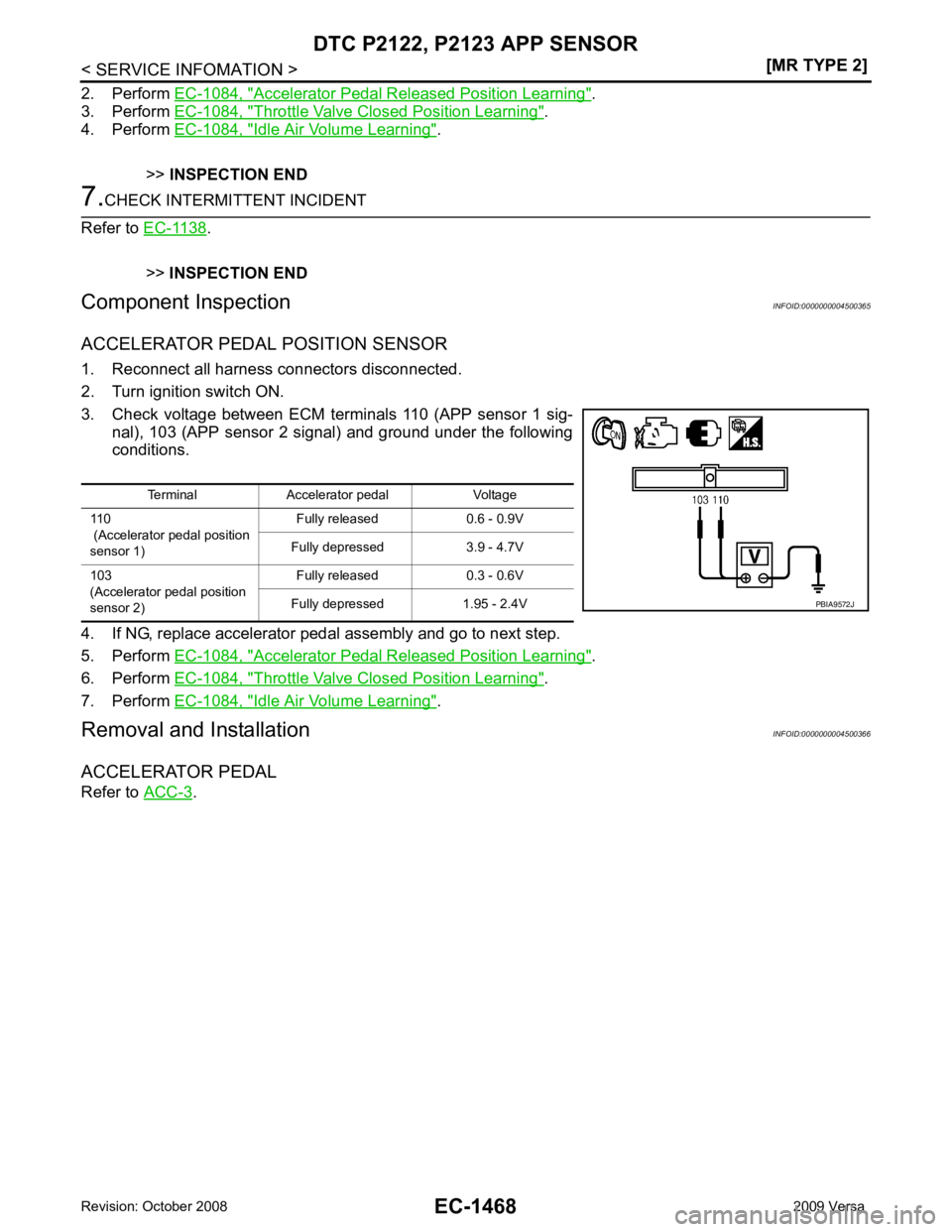

EC-1468< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2122, P2123 APP SENSOR
2. Perform EC-1084, " Accelerator Pedal Released Position Learning " .
3. Perform EC-1084, " Throttle Valve Closed Position Learning " .
4. Perform EC-1084, " Idle Air Volume Learning " .
>> INSPECTION END 7.
CHECK INTERMITTENT INCIDENT
Refer to EC-1138 .
>> INSPECTION END
Component Inspection INFOID:0000000004500365
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 110 (APP sensor 1 sig- nal), 103 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-1084, " Accelerator Pedal Released Position Learning " .
6. Perform EC-1084, " Throttle Valve Closed Position Learning " .
7. Perform EC-1084, " Idle Air Volume Learning " .
Removal and Installation INFOID:0000000004500366
ACCELERATOR PEDAL
Refer to ACC-3 .
Terminal Accelerator pedal Voltage
110
(Accelerator pedal position
sensor 1) Fully released 0.6 - 0.9V
Fully depressed 3.9 - 4.7V
103
(Accelerator pedal position
sensor 2) Fully released 0.3 - 0.6V
Fully depressed 1.95 - 2.4V PBIA9572J
