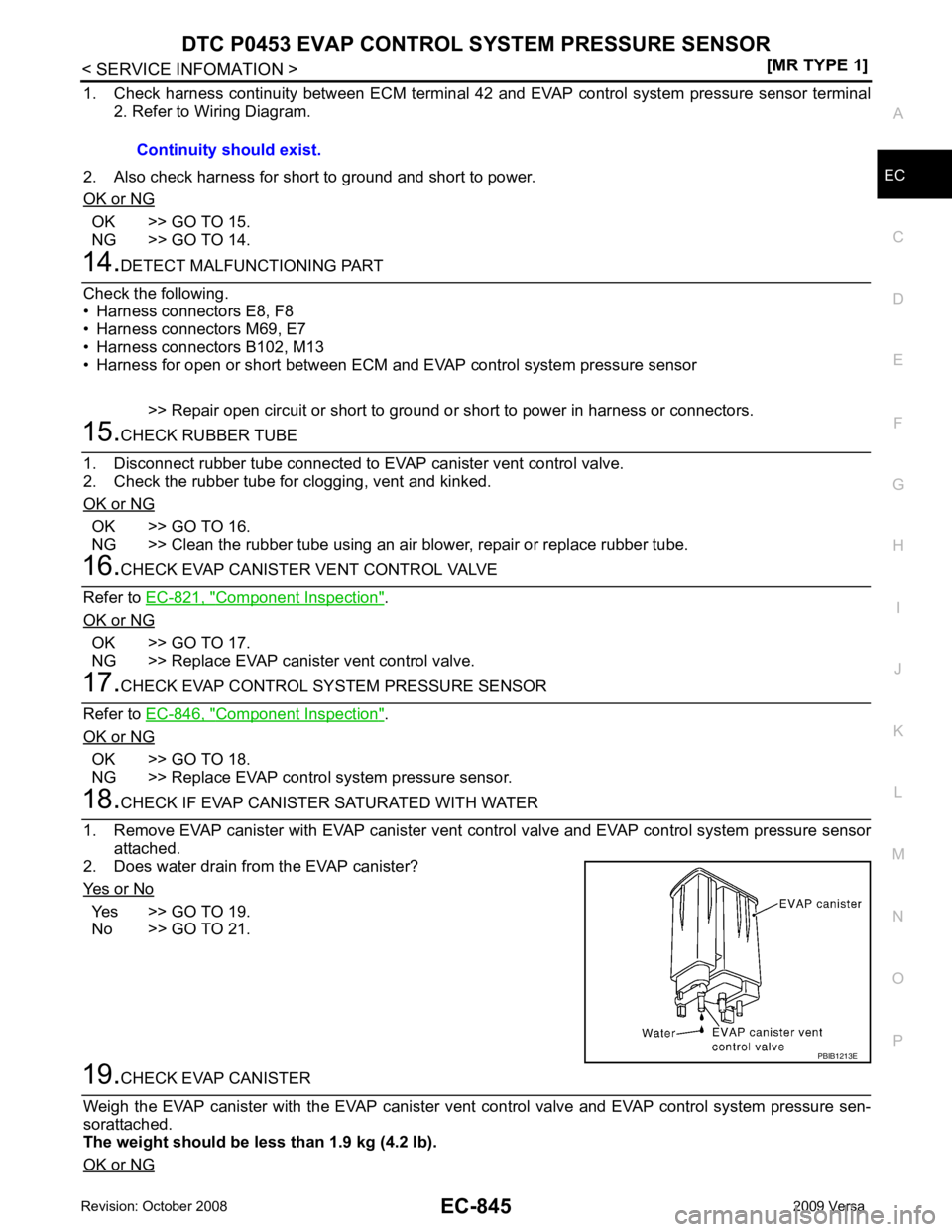

Page 2201 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
EC-845
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Check harness continuity between ECM terminal 42 and EVAP control

Page 2202 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-846< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
OK >> GO TO 21.
NG >> GO TO 20. 20.
DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage

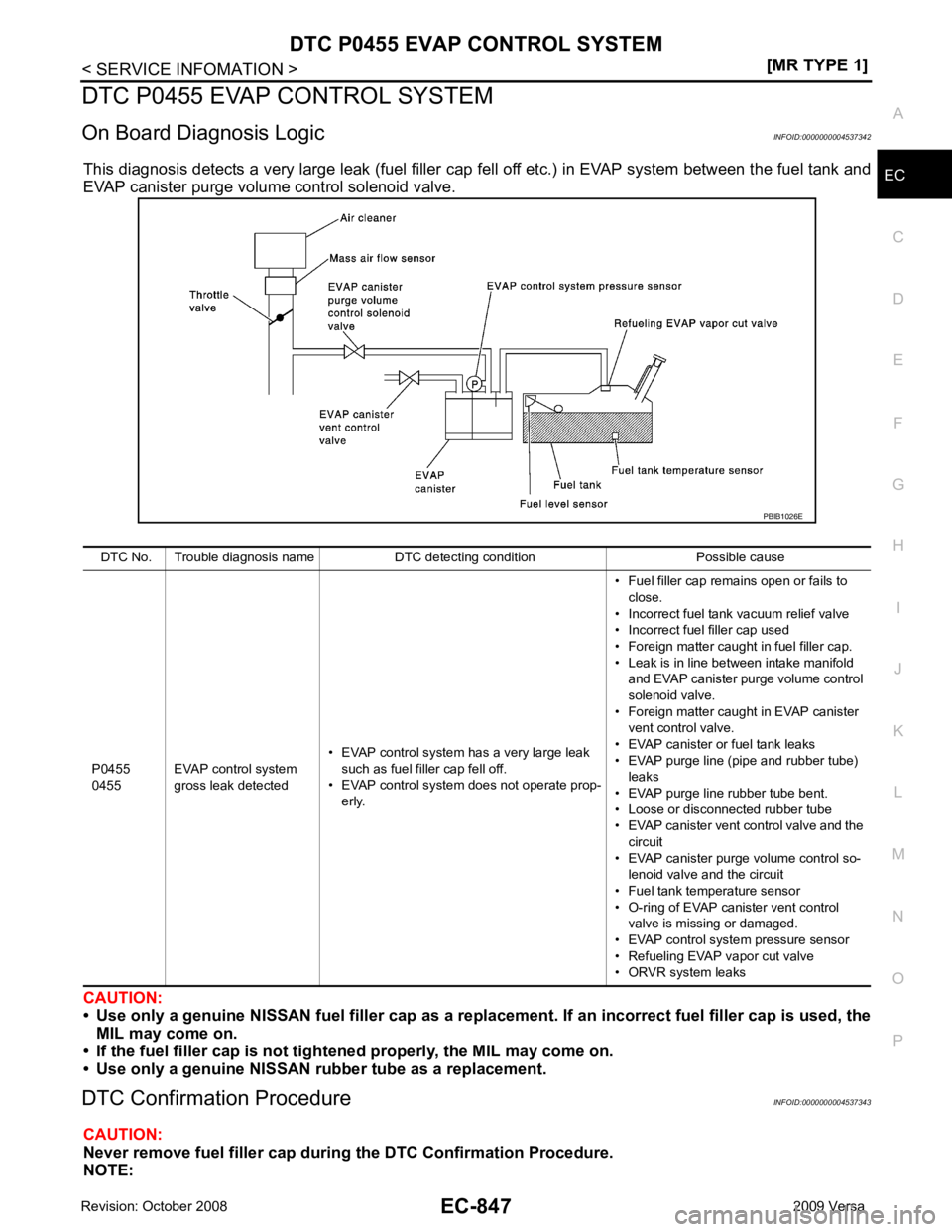

Page 2203 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEM
EC-847
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0455 EVAP CONTROL SYSTEM
On Board Diagnosis Logic INFOID:0000000004537342
This diagnosis de

Page 2204 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-848< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0455 EVAP CONTROL SYSTEM
• Make sure that EVAP hose are connected to EVAP canister purge volume control solenoid valve
properly.
• If DT

EC-848< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0455 EVAP CONTROL SYSTEM
• Make sure that EVAP hose are connected to EVAP canister purge volume control solenoid valve
properly.
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed
on flat level surface.
• Open engine hood before conducting the following procedure.
WITH CONSULT-III
1. Tighten fuel filler cap securely until reteaching sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
5. Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 60 °C (32 - 140 °F)
6. Select “EVAP SML LEAK P0442/P1442” of “EV APORATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed cannot be maintained within t he range displayed on the CONSULT-III screen, go to
EC-566, " Basic Inspection " .
7. Make sure that “OK” is displayed.
If “NG” is displayed, select “SELF-DIAG RESULT S” mode with CONSULT-III and make sure that “EVAP
GROSS LEAK [P0455]” is displayed. If it is displayed, refer to EC-848, " Diagnosis Procedure " .
If P0442 is displayed, perform Diagnostic Procedure for DTC P0442, EC-798, " Diagnosis Procedure " .
WITH GST
NOTE:
Be sure to read the explanation of Driving Pattern on EC-542, " Emission-related Diagnostic Information "
before driving vehicle.
1. Start engine.
2. Drive vehicle according to Driving Pattern, EC-542, " Emission-related Diagnostic Information " .
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ignition switch ON.
5. Select Service $07 with GST.
• If P0441 is displayed on the screen, go to EC-793, " Diagnosis Procedure " for DTC P0441.
• If P0442 is displayed on the screen, go to EC-798, " Diagnosis Procedure " for DTC P0442.
• If P0455 is displayed on the screen, go to EC-848, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:00000000045373441.
CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch OFF.
2. Check for genuine NISSAN fuel filler cap design.
OK or NG OK >> GO TO 2.
NG >> Replace with genuine NISSAN fuel filler cap. 2.
CHECK FUEL FILLER CAP INSTALLATION
Check that the cap is tightened proper ly by rotating the cap clockwise. SEF915U

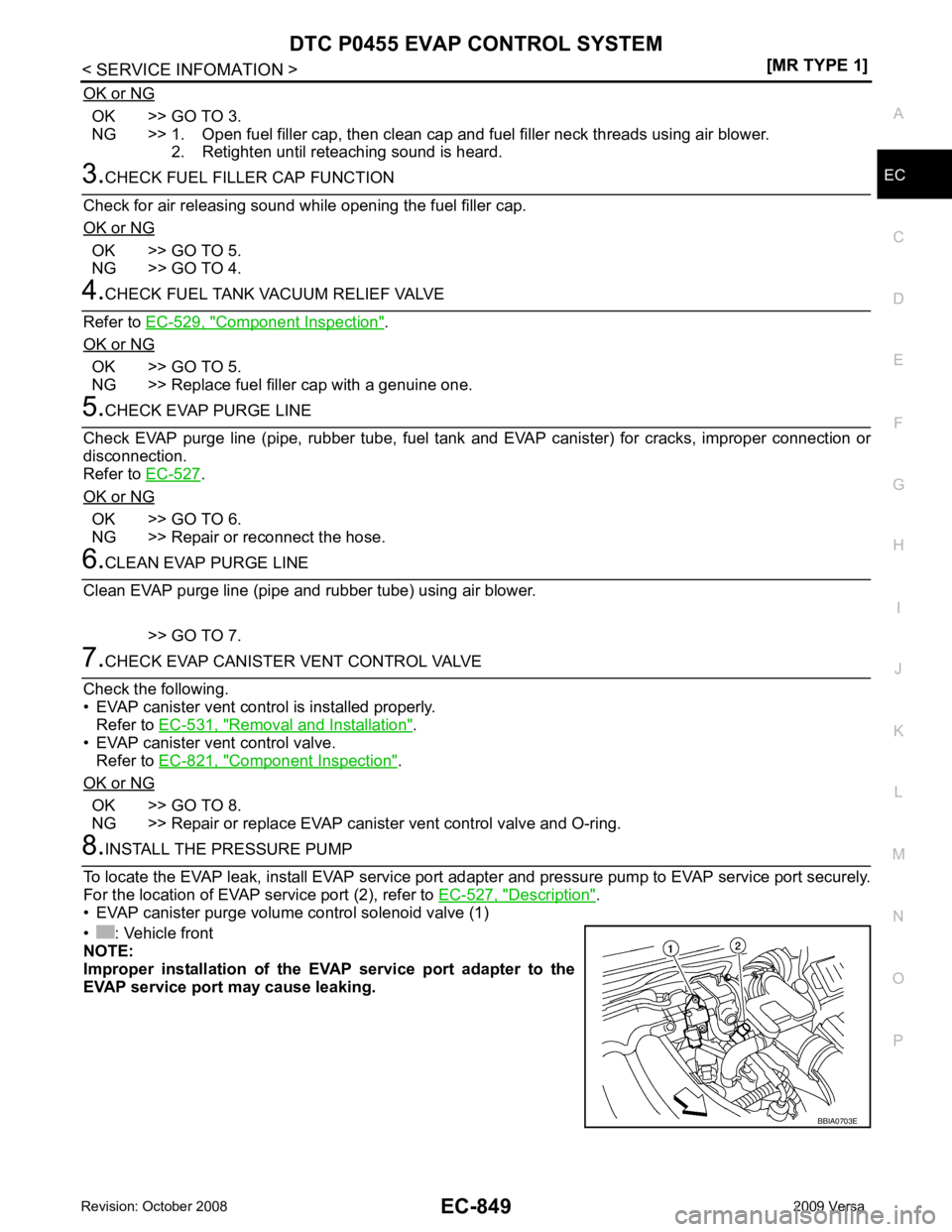

Page 2205 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEM
EC-849
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 3.
NG >> 1. Open fuel filler cap, then clean cap and fuel filler neck threa

Page 2206 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-850< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0455 EVAP CONTROL SYSTEM
With CONSULT-III>>GO TO 9.
Without CONSULT-III>>GO TO 10. 9.
CHECK FOR EVAP LEAK
With CONSULT-III
1. Turn ignition switch ON.
2

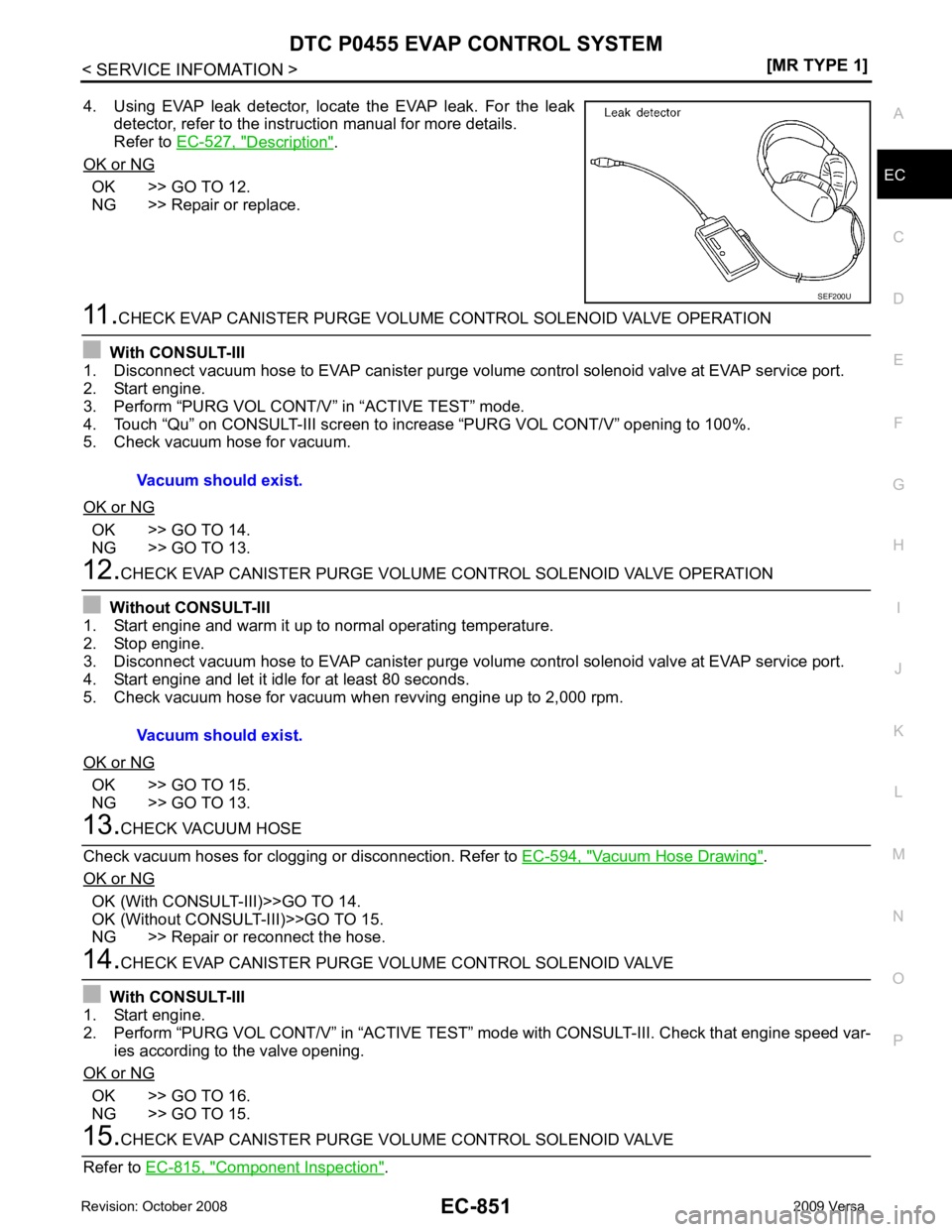

Page 2207 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEM
EC-851
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
4. Using EVAP leak detector, locate the EVAP leak. For the leak
detector, refer to the

Page 2208 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 16.
NG >> Replace EVAP canister purge volume control solenoid valve. Component Inspection " .
OK or NG OK >> GO TO 17.
NG >> Replace fuel level sensor unit. Component Inspection " .
OK or
