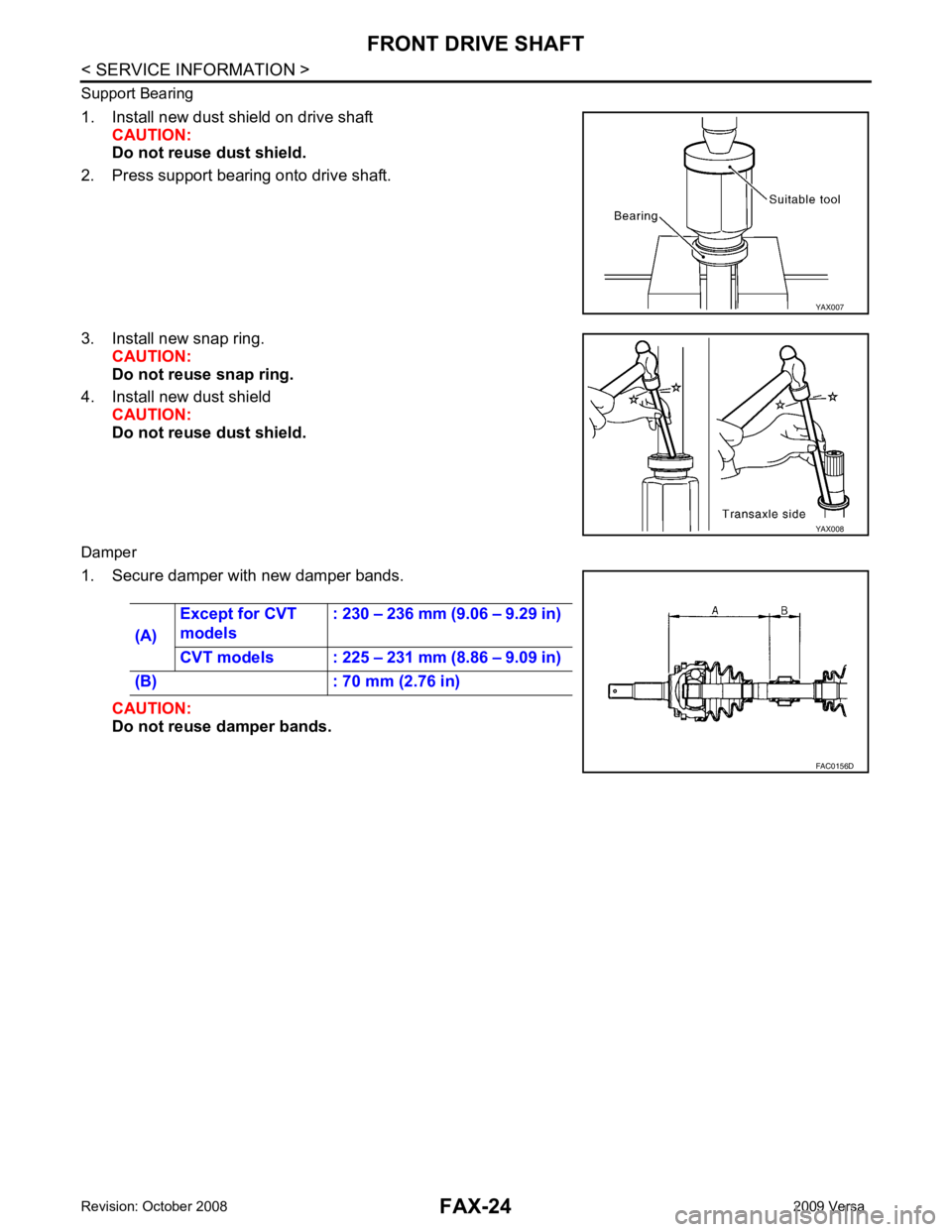

FAX-22< SERVICE INFORMATION >
FRONT DRIVE SHAFT
2. Pull and tighten the boot band using suitable tool until both pawls of boot band are secured in the boot band grooves.
CAUTION:
Do not reuse boot band.
10. Install new small boot band securely using Tool. CAUTION:
• Do not reuse boot band.
• Secure boot band so that dimension (M) meets specifica-
tion as shown.
11. Rotate the slide joint and confirm that the boot posit ion is correct. If boot position is not correct, remove
the boot bands, reposition the boot and install new boot bands.
Wheel Side
1. Insert recommended grease (Genuine NISSAN Grease or
equivalent) into joint sub-assembly serration hole until grease
begins to ooze from ball groove and serration hole. After insert-
ing grease, use a shop cloth to wipe off old grease that has
oozed out.
2. Cover serrated part of shaft with tape. Install new boot band and new boot to shaft.
CAUTION:
Do not reuse boot or boot band.

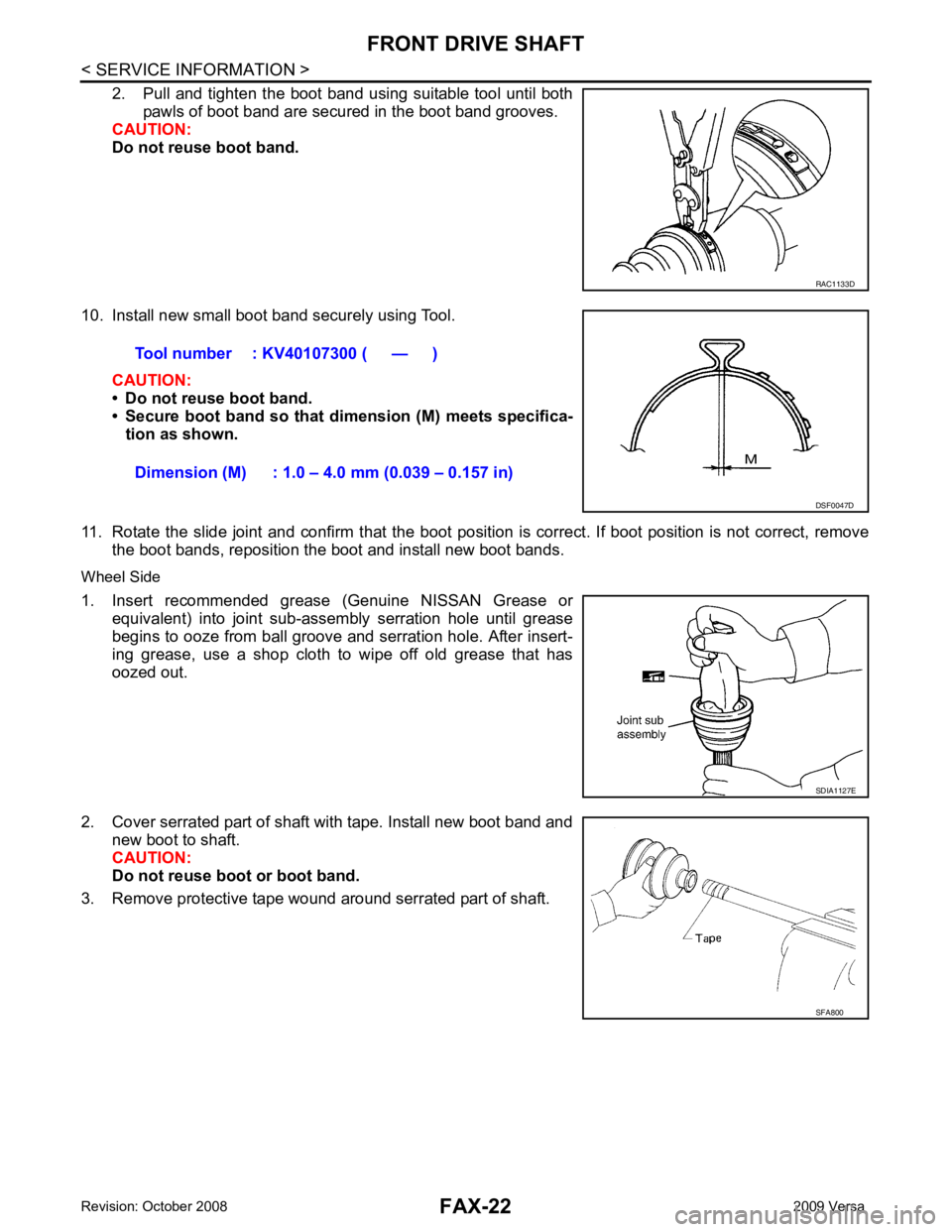

3. Remove protective tape wound around serrated part of shaft. RAC1133D
Tool number : KV40107300 ( — )
Dimension (M) : 1.0 – 4.0 mm (0.039 – 0.157 in) DSF0047D
SDIA1127E
SFA800
Page 3218 of 4331

FRONT DRIVE SHAFT
FAX-23
< SERVICE INFORMATION >
C
E F
G H
I
J
K L
M A
B FAX
N
O P
4. Attach new circlip to shaft. Thread nut onto end of joint sub-
assembly and press fit using suitable tool.
CAUTION:
• Do not reuse circlip.
• Circlip must fit securely into shaft groove.
5. Insert the balance of new grease (Genuine NISSAN Grease or equivalent) listed below into housing from
large end of boot.

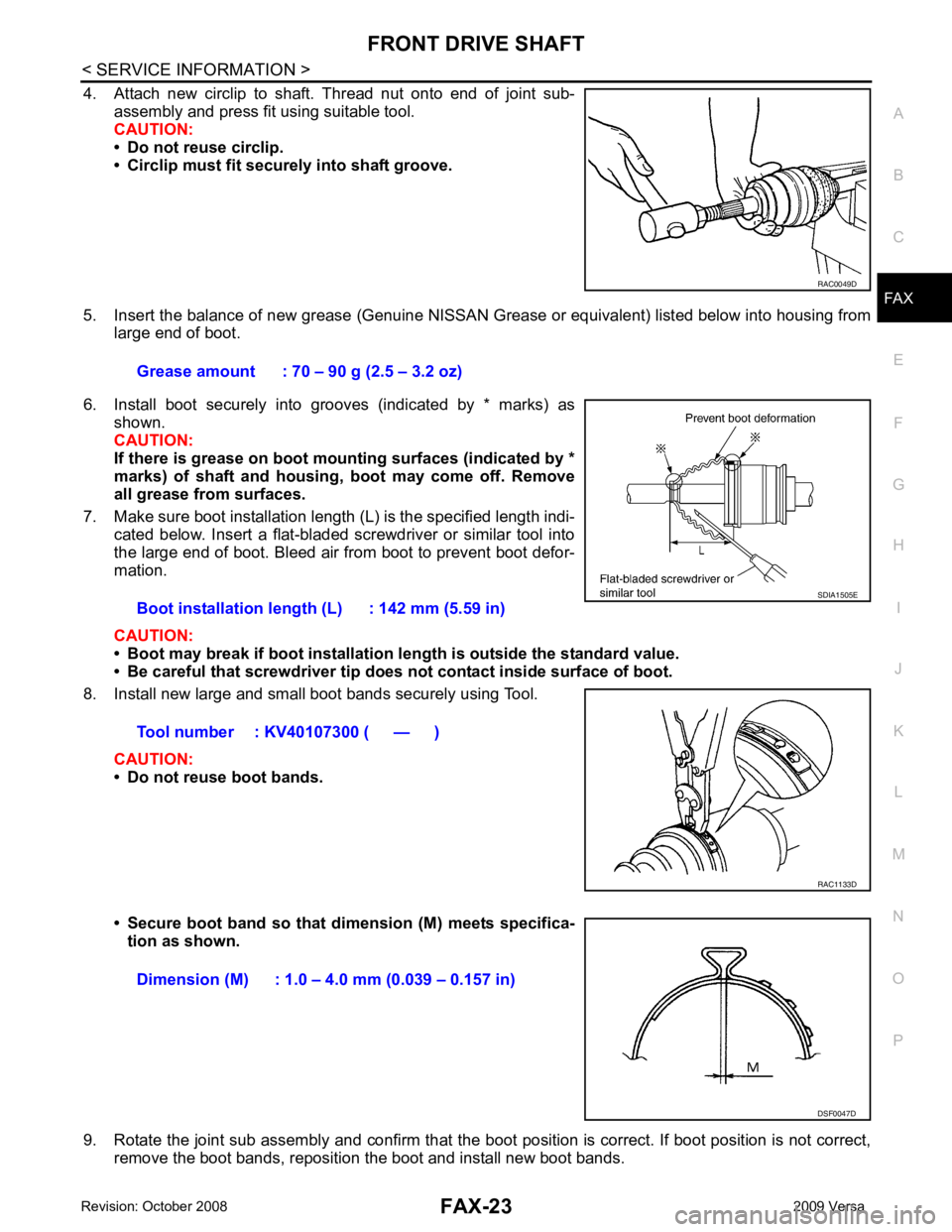

6. Install boot securely into grooves (indicated by * marks) as shown.
CAUTION:
If there is grease on boot mounting surfaces (indicated by *
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.
7. Make sure boot installation length (L) is the specified length indi- cated below. Insert a flat-bladed screwdriver or similar tool into
the large end of boot. Bleed air from boot to prevent boot defor-
mation.
CAUTION:
• Boot may break if boot installation le ngth is outside the standard value.
• Be careful that screwdriver tip does not contact inside surface of boot.
8. Install new large and small boot bands securely using Tool.
CAUTION:
• Do not reuse boot bands.
• Secure boot band so that dimension (M) meets specifica- tion as shown.
9. Rotate the joint sub assembly and confirm that the boot position is correct. If boot position is not correct,
remove the boot bands, reposition the boot and install new boot bands. RAC0049D
Grease amount : 70 – 90 g (2.5 – 3.2 oz)
Boot installation length (L) : 142 mm (5.59 in)
Tool number : KV40107300 ( — ) SDIA1505E
RAC1133D
Dimension (M) : 1.0 – 4.0 mm (0.039 – 0.157 in)
DSF0047D
Page 3219 of 4331
Page 3220 of 4331
SERVICE DATA AND SPECIFICATIONS (SDS)
FAX-25
< SERVICE INFORMATION >
C
E F
G H
I
J
K L
M A
B FAX
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
Wheel Bearing INFOID:0000000004683860
Drive Shaft INFOID:0000000004305850
Dynamic Damper INFOID:0000000004305851
Boot Bands INFOID:0000000004683861
Unit: mm (in)
Axial end play limit
0.05 mm (0.002 in) or lessJoint type Wheel side Transaxle side
Grease quantity 70 - 90 g (2.5 - 3.2 oz) 130 - 140 g (4.6 - 4.9 oz)
Boots installed length Left side
142 mm (5.59 in) 181.2 mm (7.13 in) (M/T models)
176 mm (6.93 in) (Except for M/T models)
Right side 178 mm (7.01 in) (A/T models)

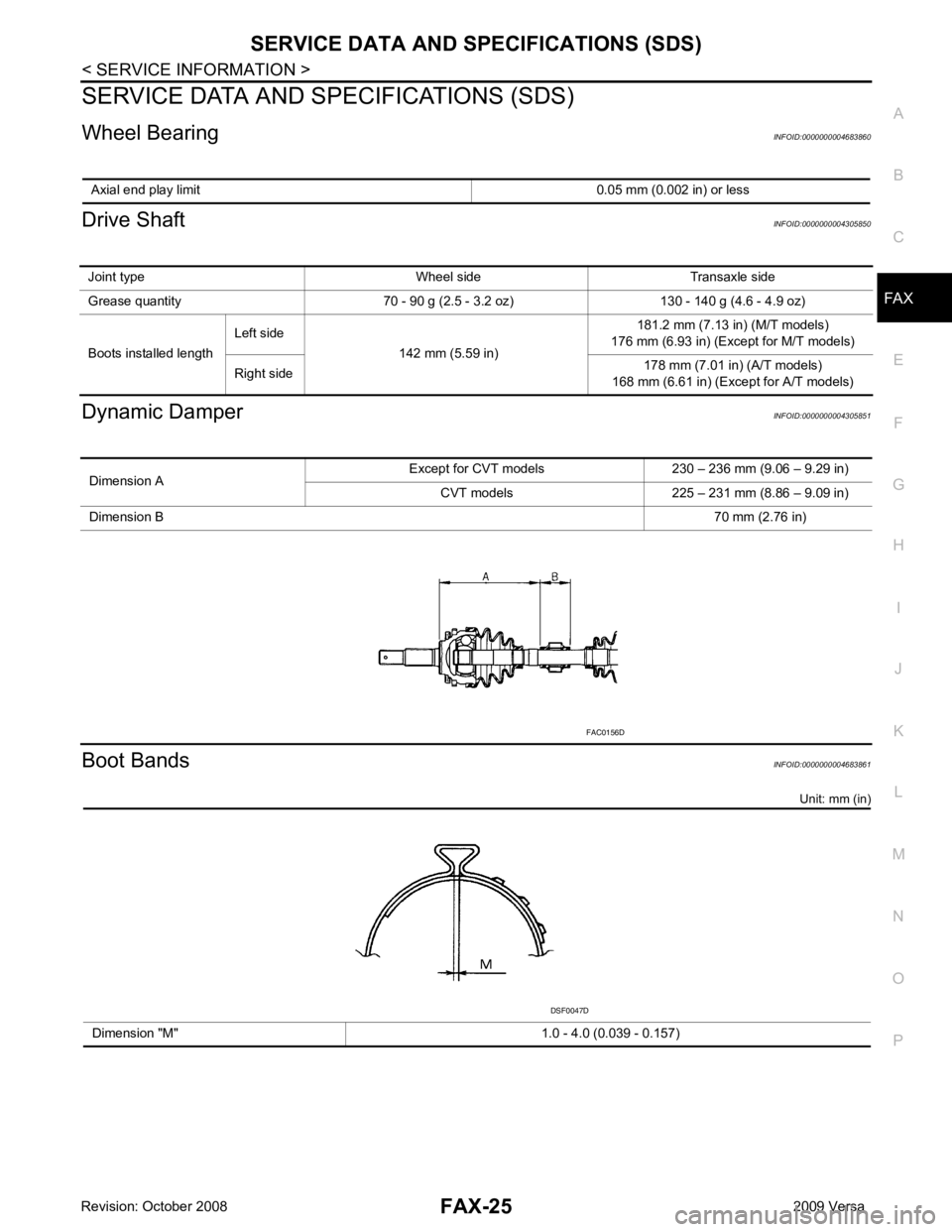

168 mm (6.61 in) (Exc ept for A/T models)Dimension A
Except for CVT models 230 – 236 mm (9.06 – 9.29 in)
CVT models 225 – 231 mm (8.86 – 9.09 in)
Dimension B 70 mm (2.76 in)FAC0156D
Dimension "M" 1.0 - 4.0 (0.039 - 0.157) DSF0047D
Page 3221 of 4331

FL
N
O P
CONTENTS
FUEL SYSTEM
SERVICE INFORMATION .. ..........................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
PREPARATION .............................................. .....3
Special Service Tool ........................................... ......3
Commercial Service Tool .................................... ......3
FUEL SYSTEM ............................................... .....4
Checking Fuel Line ............................................. ......4
General Precaution ............................................. ......4 FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY ......................... 5
Component .......................................................... .....5
Removal and Installation ..................................... .....5
FUEL TANK ..... ................................ ..................9
Component .......................................................... .....9
Removal and Installation ..................................... .....9
SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................. 14
Standard and Limit .............................................. ....14
Page 3222 of 4331

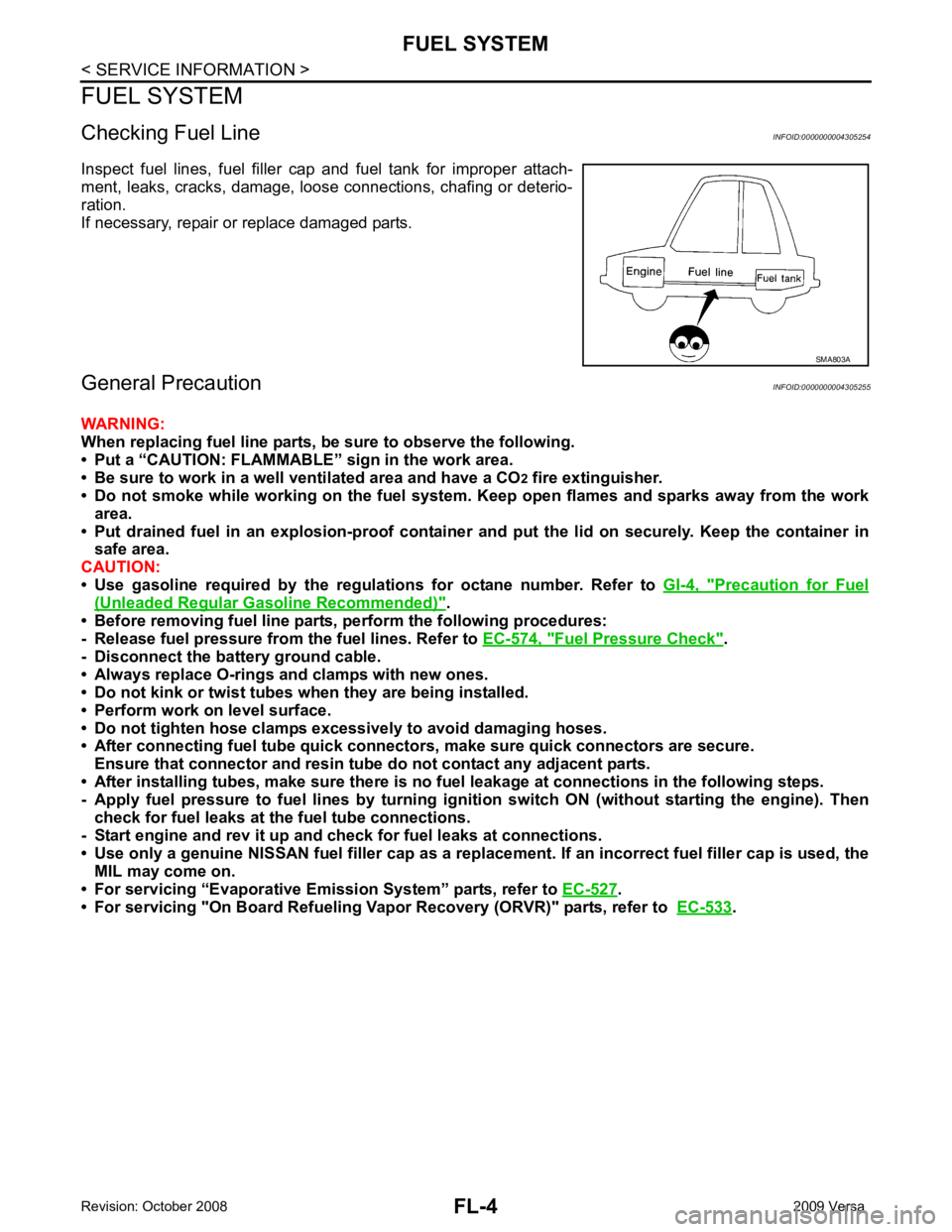

Page 3223 of 4331
PREPARATION
FL-3
< SERVICE INFORMATION >
C
D E
F
G H
I
J
K L
M A FL
NP
O
PREPARATION
Special Service Tool INFOID:0000000004305252
The actual shapes of the Kent-Moore tools may differ from those of the special tools illustrated here.
Commercial Service Tool INFOID:0000000004305253
Tool number
(Kent-Moore No.)
Tool name Description
KV991J0090
(J-46214)

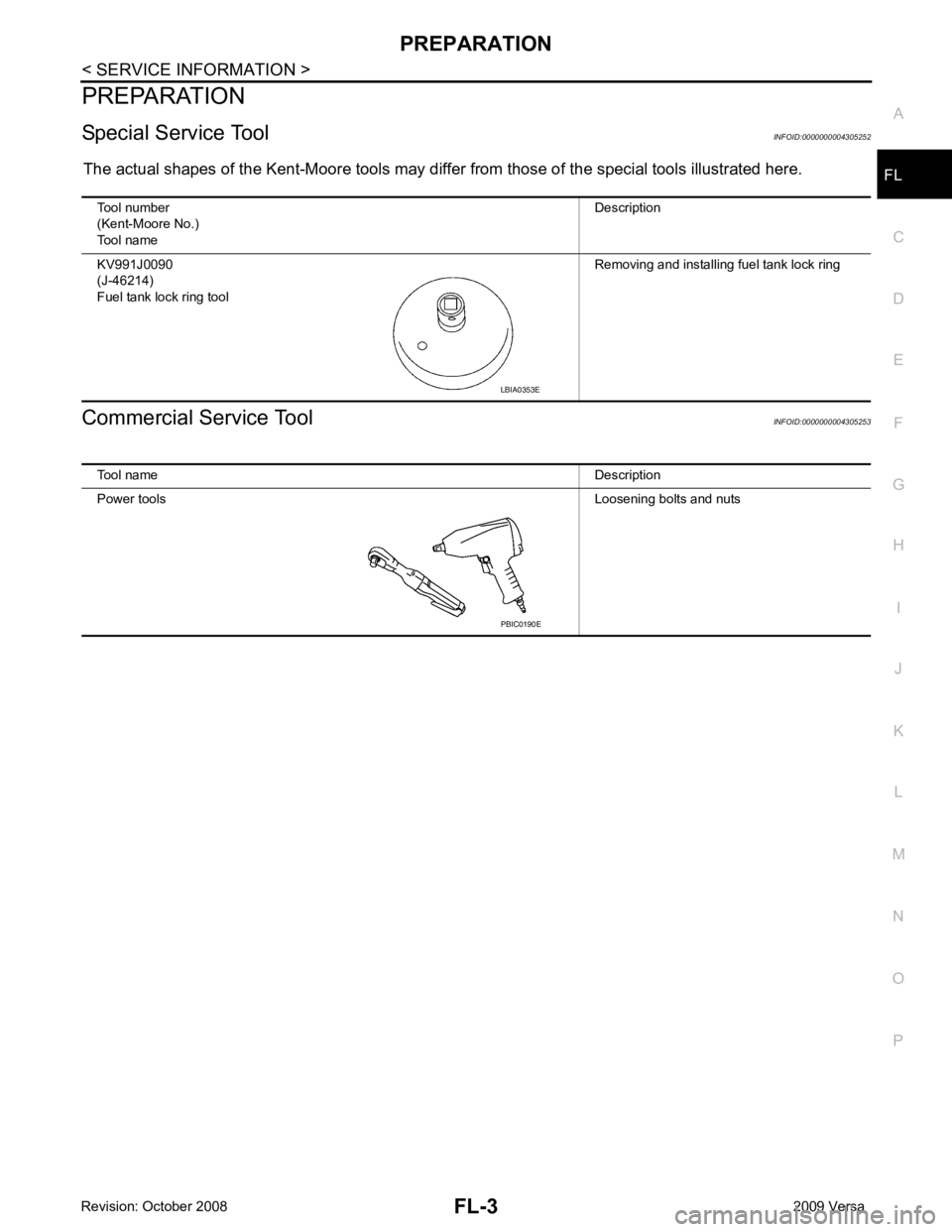

Fuel tank lock ring tool Removing and installing fuel tank lock ring LBIA0353E
