NISSAN LATIO 2009 Service Repair Manual AT-356< SERVICE INFORMATION > ASSEMBLY 8. Install needle bearing (1) on rear internal gear (2). CAUTION: Be careful with the direct ion of needle bearing (1). 9. Install rear internal gear (1) an

Page 362 of 4331

NISSAN LATIO 2009 Service Repair Manual ASSEMBLY AT-357 < SERVICE INFORMATION > D E F G H I J K L M A B AT N O P 13. Install needle bearing (1) on front planetary carrier (2). CAUTION: Be careful with the direct ion of needle bearing (1). 1

Page 363 of 4331

NISSAN LATIO 2009 Service Repair Manual AT-358< SERVICE INFORMATION > ASSEMBLY 19. Install front sun gear on front planetary carrier. 20. Install needle bearing on front sun gear. CAUTION: Be careful with the dir ection of needle bearing. 2

Page 364 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P 25. Install reverse clutch assembly. CAUTION: Align teeth of reverse clutch dr ive plates before installing. Adjustment (2) INFOID:0000000004305531 When any parts listed below are replaced, a

Page 365 of 4331

NISSAN LATIO 2009 Service Repair Manual SAT378D Total End Play " .

Page 366 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P • Select proper thickness of bearing race so that tota l end play is within specifications. Refer to “Parts Information” for bearing race selection. REVERSE CLUTCH END P

Page 367 of 4331

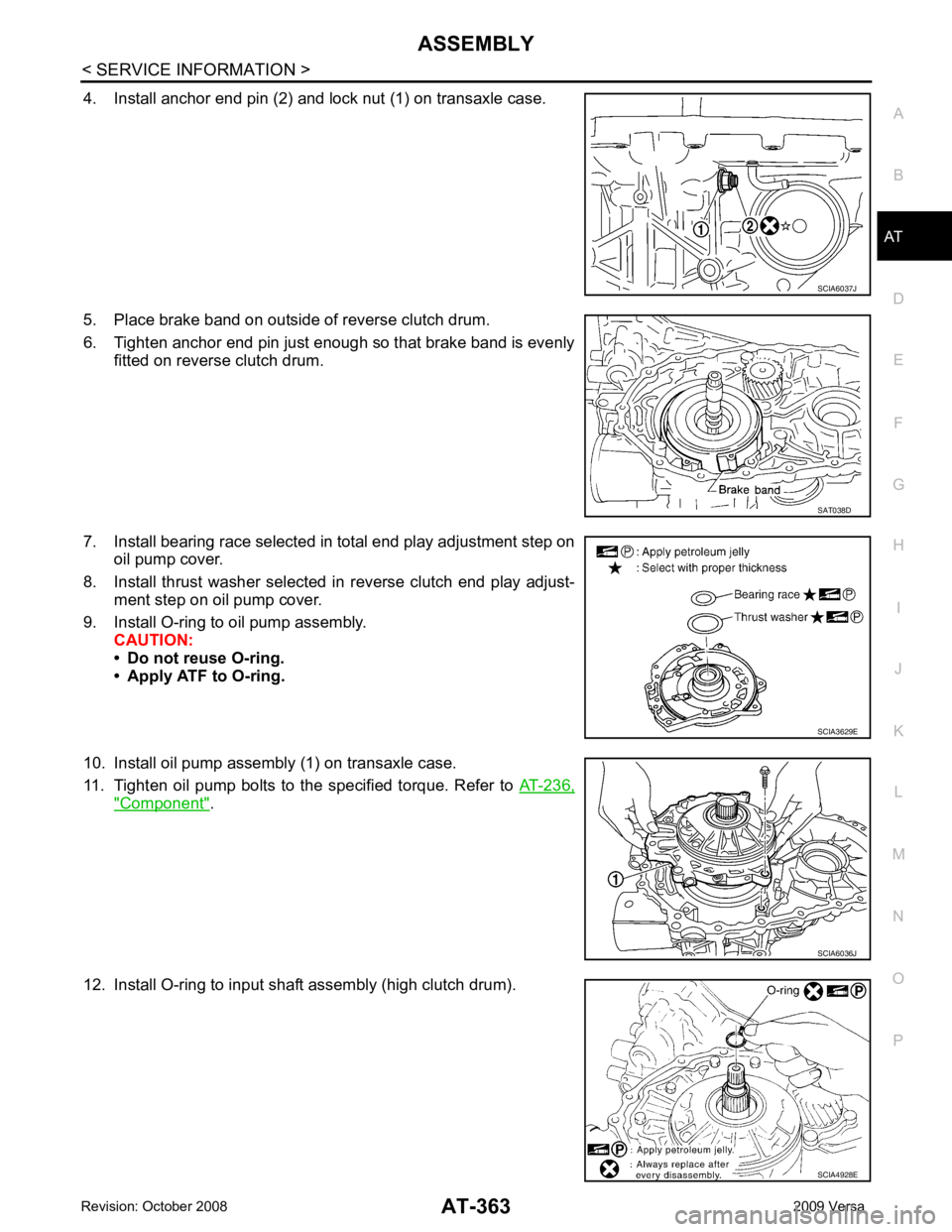

NISSAN LATIO 2009 Service Repair Manual SAT385D Reverse Clutch End Play " .

Page 368 of 4331

NISSAN LATIO 2009 Service Repair Manual ASSEMBLY AT-363 < SERVICE INFORMATION > D E F G H I J K L M A B AT N O P 4. Install anchor end pin (2) and lock nut (1) on transaxle case. 5. Place brake band on outside of reverse clutch drum. 6. Tig
