Page 2313 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P2135 TP SENSOR
EC-957
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Disconnect electric throttle c
ontrol actuator (1) harness connec-
tor.
- : Vehicle front
2. Turn ignit NISSAN LATIO 2009 Service Repair Manual DTC P2135 TP SENSOR
EC-957
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Disconnect electric throttle c
ontrol actuator (1) harness connec-
tor.
- : Vehicle front
2. Turn ignit](/manual-img/5/57359/w960_57359-2312.png)
DTC P2135 TP SENSOR
EC-957
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Disconnect electric throttle c
ontrol actuator (1) harness connec-
tor.
- : Vehicle front
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 2 and ground with CONSULT-III or tester.
OK or NG OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 3.
CHECK THROTTLE POSITI ON SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric thrott le control actuator terminal 4 and ECM terminal 36.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 4.
CHECK THROTTLE PO SITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between the following; electric throttle control actuator terminal 1 and ECM terminal 33,
electric throttle control actuator terminal 3 and ECM terminal 34.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5.
CHECK THROTTLE POSITION SENSOR
Refer to EC-958, " Component Inspection " .
OK or NG OK >> GO TO 7.
NG >> GO TO 6. 6.
REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-572, " Throttle Valve Closed Position Learning " . PBIB3325E
Voltage: Approximately 5V
PBIB3311E
Continuity should exist.
Continuity should exist.
Page 2314 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-958< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2135 TP SENSOR
3. Perform EC-572, " Idle Air Volume Learning " .
>> INSPECTION END 7.
CHECK INTERMITTENT INCIDENT
Refer to EC-626 .
>> INSPECTION END
Co NISSAN LATIO 2009 Service Repair Manual EC-958< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2135 TP SENSOR
3. Perform EC-572, " Idle Air Volume Learning " .
>> INSPECTION END 7.
CHECK INTERMITTENT INCIDENT
Refer to EC-626 .
>> INSPECTION END
Co](/manual-img/5/57359/w960_57359-2313.png)
EC-958< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2135 TP SENSOR
3. Perform EC-572, " Idle Air Volume Learning " .
>> INSPECTION END 7.
CHECK INTERMITTENT INCIDENT
Refer to EC-626 .
>> INSPECTION END
Component Inspection INFOID:0000000004537495
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-572, " Throttle Valve Closed Position Learning " .
3. Turn ignition switch ON.
4. Set shift lever to D position (A/T, CVT) or 1st position (M/T).
5. Check voltage between ECM terminals 33 (TP sensor 1 signal), 34 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next step.
7. Perform EC-572, " Throttle Valve Closed Position Learning " .
8. Perform EC-572, " Idle Air Volume Learning " .
Removal and Installation INFOID:0000000004537496
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-141 .
Terminal Accelerator pedal Voltage
33
(Throttle position sensor 1) Fully released More than 0.36V
Fully depressed Less than 4.75V
34
(Throttle position sensor 2) Fully released Less than 4.75V
Fully depressed More than 0.36V PBIB3038E
Page 2315 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P2138 APP SENSOR
EC-959
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P2138 APP SENSOR
Component Description INFOID:0000000004537497
The accelerator pedal position sen NISSAN LATIO 2009 Service Repair Manual DTC P2138 APP SENSOR
EC-959
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P2138 APP SENSOR
Component Description INFOID:0000000004537497
The accelerator pedal position sen](/manual-img/5/57359/w960_57359-2314.png)
DTC P2138 APP SENSOR
EC-959
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P2138 APP SENSOR
Component Description INFOID:0000000004537497
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerato r pedal is determined by the ECM
receiving the signal from the accelerator pedal positi on sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004537498
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis Logic INFOID:0000000004537499
This self-diagnosis has the on e trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-874 .
FAIL-SAFE MODE When the malfunction is detected, ECM ent ers fail-safe mode and the MIL lights up. PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1 • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 3.9 - 4.8V
CLSD THL POS • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138 Accelerator
pedal posi-
tion sensor circuit range/
performance Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2. • Harness or connector
(APP sensor 1 and 2 circuit is open or
shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(EVAP control system pressure sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
• Accelerator pedal position sensor (APP sensor 1 and 2)
• Crankshaft position sensor (POS)
• EVAP control system pressure sensor
• Refrigerant pressure sensor
Page 2316 of 4331
Diagnosis Procedure " .
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 2317 of 4331
DTC P2138 APP SENSOR
EC-961
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

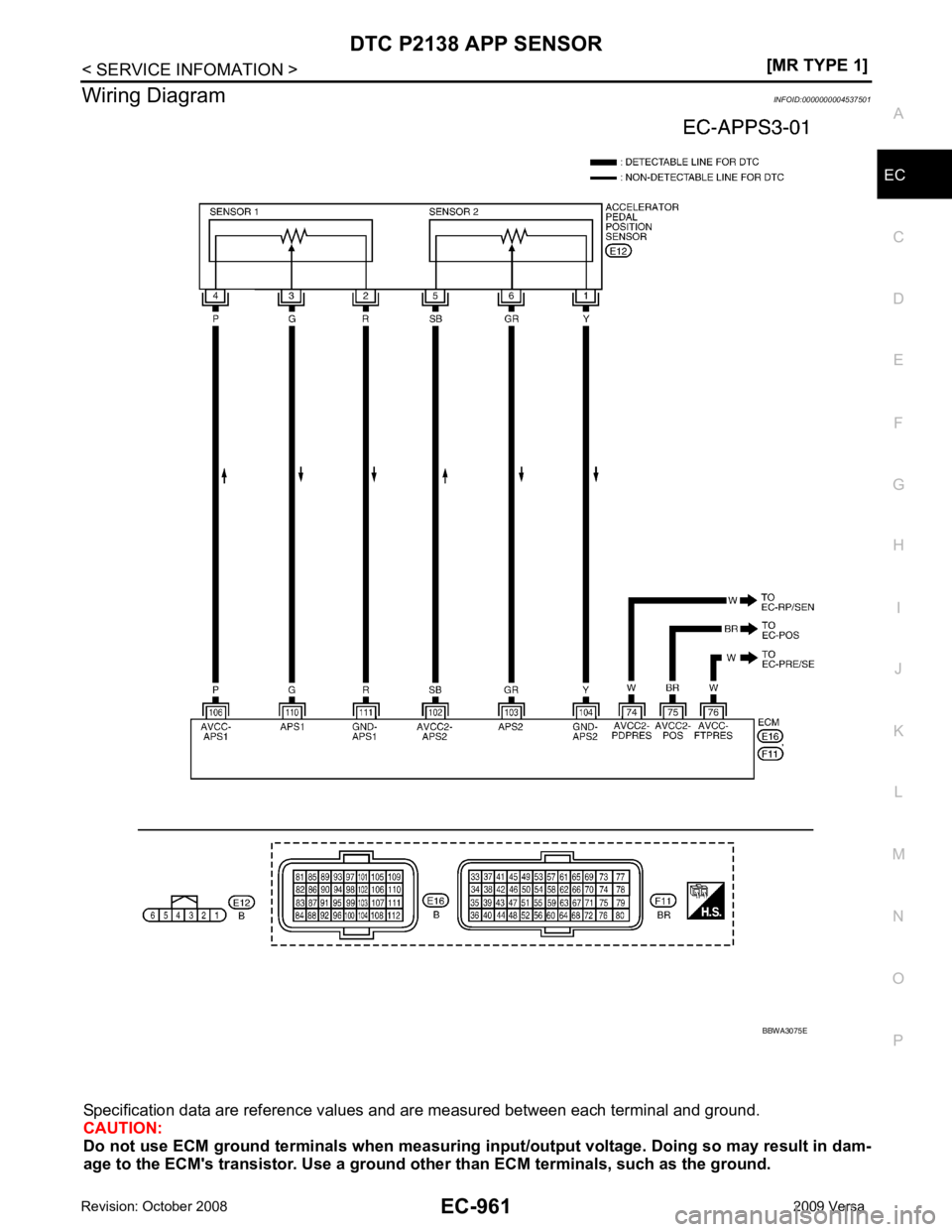

Wiring Diagram
INFOID:0000000004537501
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground. BBWA3075E
Page 2318 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-962< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2138 APP SENSOR
Diagnosis Procedure INFOID:00000000045375021.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws NISSAN LATIO 2009 Service Repair Manual EC-962< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2138 APP SENSOR
Diagnosis Procedure INFOID:00000000045375021.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws](/manual-img/5/57359/w960_57359-2317.png)
EC-962< SERVICE INFOMATION >
[MR TYPE 1]
DTC P2138 APP SENSOR
Diagnosis Procedure INFOID:00000000045375021.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-632, " Ground Inspection " .
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
74 W Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
75 BR Sensor power supply
[Crankshaft position sensor
(POS)] [Ignition switch: ON]
Approximately 5V
76 W EVAP control system pres-
sure sensor power supply [Ignition switch: ON]
Approximately 5V
102 SB Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
103 GR Accelerator pedal position
sensor 2 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released 0.3 - 0.6V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 1.95 - 2.4V
104 Y Sensor ground
(APP sensor 2) [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V
106 P Sensor power supply
(APP sensor 1) [Ignition switch: ON]
Approximately 5V
110 G Accelerator pedal position
sensor 1 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released 0.6 - 0.9V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 3.9 - 4.7V
111 R Sensor ground
(APP sensor 1) [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V:
Vehicle front
1. Body ground E24 2. Engine ground F9 3. Engine ground F16
4. Body ground E15 BBIA0698E
Page 2319 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P2138 APP SENSOR
EC-963
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK APP SENSOR 1 POWER SUPPLY CI NISSAN LATIO 2009 Service Repair Manual DTC P2138 APP SENSOR
EC-963
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK APP SENSOR 1 POWER SUPPLY CI](/manual-img/5/57359/w960_57359-2318.png)

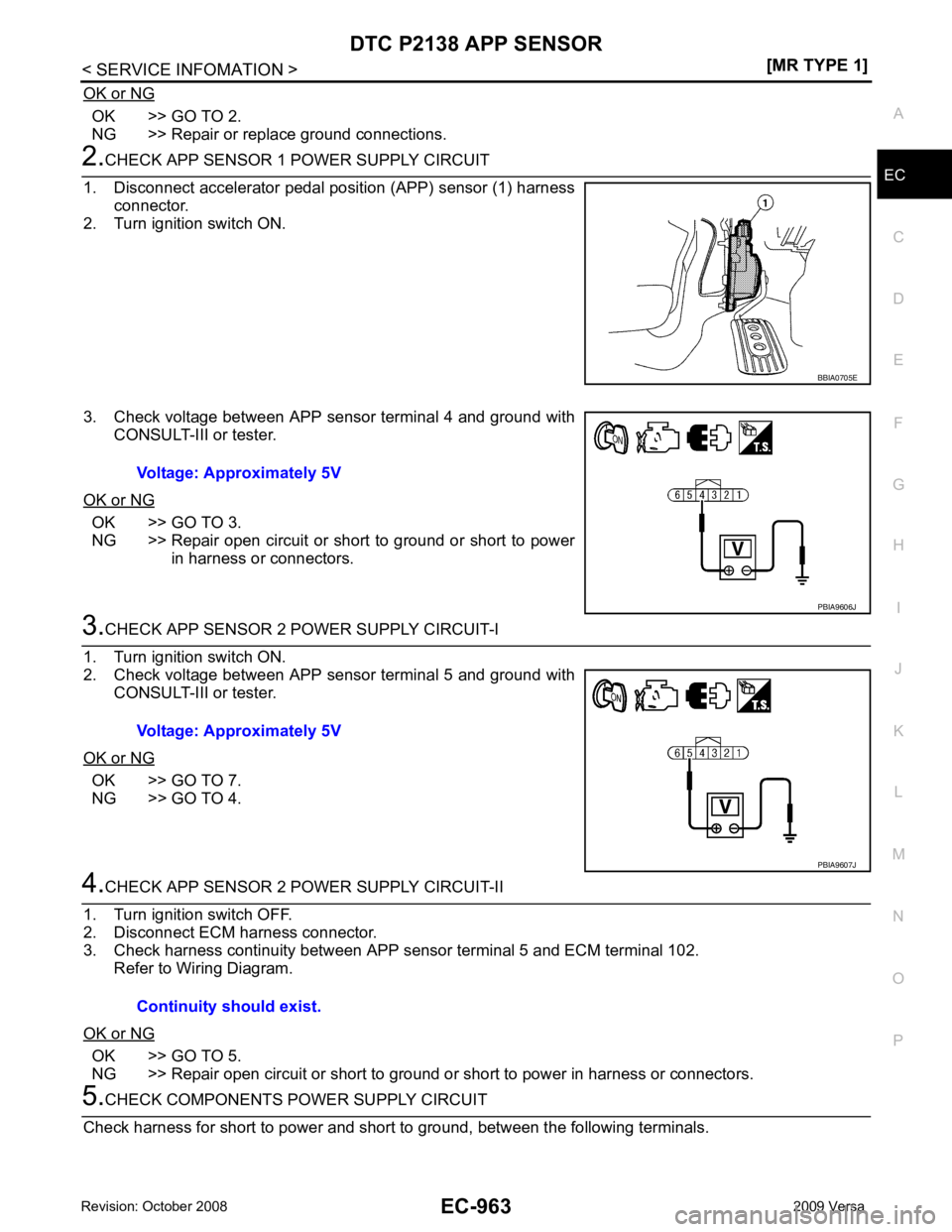

DTC P2138 APP SENSOR
EC-963
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 4 and ground with CONSULT-III or tester.
OK or NG OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. 3.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Turn ignition switch ON.
2. Check voltage between APP sensor terminal 5 and ground with
CONSULT-III or tester.
OK or NG OK >> GO TO 7.
NG >> GO TO 4. 4.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 5 and ECM terminal 102.
Refer to Wiring Diagram.
OK or NG OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5.
CHECK COMPONENTS POWER SUPPLY CIRCUIT
Check harness for short to power and short to ground, between the following terminals. BBIA0705E
Voltage: Approximately 5V
PBIA9606J
Voltage: Approximately 5V
PBIA9607J
Continuity should exist.
Page 2320 of 4331

OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors. Component Inspection " .)
• EVAP control system pressure sensor (Refer to EC-831, " Component Inspection " .)
• Refrigerant pressure sensor (Refer to MTC-37 .)
OK or NG OK >> GO TO 11.
NG >> Replace malfunctioning component. OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Component Inspection " .
OK or NG OK >> GO TO 11.
NG >> GO TO 10. Accelerator Pedal Released Position Learning " .
3. Perform EC-572, " Throttle Valve Closed Position Learning " .
4. Perform EC-572, " Idle Air Volume Learning " .
ECM terminal Sensor terminal
Reference Wiring Diagram
74 Refrigerant pressure sensor terminal 3 EC-1006, " Wiring Diagram "
75 Crankshaft position sensor (POS) terminal 1
EC-776, " Wiring Diagram "
76 EVAP control system pressure sensor terminal 3
EC-834, " Wiring Diagram "
102 APP sensor terminal 5
EC-961, " Wiring Diagram "
