Page 3905 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 3906 of 4331

NISSAN LATIO 2009 Service Repair Manual MTC N O P

Page 3907 of 4331

NISSAN LATIO 2009 Service Repair Manual Monitor item name “operation or unit” Contents IGN ON SW “ON/OFF” Displays “IGN Position (ON)/OFF, ACC Position (OFF)” status as judged from ignition switch signal through the CAN communi

Page 3908 of 4331

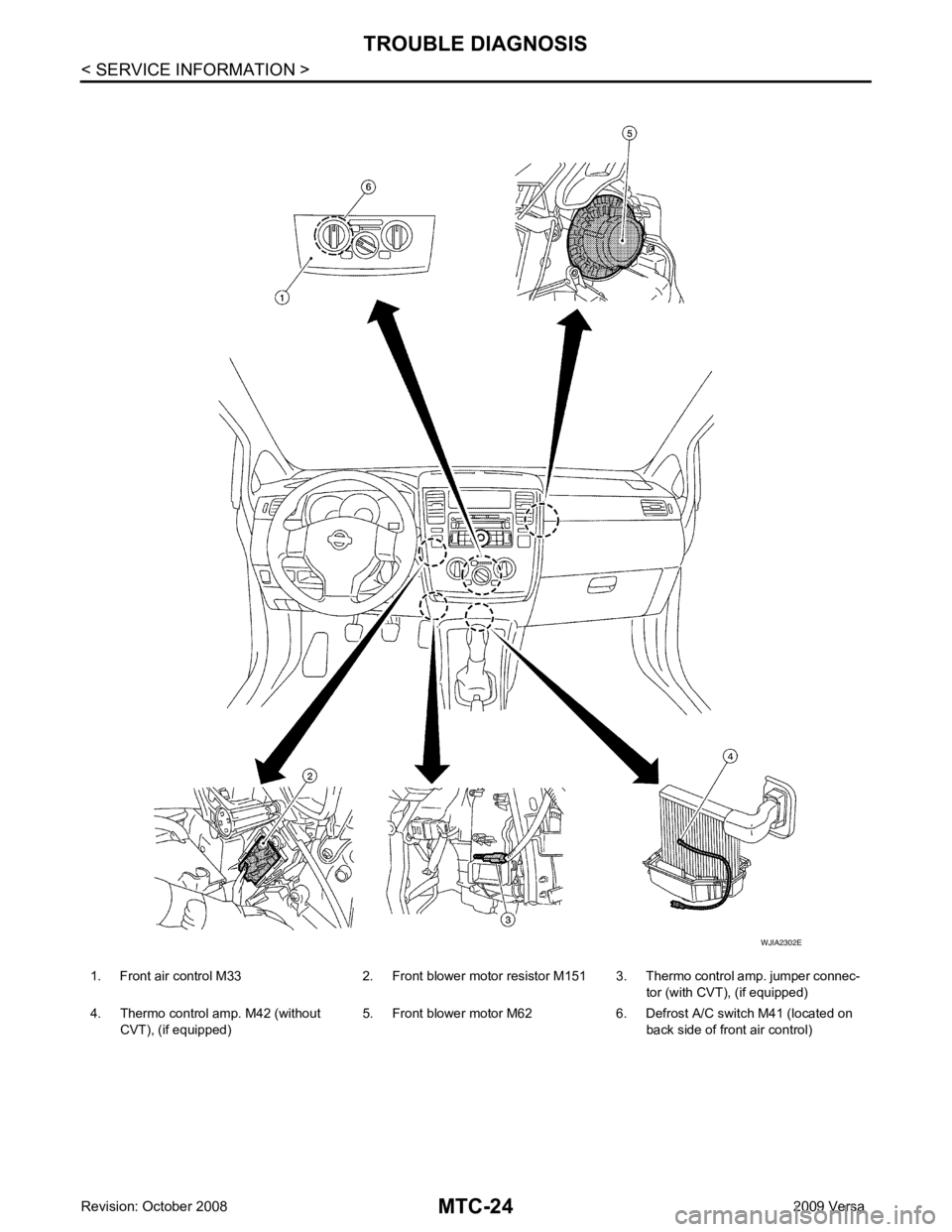

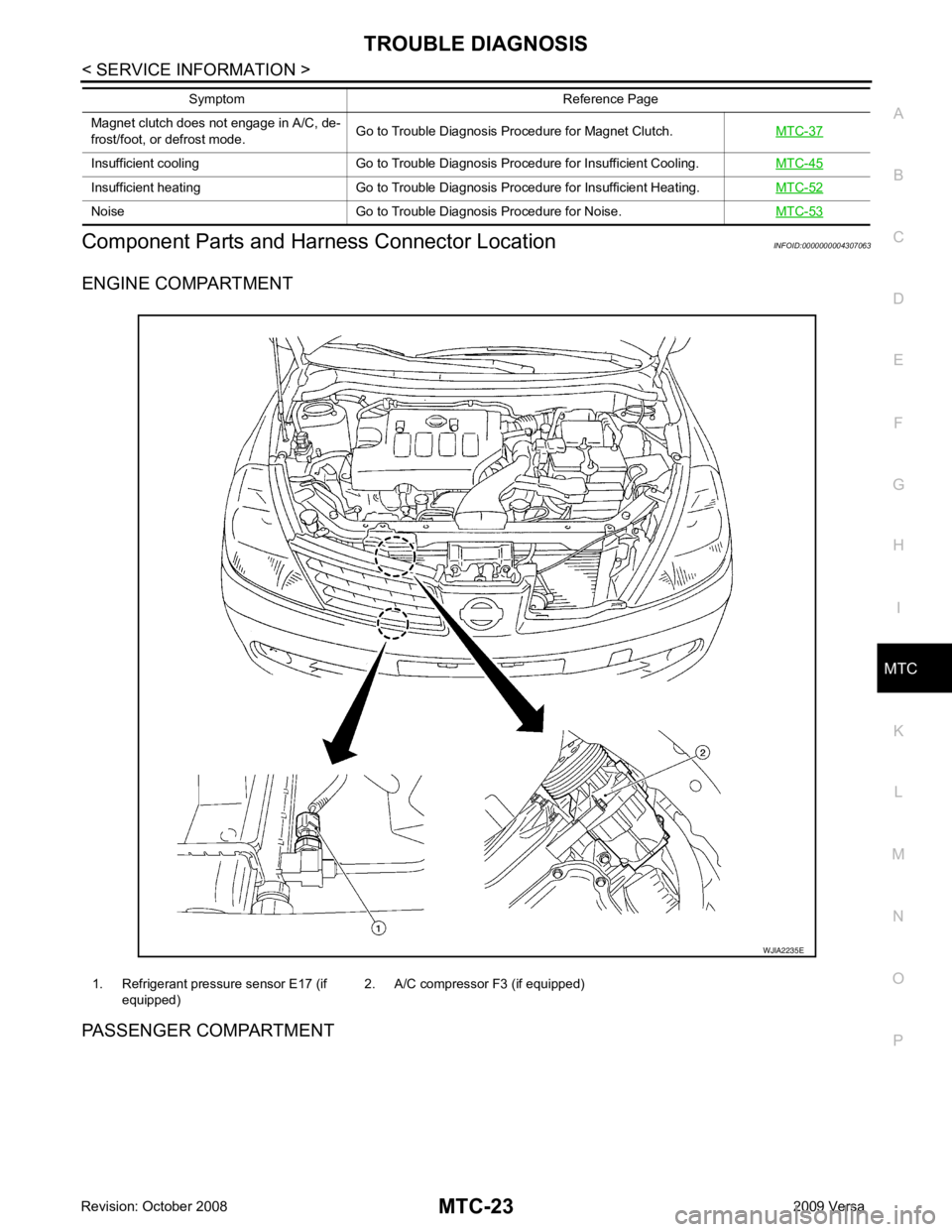

NISSAN LATIO 2009 Service Repair Manual MTC N O P Component Parts and Har ness Connector Location INFOID:0000000004307063 ENGINE COMPARTMENT PASSENGER COMPARTMENT Magnet clutch does not engage in A/C, de- frost/foot, or defrost mode. Go to

Page 3909 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 3910 of 4331

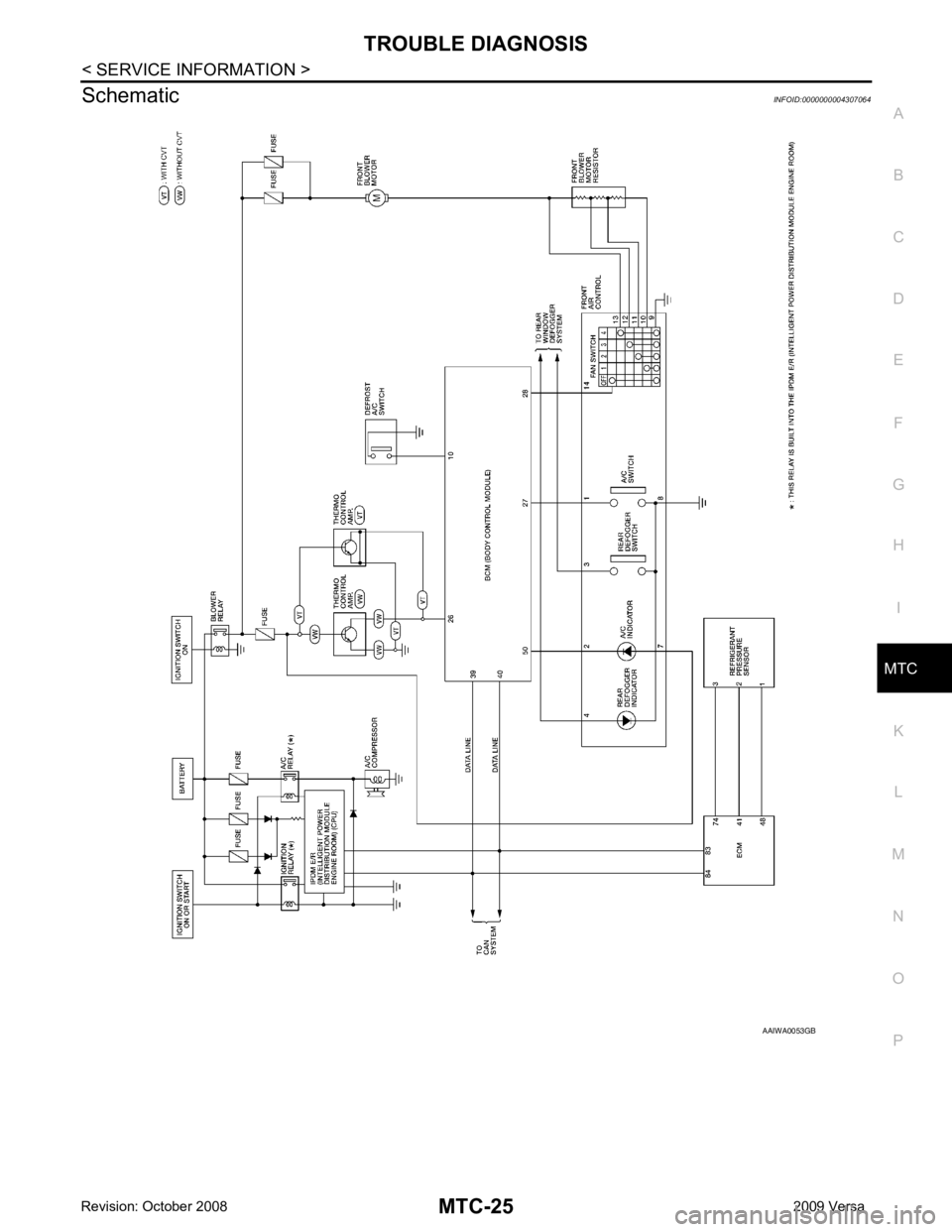

NISSAN LATIO 2009 Service Repair Manual MTC N O P Schematic INFOID:0000000004307064

Page 3911 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 3912 of 4331

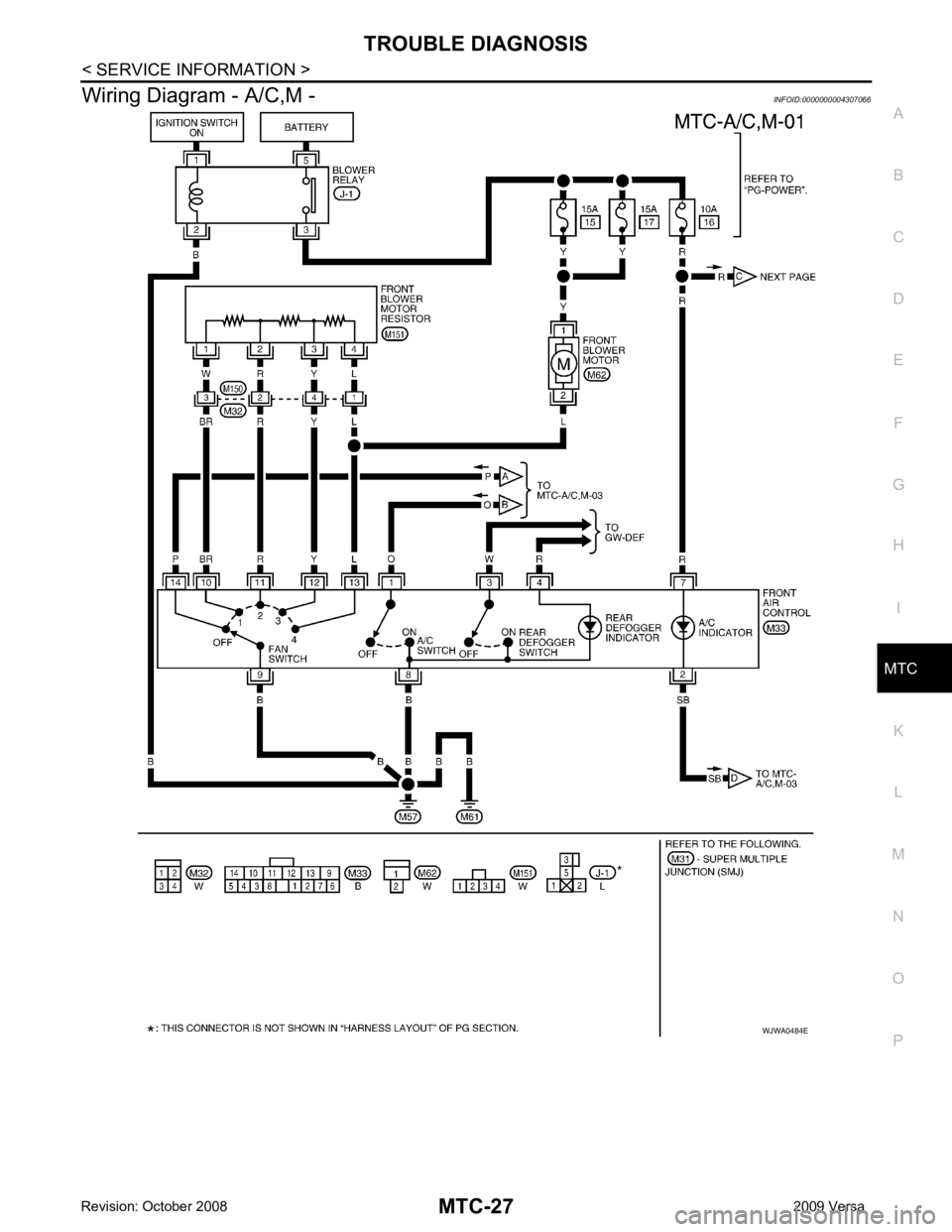

NISSAN LATIO 2009 Service Repair Manual MTC N O P Wiring Diagram - A/C,M - INFOID:0000000004307066
