Page 1545 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
YES >> Go to
EC-190, " Diagnosis Procedure " .
NO >> GO TO 3. YES >> Go to
EC-190, " Diagnosis Procedure " .
NO >> INSPECTION END ENG SPEED 1,000 - 3,200 rpm
VHCL SPEED SE More than 40 km/h

Page 1546 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-190< COMPONENT DIAGNOSIS >
[HR16DE]
P0131 A/F SENSOR 1
Wiring Diagram INFOID:0000000004780710
Diagnosis Procedure INFOID:00000000047801131.
CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. C

Page 1547 of 4331

NISSAN LATIO 2009 Service Repair Manual P0131 A/F SENSOR 1
EC-191
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection. 2.
CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPL

Page 1548 of 4331

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " .
Is the inspection result normal? YES >> GO TO 6.
NO >> Repair or replace.

Page 1549 of 4331

NISSAN LATIO 2009 Service Repair Manual P0132 A/F SENSOR 1
EC-193
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P0132 A/F SENSOR 1
Description INFOID:0000000004780114
The air fuel ratio (A/F) sensor 1 is a planar one-cell

P0132 A/F SENSOR 1
EC-193
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P0132 A/F SENSOR 1
Description INFOID:0000000004780114
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise m easurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800 °C
(1,472 °F).
DTC Logic INFOID:0000000004780115
DTC DETECTION LOGIC To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal is not inordinately high.
DTC CONFIRMATION PROCEDURE 1.
PRECONDITIONING
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idle.
>> GO TO 2. 2.
CHECK A/F SENSOR FUNCTION
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” in “DAT A MONITOR” mode with CONSULT-III.
3. Check “A/F SEN1 (B1)” indication.
With GST
Follow the procedure “With CONSULT-IIII” above.
Is the indication constantly approx. 5 V? JMBIA0112GB
PBIB3354E
DTC No. Trouble diagnosis name DTC detecting condition Possible Cause
P0132 Air fuel ratio (A/F) sensor 1
circuit high voltage • The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 5 V. • Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)
• A/F sensor 1

Page 1550 of 4331

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " .
NO >> GO TO 3. YES >> Go to
EC-195, " Diagnosis Procedure " .
NO >> INSPECTION END ENG SPEED 1,000 - 3,200 rpm
VHCL SPEED SE More th an 40 km/h (25 mph)
B/FUEL SCHDL 1.5 - 9.0

Page 1551 of 4331

NISSAN LATIO 2009 Service Repair Manual P0132 A/F SENSOR 1
EC-195
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O

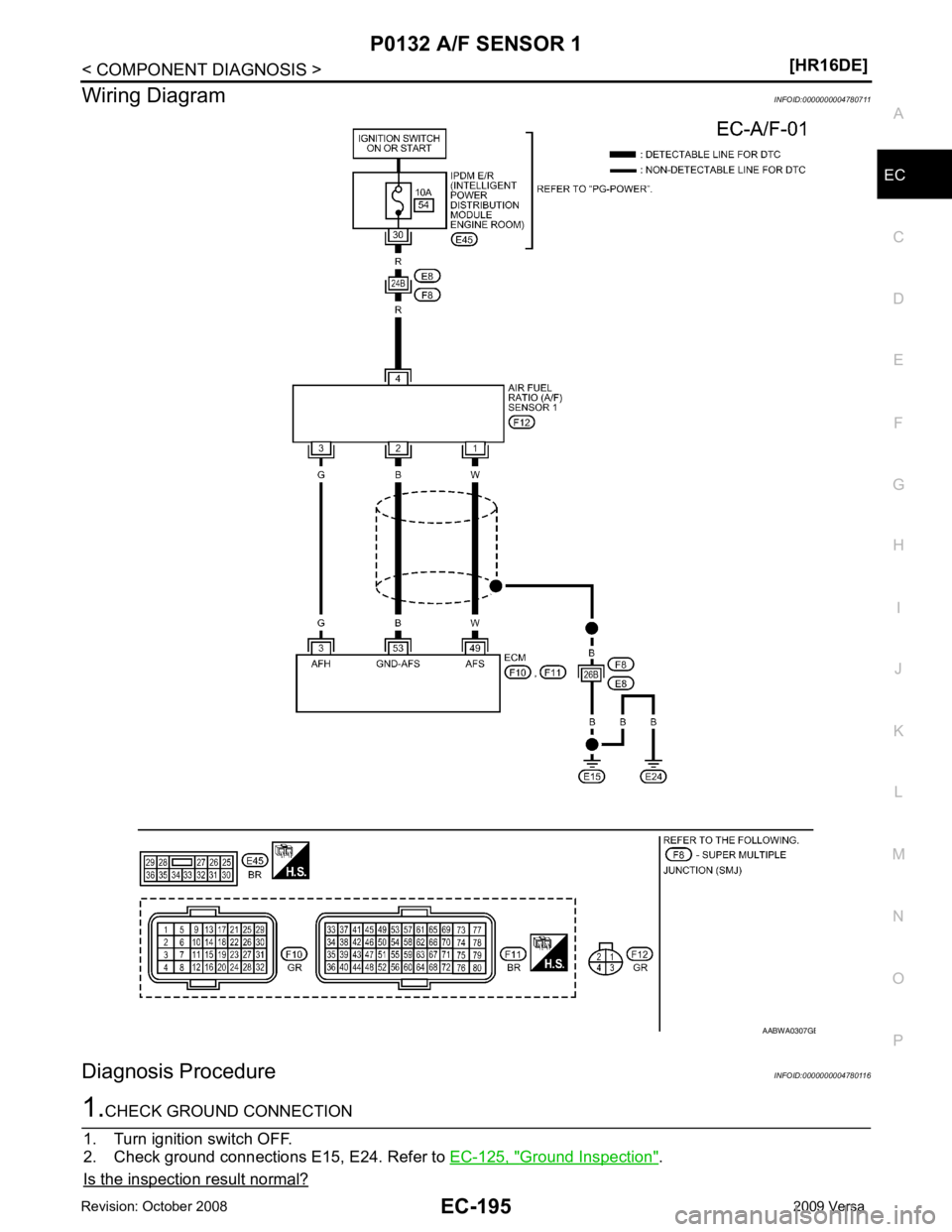

Wiring Diagram
INFOID:0000000004780711
Diagnosis Procedure INFOID:00000000047801161.
CHECK GROUND CONNECTION

Page 1552 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-196< COMPONENT DIAGNOSIS >
[HR16DE]
P0132 A/F SENSOR 1
YES >> GO TO 2.
NO >> Repair or replace ground connection. 2.
CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F senso
