Page 3425 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 3426 of 4331

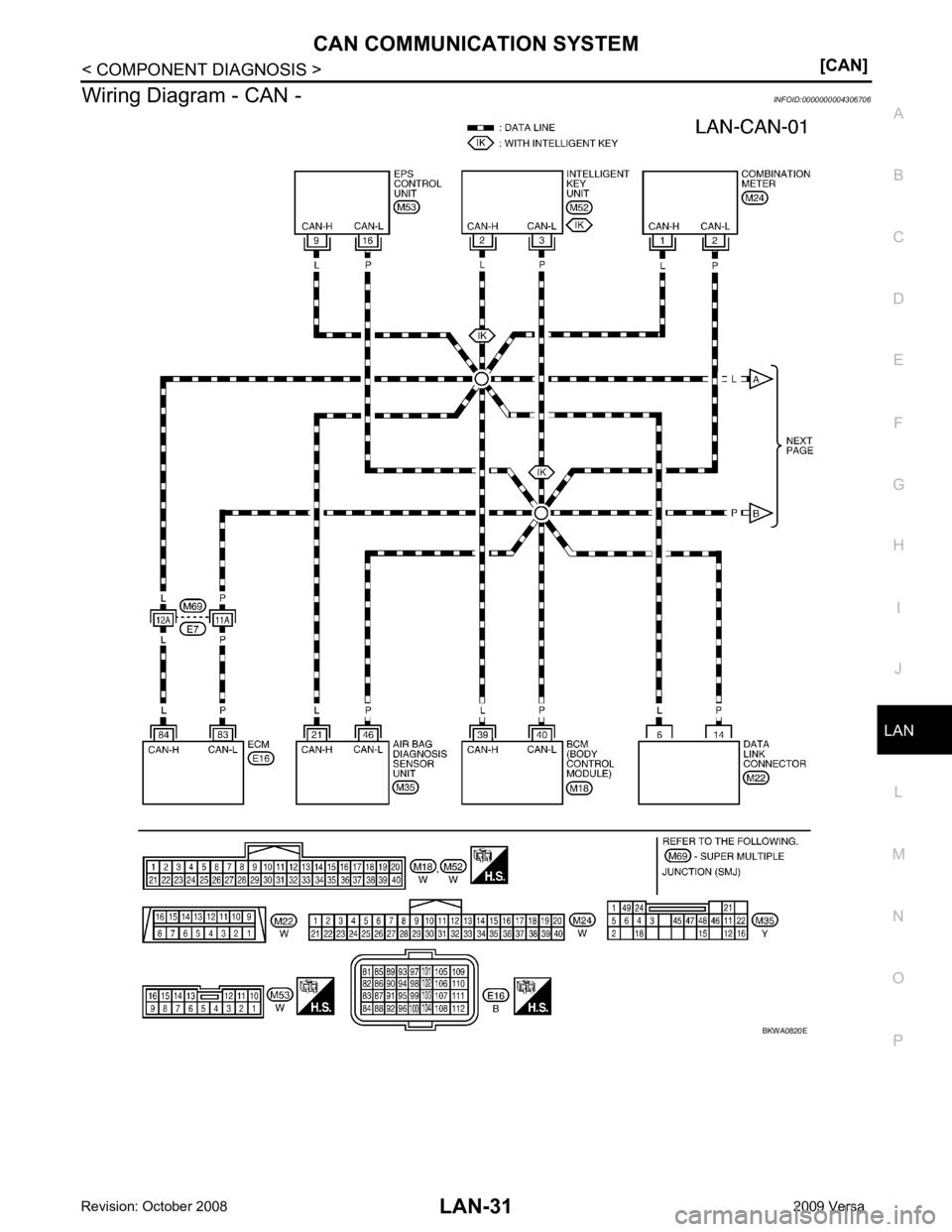

NISSAN LATIO 2009 Service Repair Manual LAN N O P Wiring Diagram - CAN - INFOID:0000000004306706

Page 3427 of 4331

NISSAN LATIO 2009 Service Repair Manual G

Page 3428 of 4331

NISSAN LATIO 2009 Service Repair Manual LAN N O P MALFUNCTION AREA CHART Main Line INFOID:0000000004306707 Branch Line INFOID:0000000004306708 Short Circuit INFOID:0000000004306709 Malfunction Area Reference Main line between data link conn

Page 3429 of 4331

NISSAN LATIO 2009 Service Repair Manual YES >> GO TO 2. NO >> Repair the terminal and connector. YES >> GO TO 3. NO >> Repair the main line between the data link connector and the harness connector M69.YES (Present error)>>Check CAN system

Page 3430 of 4331

NISSAN LATIO 2009 Service Repair Manual LAN N O P MAIN LINE BETWEEN DLC AND TCM CIRCUIT Diagnosis Procedure INFOID:0000000004306711YES >> GO TO 2. NO >> Repair the terminal and connector. YES >> GO TO 3. NO >> Repair the main line between

Page 3431 of 4331

NISSAN LATIO 2009 Service Repair Manual YES >> GO TO 2. NO >> Repair the terminal and connector. YES >> GO TO 3. NO >> Repair the ECM branch line. How to Check Vehicle Type " . • MR TYPE 1: EC-628, " Diagnosis Procedure " • MR TYPE 2:

Page 3432 of 4331

NISSAN LATIO 2009 Service Repair Manual LAN N O P BCM BRANCH LINE CIRCUIT Diagnosis Procedure INFOID:0000000004306713YES >> GO TO 2. NO >> Repair the terminal and connector. YES >> GO TO 3. NO >> Repair the BCM branch line. BCM Power Supply
