Page 1273 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT N O P OK >> GO TO 3. NG >> Repair. Checking CVT Fluid " . OK or NG OK >> GO TO 4. NG >> Refill CVT fluid. Inspections before Trouble Diagnosis " . OK or NG OK >> GO TO 5. NG >> Check the malfuncti

Page 1274 of 4331

NISSAN LATIO 2009 Service Repair Manual Inspections before Trouble Diagnosis " . Inspections before Trouble Diagnosis " . OK or NG OK >> GO TO 6. NG >> Check the malfunctioning item. Refer to CVT-219, " Inspections before Trouble Diagnosis

Page 1275 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT N O P NG >> Check the malfunctioning item. Refer to CVT-219, " Inspections before Trouble Diagnosis " . Check at Idle " . OK or NG OK >> INSPECTION END NG >> GO TO 7. TCM Terminal and Reference

Page 1276 of 4331

NISSAN LATIO 2009 Service Repair Manual TCM Terminal and Reference Value " . 2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector. OK or NG OK >> Replace the transaxle assembly. Refer to CVT-354, " R

Page 1277 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT N O P OK >> Replace the transaxle assembly. Refer to CVT-354, " Removal and Installation " . NG >> Repair or replace damaged parts. Vehicle Speed Does Not Change in "D" Position INFOID:0000000

Page 1278 of 4331

NISSAN LATIO 2009 Service Repair Manual CONSULT-III Function (TRANSMISSION) " . Is any malfunction detec ted by self-diagnosis?YES >> Check the malfunctioning system. Refer to CVT-230, " CONSULT-III Function (TRANSMISSION) " . NO >> GO TO

Page 1279 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT SHIFT LOCK SYSTEM CVT-335 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P CVT SHIFT LOCK SYSTEM Description INFOID:0000000004305812 • The mechanical key interlock mechanism a

Page 1280 of 4331

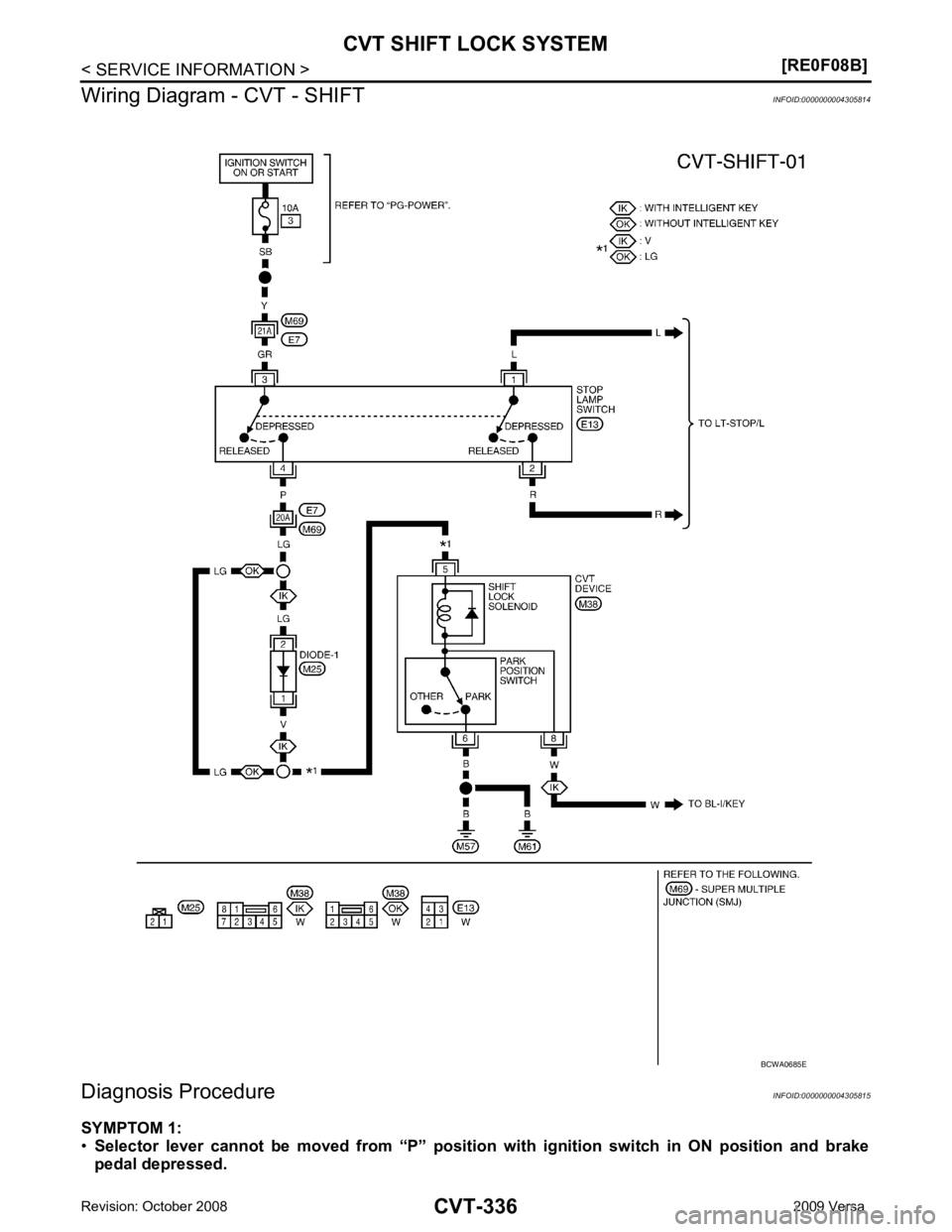

NISSAN LATIO 2009 Service Repair Manual CVT-336< SERVICE INFORMATION > [RE0F08B] CVT SHIFT LOCK SYSTEM Wiring Diagram - CVT - SHIFT INFOID:0000000004305814 Diagnosis Procedure INFOID:0000000004305815 SYMPTOM 1: • Selector lever cannot
