Page 3145 of 4331

NISSAN LATIO 2009 Service Repair Manual Com-
ponent " .
• Prior to installing the upper torque rod, apply a light coat of silicone lubricant (A) to the washer facing side of the bushing inner tube as
shown.
NOTE:
• Apply silicone lubr

Page 3146 of 4331

NISSAN LATIO 2009 Service Repair Manual EM
NP
O

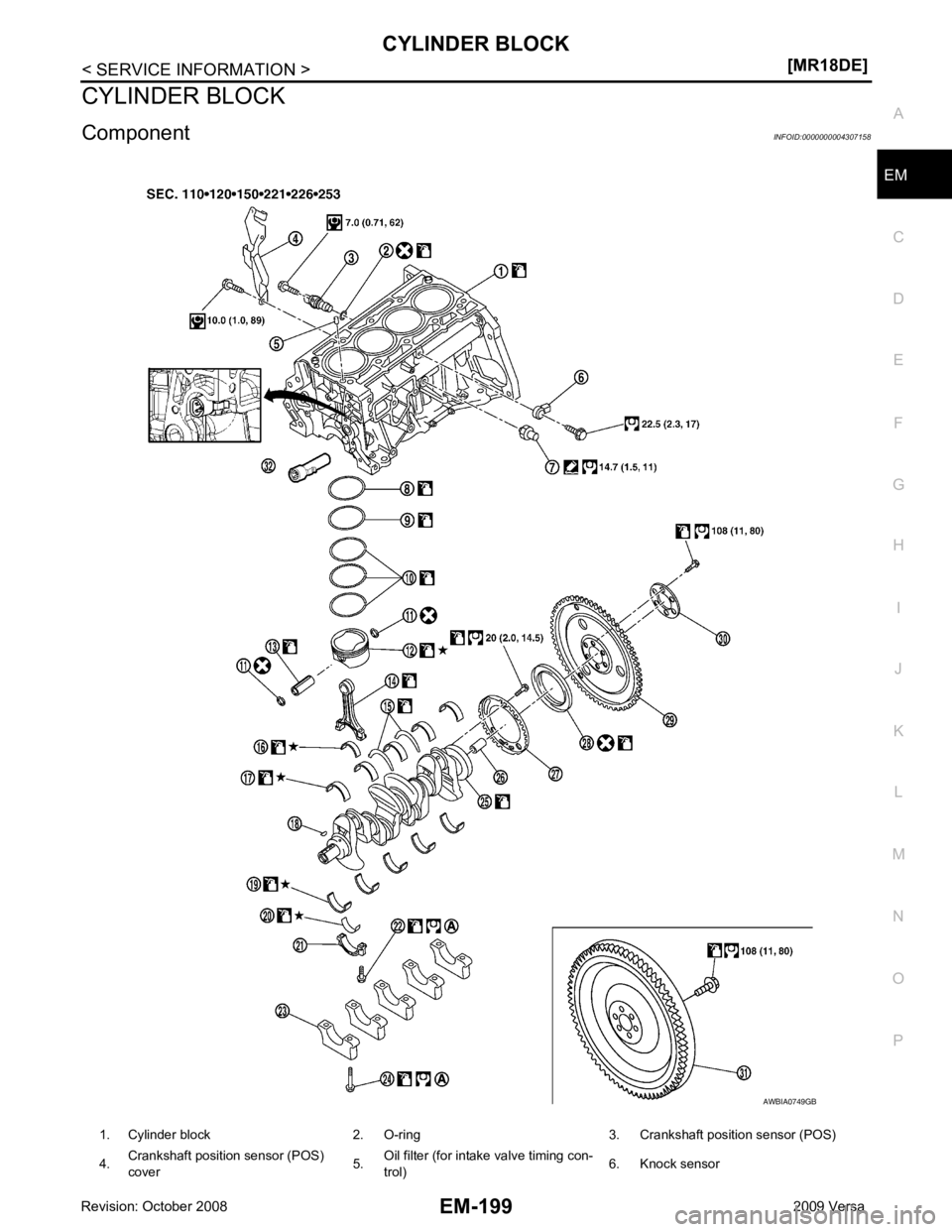

CYLINDER BLOCK
Component INFOID:0000000004307158
1. Cylinder block 2. O-ring 3. Crankshaft position sensor (POS)
4. Crankshaft position sensor (POS)
cover 5.Oil filter (for intake valve timin

Page 3147 of 4331

NISSAN LATIO 2009 Service Repair Manual .
2. Install engine to engine stand as follows;
a. Remove flywheel (M/T models) or drive plate (1) (A/T or CVT models).
• Secure flywheel (M/T models) or drive plate (A/T or CVT mod-
els)

.
2. Install engine to engine stand as follows;
a. Remove flywheel (M/T models) or drive plate (1) (A/T or CVT models).
• Secure flywheel (M/T models) or drive plate (A/T or CVT mod-
els) using Tool (A), and remove bolts.
CAUTION:
Be careful not to damage or scratch drive plate (A/T or CVT
models) and contact surface for clutch disc of flywheel (M/T
models).
NOTE:
Figure shows drive plate (1) (A/T or CVT models)
b. Lift the engine with a hoist to install it onto widely use engine stand. CAUTION:
• Use the engine stand that has a load capacity [approximately 135 kg (298 lb) or more] large
enough for supporting the engine weight.
• If the load capacity of stand is not adequate, remo ve the following parts beforehand to reduce the poten-
tial risk of overturning stand.
- Exhaust manifold; Refer to EM-144 .
- Rocker cover; Refer to EM-153 .
NOTE:
The figure shows an example of widely used engine stand (A)
that can support mating surface of transaxle with flywheel (M/T
models) or drive plate (A/T or CVT models) removed.
CAUTION:
Before removing the hanging chains, make sure the engine
stand is stable and there is no risk of overturning.
3. Remove oil pan (upper and lower). Refer to EM-147 .
4. Remove cylinder head. Refer to EM-185 .
5. Remove thermostat housing. Refer to CO-45 .
6. Remove knock sensor. CAUTION:
Carefully handle knock sensor avoiding shocks.
7. Remove crankshaft position sensor (POS) cover and crankshaft position sensor (POS).
7. Oil pressure switch 8. Top ring 9. Second ring
10. Oil ring 11. Snap ring 12. Piston
13. Piston pin 14. Connecting rod 15. Thrust bearing
16. Connecting rod bearing upper 17. Main bearing upper 18. Crankshaft key
19. Main bearing lower 20. Connecting rod bearing lower 21. Connecting rod bearing cap
22. Connecting rod bolt 23. Main bearing cap 24. Main bearing cap bolt
25. Crankshaft 26. Pilot converter (A/T or CVT models) 27. Signal plate
28. Rear oil seal 29. Drive plate (A/T or CVT models) 30. Reinforcement plate (A/T or CVT models)
31. Flywheel (M/T models) 32. Block heater (Canada only) A. Refer to EM-200 PBIC3227J

Page 3148 of 4331

NISSAN LATIO 2009 Service Repair Manual EM
NP
O
CAUTION:
• Avoid impacts such as a dropping.
• Never disassemble.
• Keep it away from metal particles.
• Never place sensor in a location wher e it is exposed to magnetism.
8. Remove o

Page 3149 of 4331

NISSAN LATIO 2009 Service Repair Manual Inspection After Disassembly " .
20. Remove main bearing caps. • Tap main bearing caps lightly using a suitable tool for removal. CAUTION:
Be careful not to damage the mounting surface.
21. Remove c

Page 3150 of 4331

NISSAN LATIO 2009 Service Repair Manual EM
NP
O
• Be careful not to damage or deform signal plate (1)
mounted on rear end of crankshaft (A).
• When setting crankshaft on a flat floor surface, use a
block of wood to

Page 3151 of 4331

NISSAN LATIO 2009 Service Repair Manual PBIC3236J

Page 3152 of 4331

NISSAN LATIO 2009 Service Repair Manual EM
NP
O
15. Tighten main bearing cap bolts in two steps in numerical order
as shown.
CAUTION:
Measure the angle in step 2 us ing Tool (A). Do not measure
visually.
• After installing bolts

Load next 8 pages
