Page 1001 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT
N
O P
ENG SPEED (rpm) — X
SLIP REV (rpm) — X Difference between engine speed and primary
pulley speed
GEAR RATIO — X
G SPEED (G) — —
ACC PEDAL OPEN (0.0/8) X X Degree of opening for ac

Page 1002 of 4331

Page 1003 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT
N
O P
Diagnosis Procedure
without CONSULT-III INFOID:0000000004666893
OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-612, " Generic Scan Tool (GST) Function " .
Frequency (Hz) — —

Page 1004 of 4331

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”.

Page 1005 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT
N
O P

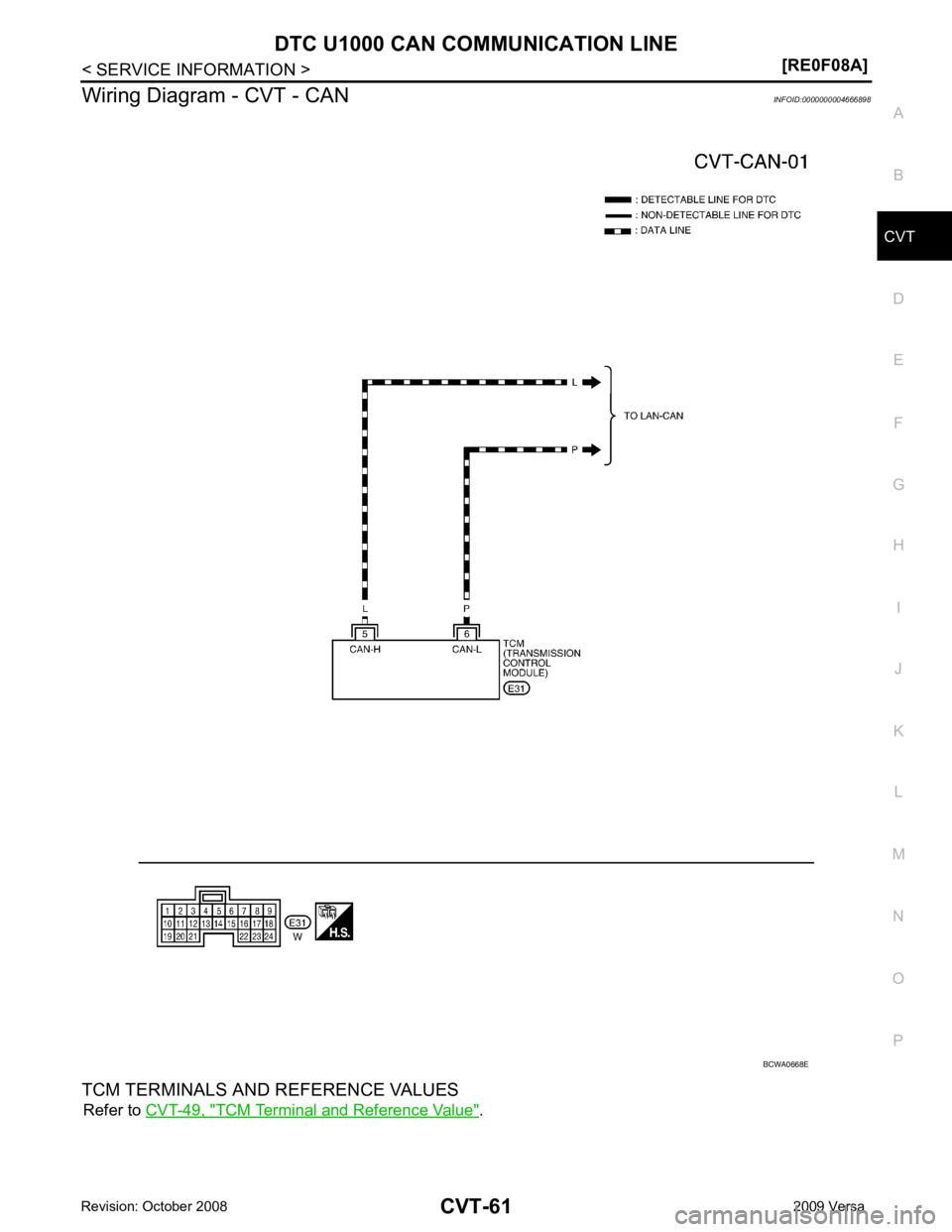

Wiring Diagram - CVT - CAN
INFOID:0000000004666898
TCM TERMINALS AND REFERENCE VALUES Refer to CVT-49, " TCM Terminal and Reference Value " .

Page 1006 of 4331

NISSAN LATIO 2009 Service Repair Manual “ U1000 CAN COMM CIRCUIT ” indicated?
YES >> Print out CONSULT-III screen, go to LAN section. Refer to
LAN-26, " CAN System Specification
Chart " .
NO >> INSPECTION END

Page 1007 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT
N
O P
DTC U1010 TRANSMISSION
CONTROL MODULE (CAN)
Description INFOID:0000000004666900
CAN (Controller Area Network) is a serial communication li ne for real time application. It is an on-vehicle

CVT
N
O P
DTC U1010 TRANSMISSION
CONTROL MODULE (CAN)
Description INFOID:0000000004666900
CAN (Controller Area Network) is a serial communication li ne for real time application. It is an on-vehicle mul-
tiplex communication line with high data communica tion speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicl e, and each control unit shares information and links
with other control units during operation (not independent ). In CAN communication, control units are con-
nected with 2 communication lines (CAN-H line, CAN-L li ne) allowing a high rate of information transmission
with less wiring. Each control unit transmits/recei ves data but selectively reads required data only.
On Board Diagnosis Logic INFOID:0000000004666901
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “U1010 CONTROL UNIT(CAN)” with CONSULT-III is detected when TCM cannot
communicate to other control units.
Possible Cause INFOID:0000000004666902
Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation Procedure INFOID:0000000004666903
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESU LTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine and wait for at least 6 seconds.
4. If DTC is detected, go to CVT-63, " Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnosis Procedure INFOID:0000000004666904DTC Confirmation Procedure " .
Is any malfunction of the “ U1010 CONTROL UNIT(CAN) ” indicated?
YES >> Replace the TCM. Refer to
CVT-170, " Removal and Installation " .
NO >> INSPECTION END

Page 1008 of 4331

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " .
Item name Condition Display value
STRTR RLY OUT Selector lever in “P
” and “N” positions ON
Selector lever in other positions OFF
STRTR RLY MON Selector lever in “P
