NISSAN LATIO 2009 Service Repair Manual GW-42< SERVICE INFORMATION >
POWER WINDOW SYSTEM
NG >> Repair or replace harness.

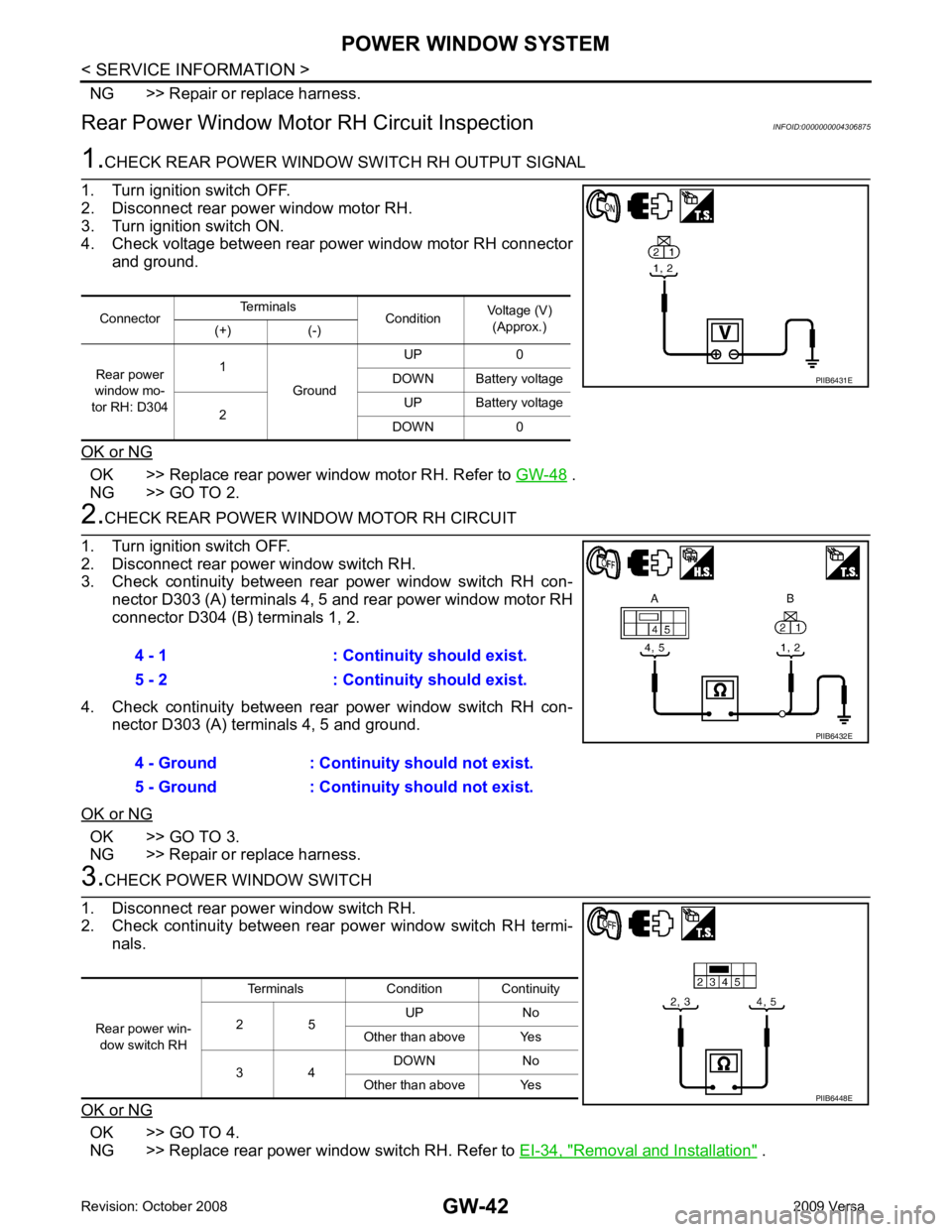

Rear Power Window Moto r RH Circuit Inspection INFOID:00000000043068751.
CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIG

Page 3346 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P OK >> Replace main power window and door lock/unlock switch. Refer to
EI-34, " Removal and Installa-
tion " .
NG >> Repair or replace harness. Connector
TerminalConnector
Terminal Continuit

Page 3347 of 4331

NISSAN LATIO 2009 Service Repair Manual Removal and Installation " .
2. Disconnect the front door speaker electrical connector.
3. Position the sealing screen aside. NOTE:
If sealing the screen is reused, cut the butyl-tape so th

Page 3348 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P
6. While holding the door window, raise it at the rear end to pull the
glass out of the sash toward the inside of the door.
7. Remove the lower sash (rear) bolt, move the lower end

Page 3349 of 4331

NISSAN LATIO 2009 Service Repair Manual PIIB2633J

Page 3350 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P
• Removal and installation of the door glass.
• Removal and installation of the door glass run.
Initialization After installing each component to the vehicle, follow the steps below.
1. D

GW
N
O P
• Removal and installation of the door glass.
• Removal and installation of the door glass run.
Initialization After installing each component to the vehicle, follow the steps below.
1. Disconnect the battery negative c able or disconnect power window switch's harness connector tempo-
rarily, then reconnect after at least 1 minute.
2. Turn ignition switch ON.
3. Open the window to its full width by operating the power window switch. (Exclude this procedure if the
window is already fully opened).
4. Move the power window switch in the up direction (auto close position) and hold. Keep holding the switch
even when window is completely closed, and then release after 4 seconds have passed.
5. Inspection of the ant i-pinch system function.
NOTE:
Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the
system.
INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM 1. Fully open the door glass.
2. Place a wooden piece (wooden hammer handle, etc.) near the fully closed position.
3. Carry out fully closing operation with auto up switch.
• Check that the glass reverses without pinching the w ooden piece, is lowered approx.150 mm (5.91 in) or for
2 seconds and then stops.
• The glass should not be raised with power window main switch while it is reversing or lowering.
CAUTION:
• Use care to avoid being pinched du ring the inspection. Do not use a hand, etc. in place of the
wooden piece durin g the inspection.
• Check that auto up function is normal before inspection, following the system initialization.
FITTING INSPECTION • Make sure the glass is securely fit into the glass run groove.
• Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and make sure the clearance to the sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide rail
bolts, and the glass and guide rail bolts to correct the glass position.
• Make sure the system is normal with raising and lowering the glass.

Page 3351 of 4331

NISSAN LATIO 2009 Service Repair Manual Removal and Installation " .
2. Disconnect the harness connector of rear door speaker.
3. Position the sealing screen aside. NOTE:
If the sealing screen is reused, cut the butyl-tape so tha

Page 3352 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P
5. Pull out the partition glass in the direction as shown.
6. Raise or lower until lower glass bolts can be seen. • For power windows, temporarily reconnect the power window switch to oper
