Page 2505 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
DTC U1001 CAN COMMUNICATION LINE
Description INFOID:0000000004477028
CAN (Controller Area Network) is a serial communication li ne for real time application. It is an on-vehicle mul-
tiplex co

Page 2506 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1150< SERVICE INFOMATION >
[MR TYPE 2]
DTC U1001 CAN COMMUNICATION LINE
Wiring Diagram INFOID:0000000004477031
Diagnosis Procedure INFOID:0000000004477032
Go to LAN-26, " CAN System Specification

Page 2507 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0011 IVT CONTROL
EC-1151
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0011 IVT CONTROL
Description INFOID:0000000004499967
SYSTEM DESCRIPTION
*: This signal is sent to

Page 2508 of 4331

NISSAN LATIO 2009 Service Repair Manual .
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing

.
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confir m that battery voltage is between 10V and 16V at
idle.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to the normal operating temperature.
3. Maintain the following conditions for at least 10 consecutive seconds. Hold the accelerator pedal as steady as possible.
4. Let engine idle for 10 seconds.
5. If 1st trip DTC is detected, go to EC-1153, " Diagnosis Procedure " .
If 1st trip DTC is not detected, go to next step.
6. Maintain the following conditions for at least 20 consecutive seconds.
7. If 1st trip DTC is detected, go to EC-1153, " Diagnosis Procedure " .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0011
0011 Intake valve timing control
performance There is a gap between angle of target and
phase-control angle degree. • Crankshaft position sensor (POS)
• Camshaft position sensor (PHASE)
• Intake valve timing control solenoid valve
• Accumulation of debris to the signal pick-up portion of the camshaft
• Timing chain installation
• Foreign matter caught in the oil groove for in- take valve timing control Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function ENG SPEED 1,200 - 2,000 rp
m (A constant rotation is maintained.)
COOLAN TEMP/S More than 60 °C (140 °F)
B/FUEL SCHDL More than 3.87 msec
Shift lever P or N position (A/T, CVT)
Neutral position (M/T)
ENG SPEED 2,000 - 3,175 rpm (A cons tant rotation is maintained.)
COOLAN TEMP/S 70 - 105 °C (158 - 221 °F)
Shift lever 1st or 2nd position
Driving location Driving vehicle uphill
(Increased engine load will help maintain the driving
conditions required for this test.)

Page 2509 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0011 IVT CONTROL
EC-1153
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
WITH GST
Follow the procedure “WITH CONSULT-III” above.

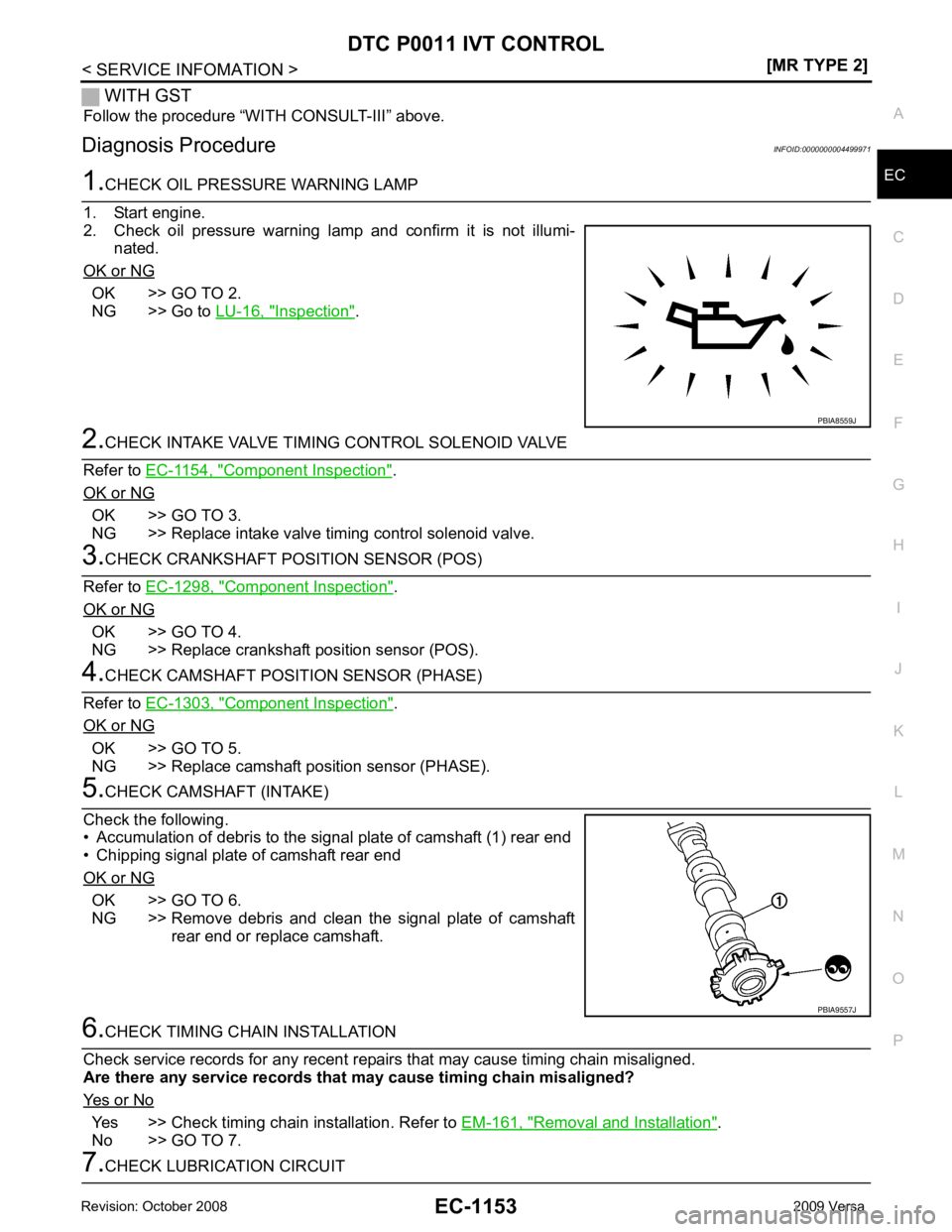

Diagnosis Procedure INFOID:000000000449997

Page 2510 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1154< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0011 IVT CONTROL

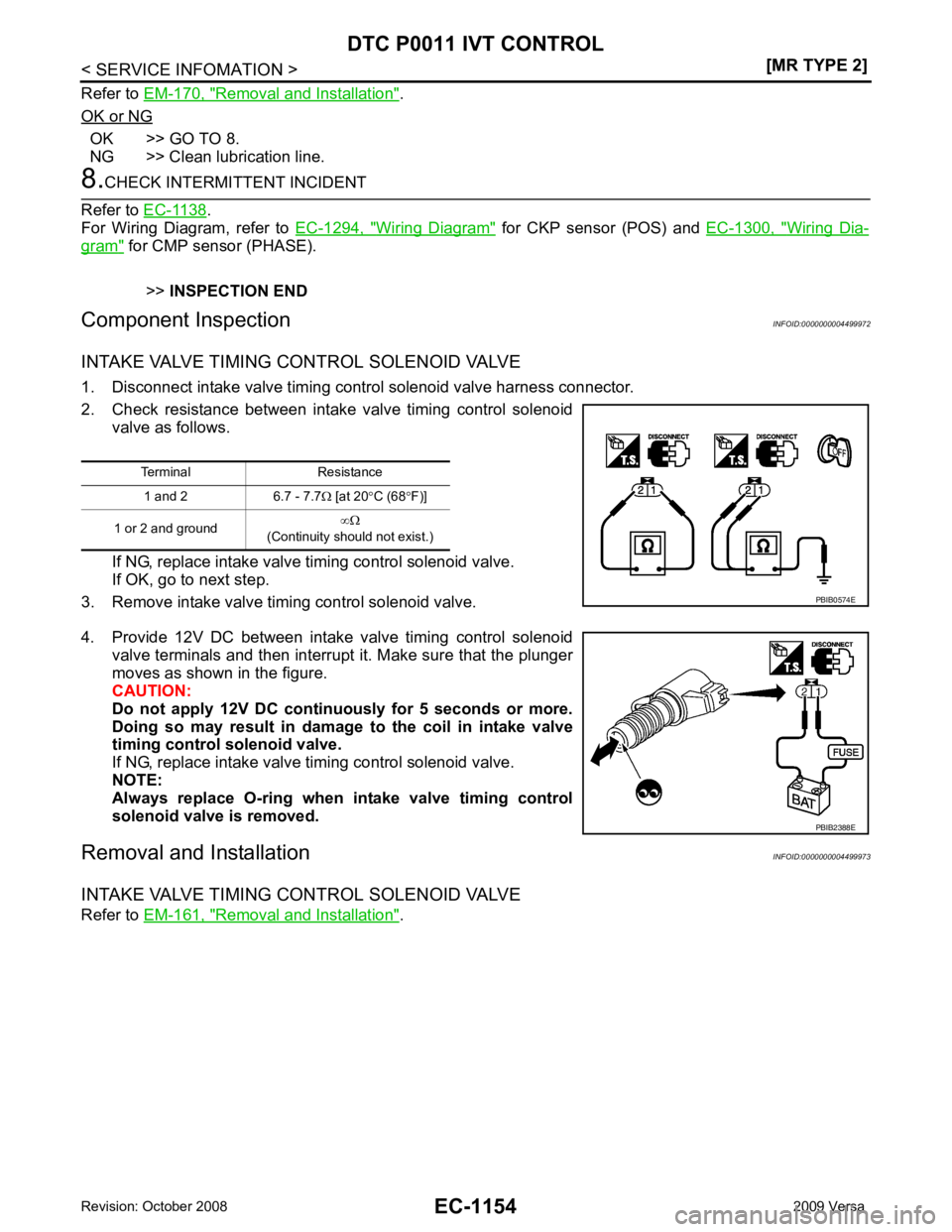

Refer to EM-170, " Removal and Installation " .
OK or NG OK >> GO TO 8.
NG >> Clean lubrication line. 8.
CHECK INTERMITTENT INCIDENT
Re

Page 2511 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O

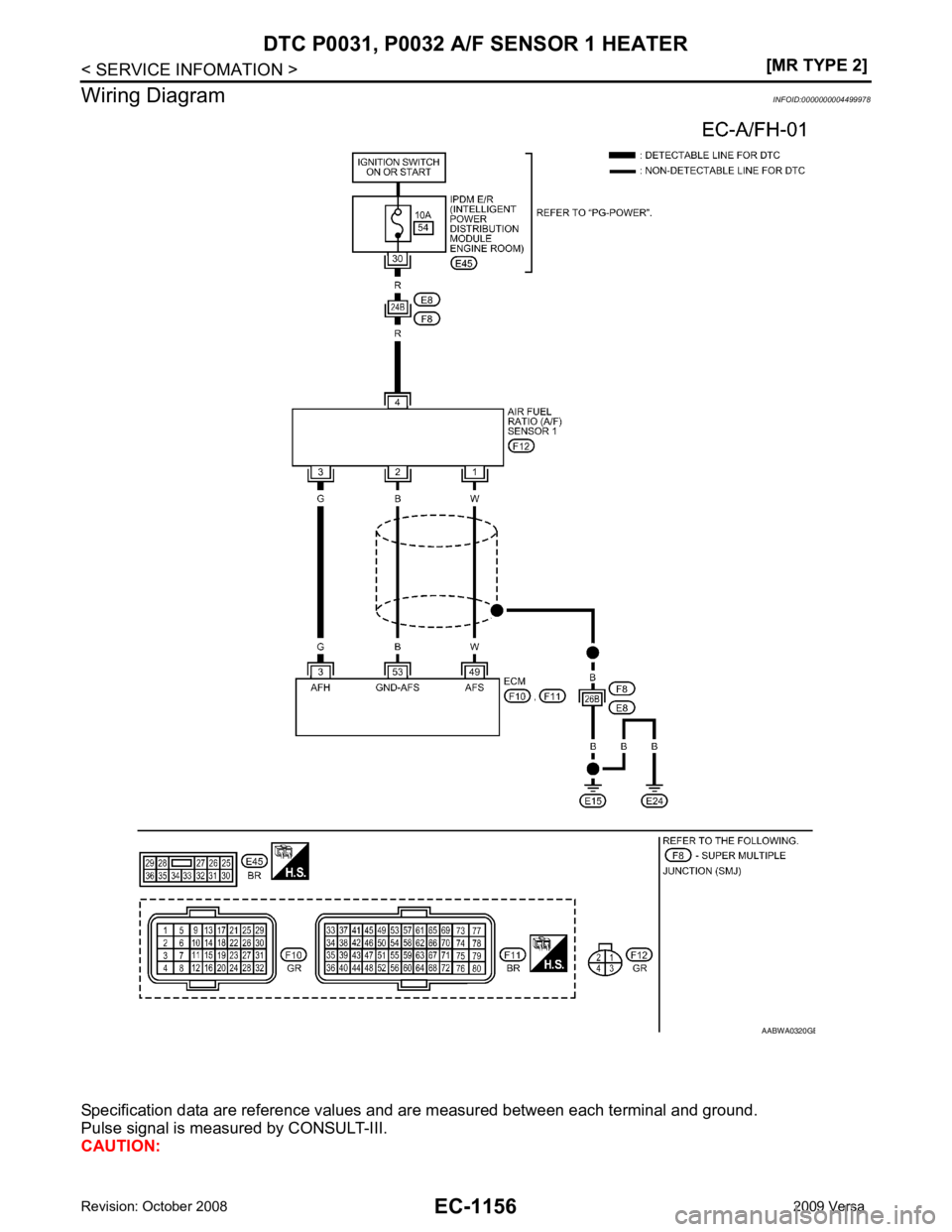

DTC P0031, P0032 A/F SENSOR 1 HEATER
Description INFOID:0000000004499974
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the

EC
NP
O
DTC P0031, P0032 A/F SENSOR 1 HEATER
Description INFOID:0000000004499974
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004499975
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004499976
DTC Confirmation Procedure INFOID:0000000004499977
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 10.5V and 16V at
idle.
1. Start engine and run it for at least 10 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1157, " Diagnosis Procedure " .
Sensor Input Signal to ECM
ECM
function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater control Air fuel ratio (A/F) sensor 1 heat-
er
Mass air flow sensor Amount of intake air MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR (B1) • Engine: After warming up, idle the engine
(More than 140 seconds after starting engine.) 4 - 100%DTC No.
Trouble diagnosis
name DTC detecting condition Possible cause
P0031
0031 Air fuel ratio (A/F)
sensor 1 heater
control circuit low The current amperage in
the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
[An excessively low voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.] • Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater circuit is
open or shorted.]
• Air fuel ratio (A/F) sensor 1 heater
P0032
0032 Air fuel ratio (A/F)
sensor 1 heater
control circuit high The current amperage in
the air fuel ratio (A/F)
sensor 1 heater circuit is out of the normal range.
[An excessively high voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.] • Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater circuit is
shorted.]
• Air fuel ratio (A/F) sensor 1 heater

Page 2512 of 4331

NISSAN LATIO 2009 Service Repair Manual B
