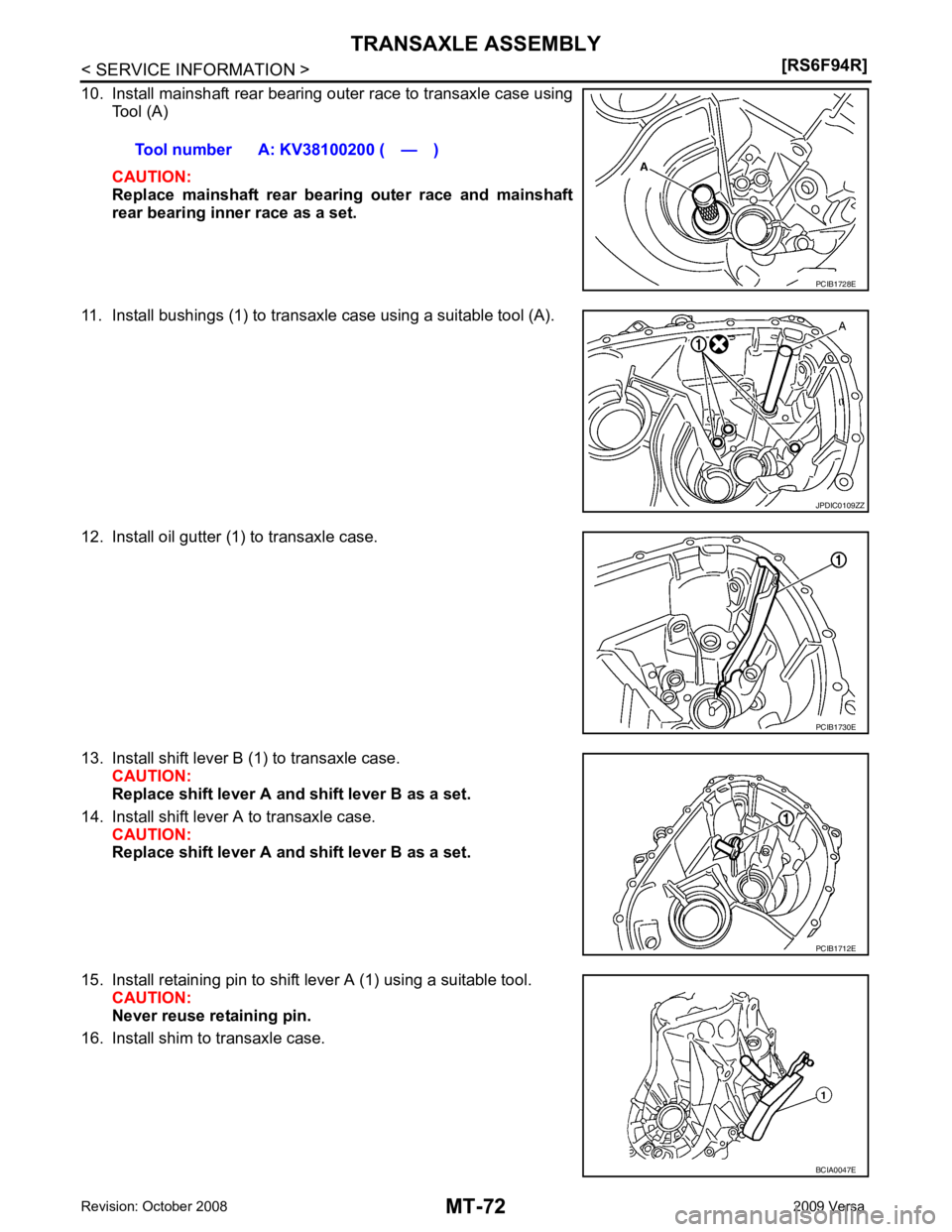

Page 3865 of 4331

MT
N
O P

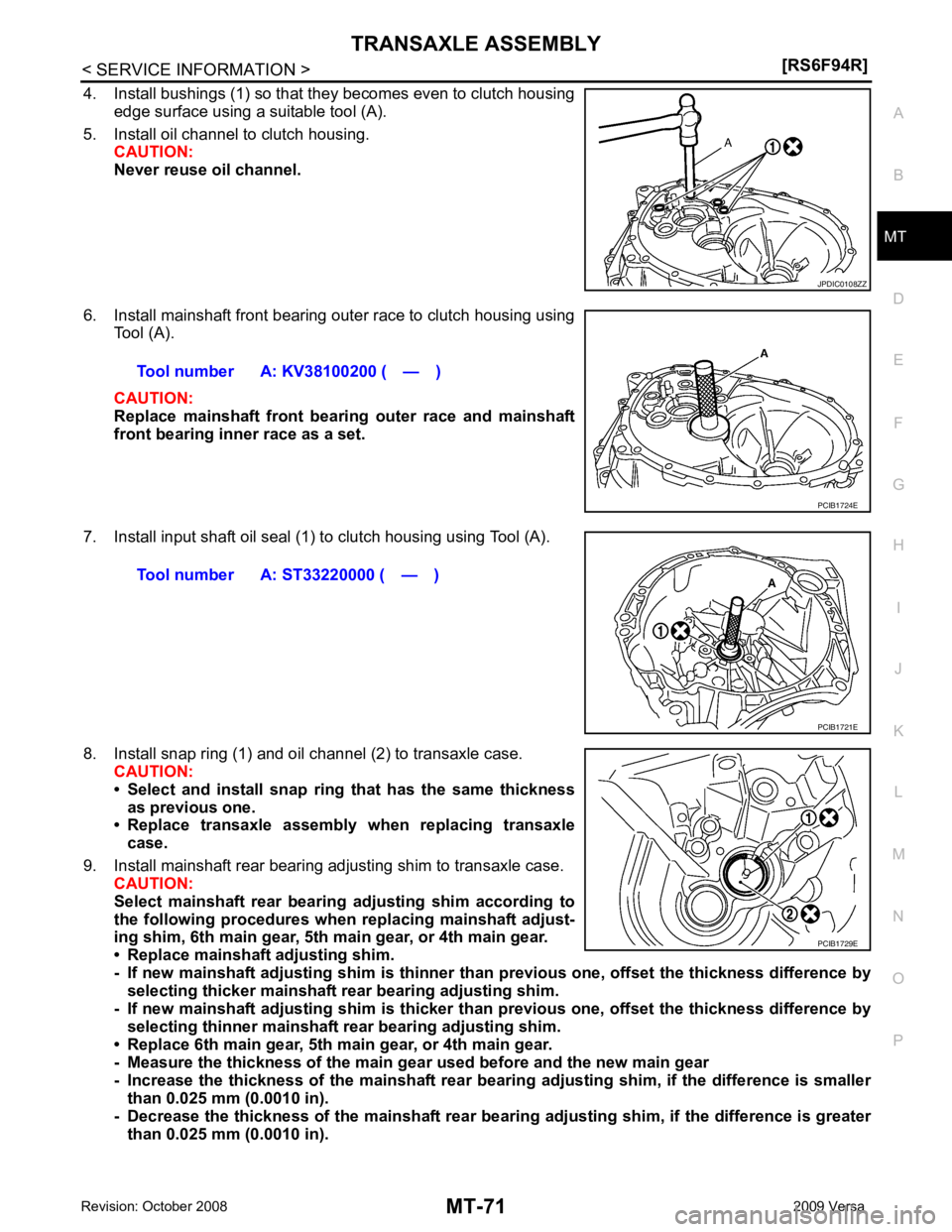

4. Install bushings (1) so that they becomes even to clutch housing
edge surface using a suitable tool (A).
5. Install oil channel to clutch housing. CAUTION:
Never reuse oil channel.
6. Install mainshaft front bearing outer race to clutch housing using Tool (A).
CAUTION:
Replace mainshaft front bearing outer race and mainshaft
front bearing inner race as a set.
7. Install input shaft oil seal (1) to clutch housing using Tool (A).
8. Install snap ring (1) and oil channel (2) to transaxle case. CAUTION:
• Select and install snap ring that has the same thickness
as previous one.
• Replace transaxle assembly wh en replacing transaxle
case.
9. Install mainshaft rear bearing adjusting shim to transaxle case. CAUTION:
Select mainshaft rear bearin g adjusting shim according to
the following procedures when replacing mainshaft adjust-
ing shim, 6th main gear, 5th main gear, or 4th main gear.
• Replace mainshaft adjusting shim.
- If new mainshaft adjusting shim is thinner th an previous one, offset the thickness difference by
selecting thicker mainshaft r ear bearing adjusting shim.
- If new mainshaft adjusting shim is thicker th an previous one, offset the thickness difference by
selecting thinner mainshaft r ear bearing adjusting shim.
• Replace 6th main gear, 5th main gear, or 4th main gear.
- Measure the thickness of the main gear used before and the new main gear
- Increase the thickness of the mainshaft rear bearin g adjusting shim, if the difference is smaller
than 0.025 mm (0.0010 in).
- Decrease the thickness of the mainshaft rear beari ng adjusting shim, if the difference is greater
than 0.025 mm (0.0010 in).
Page 3866 of 4331
JPDIC0109ZZ
PCIB1730E
BCIA0047E
Page 3867 of 4331
MT
N
O P

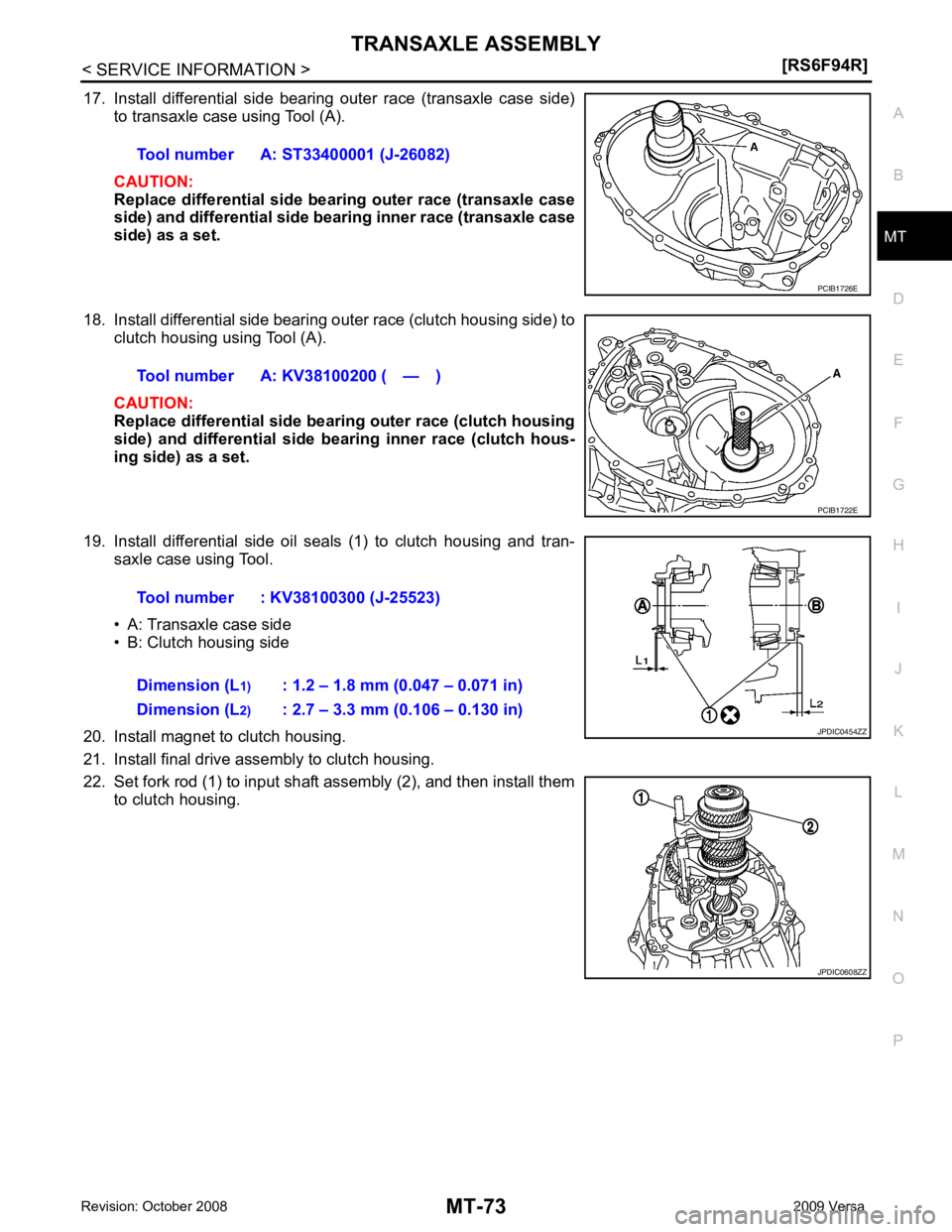

17. Install differential side bearing outer race (transaxle case side)
to transaxle case using Tool (A).
CAUTION:
Replace differential side bearing outer race (transaxle case
side) and differential side bearing inner race (transaxle case
side) as a set.
18. Install differential side bearing outer race (clutch housing side) to clutch housing using Tool (A).
CAUTION:
Replace differential side bearing outer race (clutch housing
side) and differential side bearing inner race (clutch hous-
ing side) as a set.
19. Install differential side oil seals (1) to clutch housing and tran- saxle case using Tool.
• A: Transaxle case side
• B: Clutch housing side
20. Install magnet to clutch housing.
21. Install final drive assembly to clutch housing.
22. Set fork rod (1) to input shaft assembly (2), and then install them to clutch housing.Tool number A: ST33400001 (J-26082)
JPDIC0608ZZ
Page 3868 of 4331
![NISSAN LATIO 2009 Service Repair Manual MT-74< SERVICE INFORMATION >
[RS6F94R]
TRANSAXLE ASSEMBLY

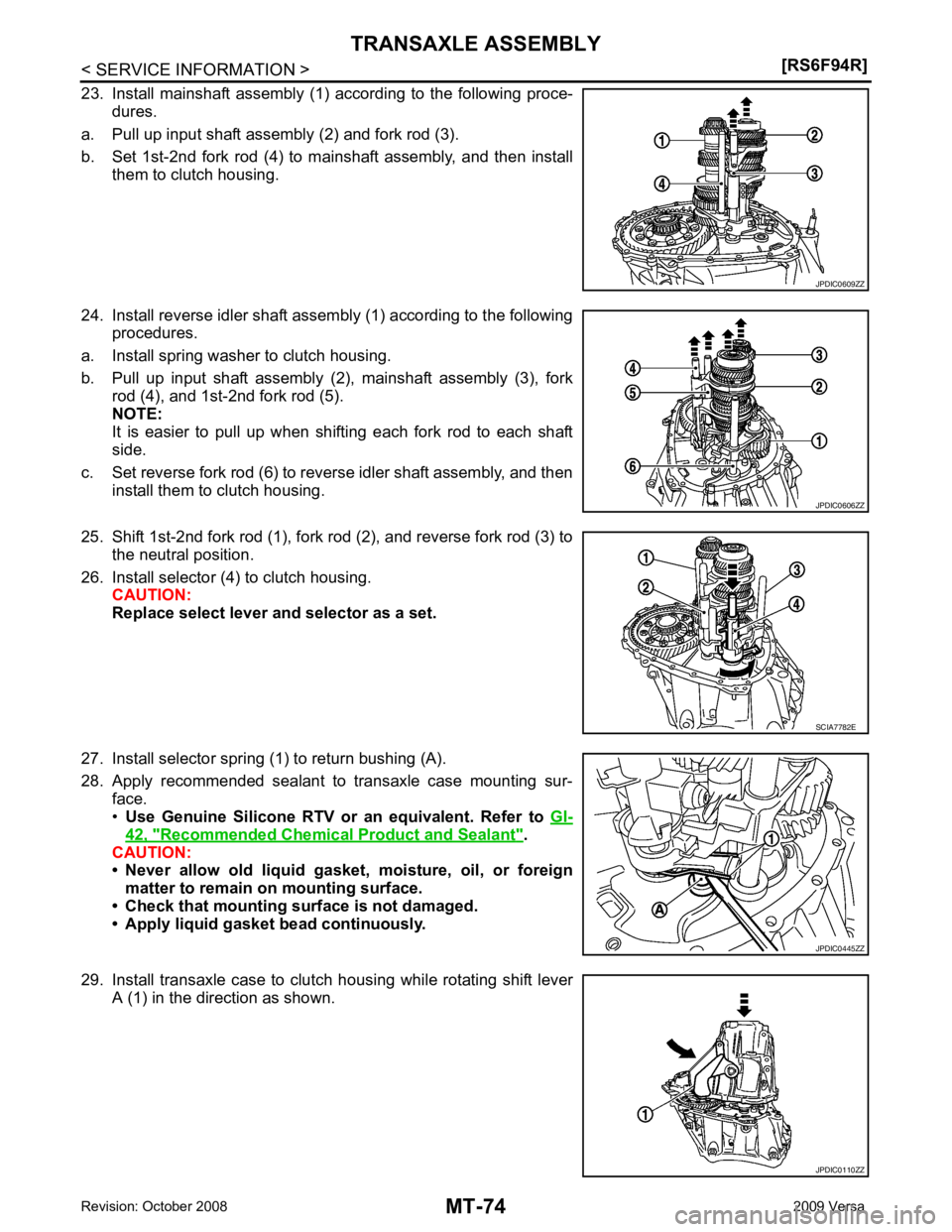

23. Install mainshaft assembly (1) according to the following proce- dures.
a. Pull up input shaft assembly (2) and fork rod (3).
b. S NISSAN LATIO 2009 Service Repair Manual MT-74< SERVICE INFORMATION >
[RS6F94R]
TRANSAXLE ASSEMBLY
23. Install mainshaft assembly (1) according to the following proce- dures.
a. Pull up input shaft assembly (2) and fork rod (3).
b. S](/manual-img/5/57359/w960_57359-3867.png)
MT-74< SERVICE INFORMATION >
[RS6F94R]
TRANSAXLE ASSEMBLY
23. Install mainshaft assembly (1) according to the following proce- dures.
a. Pull up input shaft assembly (2) and fork rod (3).
b. Set 1st-2nd fork rod (4) to mainshaft assembly, and then install them to clutch housing.
24. Install reverse idler shaft assembly (1) according to the following procedures.
a. Install spring washer to clutch housing.
b. Pull up input shaft assembly (2), mainshaft assembly (3), fork rod (4), and 1st-2nd fork rod (5).
NOTE:
It is easier to pull up when shifting each fork rod to each shaft
side.
c. Set reverse fork rod (6) to reverse idler shaft assembly, and then install them to clutch housing.
25. Shift 1st-2nd fork rod (1), fork rod (2), and reverse fork rod (3) to the neutral position.
26. Install selector (4) to clutch housing. CAUTION:
Replace select lever and selector as a set.
27. Install selector spring (1) to return bushing (A).
28. Apply recommended sealant to transaxle case mounting sur- face.
• Use Genuine Silicone RTV or an equivalent. Refer to GI-42, " Recommended Chemical Product and Sealant " .
CAUTION:
• Never allow old liquid gasket , moisture, oil, or foreign
matter to remain on mounting surface.
• Check that mounting surface is not damaged.
• Apply liquid gasket bead continuously.
29. Install transaxle case to clutch housing while rotating shift lever A (1) in the direction as shown. JPDIC0609ZZ
JPDIC0606ZZ
SCIA7782E
JPDIC0445ZZ
JPDIC0110ZZ
Page 3869 of 4331
![NISSAN LATIO 2009 Service Repair Manual TRANSAXLE ASSEMBLY
MT-75
< SERVICE INFORMATION >
[RS6F94R] D
E
F
G H
I
J
K L
M A
B MT
N
O P

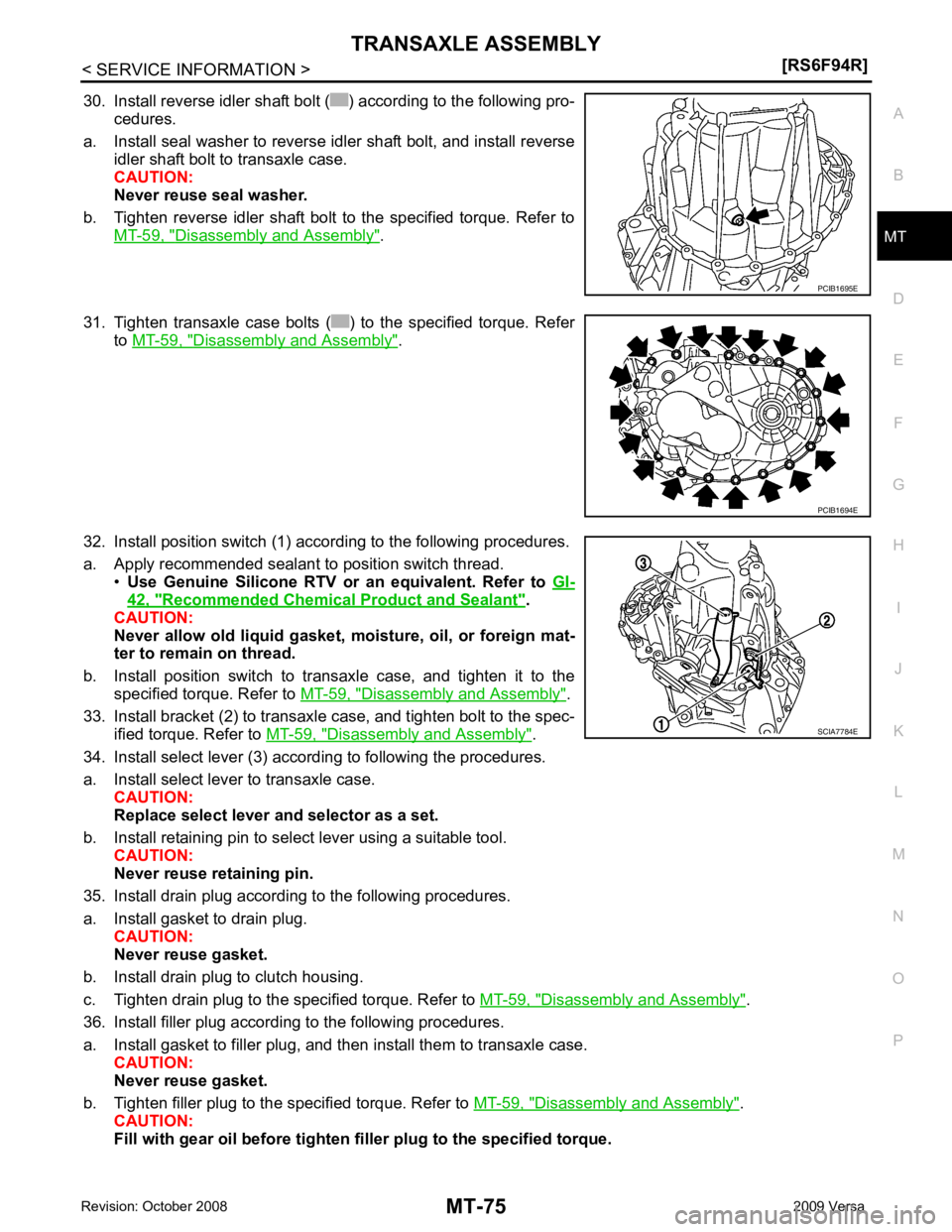

30. Install reverse idler shaft bolt ( ) according to the following pro-
cedures.
a. Install seal washer to NISSAN LATIO 2009 Service Repair Manual TRANSAXLE ASSEMBLY
MT-75
< SERVICE INFORMATION >
[RS6F94R] D
E
F
G H
I
J
K L
M A
B MT
N
O P
30. Install reverse idler shaft bolt ( ) according to the following pro-
cedures.
a. Install seal washer to](/manual-img/5/57359/w960_57359-3868.png)
TRANSAXLE ASSEMBLY
MT-75
< SERVICE INFORMATION >
[RS6F94R] D
E
F
G H
I
J
K L
M A
B MT
N
O P
30. Install reverse idler shaft bolt ( ) according to the following pro-
cedures.
a. Install seal washer to reverse idler shaft bolt, and install reverse idler shaft bolt to transaxle case.
CAUTION:
Never reuse seal washer.
b. Tighten reverse idler shaft bolt to the specified torque. Refer to MT-59, " Disassembly and Assembly " .
31. Tighten transaxle case bolts ( ) to the specified torque. Refer to MT-59, " Disassembly and Assembly " .
32. Install position switch (1) according to the following procedures.
a. Apply recommended sealant to position switch thread. •Use Genuine Silicone RTV or an equivalent. Refer to GI-42, " Recommended Chemical Product and Sealant " .
CAUTION:
Never allow old liquid gasket, mo isture, oil, or foreign mat-
ter to remain on thread.
b. Install position switch to transaxle case, and tighten it to the specified torque. Refer to MT-59, " Disassembly and Assembly " .
33. Install bracket (2) to transaxle case, and tighten bolt to the spec- ified torque. Refer to MT-59, " Disassembly and Assembly " .
34. Install select lever (3) according to following the procedures.
a. Install select lever to transaxle case. CAUTION:
Replace select lever and selector as a set.
b. Install retaining pin to select lever using a suitable tool. CAUTION:
Never reuse retaining pin.
35. Install drain plug according to the following procedures.
a. Install gasket to drain plug. CAUTION:
Never reuse gasket.
b. Install drain plug to clutch housing.
c. Tighten drain plug to the specified torque. Refer to MT-59, " Disassembly and Assembly " .
36. Install filler plug according to the following procedures.
a. Install gasket to filler plug, and then install them to transaxle case. CAUTION:
Never reuse gasket.
b. Tighten filler plug to the specified torque. Refer to MT-59, " Disassembly and Assembly " .
CAUTION:
Fill with gear oil before tighten fi ller plug to the specified torque. PCIB1695E
PCIB1694E
SCIA7784E
Page 3870 of 4331
![NISSAN LATIO 2009 Service Repair Manual MT-76< SERVICE INFORMATION >
[RS6F94R]
INPUT SHAFT AND GEARS
INPUT SHAFT AND GEARS
Disassembly and Assembly INFOID:0000000004305280
GENERAL PRECAUTIONS
• Never reuse snap ring.
• Secure input shaf NISSAN LATIO 2009 Service Repair Manual MT-76< SERVICE INFORMATION >
[RS6F94R]
INPUT SHAFT AND GEARS
INPUT SHAFT AND GEARS
Disassembly and Assembly INFOID:0000000004305280
GENERAL PRECAUTIONS
• Never reuse snap ring.
• Secure input shaf](/manual-img/5/57359/w960_57359-3869.png)

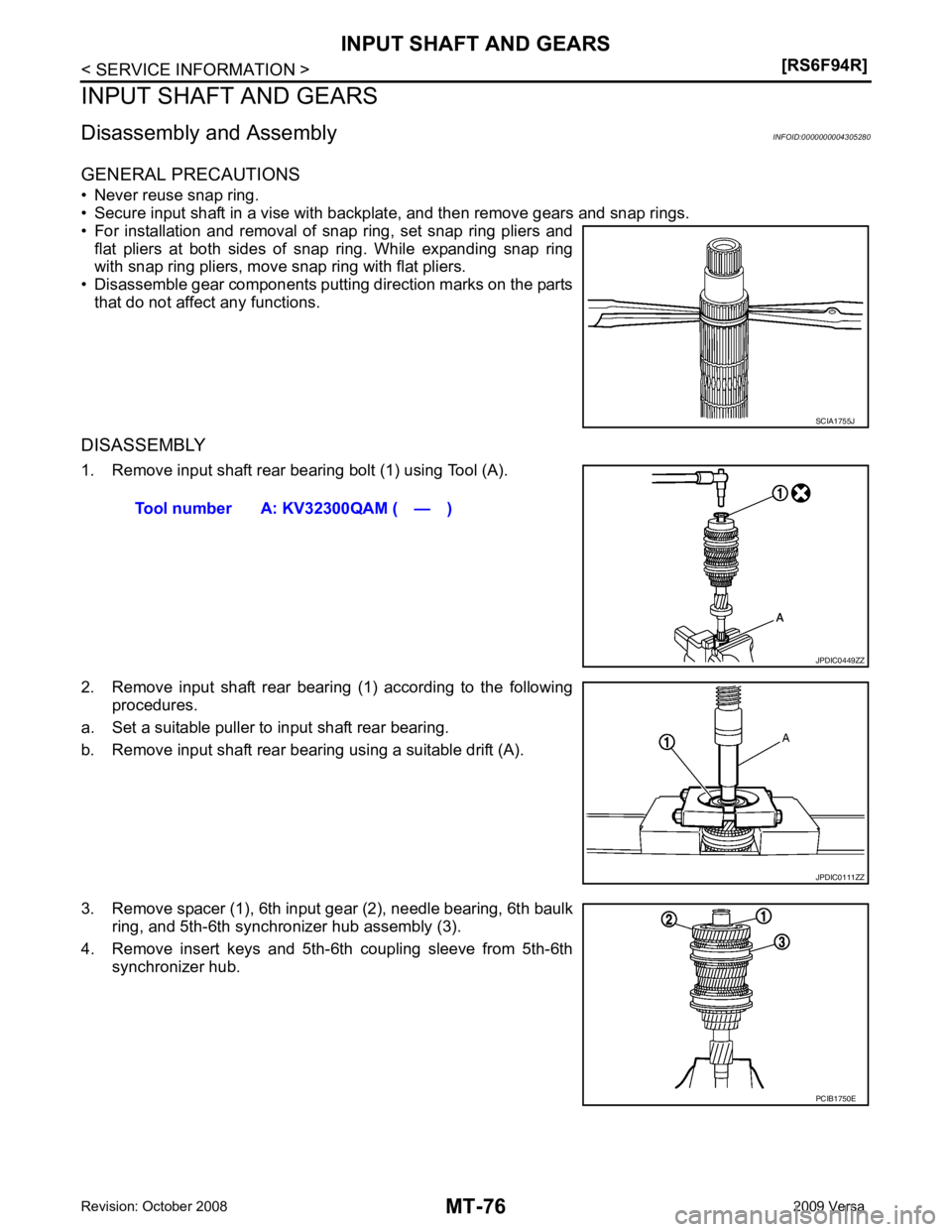

MT-76< SERVICE INFORMATION >
[RS6F94R]
INPUT SHAFT AND GEARS
INPUT SHAFT AND GEARS
Disassembly and Assembly INFOID:0000000004305280
GENERAL PRECAUTIONS
• Never reuse snap ring.
• Secure input shaft in a vise with backplate, and then remove gears and snap rings.
• For installation and removal of snap ring, set snap ring pliers and flat pliers at both sides of snap ring. While expanding snap ring
with snap ring pliers, move snap ring with flat pliers.
• Disassemble gear components putting direction marks on the parts that do not affect any functions.
DISASSEMBLY
1. Remove input shaft rear bearing bolt (1) using Tool (A).
2. Remove input shaft rear bearing (1) according to the following procedures.
a. Set a suitable puller to input shaft rear bearing.
b. Remove input shaft rear bearing using a suitable drift (A).
3. Remove spacer (1), 6th input gear (2), needle bearing, 6th baulk ring, and 5th-6th synchronizer hub assembly (3).
4. Remove insert keys and 5th-6th coupling sleeve from 5th-6th synchronizer hub. SCIA1755J
Tool number A: KV32300QAM ( — )
JPDIC0449ZZ
JPDIC0111ZZ
PCIB1750E
Page 3871 of 4331
MT
N
O P

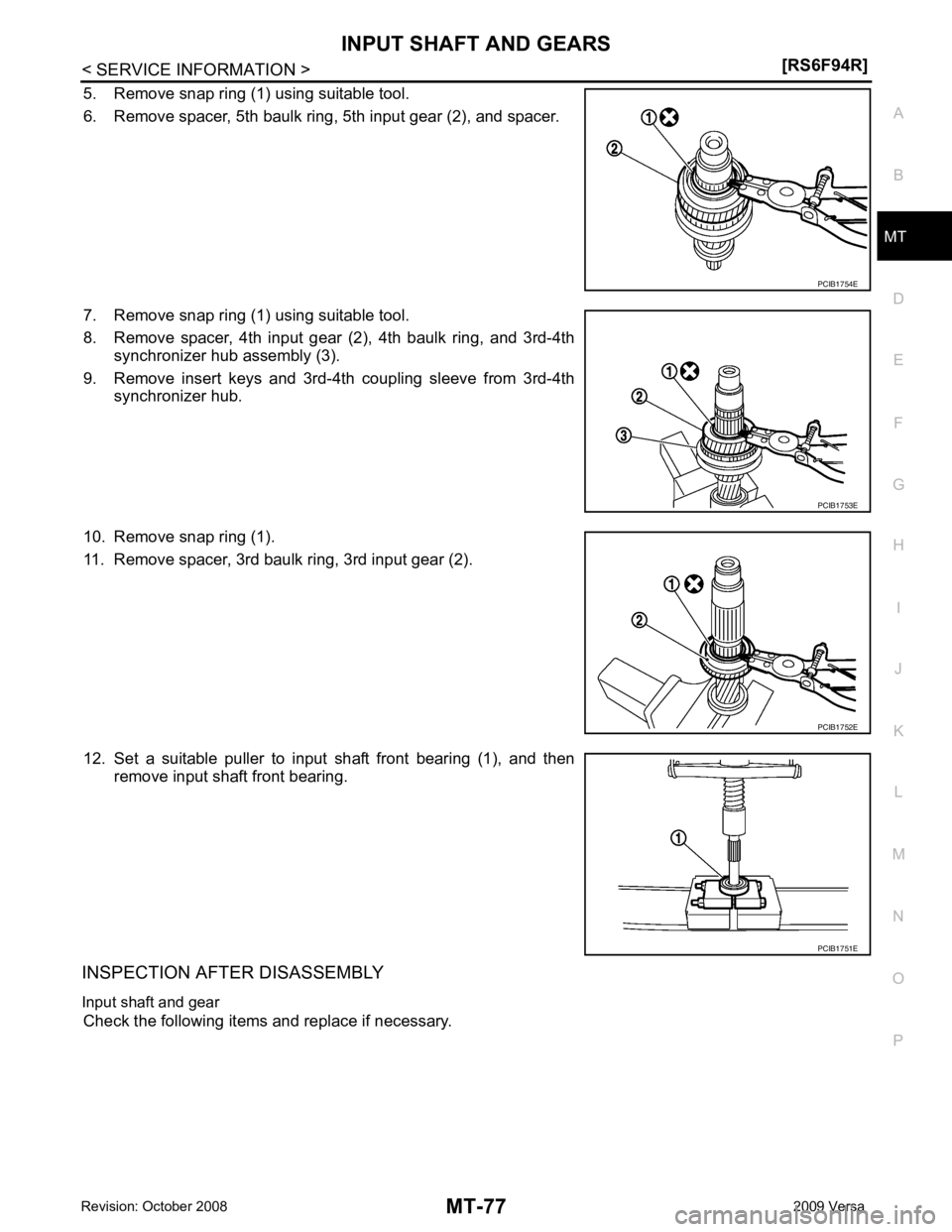

5. Remove snap ring (1) using suitable tool.
6. Remove spacer, 5th baulk ring, 5th input gear (2), and spacer.
7. Remove snap ring (1) using suitable tool.
8. Remove spacer, 4th input gear (2), 4th baulk ring, and 3rd-4th synchronizer hub assembly (3).
9. Remove insert keys and 3rd-4th coupling sleeve from 3rd-4th synchronizer hub.
10. Remove snap ring (1).
11. Remove spacer, 3rd baulk ring, 3rd input gear (2).
12. Set a suitable puller to input shaft front bearing (1), and then remove input shaft front bearing.
INSPECTION AFTER DISASSEMBLY
Input shaft and gear Check the following items and replace if necessary. PCIB1753E
PCIB1752E
Page 3872 of 4331
![NISSAN LATIO 2009 Service Repair Manual MT-78< SERVICE INFORMATION >
[RS6F94R]
INPUT SHAFT AND GEARS
• Damage, peeling, bend, uneven wear, and distortion of shaft.
• Excessive wear, damage, and peeling of gear.
Synchronizer
• Synchron NISSAN LATIO 2009 Service Repair Manual MT-78< SERVICE INFORMATION >
[RS6F94R]
INPUT SHAFT AND GEARS
• Damage, peeling, bend, uneven wear, and distortion of shaft.
• Excessive wear, damage, and peeling of gear.
Synchronizer
• Synchron](/manual-img/5/57359/w960_57359-3871.png)
MT-78< SERVICE INFORMATION >
[RS6F94R]
INPUT SHAFT AND GEARS
• Damage, peeling, bend, uneven wear, and distortion of shaft.
• Excessive wear, damage, and peeling of gear.
Synchronizer
• Synchronizer hub and coupling sleeve Check the following items and replace if necessary.
- Breakage, damage, and unusual wear on contact surface of cou-
pling sleeve, synchronizer hub, and insert key.
- Coupling sleeve and synchronizer hub move smoothly.
• Baulk ring Check contact surface of baulk ring cam and insert key for exces-
sive wear, uneven wear, bend, and damage. Replace if necessary.
Bearing
Check bearing for damage and unsmooth rotation. Replace if neces-
sary.
ASSEMBLY
Note the following procedures, and assemble in the reverse order of disassembly.
CAUTION:
• Replace transaxle assembly when replacing input shaft.
• Never reuse snap ring.
• Check that snap ring is securely installed in a groove.
• Replace 3rd-4th coupling sleeve and 3rd-4th synchronizer hub as a set. SCIA7736E
SCIA1753J
SCIA0608J
MTF0041D
