Page 4305 of 4331

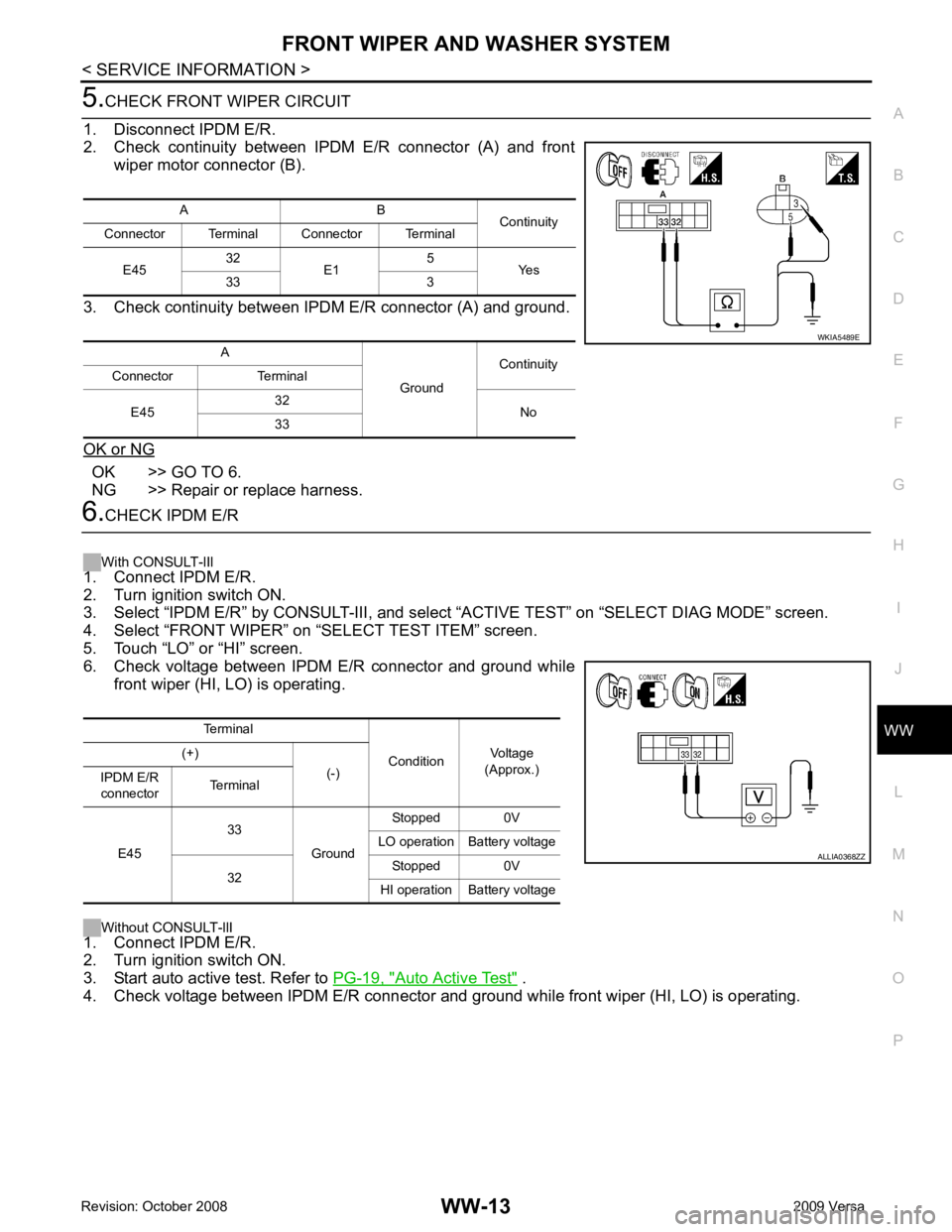

NISSAN LATIO 2009 Service Repair Manual WW N O P OK >> GO TO 6. NG >> Repair or replace harness. Auto Active Test " . 4. Check voltage between IPDM E/R connector and gr ound while front wiper (HI, LO) is operating. A B Continuity Connector

Page 4306 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> Replace front wiper motor. Refer to WW-20, " Removal and Installation of Front Wiper Drive Assembly " . NG >> Replace IPDM E/R. Refer to PG-27, " Removal and Installation of IPDM

Page 4307 of 4331

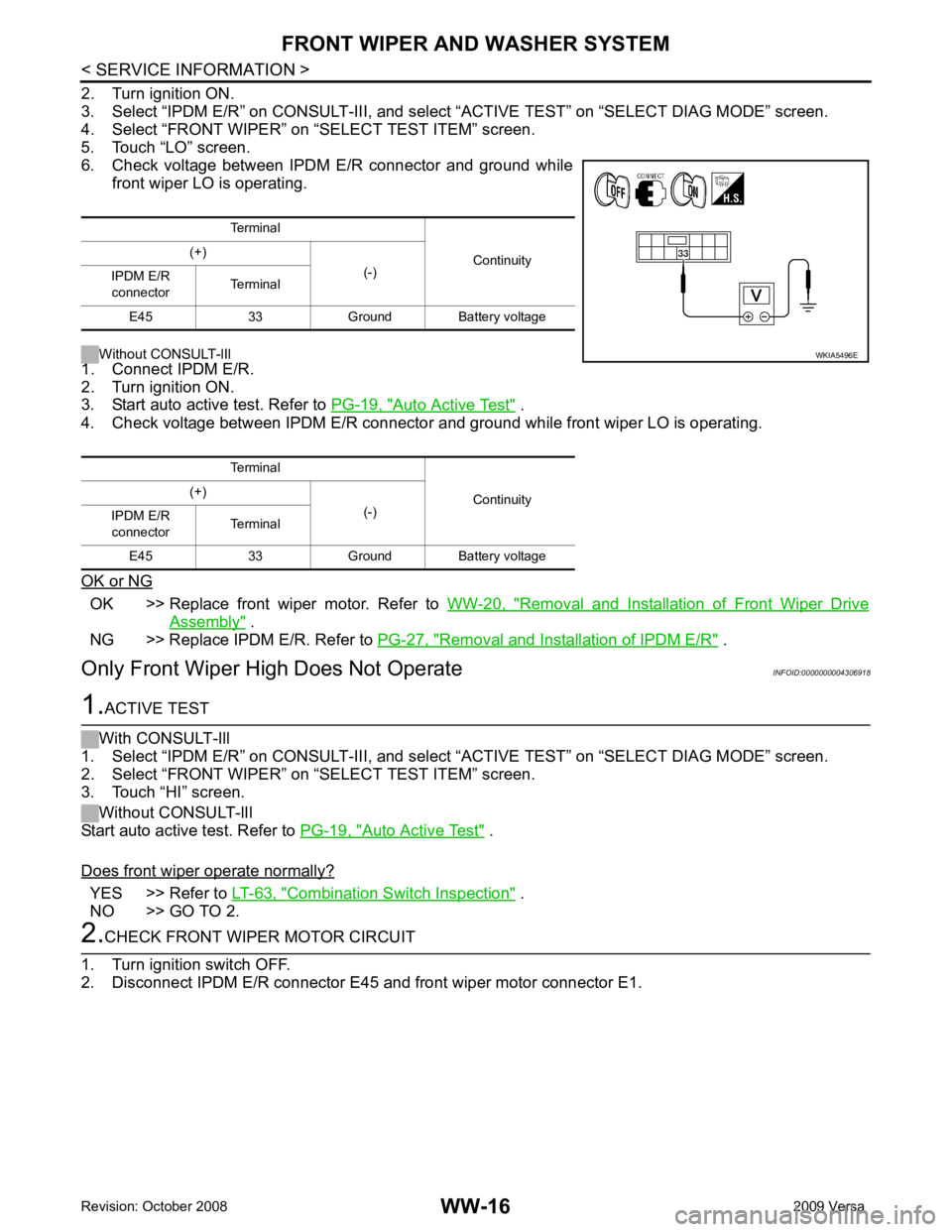

NISSAN LATIO 2009 Service Repair Manual WW N O P 3. Check continuity between IPDM E/R connector (A) and front wiper motor connector (B). 4. Check continuity between IPDM E/R harness connector (A) and ground. OK or NG OK >> Replace

Page 4308 of 4331

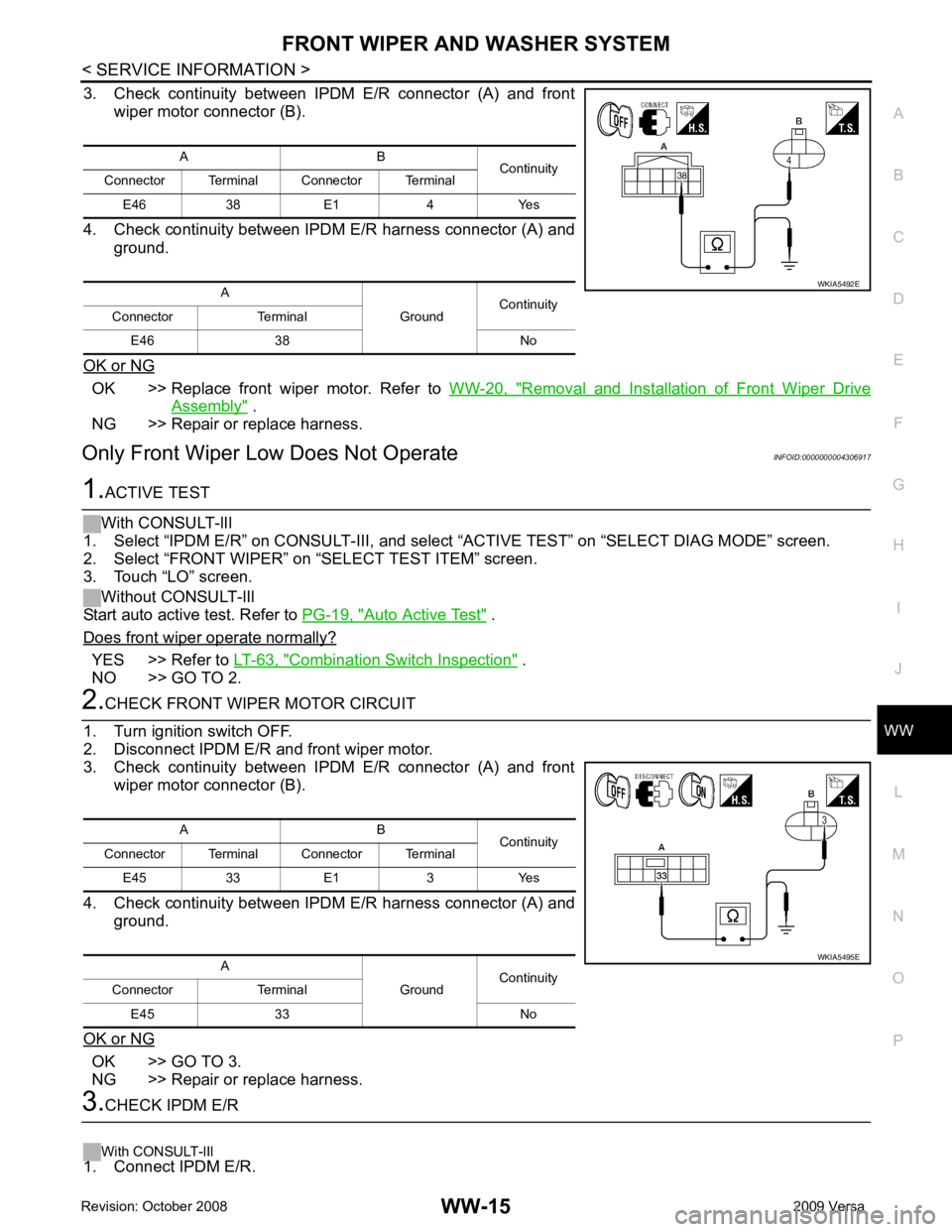

NISSAN LATIO 2009 Service Repair Manual Auto Active Test " . 4. Check voltage between IPDM E/R connector and ground while front wiper LO is operating. OK or NG OK >> Replace front wiper motor. Refer to WW-20, " Removal and Instal

Page 4309 of 4331

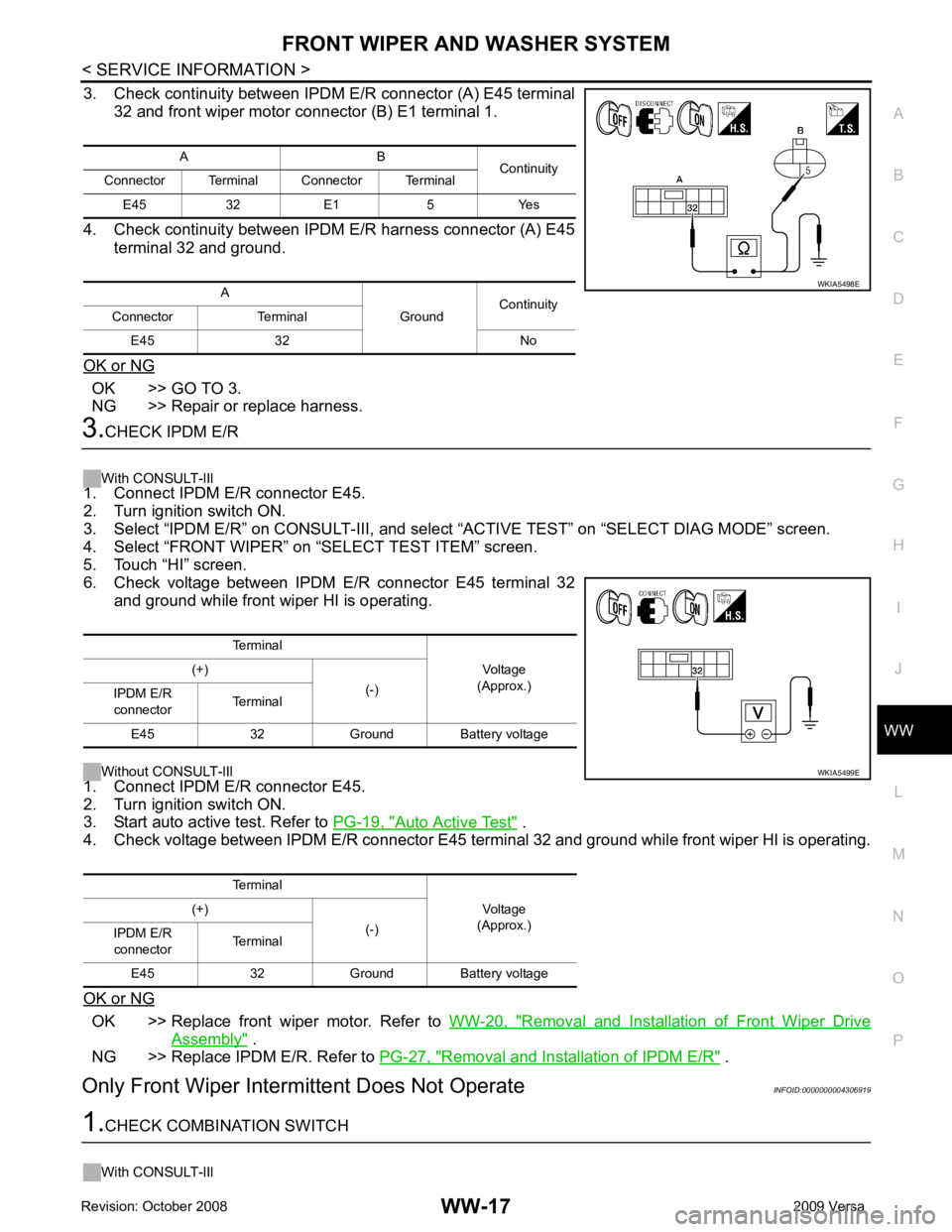

NISSAN LATIO 2009 Service Repair Manual WW N O P 3. Check continuity between IPDM E/R connector (A) E45 terminal 32 and front wiper motor connector (B) E1 terminal 1. 4. Check continuity between IPDM E/R harness connector (A) E45 terminal 3

Page 4310 of 4331

NISSAN LATIO 2009 Service Repair Manual Combination Switch Inspection " . OK or NG OK >> Replace BCM. Refer to BCS-18, " Removal and Installation of BCM " . NG >> Check combination switch (wiper switch). Refer to LT-63, " Combination Sw

Page 4311 of 4331

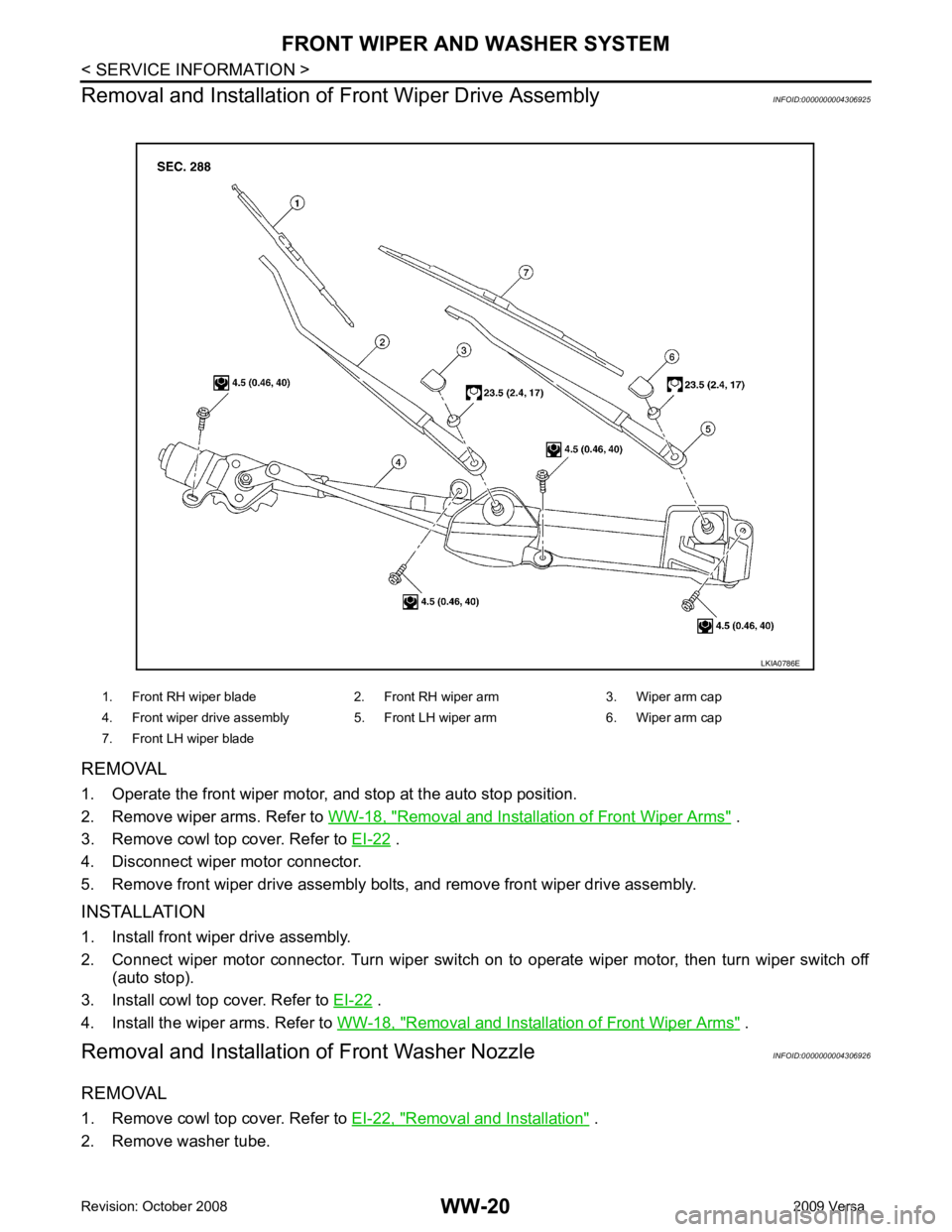

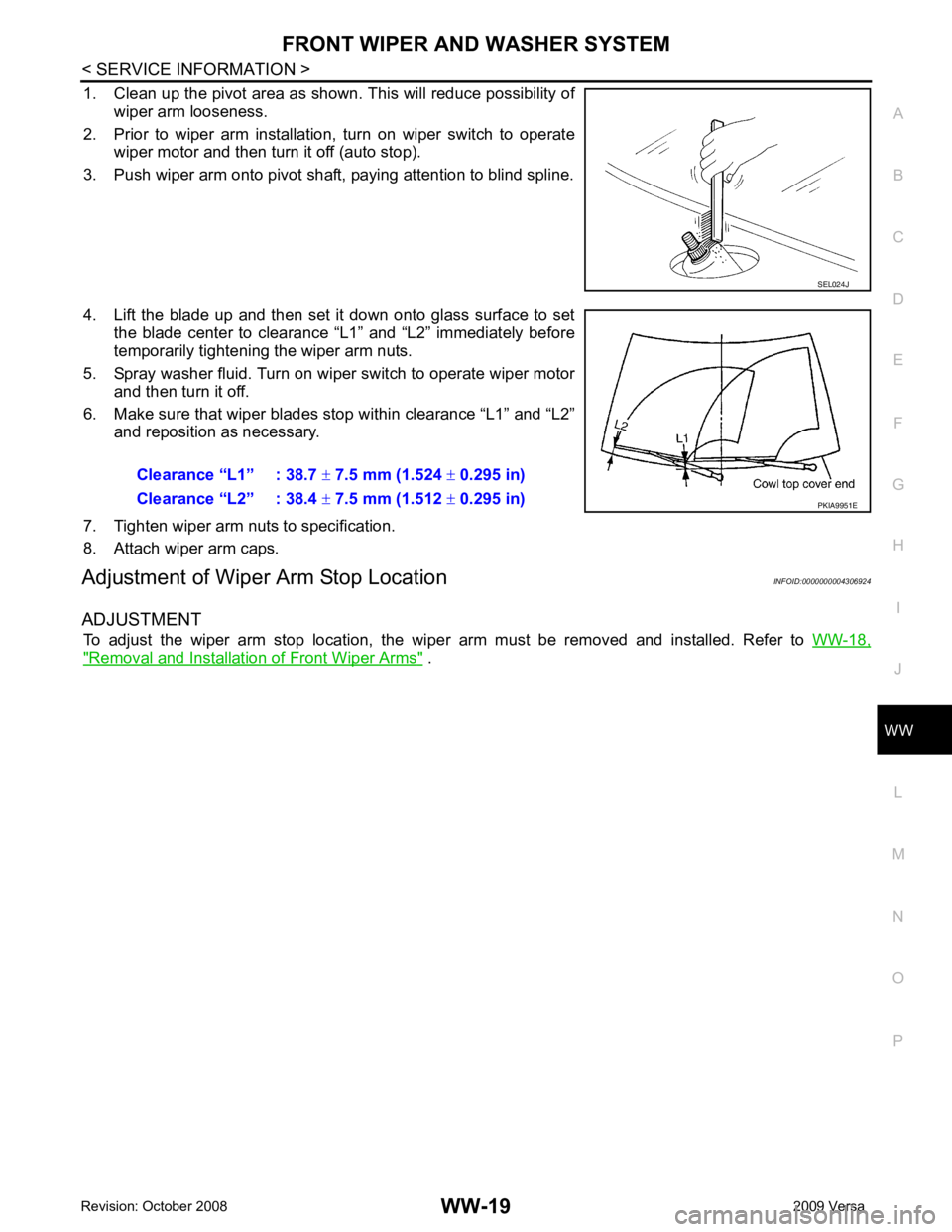

NISSAN LATIO 2009 Service Repair Manual WW N O P 1. Clean up the pivot area as shown. This will reduce possibility of wiper arm looseness. 2. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then t

Page 4312 of 4331

NISSAN LATIO 2009 Service Repair Manual Removal and Installation of Front Wiper Arms " . 3. Remove cowl top cover. Refer to EI-22 . 4. Disconnect wiper motor connector. 5. Remove front wiper drive assembly bolts, and remove front wiper d
