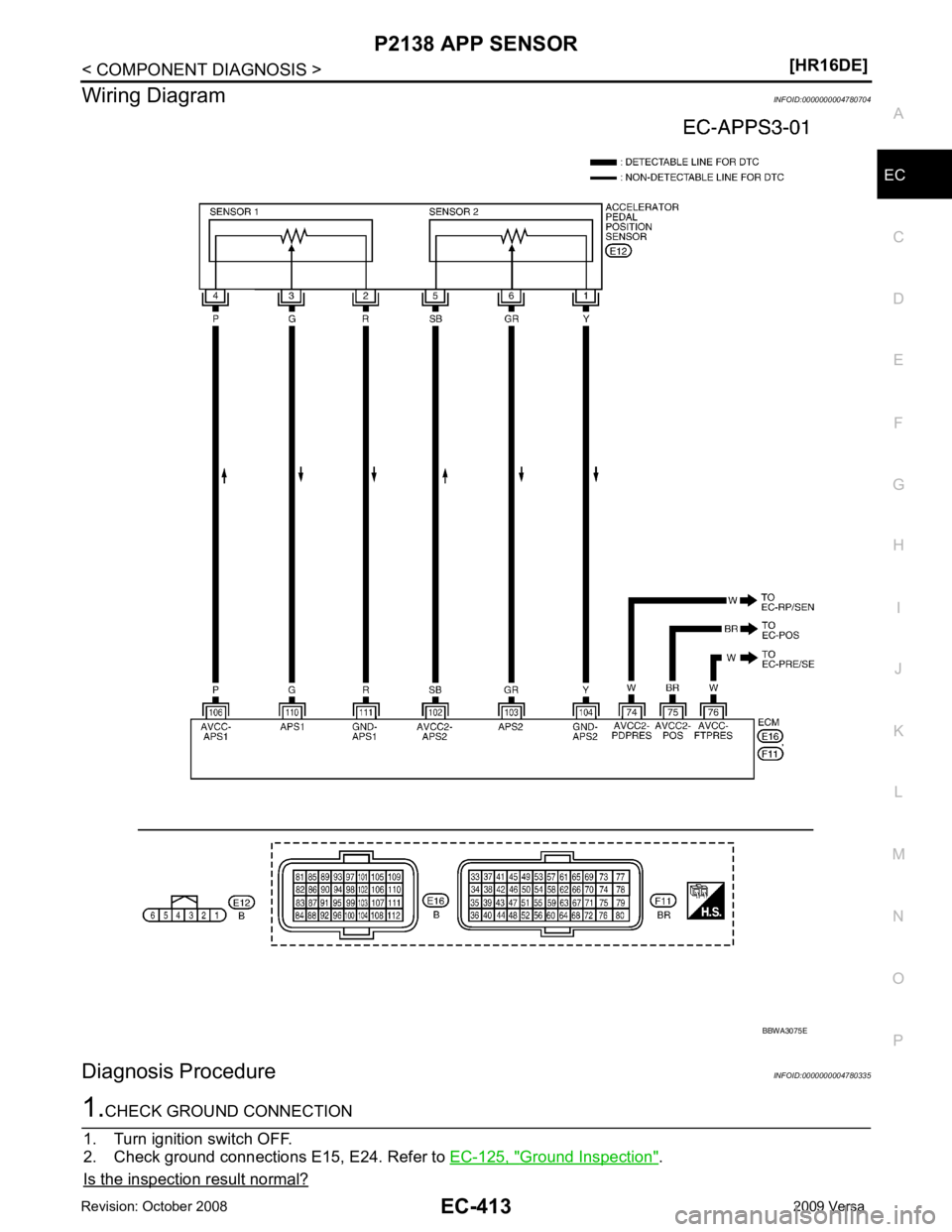

Wiring Diagram
INFOID:0000000004780704
Diagnosis Procedure INFOID:0000000004780335Ground Inspection " .
Is the inspection result normal?
Page 1770 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-414< COMPONENT DIAGNOSIS >
[HR16DE]
P2138 APP SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection. 2.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position ( NISSAN LATIO 2009 Service Repair Manual EC-414< COMPONENT DIAGNOSIS >
[HR16DE]
P2138 APP SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection. 2.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (](/manual-img/5/57359/w960_57359-1769.png)
EC-414< COMPONENT DIAGNOSIS >
[HR16DE]
P2138 APP SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection. 2.
CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between APP sensor harness connector and
ground.
Is the inspection result normal? YES >> GO TO 3.
NO >> Repair open circuit or short to ground or shot to power in
harness or connectors. 3.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Check the voltage between APP sensor harness connector and ground.
Is the inspection result normal? YES >> GO TO 7.
NO >> GO TO 4. 4.
CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between APP sens or harness connector and ECM harness connector.
Is the inspection result normal? YES >> GO TO 5.
NO >> Repair open circuit or short to ground or shot to power in harness or connectors. 5.
CHECK SENSOR POWER SUPPLY CIRCUIT
Check harness for short to power and short to ground, between the following terminals.
Is the inspection result normal? YES >> GO TO 6.
NO >> Repair short to ground or short to power in harness or connectors. APP sensor
Ground Voltage
Connector Terminal
E12 4 Ground Approx. 5 V PBIA9606J
APP sensor
Ground Voltage
Connector Terminal
E12 5 Ground Approx. 5 V PBIA9607J
APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 4 E16 106 Existed ECM Sensor
Connector Terminal Name Connector Terminal
F11 74 Refrigerant pressure sensor E17 3
75 CKP sensor (POS) F15 1
76 EVAP control system pressure sensor B104 3
E16 102 APP sensor E12 5
Page 1771 of 4331
EC
NP
O Component Inspection " .)
• EVAP control system pressure sensor (Refer to EC-314, " Component Inspection " .)
• Refrigerant pressure sensor (Refer to EC-458, " Diagnosis Procedure " .)
Is the inspection result normal? YES >> GO TO 11.
NO >> Replace malfunctioning component. YES >> GO TO 8.
NO >> Repair open circuit or short to ground or shot to power in harness or connectors. YES >> GO TO 9.
NO >> Repair open circuit or short to ground or shot to power in harness or connectors. Component Inspection " .
Is the inspection result normal? YES >> GO TO 11.
NO >> GO TO 10. Special Repair Requirement " .
>> INSPECTION END Diagnosis Procedure " .
>> INSPECTION END
APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 2
E16 111
Existed
1 104 APP sensor ECM
Continuity
Connector Terminal Connector Terminal
E12 3
E16 110
Existed
6 103
Page 1772 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-416< COMPONENT DIAGNOSIS >
[HR16DE]
P2138 APP SENSOR
Component Inspection INFOID:00000000047803361.
CHECK ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn NISSAN LATIO 2009 Service Repair Manual EC-416< COMPONENT DIAGNOSIS >
[HR16DE]
P2138 APP SENSOR
Component Inspection INFOID:00000000047803361.
CHECK ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn](/manual-img/5/57359/w960_57359-1771.png)
EC-416< COMPONENT DIAGNOSIS >
[HR16DE]
P2138 APP SENSOR
Component Inspection INFOID:00000000047803361.
CHECK ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check the voltage between ECM harness connector and ground.
Is the inspection result normal? YES >> INSPECTION END
NO >> GO TO 2. 2.
REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-416, " Special Repair Requirement " .
>> INSPECTION END
Special Repair Requirement INFOID:00000000047803371.
PERFORM ACCELERATOR PEDAL RE LEASED POSITION LEARNING
Refer to EC-31, " ACCELERATOR PEDAL RELEASED POSITION
LEARNING : Special Repair Requirement " .
>> GO TO 2. 2.
PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-31, " THROTTLE VALVE CLOSED POSITION LE
ARNING : Special Repair Requirement " .
>> GO TO 3. 3.
PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-32, " IDLE AIR VOLUME LEARNING : Special Repair Requirement " .
>> END ECM
Ground Condition Voltage
Connector Terminal
E16 110
(APP sensor 1 signal) GroundAccelerator
pedal Fully released 0.6 - 0.9 V
Fully depressed 3.9 - 4.7 V
103
(APP sensor 2 signal) Fully released 0.3 - 0.6 V
Fully depressed 1.95 - 2.4 V PBIA9572J
Page 1773 of 4331
![NISSAN LATIO 2009 Service Repair Manual P2A00 A/F SENSOR 1
EC-417
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P2A00 A/F SENSOR 1
Description INFOID:0000000004780338
The air fuel ratio (A/F) sensor 1 is a planar one-cell NISSAN LATIO 2009 Service Repair Manual P2A00 A/F SENSOR 1
EC-417
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P2A00 A/F SENSOR 1
Description INFOID:0000000004780338
The air fuel ratio (A/F) sensor 1 is a planar one-cell](/manual-img/5/57359/w960_57359-1772.png)
P2A00 A/F SENSOR 1
EC-417
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P2A00 A/F SENSOR 1
Description INFOID:0000000004780338
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise m easurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800 °C
(1,472 °F).
DTC Logic INFOID:0000000004780339
DTC DETECTION LOGIC To judge the malfunction, the A/F signal computed by ECM from the A/F sensor 1 signal is monitored not to be
shifted to LEAN side or RICH side.
DTC CONFIRMATION PROCEDURE 1.
PRECONDITIONING
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
>> GO TO 2. 2.
PERFORM DTC CONFIRMATION PROCEDURE
1. Clear the mixture ratio self-learning value. Refer to EC-33, " MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement " .
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for 1 minute under no load.
4. Let engine idle for 1 minute.
5. Keep engine speed between 2,500 and 3,000 rpm for 20 minutes. JMBIA0112GB
PBIB3354E
DTC No. Trouble diagnosis name DTC detecting condition Possible Cause
P2A00 Air fuel ratio (A/F) sensor 1
circuit range/performance • The output voltage computed by ECM from the
A/F sensor 1 signal is shifted to the lean side for
a specified period.
• The A/F signal computed by ECM from the A/F sensor 1 signal is shifted to the rich side for a
specified period. • A/F sensor 1
• A/F sensor 1 heater
• Fuel pressure
• Fuel injector
• Intake air leaks
Page 1774 of 4331
EC-418< COMPONENT DIAGNOSIS >
[HR16DE]
P2A00 A/F SENSOR 1
6. Check 1st trip DTC.
Is 1st trip DTC detected? YES >> Go to
EC-419, " Diagnosis Procedure " .
NO >> INSPECTION END
Wiring Diagram INFOID:0000000004780722 AABWA0307G B
Page 1775 of 4331
![NISSAN LATIO 2009 Service Repair Manual P2A00 A/F SENSOR 1
EC-419
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000047803401.
CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check g NISSAN LATIO 2009 Service Repair Manual P2A00 A/F SENSOR 1
EC-419
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000047803401.
CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check g](/manual-img/5/57359/w960_57359-1774.png)
P2A00 A/F SENSOR 1
EC-419
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000047803401.
CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-125, " Ground Inspection " .
Is the inspection result normal? YES >> GO TO 2.
NO >> Repair or replace ground connection. 2.
CHECK HARNESS CONNECTOR
1. Disconnect A/F sensor 1 harness connector.
2. Check harness connector for water.
Is the inspection result normal? YES >> GO TO 3.
NO >> Repair or replace harness connector. 3.
RETIGHTEN A/F SENSOR 1
1. Loosen and retighten the A/F sensor 1. Refer to EM-31, " Exploded View " .
>> GO TO 4. 4.
CHECK FOR INTAKE AIR LEAK
1. Reconnect A/F sensor 1 harness connector.
2. Start engine and run it at idle.
3. Listen for an intake air leak after the mass air flow sensor.
Is intake air leak detected? YES >> GO TO 5.
NO >> Repair or replace. 5.
CLEAR THE MIXTURE RATIO SELF-LEARNING VALUE
1. Clear the mixture ratio self-learning value. Refer to EC-33, " MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement " .
2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detected? Is it difficult to start engine? YES >> Perform trouble diagnosis for DTC P0171or P0172. Refer to
EC-229, " DTC Logic " or
EC-235, " DTC Logic " .
NO >> GO TO 6. 6.
CHECK A/F SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect A/F sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check the voltage between A/F sensor 1 harness connector and
ground.
Is the inspection result normal? YES >> GO TO 8.
NO >> GO TO 7. 7.
DETECT MALFUNCTIONING PART
Check the following. Water should not exit.
A/F sensor 1 Ground Voltage
Connector Terminal
F12 4 Ground Battery voltage PBIB3308E
Page 1776 of 4331
YES >> GO TO 9.
NO >> Repair open circuit or short to ground or short to power in harness or connectors. Component Inspection " .
Is the inspection result normal? YES >> GO TO 10.
NO >> GO TO 11. Diagnosis Procedure " .
Is the inspection result normal? YES >> GO TO 11.
NO >> Repair or replace.
