Page 1793 of 4331

NISSAN LATIO 2009 Service Repair Manual EC NP O NO >> Replace15 A fuse. YES >> GO TO 10. NO >> GO TO 7. YES >> GO TO 9. NO >> Repair open circuit or short to power in harness or connectors. Component Inspection " . Is the inspection result

Page 1794 of 4331

NISSAN LATIO 2009 Service Repair Manual YES >> INSPECTION END NO >> Replace “fuel level sensor unit and fuel pump”. Terminals Resistance 1 and 3 0.2 - 5.0 Ω [at 25 °C (77 °F)]

Page 1795 of 4331

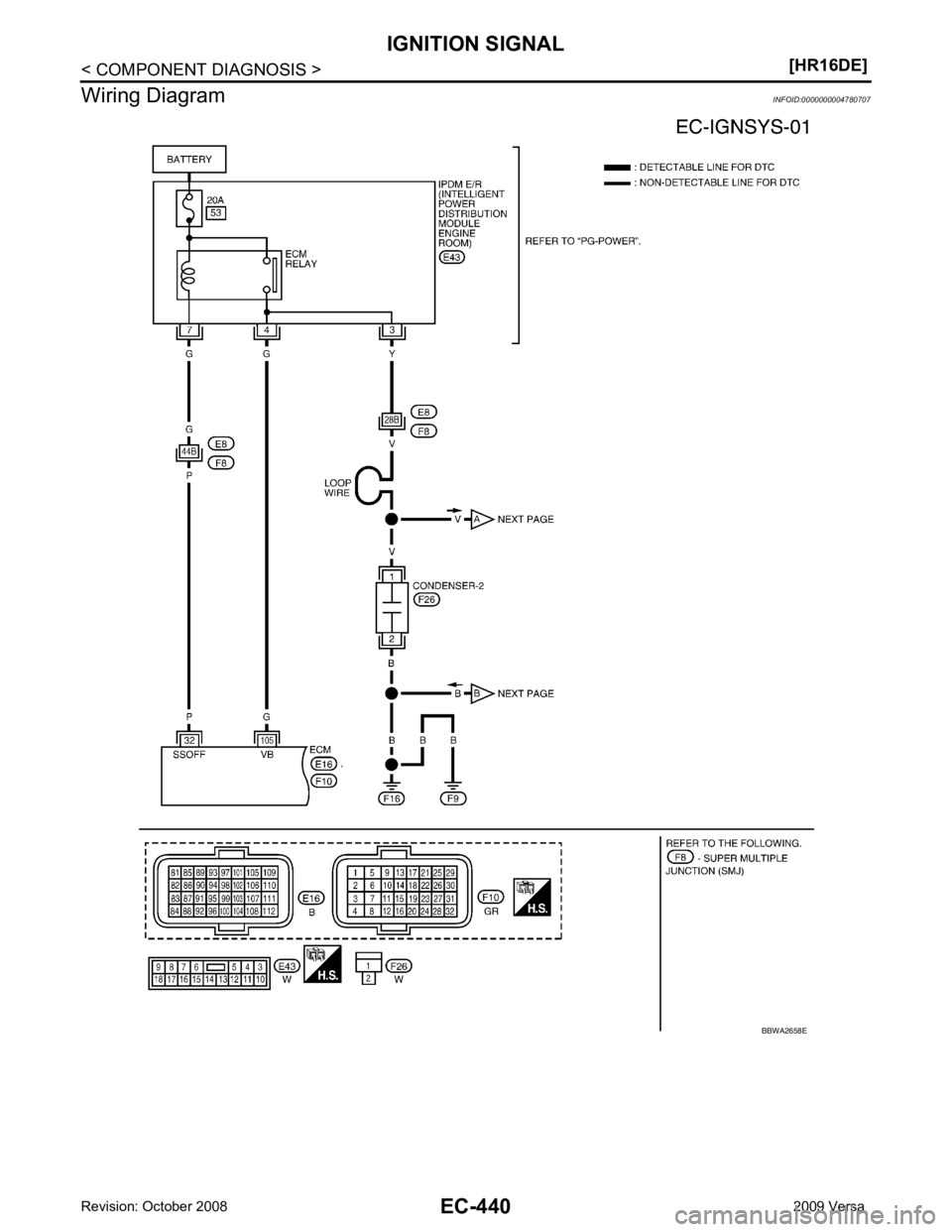

NISSAN LATIO 2009 Service Repair Manual EC NP O IGNITION SIGNAL Description INFOID:0000000004780366 The ignition signal from the ECM is sent to and amplifi ed by the power transistor. The power transistor turns ON and OFF the ignition coi

Page 1796 of 4331

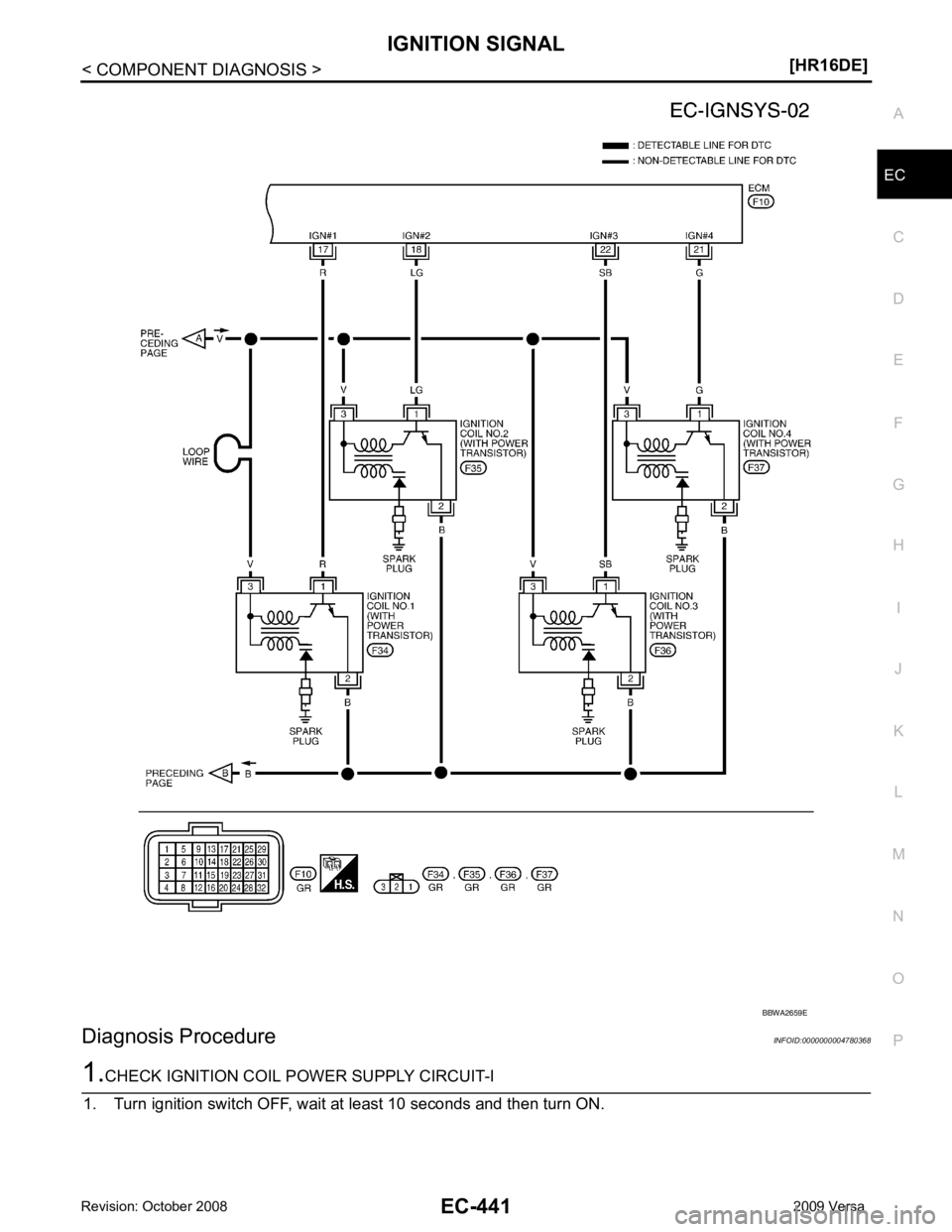

NISSAN LATIO 2009 Service Repair Manual

Page 1797 of 4331

NISSAN LATIO 2009 Service Repair Manual EC NP O Diagnosis Procedure INFOID:0000000004780368

Page 1798 of 4331

NISSAN LATIO 2009 Service Repair Manual YES >> GO TO 2. NO >> Go to EC-121, " Diagnosis Procedure " . YES >> GO TO 5. NO >> GO TO 3. YES >> Go to EC-121, " Diagnosis Procedure " . NO >> GO TO 4. Condenser-2 Ground Continuity Connector Ter

Page 1799 of 4331

NISSAN LATIO 2009 Service Repair Manual IGNITION SIGNAL EC-443 < COMPONENT DIAGNOSIS > [HR16DE] C D E F G H I J K L M A EC NP O 3. Also check harness for short to power. Is the inspection result normal? YES >> GO TO 6. NO >> Repair open cir

Page 1800 of 4331

NISSAN LATIO 2009 Service Repair Manual YES >> GO TO 10. NO >> Repair open circuit or short to ground or short to power in harness or connectors. Component Inspection (Ignition Coil with Power Transistor) " . Is the inspection result normal
