NISSAN LATIO 2009 Service Repair Manual DTC P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
EC-813
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

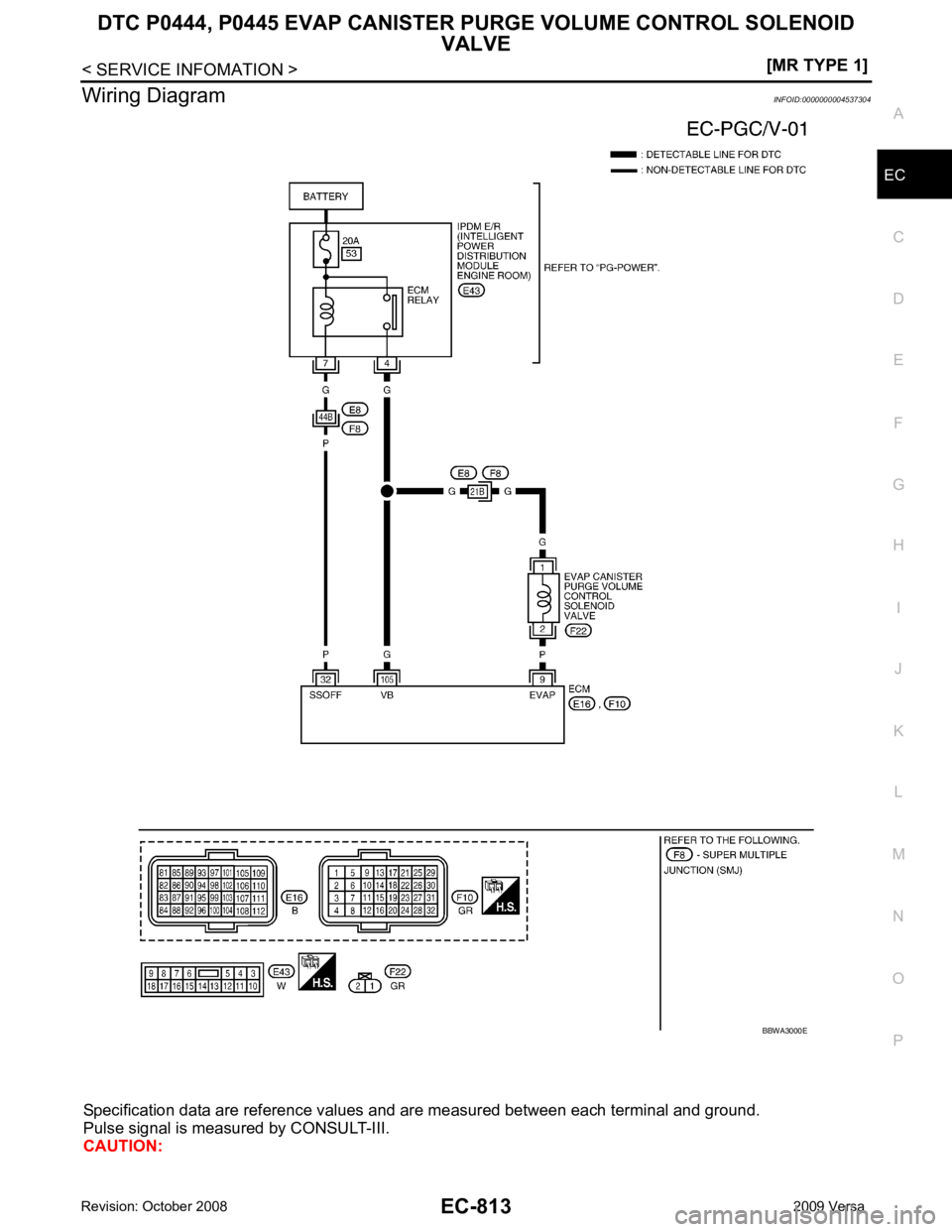

Wiring Diagram
INFOID:0000000004537304
Specification data

Page 2170 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-814< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0444, P0445 EVAP CANISTER
PURGE VOLUME CONTROL SOLENOID
VALVE
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result

Page 2171 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
EC-815
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

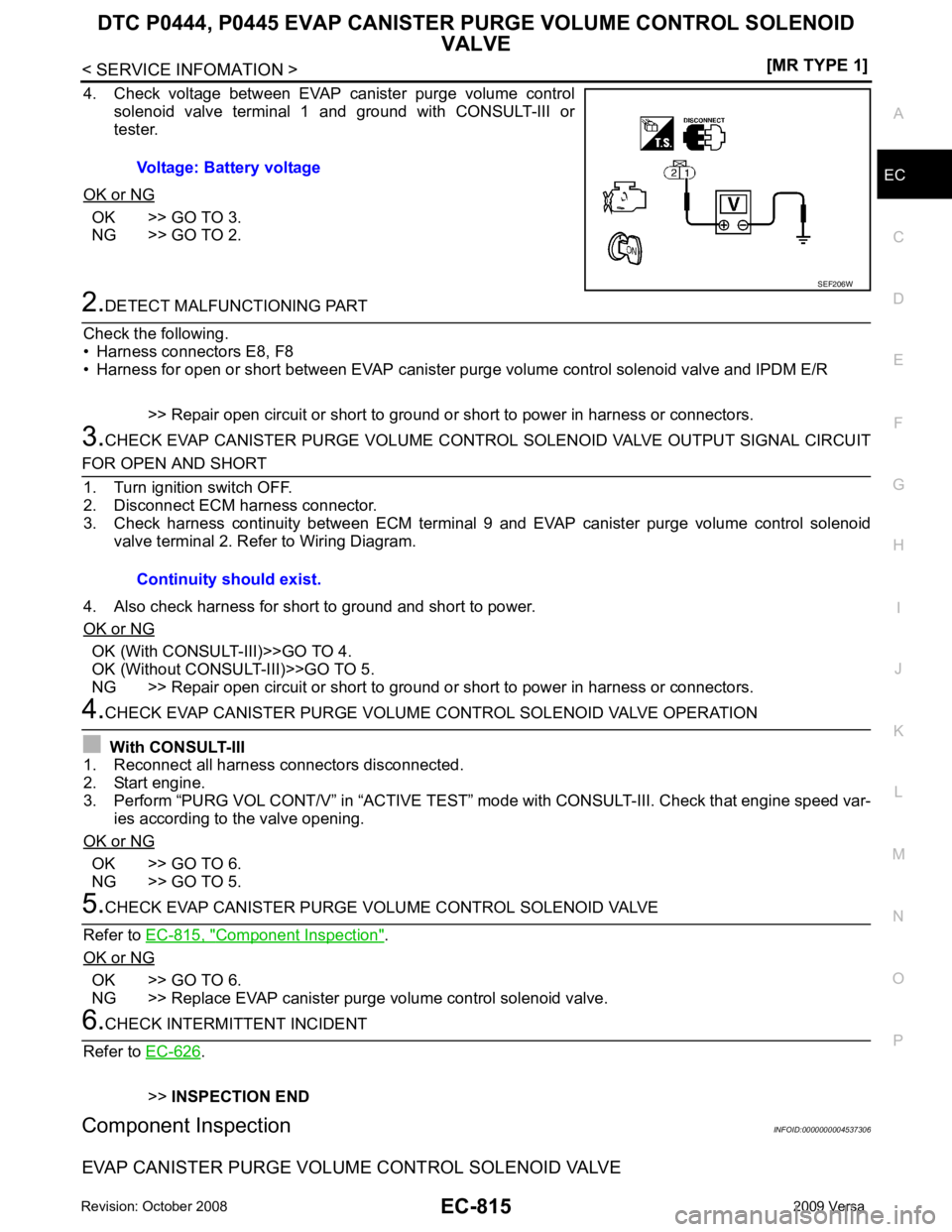

4. Check voltage between EVAP canister purge volume

Page 2172 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-816< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0444, P0445 EVAP CANISTER
PURGE VOLUME CONTROL SOLENOID
VALVE

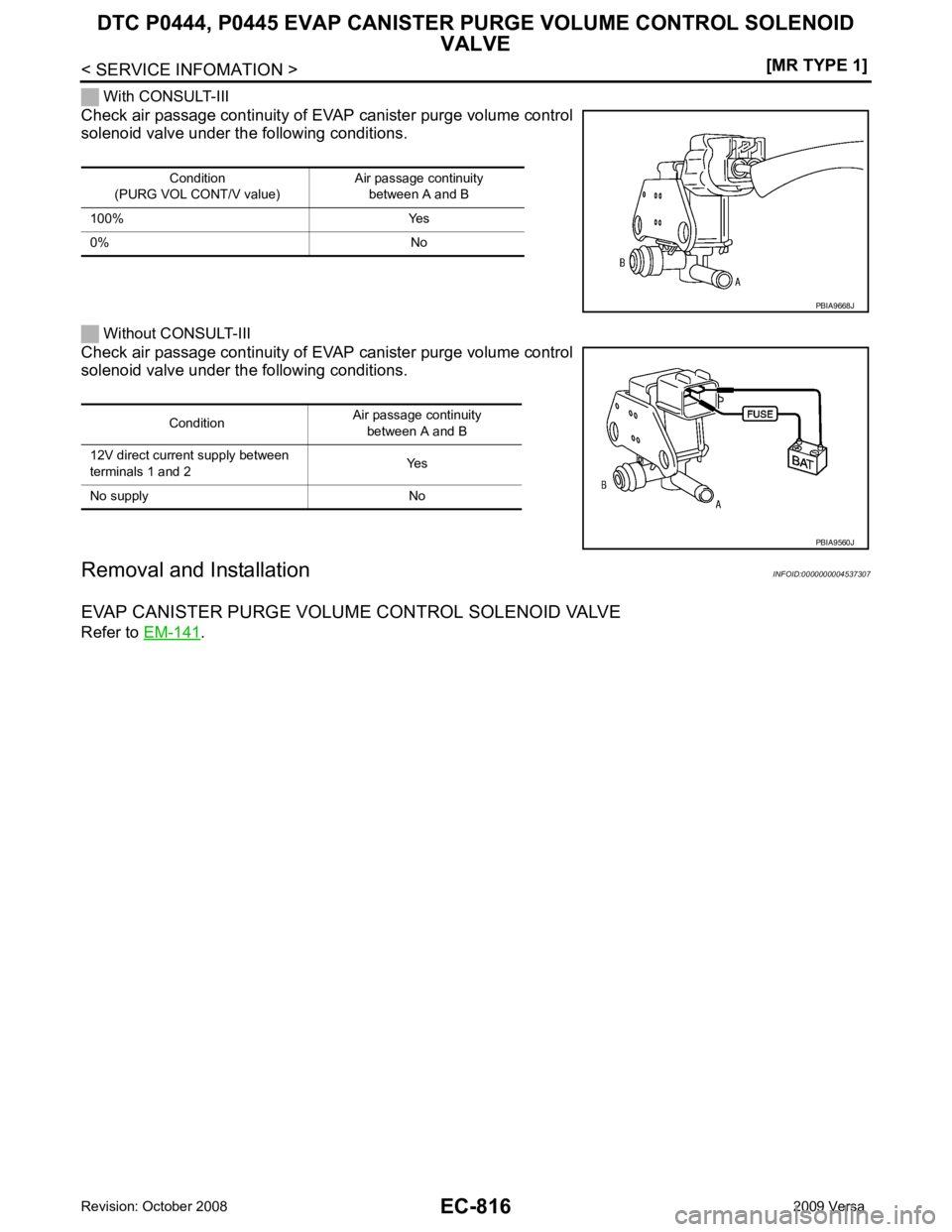

With CONSULT-III
Check air passage continuity of EVAP canister purge volume control
solen

Page 2173 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0447 EVAP CANISTER
VENT CONTROL VALVE
EC-817
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Component Description INFOID:0000000004

DTC P0447 EVAP CANISTER
VENT CONTROL VALVE
EC-817
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Component Description INFOID:0000000004537308

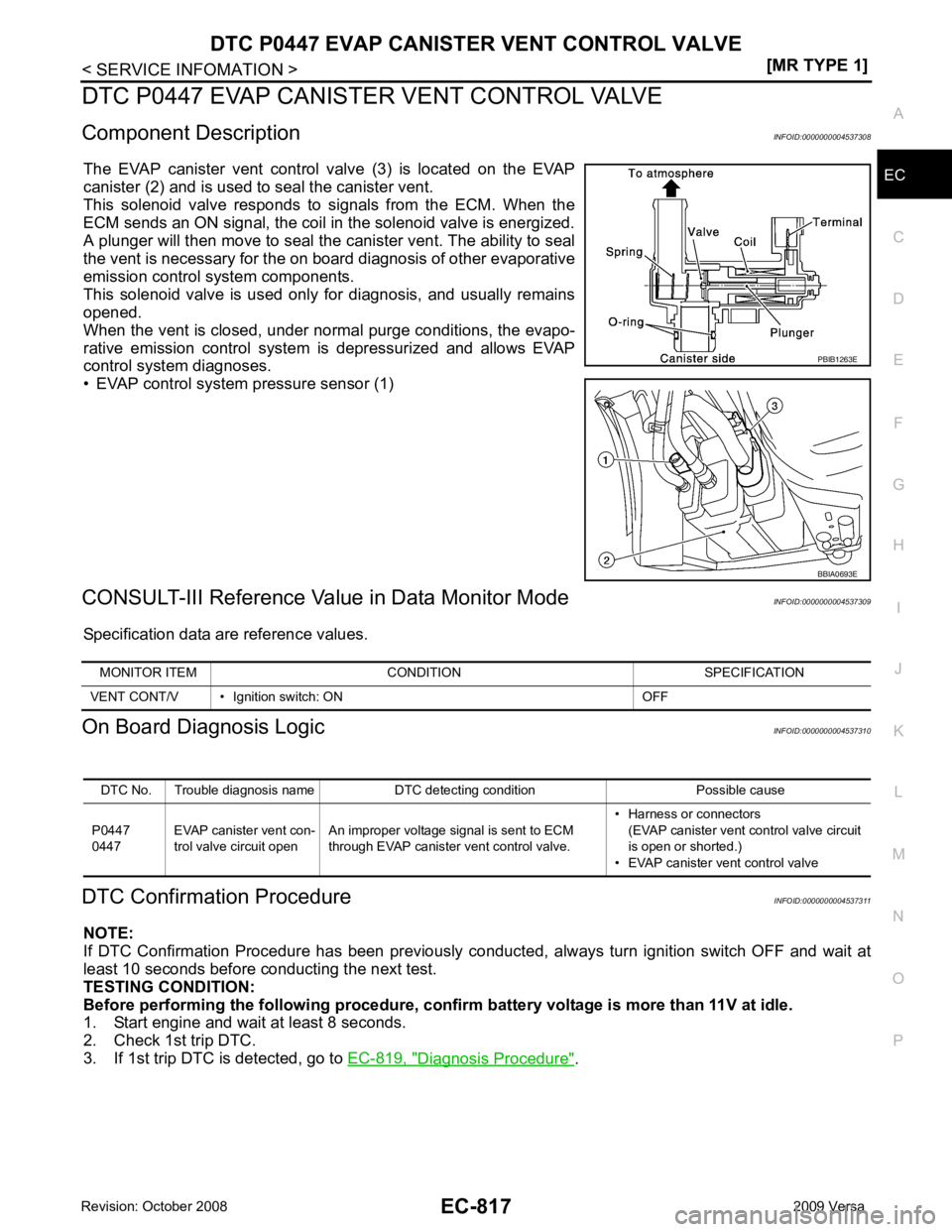

The EVAP canister vent control valve (3) is located on the EVAP
canister (2) and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
control system diagnoses.
• EVAP control system pressure sensor (1)
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004537309
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004537310
DTC Confirmation Procedure INFOID:0000000004537311
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, conf irm battery voltage is more than 11V at idle.
1. Start engine and wait at least 8 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-819, " Diagnosis Procedure " . PBIB1263E
BBIA0693E
MONITOR ITEM CONDITION SPECIFICATION
VENT CONT/V • Ignition switch: ON OFF DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0447
0447 EVAP canister vent con-
trol valve circuit open An improper voltage signal is sent to ECM
through EVAP canister vent control valve. • Harness or connectors
(EVAP canister vent control valve circuit
is open or shorted.)
• EVAP canister vent control valve

Page 2174 of 4331

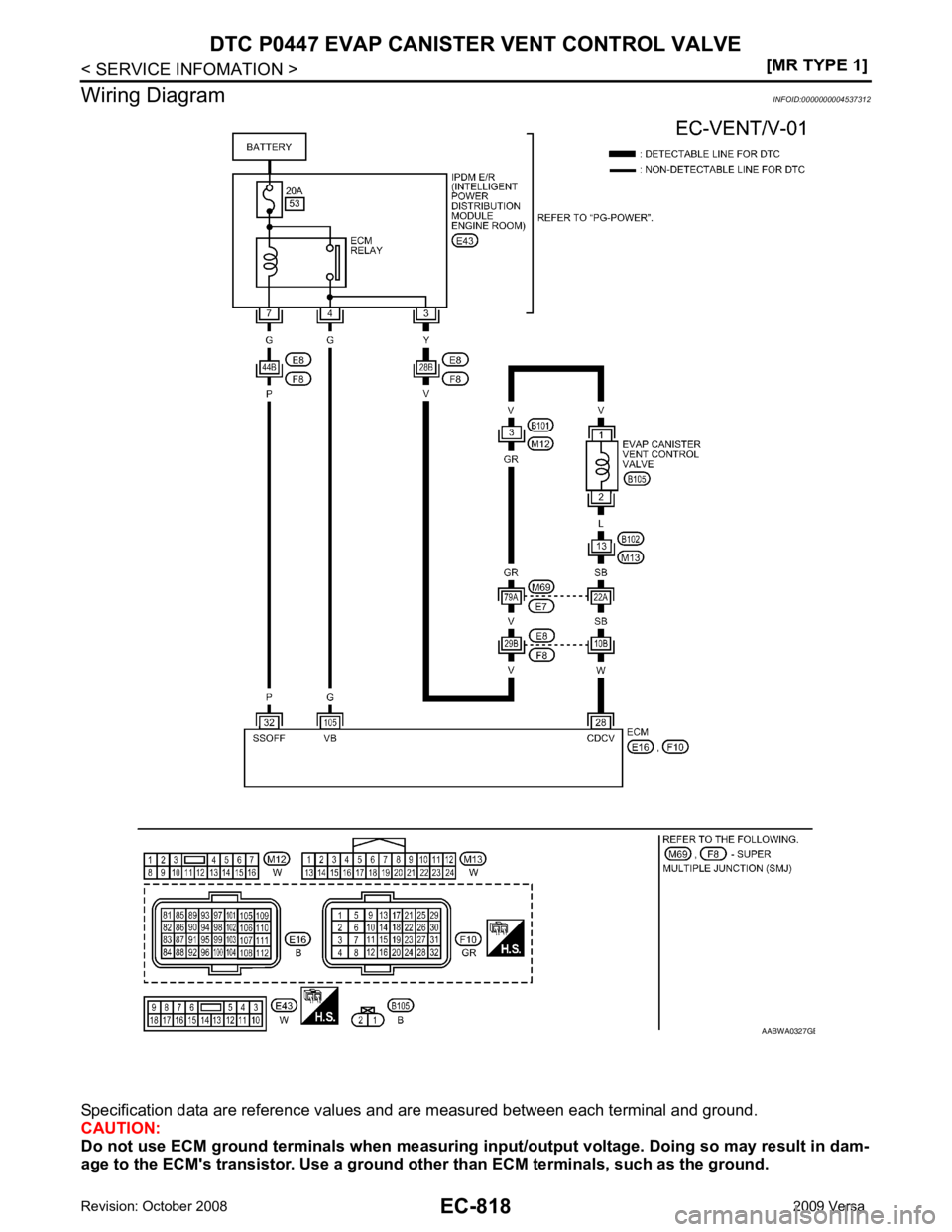

NISSAN LATIO 2009 Service Repair Manual B

Page 2175 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0447 EVAP CANISTER
VENT CONTROL VALVE
EC-819
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000045373131.
INSPECTION START
1. Do you have CONS

Page 2176 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-820< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE

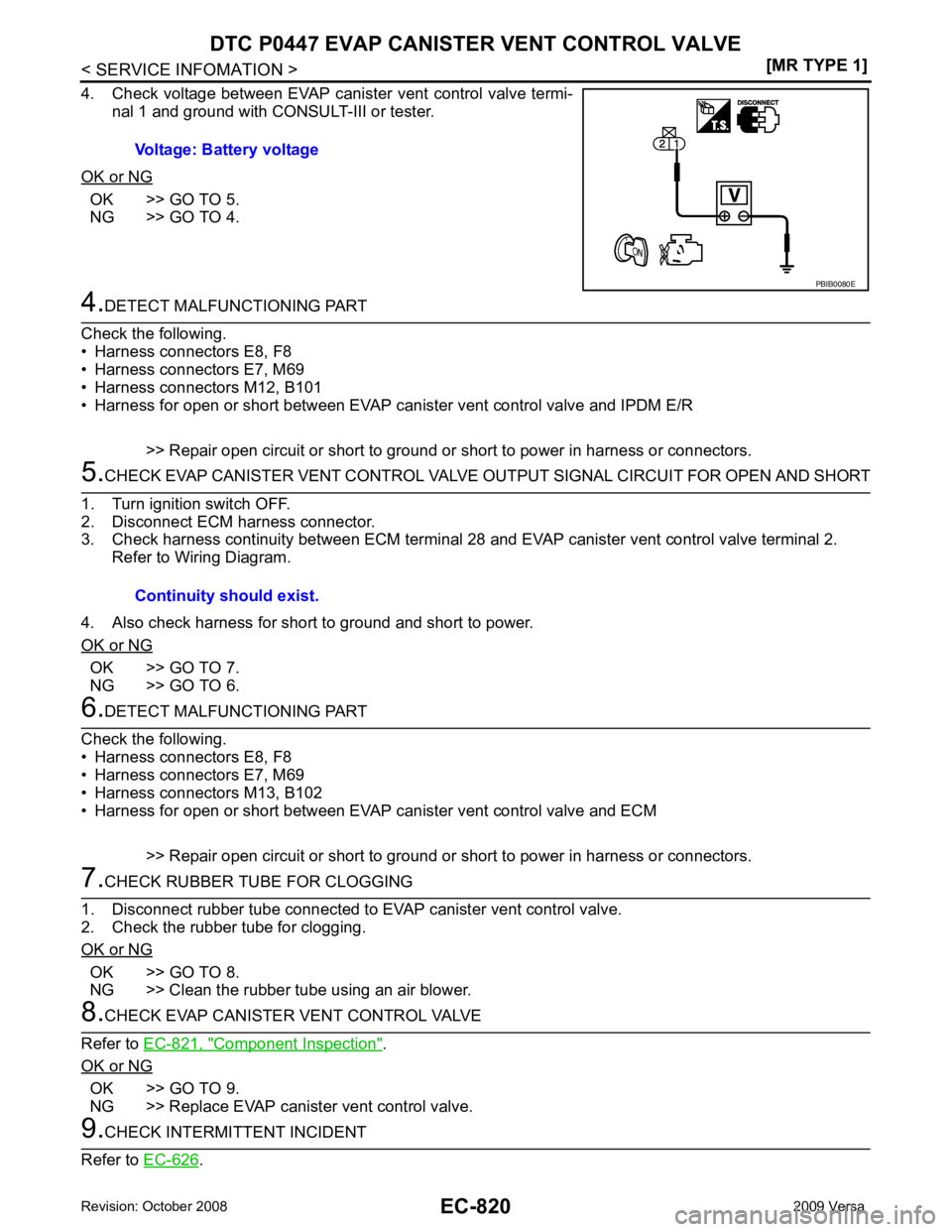

4. Check voltage between EVAP canister vent control valve termi- nal 1 and ground with CONSULT-III or tester.
OK or
