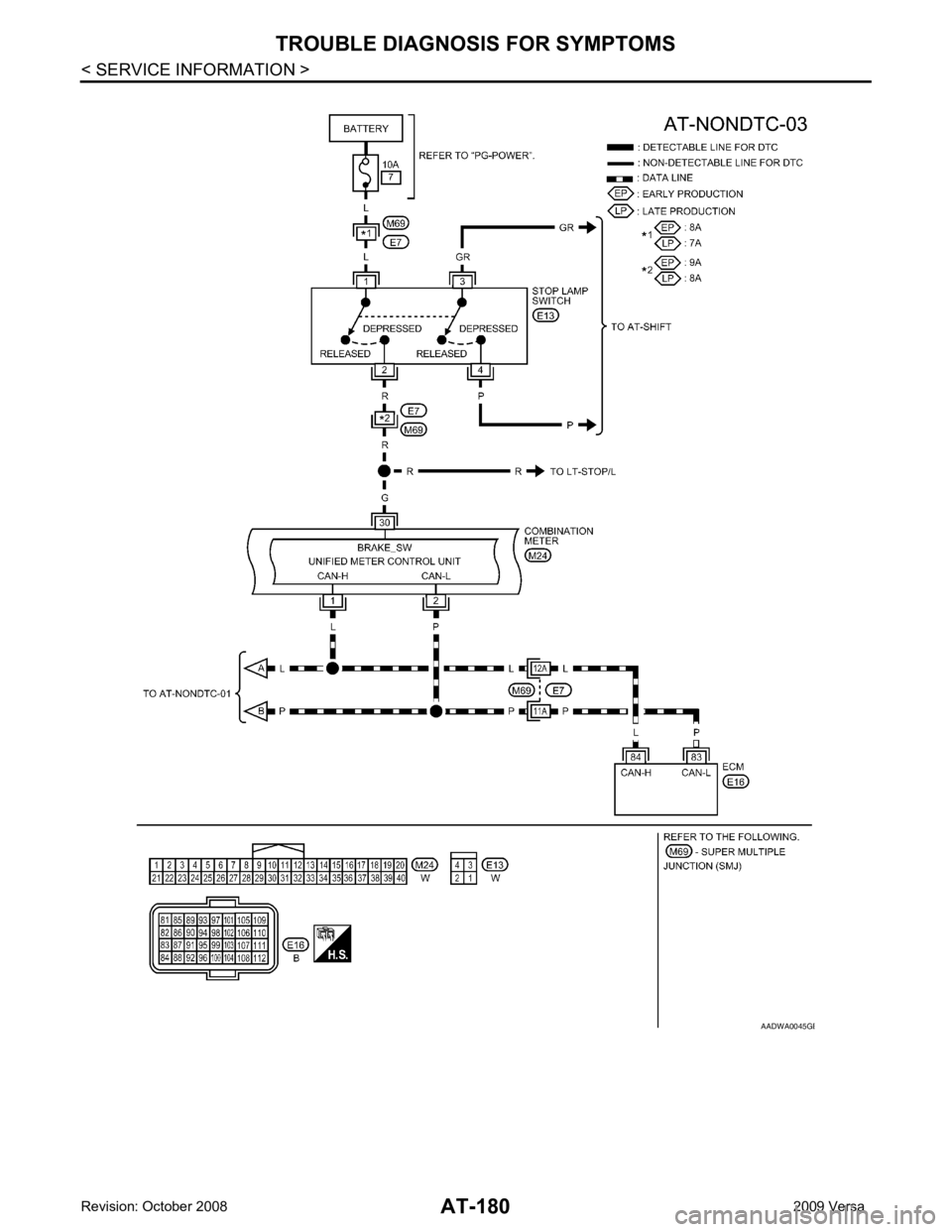

Page 185 of 4331

NISSAN LATIO 2009 Service Repair Manual B

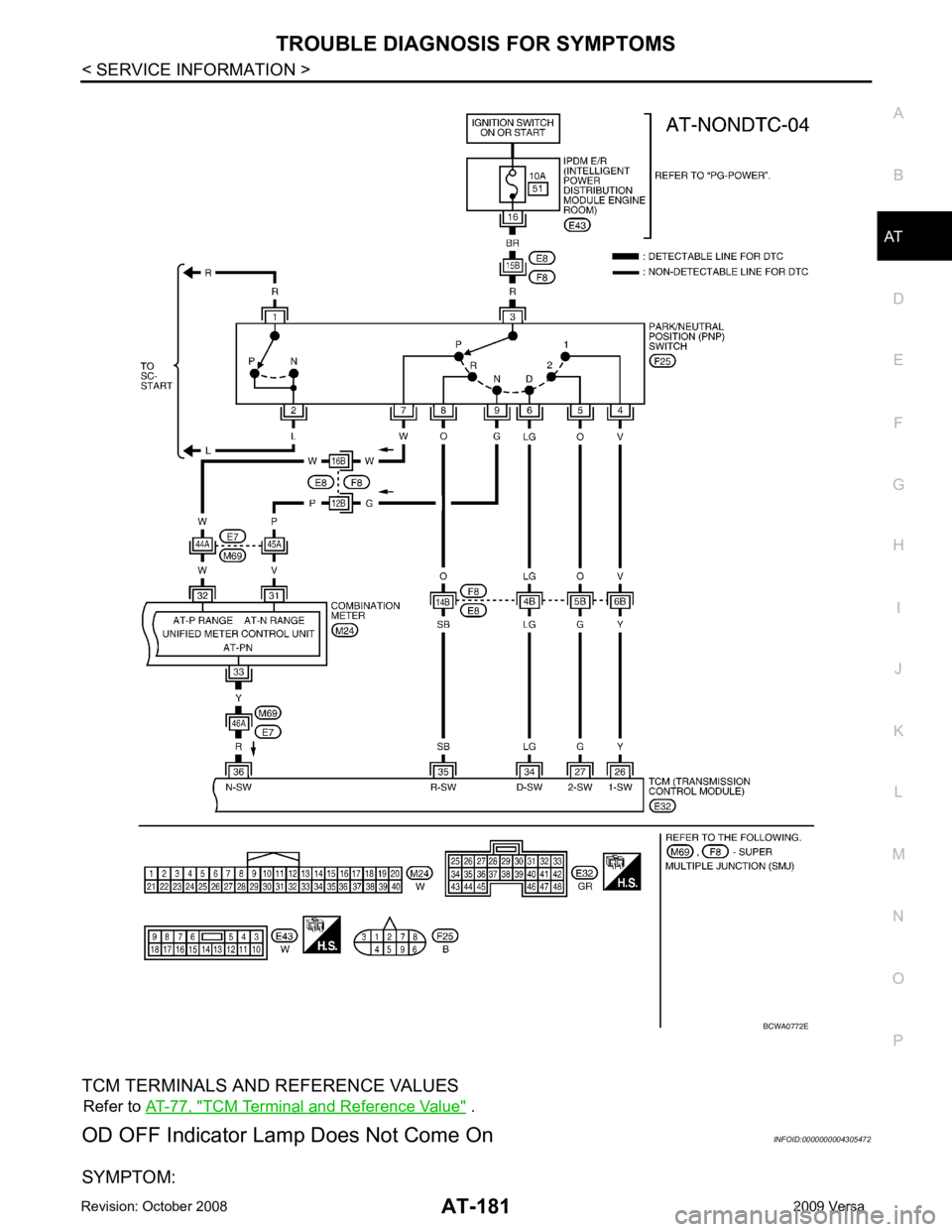

Page 186 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P TCM TERMINALS AND REFERENCE VALUES Refer to AT-77, " TCM Terminal and Reference Value " . OD OFF Indicator Lamp Does Not Come On INFOID:0000000004305472 SYMPTOM:

Page 187 of 4331

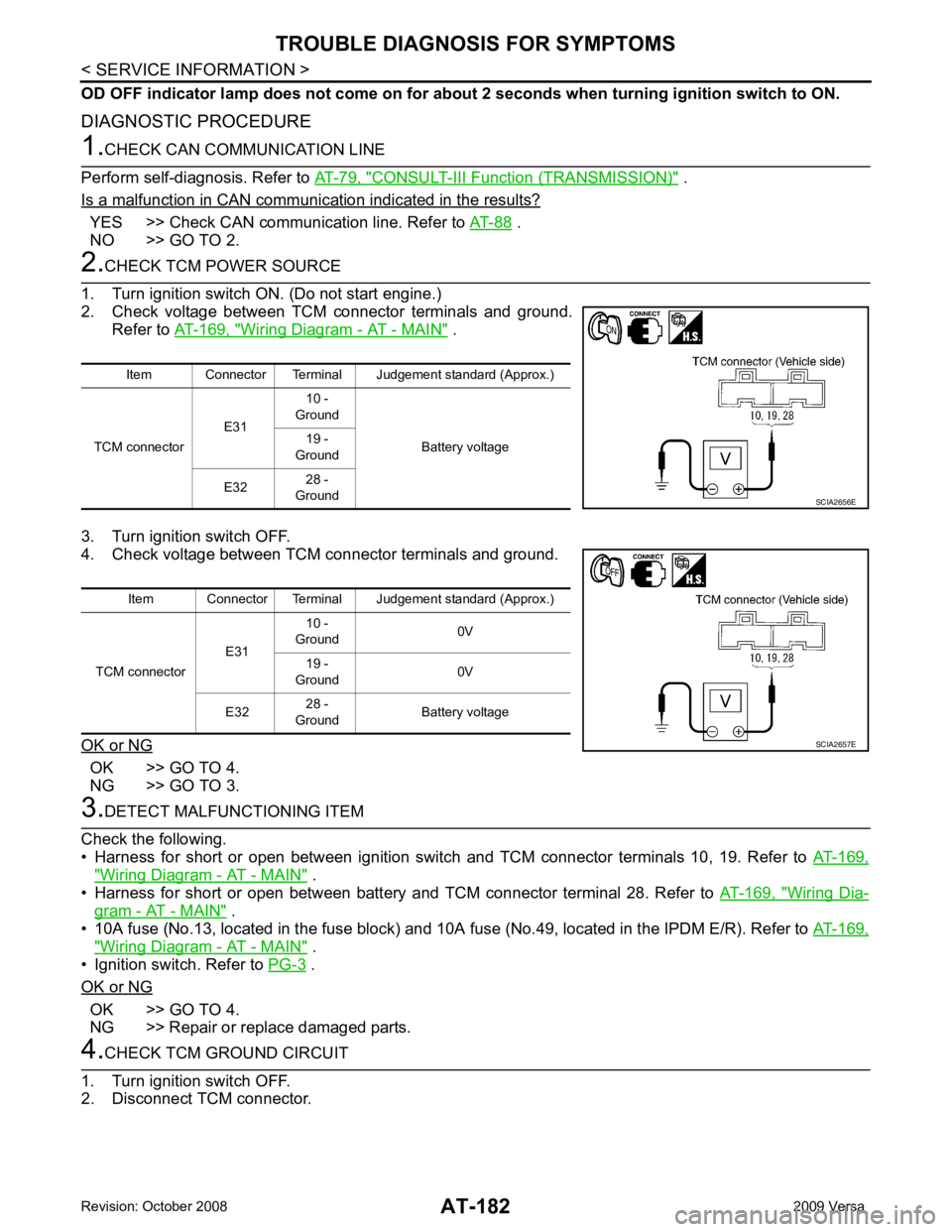

NISSAN LATIO 2009 Service Repair Manual AT-182< SERVICE INFORMATION > TROUBLE DIAGNOSIS FOR SYMPTOMS OD OFF indicator lamp does not come on for about 2 seconds when turning ignition switch to ON. DIAGNOSTIC PROCEDURE 1. CHECK CAN COMMUNICA

Page 188 of 4331

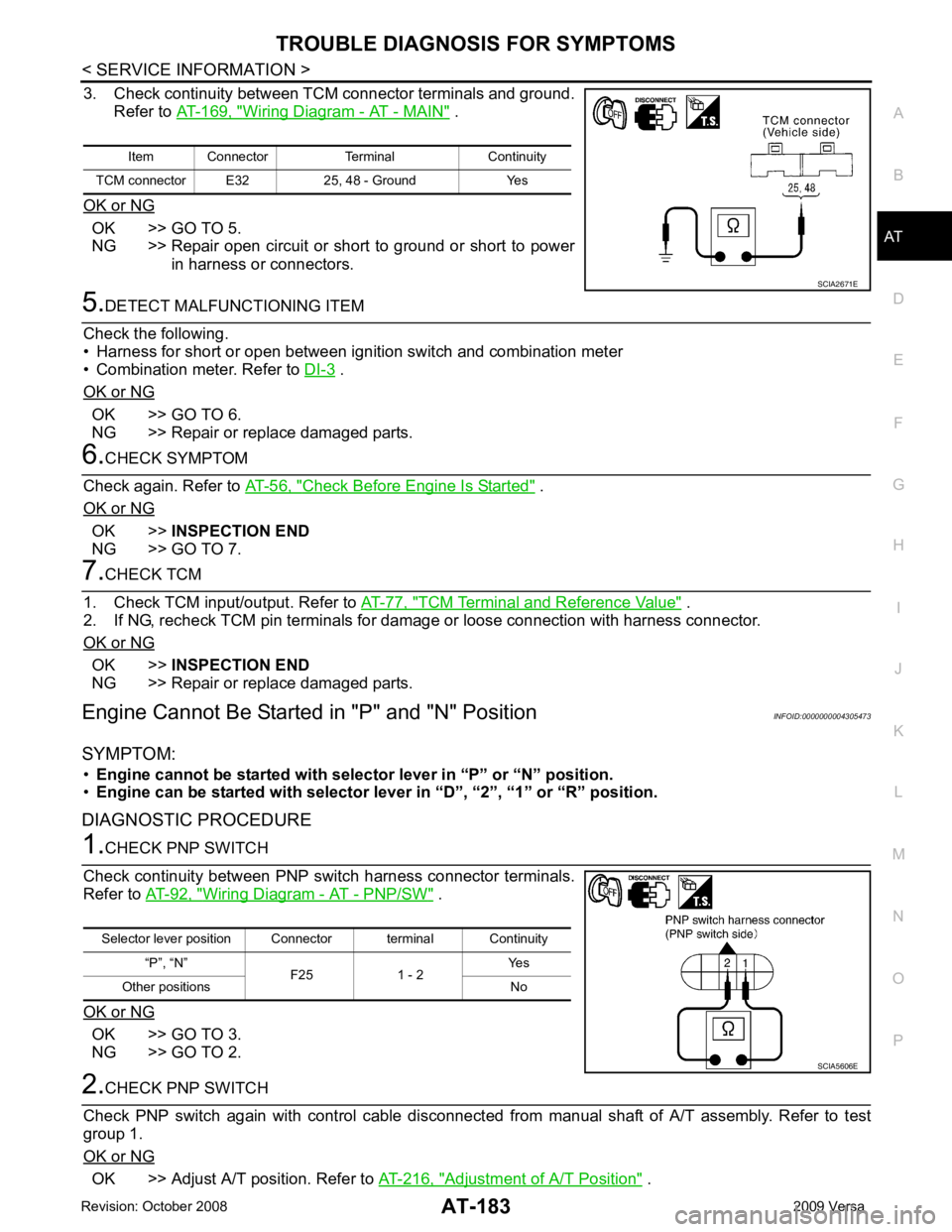

NISSAN LATIO 2009 Service Repair Manual AT N O P 3. Check continuity between TCM connector terminals and ground. Refer to AT-169, " Wiring Diagram - AT - MAIN " . OK or NG OK >> GO TO 5. NG >> Repair open circuit or short to ground or sho

Page 189 of 4331

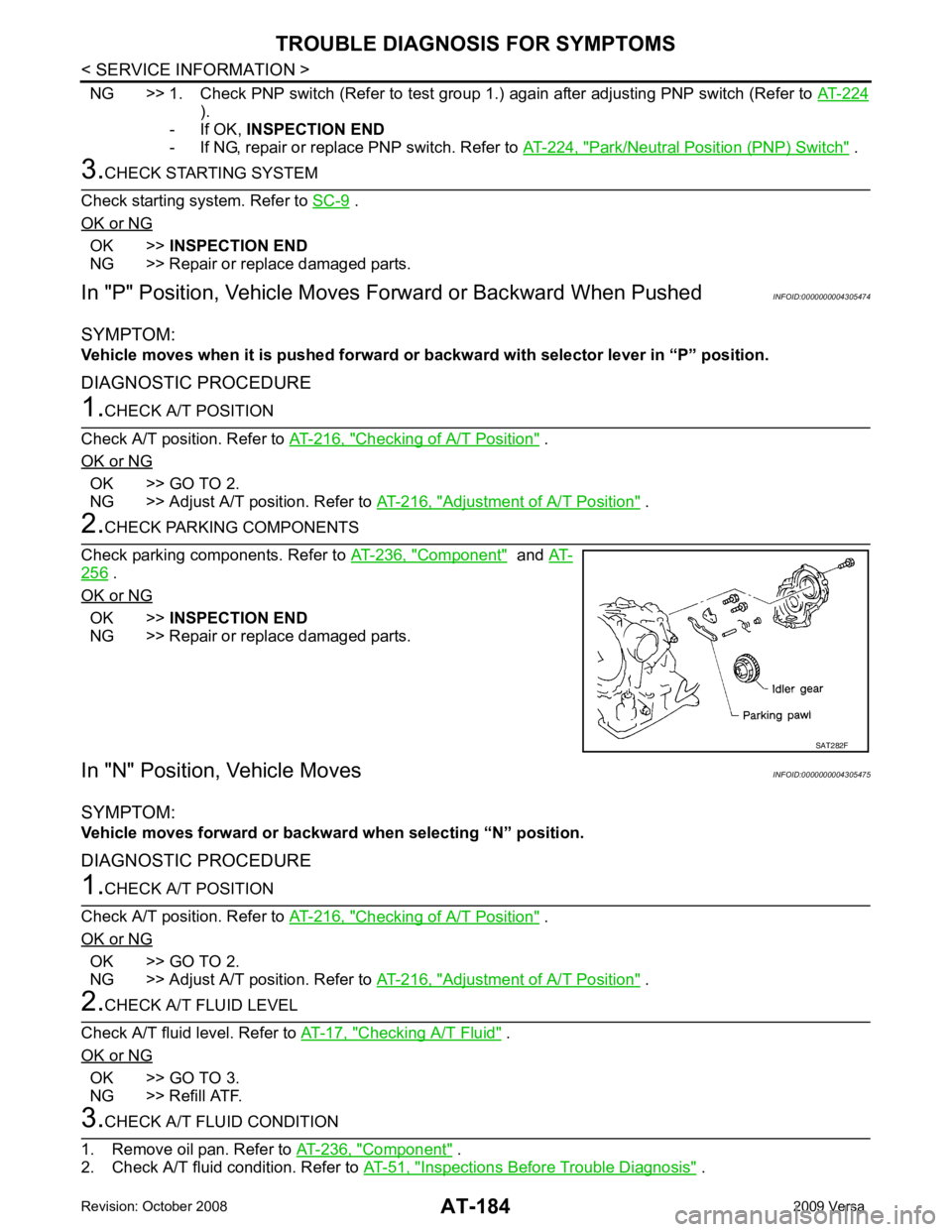

NISSAN LATIO 2009 Service Repair Manual ). - If OK, INSPECTION END - If NG, repair or replace PNP switch. Refer to AT-224, " Park/Neutral Position (PNP) Switch " . . OK or NG OK >> INSPECTION END NG >> Repair or replace damaged parts. I

Page 190 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P OK or NG OK >> GO TO 5. NG >> GO TO 4. Disassembly " . 2. Check the following items: - Forward clutch assembly. Refer to AT-306, " Forward and Overrun Clutches " . - Overrun clutch assemb

Page 191 of 4331

NISSAN LATIO 2009 Service Repair Manual Check at Idle " . OK or NG OK >> INSPECTION END NG >> GO TO 5. TCM Terminal and Reference Value " . 2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. OK or N

Page 192 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P 2. Check the following items: - Low & reverse brake assembly. Refer to AT-313, " Low & Reverse Brake " . - Reverse clutch assembly. Refer to AT-296, " Reverse Clutch " . OK or NG OK >>
