2009 NISSAN LATIO Service Repair Manual

stop start spare tire wheel alignment rear entertainment phone width

Load previous 8 pages

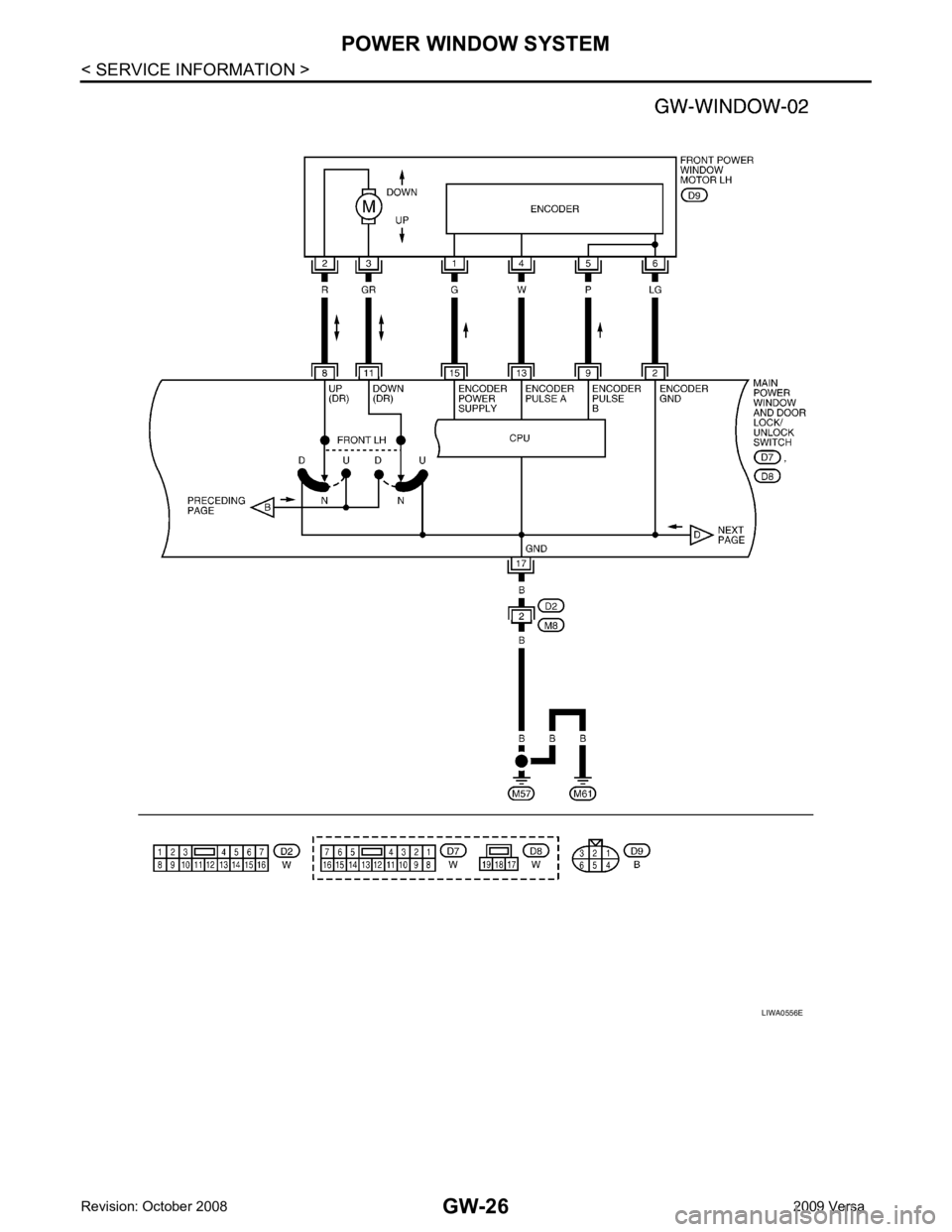

Page 3329 of 4331

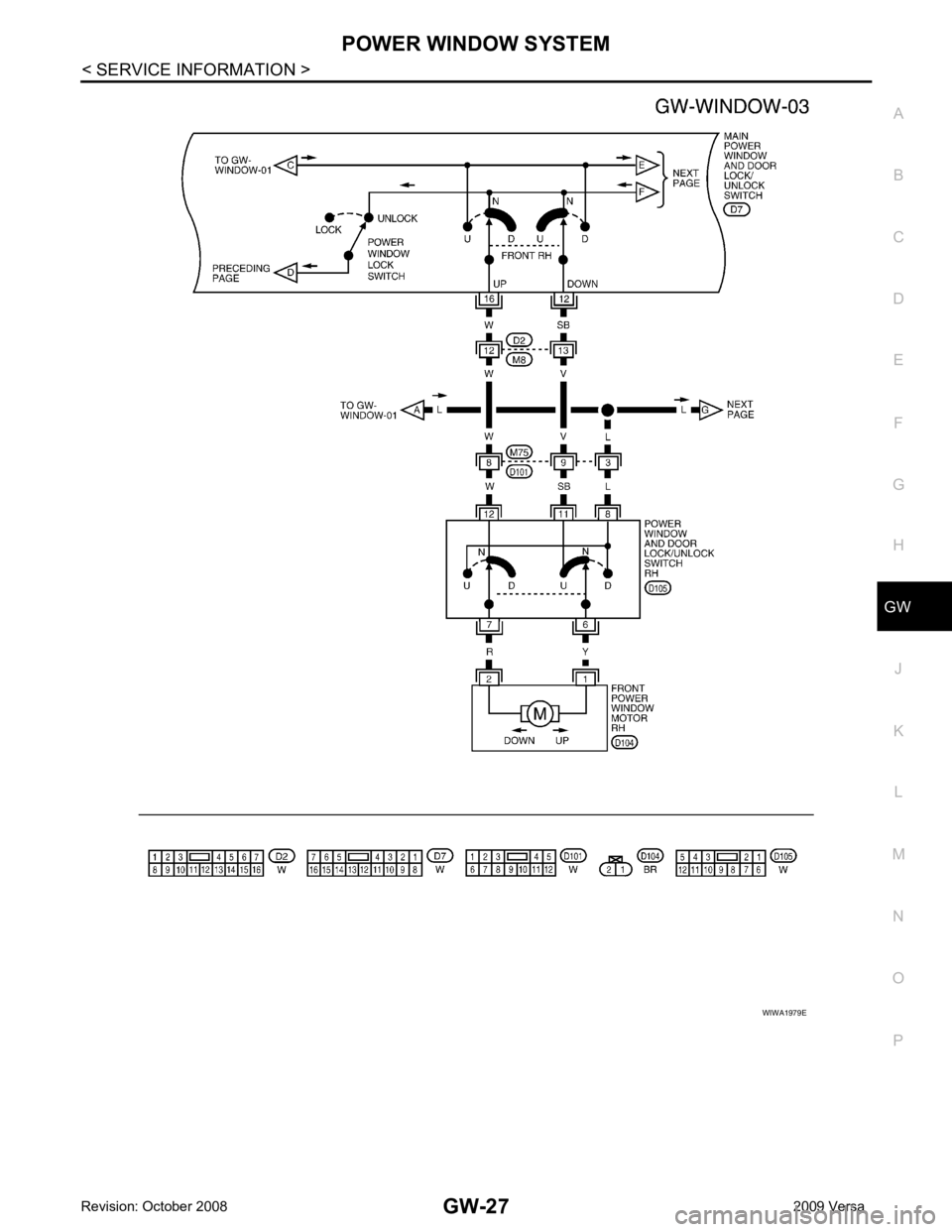

Page 3330 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P

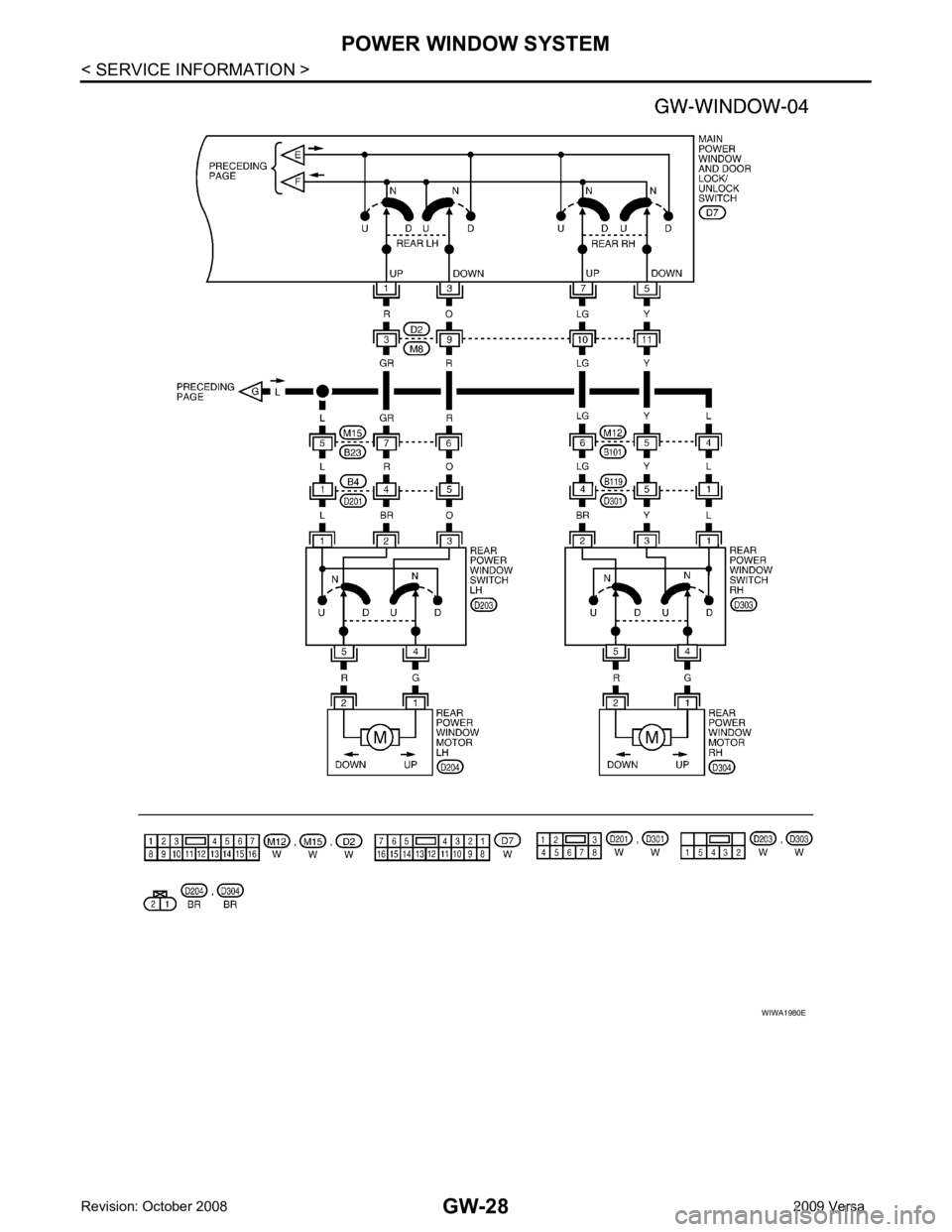

Page 3331 of 4331

Page 3332 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P

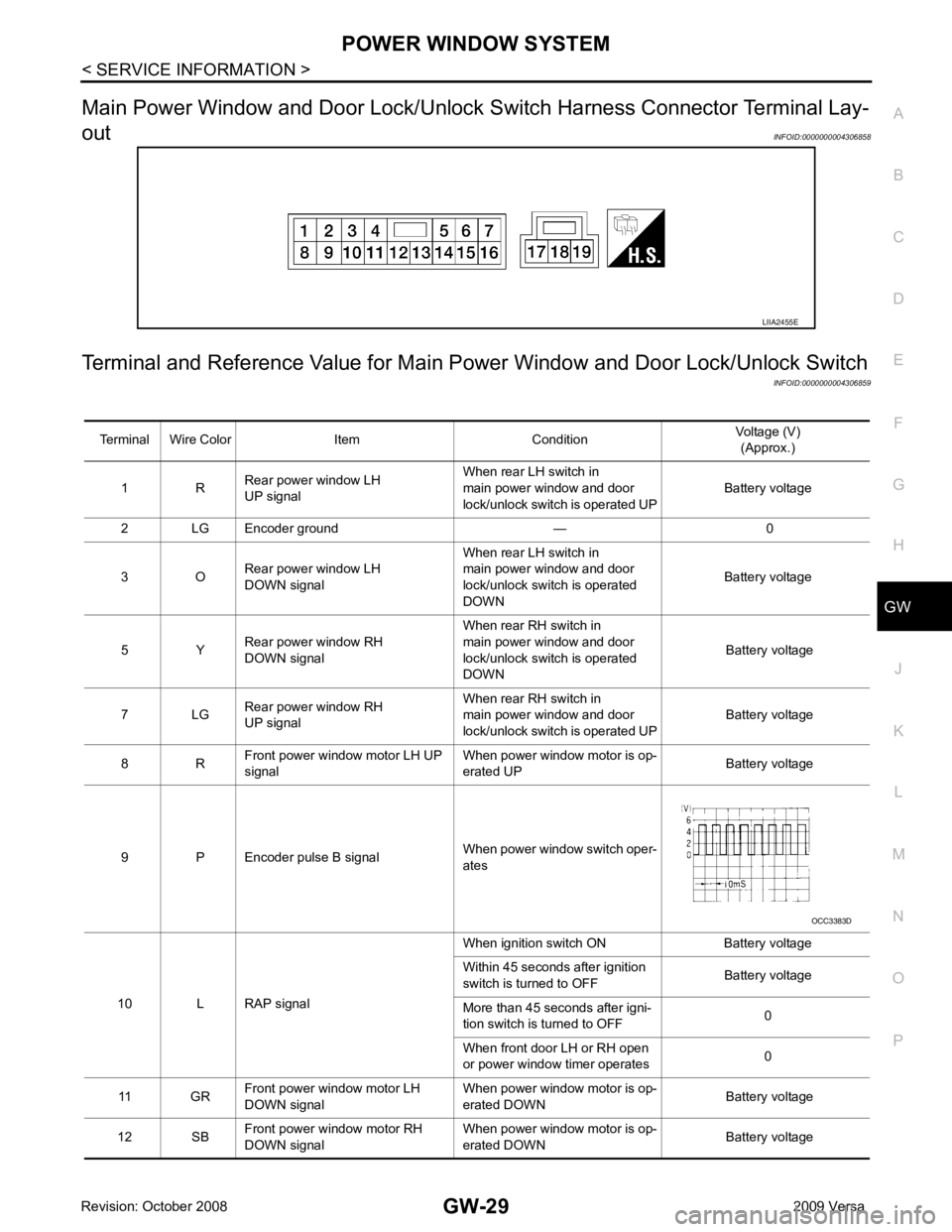

Main Power Window and Door Lock/Unlock
Switch Harness Connector Terminal Lay-
out INFOID:0000000004306858
Terminal and Reference Value for Main Po wer Window and Door Lock/Unlock Switch
INFO

Page 3333 of 4331

NISSAN LATIO 2009 Service Repair Manual Terminal and Reference Value for BCM " .
Work Flow INFOID:0000000004306861
1. Check the symptom and customers requests.
2. Understand the outline of system. Refer to GW-19, " System Description "

Page 3334 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P
WORK SUPPORT
DATA MONITOR
Power Window Auto Operation Initialization INFOID:0000000004306863
1. Turn the ignition switch ON.
2. Open the window—all the way DOWN.
3. Pull all the way UP on t

GW
N
O P
WORK SUPPORT
DATA MONITOR
Power Window Auto Operation Initialization INFOID:0000000004306863
1. Turn the ignition switch ON.
2. Open the window—all the way DOWN.
3. Pull all the way UP on the switch and hold (close the window). • Continue holding the switch all the way UP for 4 seconds after the window is closed.
4. Confirm the window is now operating correctly. NOTE:
• If the window is still not operating correctly, refer to GW-31, " Trouble Diagnosis Symptom Chart " .
• The above initialization procedure must be performed if any of the following occur:
- Battery cable is disconnected
- Power window switch connector is disconnected
- Power window regulator is replaced
- Power window motor is replaced
- Window glass is removed
- Window glass run rubber is replaced
- Power window fuse is blown
- Window is partly opened and/or closed many times without being fully closed.
Trouble Diagnosis Symptom Chart INFOID:0000000004306864
Check that other systems us ing the signal of the following systems operate normally.
Work item Description
RETAINED PWR RAP signal’s power supply period can be changed by mode setting. Selects RAP signal’s power
supply period between three steps
• MODE1 (45 sec.)/MODE2 (OFF)/MODE3 (2 min.). Work item Description
IGN ON SW Indicates (ON/OFF) condition of ignition switch
DOOR SW-DR Indicates (ON/OFF) condition of front door switch LH
DOOR SW-AS Indicates (ON/OFF) condition of front door switch RH Symptom Repair order Refer to page
None of the power windows can be operated using any switch 1. BCM power supply and ground circuit check
BCS-15 2. Main power window and door lock/unlock
power supply and ground circuit check GW-32 3. Replace main power window and door lock/
unlock switch EI-34Front power window LH alone does not operate
1. Front power window motor LH circuit check
GW-33 2. Replace main power window and door lock/
unlock switch EI-34Front power window RH does not operate from power window and
door lock/unlock switch RH only 1. Front power window RH circuit check (power
window and door lock/unlock switch RH opera-
tion) GW-34Front power window RH does not operate from main power window
and door lock/unlock switch only 1. Replace main power window and door lock/
unlock switch EI-34Front power window RH does not operate from any switch 1. Front power window motor RH circuit check
GW-34

Page 3335 of 4331

NISSAN LATIO 2009 Service Repair Manual BCM Power Supply and Ground Circuit Inspection " .

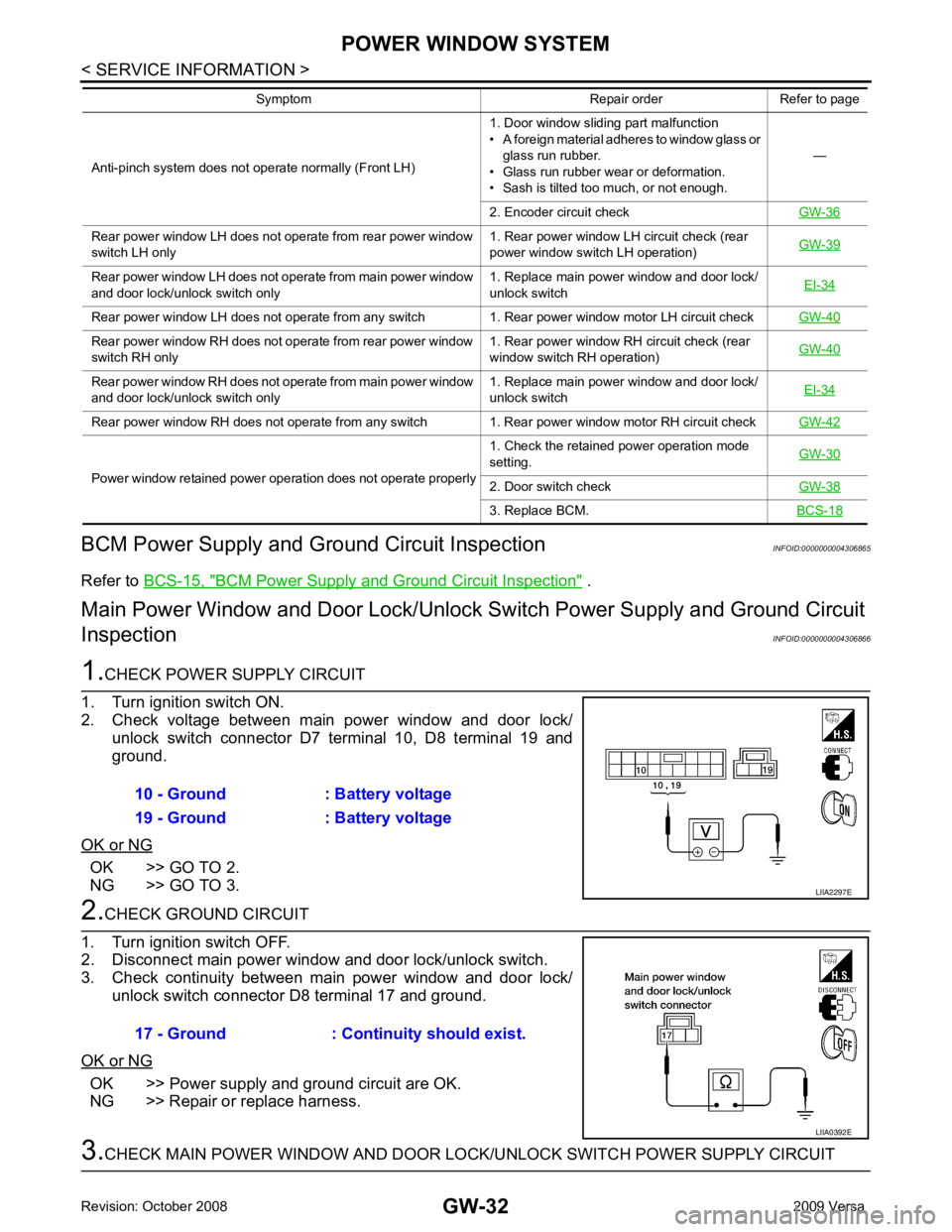

Main Power Window and D oor Lock/Unlock Switch Power Supply and Ground Circuit
Inspection INFOID:0000000004306866OK >> GO TO 2.
NG >> GO TO 3. OK >

Page 3336 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P

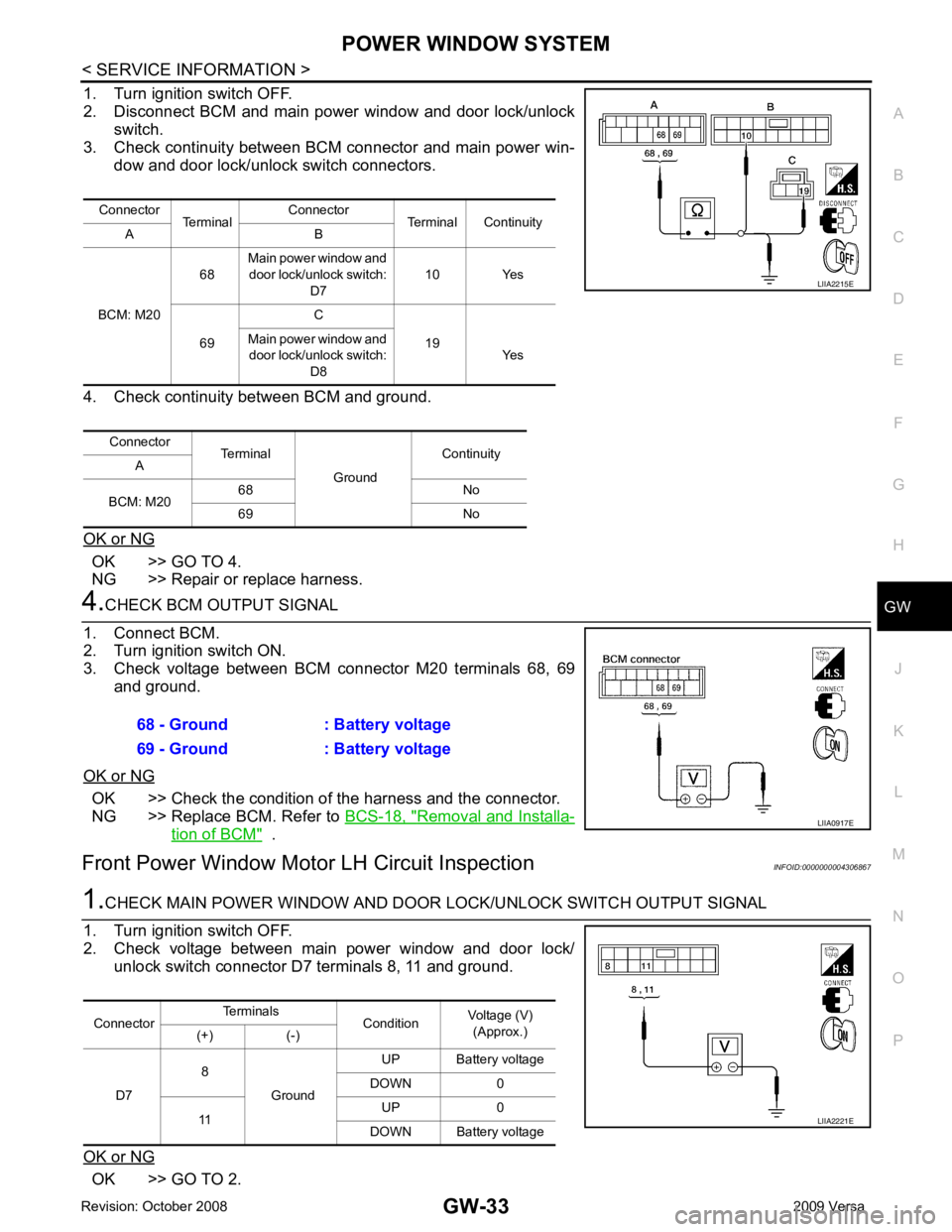

1. Turn ignition switch OFF.
2. Disconnect BCM and main power window and door lock/unlock
switch.
3. Check continuity between BCM connector and main power win-
dow and door lock/unlock s

Load next 8 pages
