Page 1265 of 4331

NISSAN LATIO 2009 Service Repair Manual OVERDRIVE CONTROL SWITCH CVT-321 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P Check continuity between CVT dev ice harness connector terminals. Item Condition Connector Terminal

Page 1266 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> INSPECTION END NG >> Check the following. SHIFT POSITION INDICATOR SYMPTOM CHART Item name Condition Display value RANGE Selector lever in “N ” or “P” position. N·P Selector lever in

Page 1267 of 4331

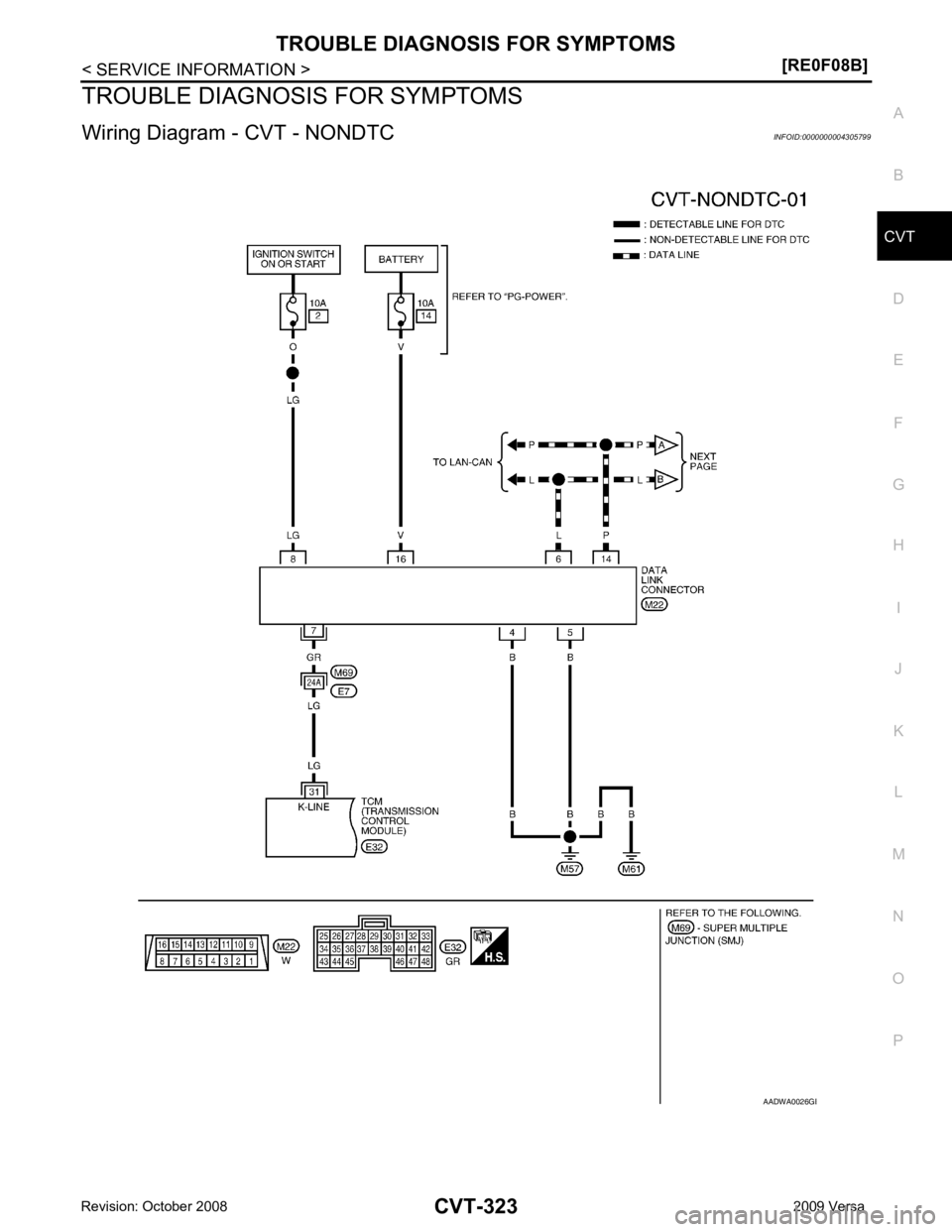

NISSAN LATIO 2009 Service Repair Manual CVT N O P TROUBLE DIAGNOSIS FOR SYMPTOMS Wiring Diagram - CVT - NONDTC INFOID:0000000004305799 B

Page 1268 of 4331

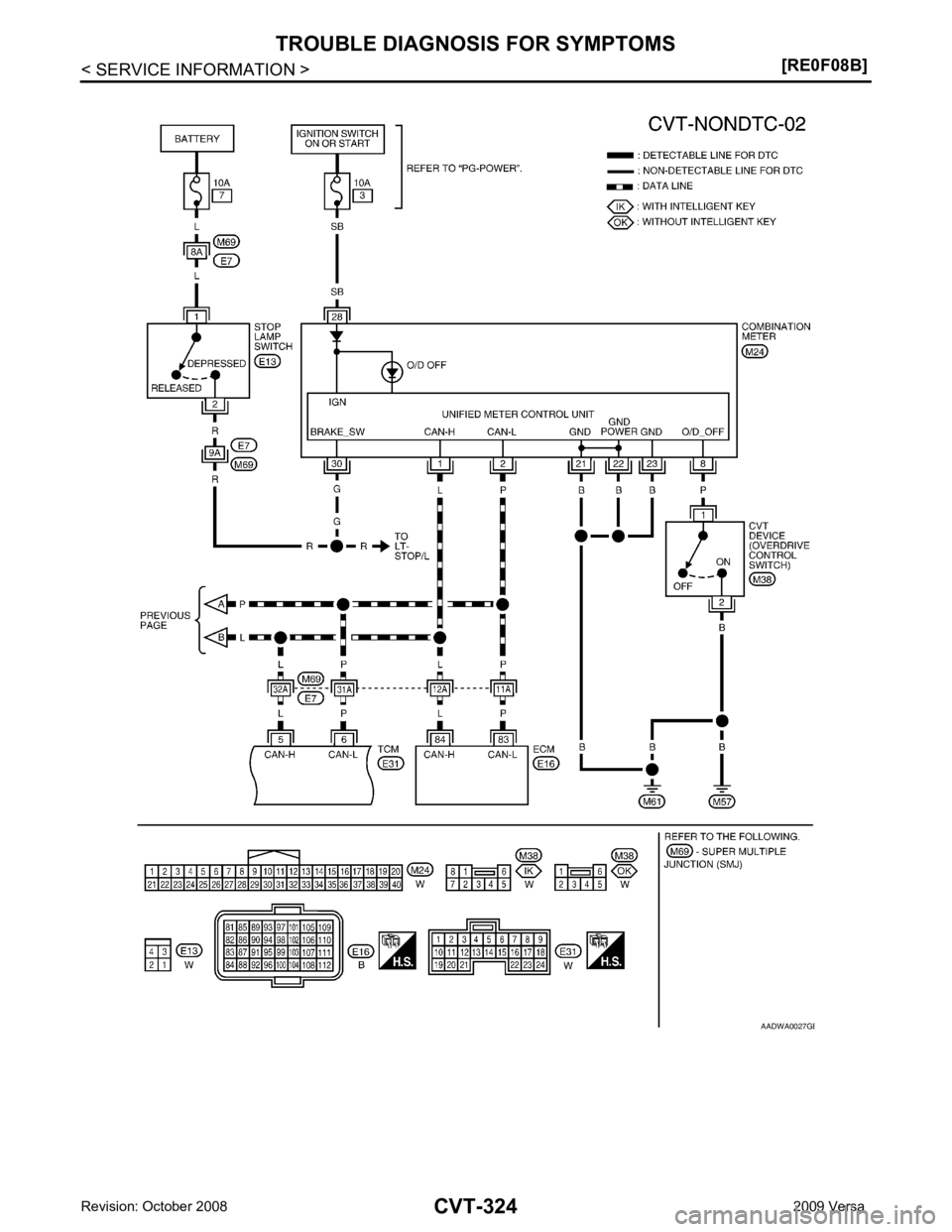

NISSAN LATIO 2009 Service Repair Manual B

Page 1269 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT N O P TCM TERMINALS AND REFERENCE VALUES Refer to CVT-228, " TCM Terminal and Reference Value " . O/D OFF Indicator Lamp Does Not Come On INFOID:0000000004305800 SYMPTOM: B

Page 1270 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT-326< SERVICE INFORMATION > [RE0F08B] TROUBLE DIAGNOSIS FOR SYMPTOMS O/D OFF indicator lamp does not come on for about 2 seconds when turning ignition switch ON. DIAGNOSTIC PROCEDURE 1. CHECK CAN

Page 1271 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT N O P Check again. Refer to CVT-224, " Check before Engine Is Started " . OK or NG OK >> INSPECTION END NG >> GO TO 7. OK or NG OK >> INSPECTION END NG >> Repair or replace damaged parts. Engine

Page 1272 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> INSPECTION END NG >> Replace the transaxle assembly. Refer to CVT-354, " Removal and Installation " . In "N" Position, Vehicle Moves INFOID:0000000004305803 SYMPTOM: Vehicle moves forward or ba
